BLUE BIRD Transporter 500 D Tracked Power Barow - Dumper Barrow with 500 Kg Capacity

Add a question
ID: K601421

EAN: 8025518382297

MPN: 884190

8,1/10
After-sales assistance & Spare parts
BLUE BIRD Transporter 500 D Tracked Power Barow - Dumper Barrow with 500 Kg Capacity
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Foam air filterFoam air filter
Foam air filterFoam air filter
Load capacity
500 Kg
Barrow body type
Dumper
Body tipping
Hydraulic
Max. slope
20 %
Type
High undercarriage with tracks
Motor brand
Loncin
Motor Model
G200F
Motor type
4-stroke
Cubic capacity
196 cm³
Nominal power
6.5 HP
Gear shifting system
Mechanical gearbox
Gears
6+2
Assisted steering
Yes
Tilting track
Body dimensions
95x68x46.5 cm
Product Features
Model:
Transporter 500 D
Type :
High undercarriage with tracks
Self-propelling:
Yes
Load capacity:
500 Kg
Max. slope:
20 %
Load capacity on slopes:
500 kg
Barrow body type:
Dumper
Dumper body:
Body tipping:
Hydraulic
Body dimensions:
95x68x46.5 cm
Effective inner height:
465 mm
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Gearbox:
In oil bath
No. of forward speeds:
6
Gears:
6+2
Forward speed:
6
Reverse speed:
2
Operating mode:
Gear lever
Equipment
Hydraulic piston:
Yes
Box:
Dumper
Hydraulic tipping kit:
Yes
Assisted steering:
Yes
Tilting track:
Track width:
180 mm
Total rollers no.:
4
Recoil start system (with rope):
Yes
Rubber-coated soft grip:
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Instructions manual:
Yes
Dimensions and logistics

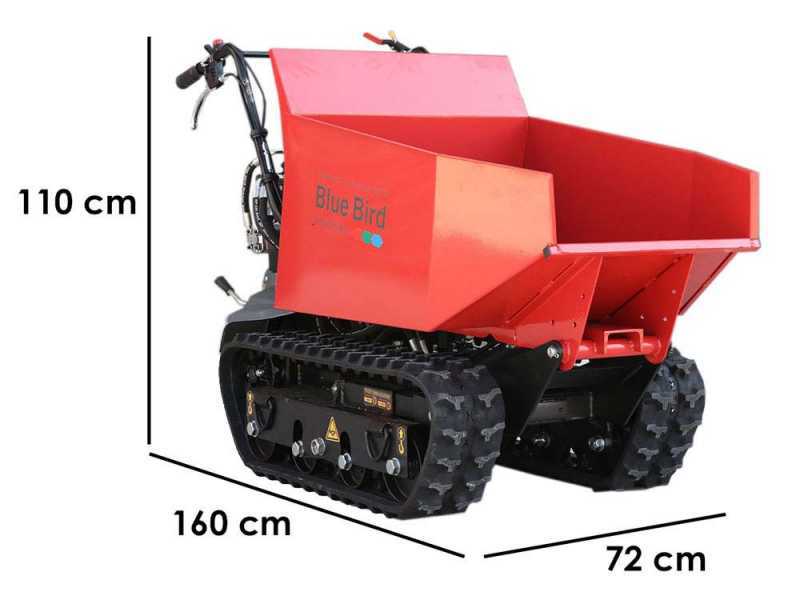

Product dimensions in cm (L x W x H):
160x72x110 cm
Net weight:
263 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
163x74x118 cm
Gross weight (packaging included) :
307 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 30/04/2025 - 05/05/2025
€ 3.135,23
Vat included
You're viewing:
Customers also viewed:
Description

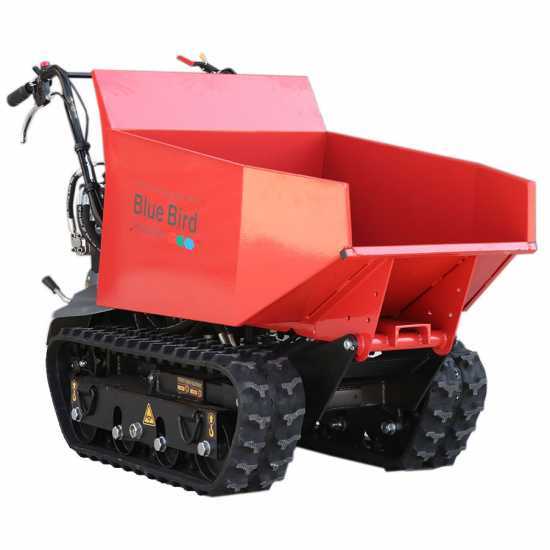

BLUE BIRD Transporter 500 D Tracked Power Barrow

Tracked power barrow equipped with dumper barrow with an actual capacity of 500 kg. The hydraulic tilting of the body of which this tracked power barrow is equipped with, facilitates at the maximum each working stage, eliminating the effort to raise the tipping a load time.

Thanks to its tracks and to the powerful Loncin engine this tracked power barrow is able to carry loads of 500 Kg also on slopinggrounds, thus being an indispensable tool for each type of transport (wood, concrete, bricks, rubble, debris, etc.)

The robust steel frame and the gearbox with three forward gears and one backward make this tracked power barrow versatile and efficient. The tracked power barrow is also equipped with a lever for adjusting the two different speeds thus doubling the available gears getting to 6 gears forward and 2 for reverse. Additional features of this tracked power barrow are tall wagon and higher tracks compared to the usual tracked power barrows, which ensure more stability during use.

The machine is equipped with a powerful Loncin G200F,engine capable of delivering:

  • 6.5HP Power

Loncin G200F Engine

TheLoncin G200F engine is suitable for works where a great power is required obtained thanks to the high displacement of 270 cc


Features:

Engine Type
4-Stroke
Cylinder type:
Cast iron
Cubic Capacity:
196 cm³
Fuel:
Petrol

4-Stroke petrol engine of the latest generation with overhead valve shaft “OHV starting with automatic decompresser.

Easy recoil start
thanks to the automatic fuel priming system.


ATTENTION The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Rated Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers.

* This figure is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power
Effective power: 5.5 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

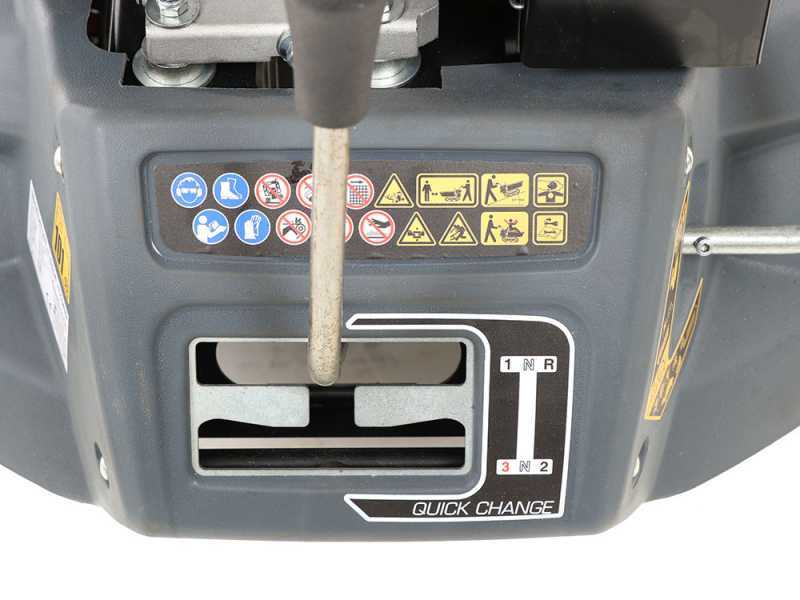

Gearbox, Parking Brake and Transmission

Gearbox: large, reliable and accurate.
The tracked power barrow is provided with reducer gears, which allows him to double the gears and get to 6 to go forward and 2 for reverse. Thanks to the regulator will be able to always have the right traction in any situation. The use the same concept as off-road vehicles.

Through the lever located to the right of gearbox it will be possible to choose between two speeds. The fastest gears are indicated for the smoothest portions while setting the low speed (Low range) it will be possible to cross with ease even the roughest spots.


Parking brakes:
annexes to the gearbox, for greater stability and security.
These are automatically activated to release the command (leaving the car in neutral, even in strong gradient, the machine remains perfectly blocked)


Transmission:
Robust and resistant, it allows to manage the steering acting on the single track deactivating the rotation

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

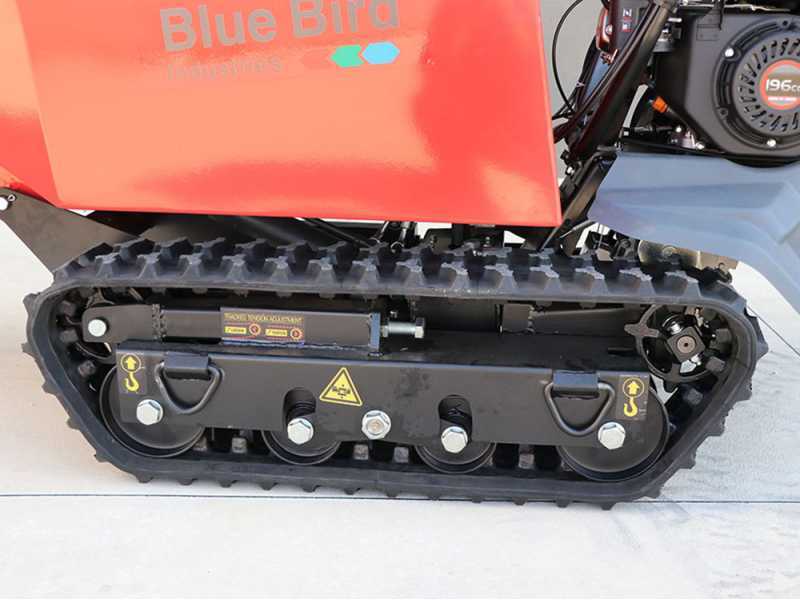

Tilting Tracks and High Cart

The tracked power barrow has the tilting tracks . The two central rollers unlike the others are movable and are able to move depending on the obstacle that you are faced with thus allowing the machine to always have the maximum grip on the ground. This tracked power barrow model also has a tall wagon and higher tracks than many of the tracked power barrows on the market. The wagon so high, no less than 13 cm from the ground allows the tracked power barrow to travel even on more uneven road and disconnected always with the maximum safety and adhesion since, given the large gap, the lower part of the tracked power barrow not scrape the ground.

The shape of the tracks, in inverted trapezoid, allows the tracked power barrow to be able to pass with ease even the most insidious obstacles such as walls and stairs, while ensuring safety and stability. The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Tracked tilting in function

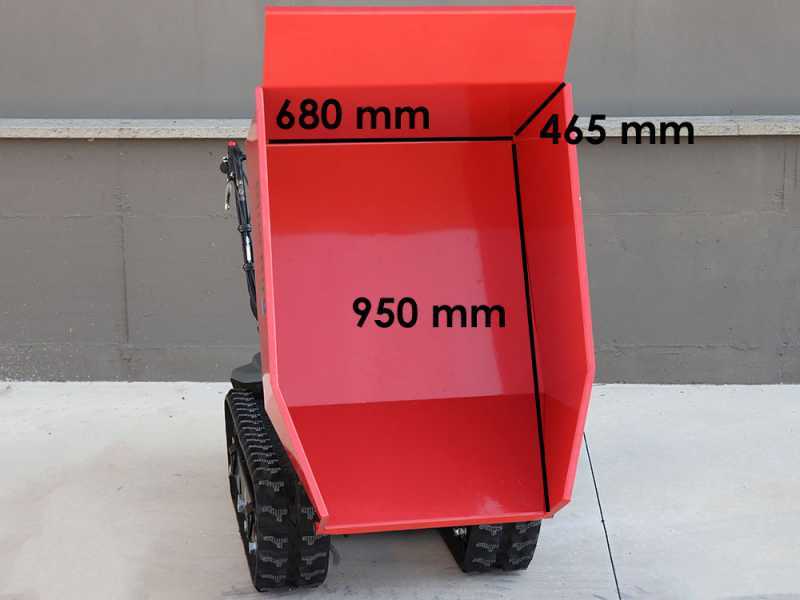

Extendable Tipping Barrow

Barrow in high-resistance steel, it is reinforced with tubular cross members in the lower part, which make it suitable for any load or impact. The tracked power barrow has an effective capacity of 500 Kg Even on sloping ground.

To facilitate the tilting operation, discharging the weight of the operator, and to keep it in the tilted position the barrow, the tracked power barrow is provided with hydraulic piston placed under the frame.
In this way all the phases of the work will be much facilitated.

Barrow dimensions 950x680x465 mm

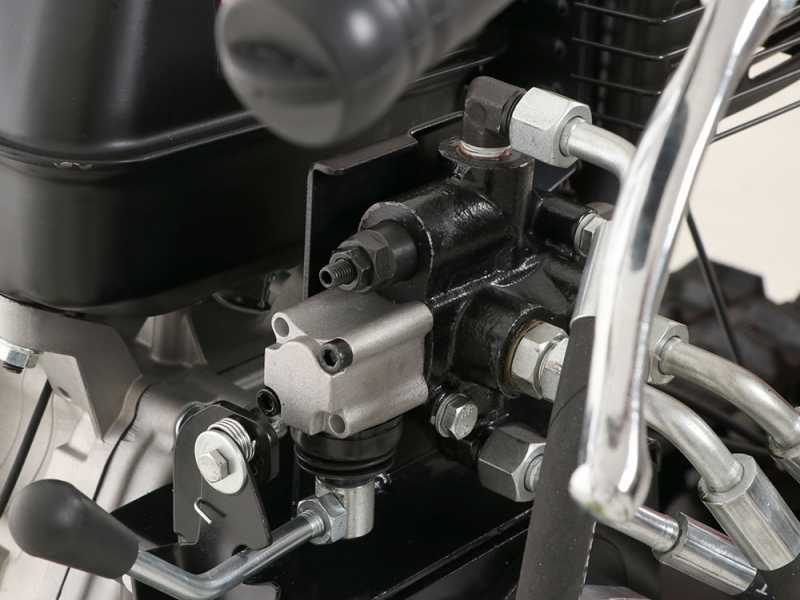

Barrow with Hydraulic Lifting

Powerful hydraulic circuit characterized by:

- oversized hydraulic pump

- distributor has a lever to start the pump

- sturdy hydraulic cylinder fitted with a blocking valve that ensures the blocking of the tipping in the case of sudden pressure loss

- maximum tilting angle 80°

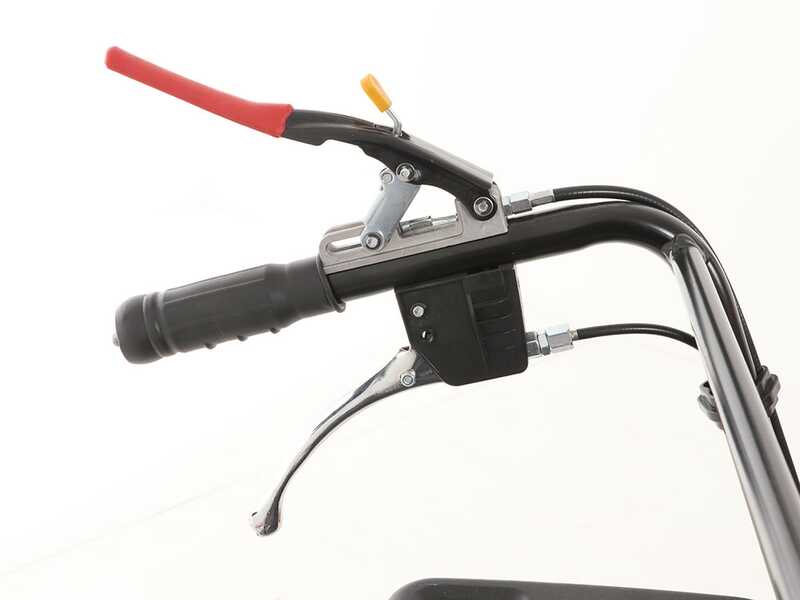

Controls

Control: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The two lower levers are for the steering, respectively right and left.

The steering is modulated as a function of the control lever and allows it to move smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.
This allows the steering of the tracked power barrow in an extremely easy way, without causing any sudden movements.

Safety brake that allows the immediate arrest.

Accelerator lever and power switch

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Free Items included

The tracked power barrow is provided in its original pallet packaging.

Manual and set of wrenches for adjusting and assembly
