Blue Bird Carrier 500 DH - Dumper tracked wheelbarrow - Capacity 500Kg

The petrol-driven Blue Bird Carrier 500 DH is a robust and versatile solution for transporting heavy materials over rough and sloping terrain. Designed for intensive use, this wheelbarrow is equipped with a 196 cc 4-stroke Loncin engine and 6.5 HP power, which guarantees high performance and reliability.

The 500 kg load capacity makes it ideal for agricultural, construction and greenery maintenance applications, efficiently responding to heavy transport needs.

The Dumper body, with reinforced structure, allows the handling of bulky and heavy materials. The hydraulic tipping function simplifies unloading, reducing time and manual effort and ensuring convenient load handling even on uneven surfaces.

The absence of holes, within the container, allows the transport of liquid materials without leakages.

Thanks to the power and robustness of the Loncin engine, this petrol-driven motorcycle is perfect for working in professional environments, ensuring stability and safety even in difficult working conditions.

Key features:

• Loncin 4-stroke engine : 196 cc, 6.5 HP internal combustion engine for optimum performance.
• Load capacity 500 kg: ideal for transporting heavy materials on different types of soil.
• Dumper body: designed for high strength and stability during transport.
• Hydraulic tipping allows materials to be unloaded easily, reducing working time.

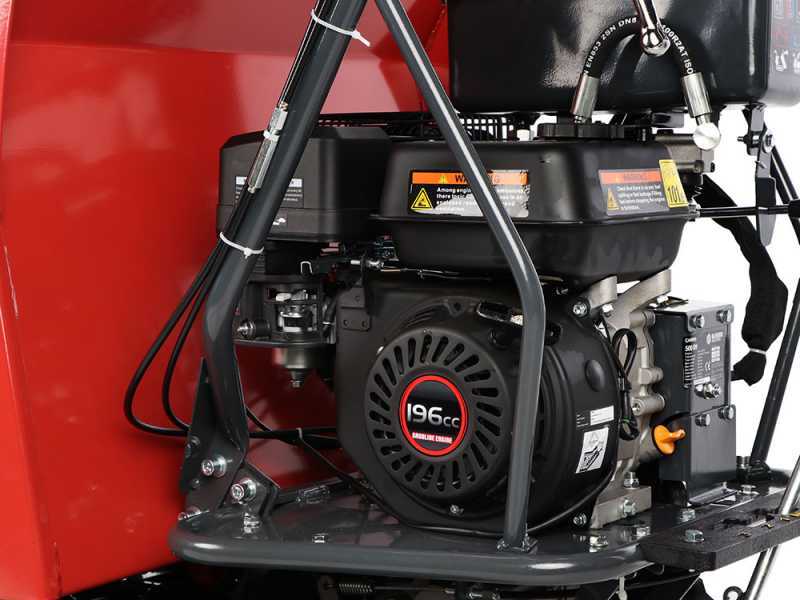

The Loncin G200F engine is suitable for jobs where it is required high power due to its high displacement of 196 cc.

Features:

Four-Stroke petrol engine of the latest generation with overhead valve “OHV” technology.

Easy recoil start, thanks to the automatic fuel priming system.

WARNING The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 5.5 Hp
Corresponds to the actual power expressed at the crankshaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

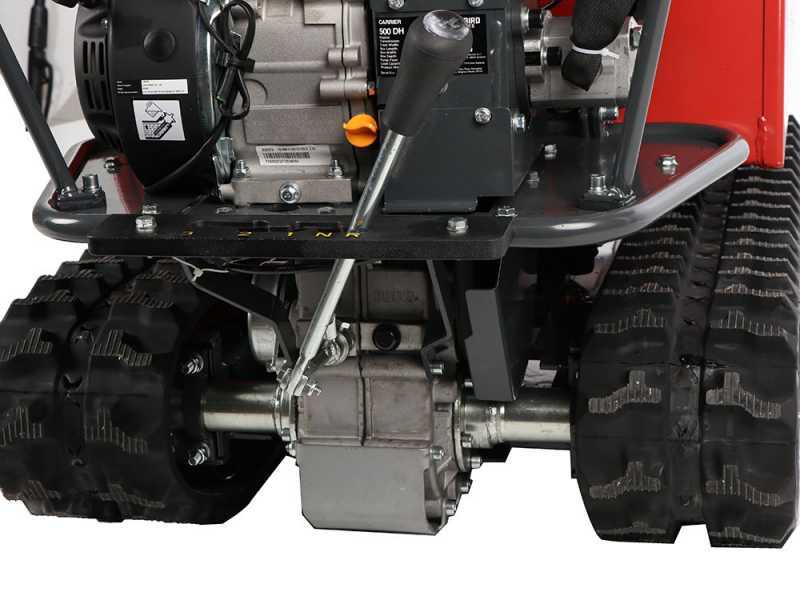

Gearbox: Large, reliable and precise.

Speed:
3 forward gears
1 reverse gear

Parking brakes:
connected to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

Transmission:
Sturdy and resistant, it allows steering by acting on the single track, disengaging its rotation.

The machine is supplied by the manufacturer with transmission oil level. However, oil levels must ALWAYS be checked before switching on as specified in the instruction and maintenance booklet.

With their tread width and profile, they guarantee perfect grip and stability on all types of terrain.

Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Total track width: 180 mm

Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain.

Tracks made in high-density rubber to ensure a longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 4 Rollers.

Rear of track with pointed ‘tank-type’ upper corner that allows it to climb steps or other obstacles with ease.

The sturdy frame with steel structure in high thickness which limits the vibrations and noise.

The low centre of gravity also ensures optimum stability when working, The position of the engine and transmission facilitates maintenance.

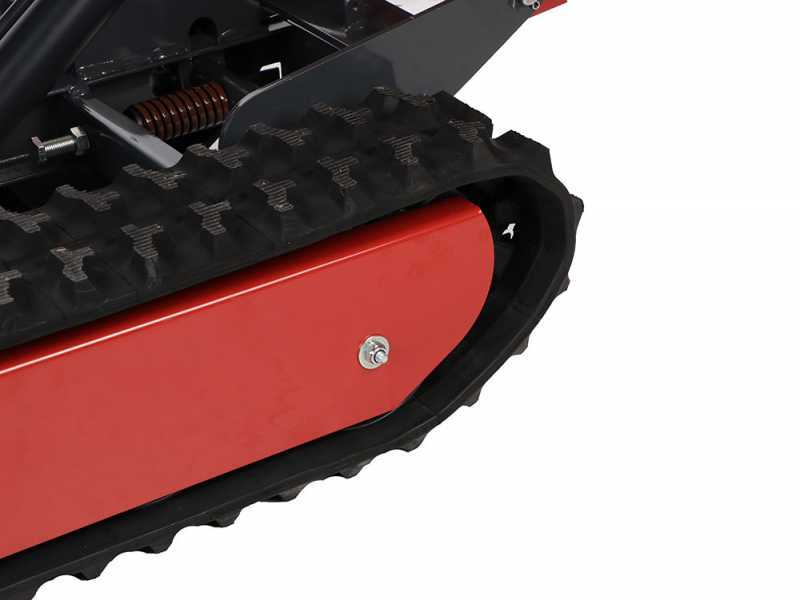

Adjustment of track tension thanks to the tensioning springs.

Barrow, made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress.

In addition, the body structure is completely welded and free of holes, making it watertight, which allows the transport of any material with a high liquid content.

The load floor is at the minimum distance from the ground both to facilitate the operations of loading / unloading that to keep low the centre of gravity of the machine.

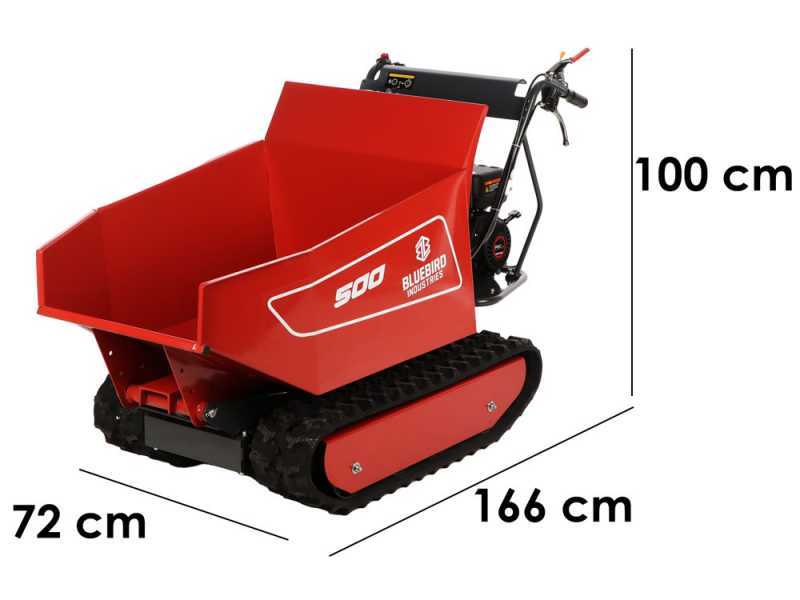

Caisson size: 950x680x465 mm

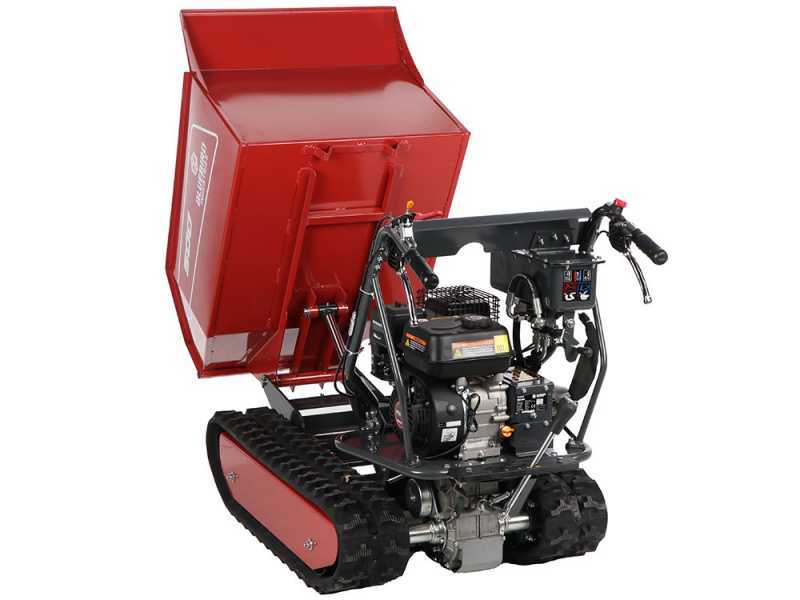

To facilitate the tipping operation, unloading the operator's weight, and to keep the body in the tipped position, the wheelbarrow is equipped with a hydraulic piston placed under the chassis. This will make all stages of the work much easier. To tip the body, simply operate this lever.

Detail of hydraulic oil tank cap

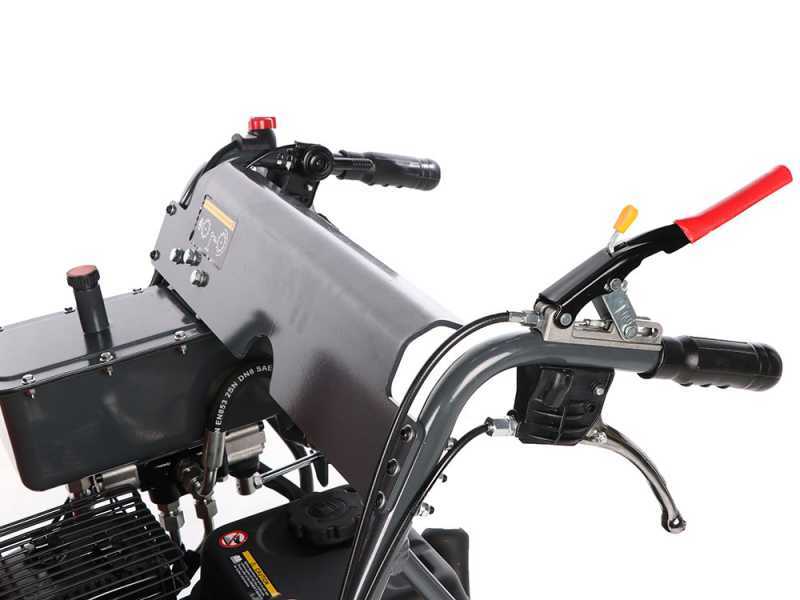

The machine is provided with two lower levers for steering, respectively on the right and on the left.

Large red lever for motion activation. The two lower levers are for the steering, respectively, right and left.

The steering can be adjusted depending on the control lever and it allows smooth moving. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial. This allows the wheelbarrow to be steered extremely smoothly, without causing abrupt movements.

Throttle lever

Power button
