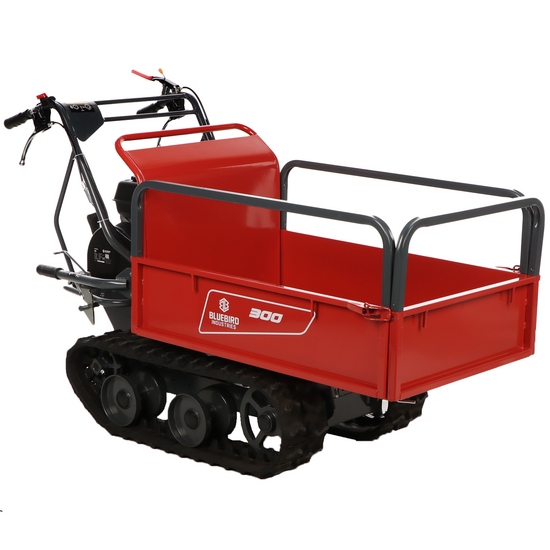

Blue Bird Carrier 300 - Extendable crawler wheelbarrow- Capacity 300Kg

Key features of the Blue Bird Carrier 300:

• Loncin 4-stroke engine: Power of 6.5 HP, 196 cc.
• Load capacity : up to 300 kg.
• Extendable body : for transporting large loads.
• Manual tipping : easy and quick unloading.
• Crawler construction : excellent grip on complex terrain and slopes.

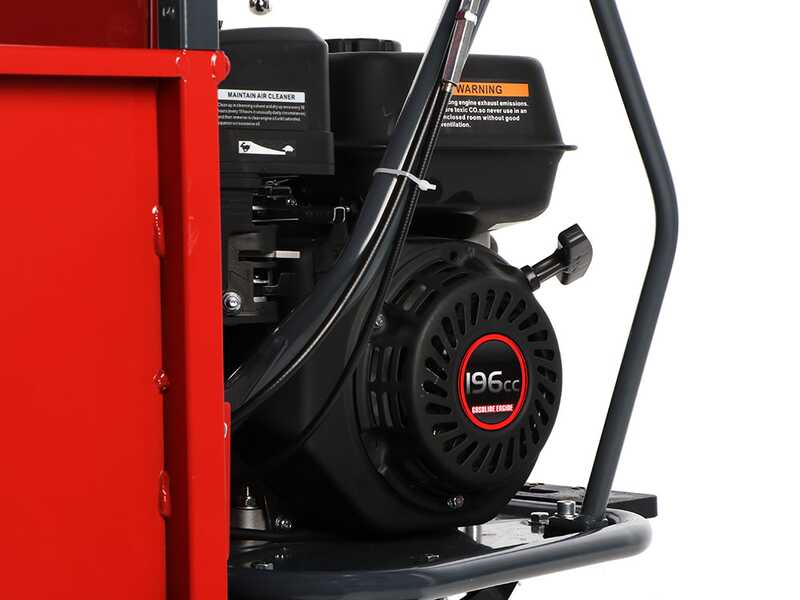

The Loncin G200F engine is suitable for jobs where it is required high power due to its high displacement of 196 cc.

Features:

Four-Stroke petrol engine of the latest generation with overhead valve “OHV” technology.

Easy recoil start, thanks to the automatic fuel priming system.

WARNING The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 5.5 Hp
Corresponds to the actual power expressed at the crankshaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

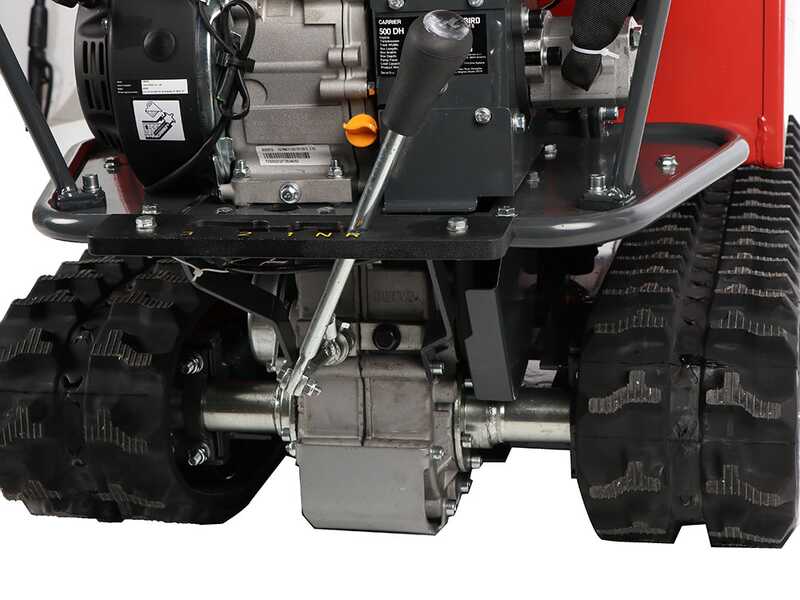

Gearbox: Large, reliable and precise.

Speed:
3 forward gears
1 reverse gear

Parking brakes:
connected to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (leaving the machine in neutral, even on a steep incline, the machine remains perfectly locked)

Transmission:
Sturdy and resistant, it allows steering by acting on the single track, disengaging its rotation.

The machine is supplied by the manufacturer with transmission oil level. However, oil levels must ALWAYS be checked before switching on as specified in the instruction and maintenance booklet.

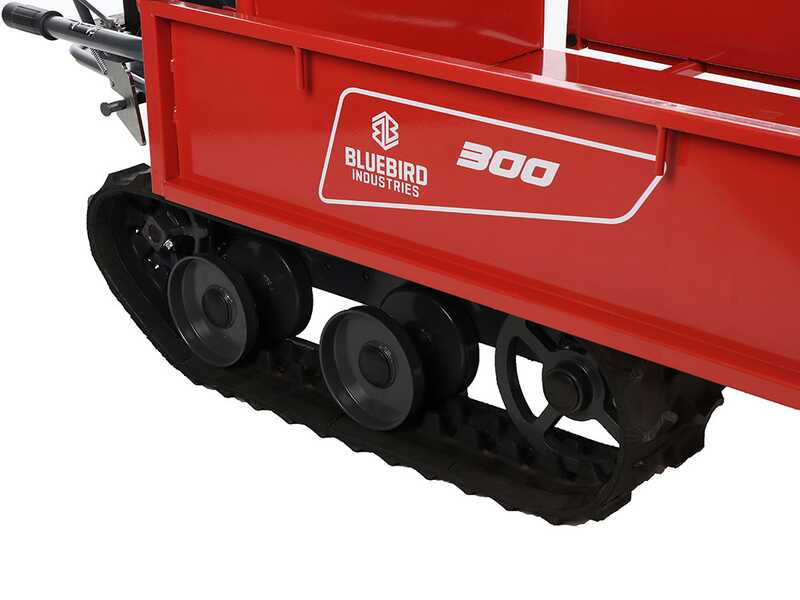

With their tread width and profile, they guarantee perfect grip and stability on all types of terrain.

Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Total track width: 180 mm

Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain.

Tracks made in high-density rubber to ensure a longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 3 Rollers .

Rear of track with pointed ‘tank-type’ upper corner that allows it to climb steps or other obstacles with ease.

The sturdy frame with steel structure in high thickness which limits the vibrations and noise.

The low centre of gravity also ensures optimum stability when working, The position of the engine and transmission facilitates maintenance.

Adjustment of track tension thanks to the tensioning springs.

A high-strength steel body, it is reinforced with tubular crossbars at the bottom, making it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate loading/unloading operations.

The tubular crossbars can be removed with a simple gesture.

An example of use is for transporting and loading wood. Using the tail lifts makes it possible to increase the load by considerably reducing the number of transports to be carried out for the job.

Mechanical tipping: this is activated manually with the rubber-mounted release lever fitted with a spring, and facilitated (in the case of heavy loads) by the skip lifting lever on the side.

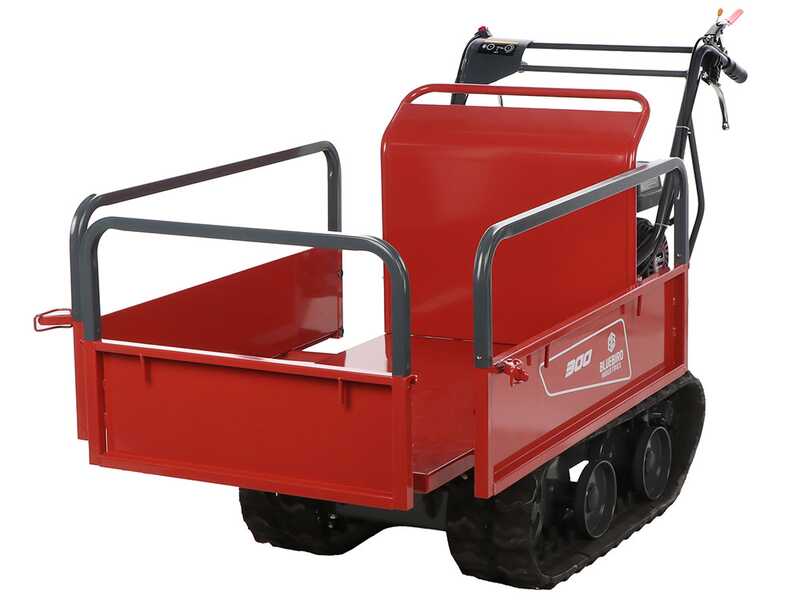

Extensible tailgates to significantly increase the size of the loading platform, allows even bulky transports to be optimised

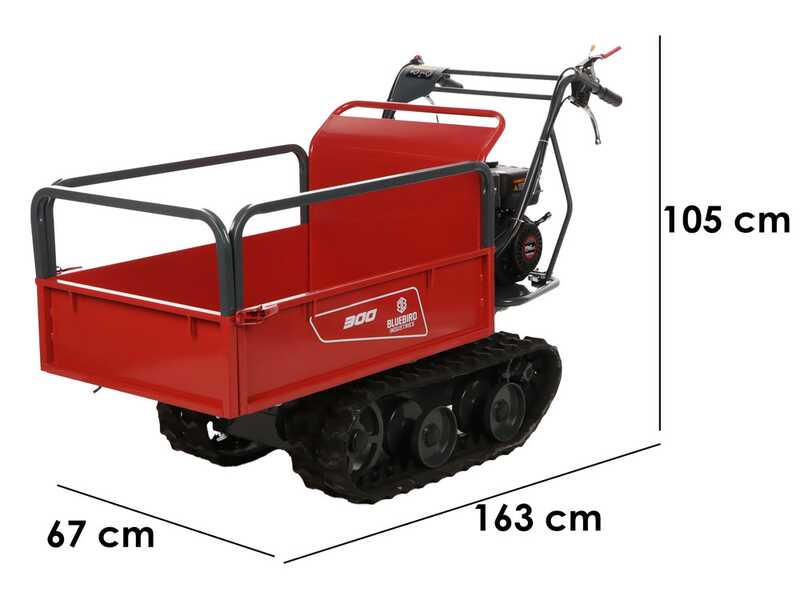

Caisson size: 910x600x204 (+ tailgates) mm

Extended barrow dimensions: 1040x860x204 (+ tailgates) mm

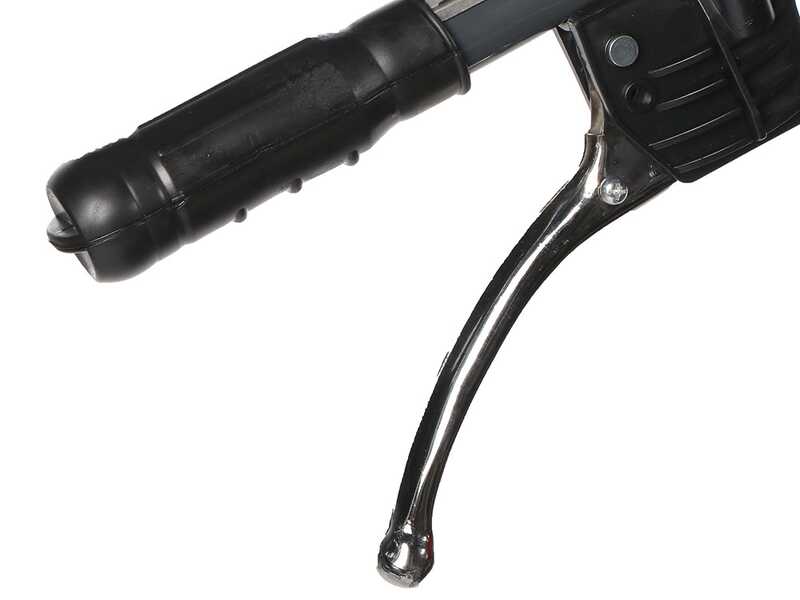

The machine is provided with two lower levers for steering, respectively on the right and on the left.

Large red lever for motion activation. The two lower levers are for the steering, respectively, right and left.

The steering can be adjusted depending on the control lever and it allows smooth moving. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial. This allows the wheelbarrow to be steered extremely smoothly, without causing abrupt movements.

Throttle lever

Power button
