BlackStone RMOH 175 - Tractor-mounted Flail Mower - Medium Series - Hydraulic Displacement

Questions & Answers (1)
ID: 112672

EAN: 8053435096607

MPN: 112672

8,9/10
After-sales assistance & Spare parts
BlackStone RMOH 175 - Tractor-mounted Flail Mower - Medium Series - Hydraulic Displacement
Tractor power
From 45 to 50 HP
Sturdiness/Series
Medium
Weight
320 Kg
Cutting width
175 cm
Sliding motion
Shift
Hydraulic
Standard cutting tools
Hammer flails
Opening rear flap
Hammer flail weight
0.8 Kg
Cardan shaft
Standard
Double spiral rotor
Product Features
Model:
BlackStone RMOH 175
Mulcher type:
Standard rear mulcher
Tractor power:
From 45 to 50 HP
Sturdiness/Series:
Medium
Shift:
Hydraulic
Hydraulic shift:
Yes
Hydraulic shift:
Sliding motion:
Double spiral rotor:
Operating mode:
Tractor-driven PTO
3-point hitch category:
First
Reversible three-point-hitch:
No
Cardan shaft rotation:
Standard
Manufacturing country:
China
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
175 cm
Wood diameter:
Up to 30 mm
No. of blades:
28
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.8 Kg
Hammer flails:
Blades bolt diameter:
16 mm
Hammer width:
13.5 cm
Cutting width:
175 cm
Equipment
Counter-blade:
Single row
Side drive belts:
3
Hydraulic Piston for moving:
Yes
Opening rear flap:
Rear crampons (collecting rods):
No
Rear support roller:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Standard
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
167x85x80 cm
Net weight:
320 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
190x62x60 cm
Gross weight (packaging included) :
390 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
Suggested price:
€ 2.184,72
€ 2.049,80
Vat included
You're viewing:
Customers also viewed:
Description

BlackStone RMOH 175 - Tractor-Mounted Flail Mower

The Blackstone RMOH 175 tractor flail mower is a durable and reliable tool, ideal for maintaining green areas, fields and farmland.

Designed for tractors between 40 and 50 HP, this model is equipped with a standard cardan shaft that guarantees an efficient and safe connection to the tractor.

The working width of the flail mower is 175 cm, allowing large areas to be covered in less time.

It is equipped with three belts that ensure optimal power transfer and long-lasting operation.

Its 28 hammers ensure fine and even shredding, ideal for handling plant residues.

The weight of the flail mower is 320 kg, providing stability and strength during use, avoiding excessive vibrations and improving the effectiveness of the work performed.

Strong, well-distributed hammers make the RMOH 175 flail mower suitable for operations on even difficult soils, ensuring perfect clearance of vegetation.

Distinctive Features and Advantages

  • 175 cm working width: Wide coverage for working on larger areas in less time.
  • Three drive belts: Guarantee optimal power transfer and long service life.
  • Durable hammers: Equipped with 28 hammers for even and fine shredding.
  • 320 kg weight: Stability and durability in use, reducing vibrations.
  • Compatibility with 40-50 HP tractors: Suitable for a wide range of agricultural tractors.

This tractor-mounted flail mower is an efficient and versatile solution for those looking for a high-quality tool for managing green areas.

Thanks to its technical features, it always guarantees reliable, excellent results.

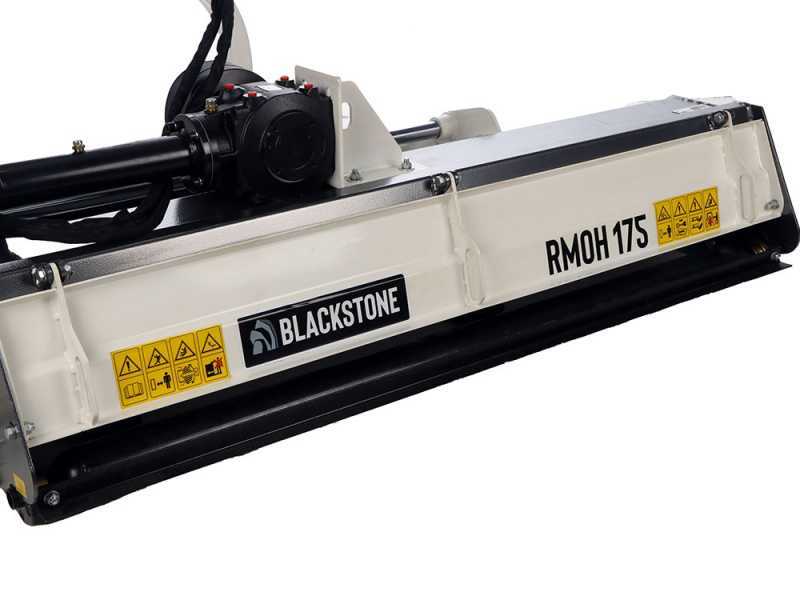

Serviceable Bonnet and Side Belt Drive

The opening bonnet of the Blackstone RMOH 175 flail mower, located at the top of the cutting compartment, allows access to the machine's internal components in a more convenient and practical way for maintenanceinspection and cleaning purposes of any crop or vegetation residue.

Gearbox in oil bath. The housing is made of cast iron, while the internal gears are made of hardened steel.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox;
this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

3-belt side transmission (most tractor-mounted flail mowers in this weight category are equipped with standard 3-belt transmission)

Focus on the side belt protection guard.

Detail of side lubricator on transmission side, (detail without bonnet)


ATTENTION!

The gearbox of this machine can contain no more than 1.2L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it's equipped with the same PTO and with standard clockwise rotation (right-side).

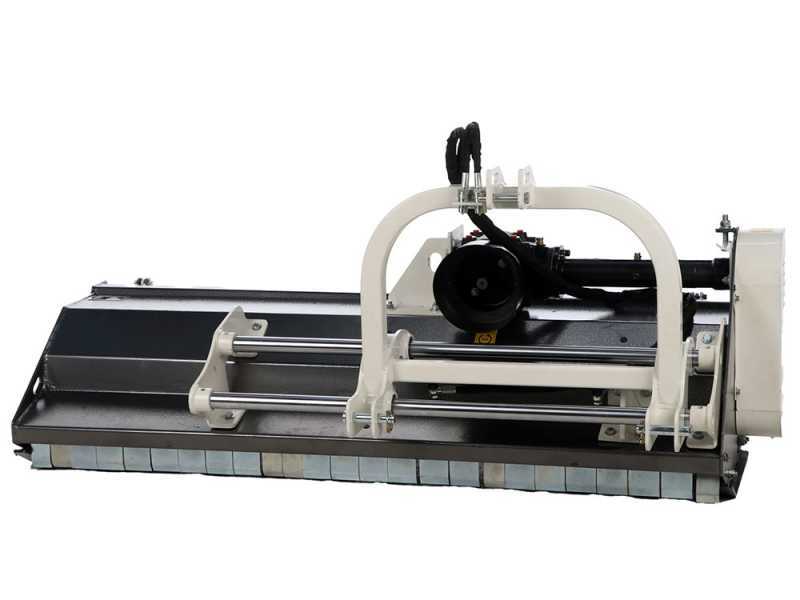

Hydraulic Side Shift and 3-point Hitch

The flail mower is equipped with hydraulic shift.

The 3-point hitch slides on a sturdy tube that runs the full width of the flail mower.

Focus on the piston that controls the hydraulic shift of this flail mower.

Universal standard PTO (1 3/8" Z6)

Universal joints suitable for all tractors on the market.

Detail of the sturdy 1° category 3-point hitch.

Stabilisation Accessories - Rear Roller and Side Skids

Rear support roller supplied as standard equipment.

Support roller protection rod.

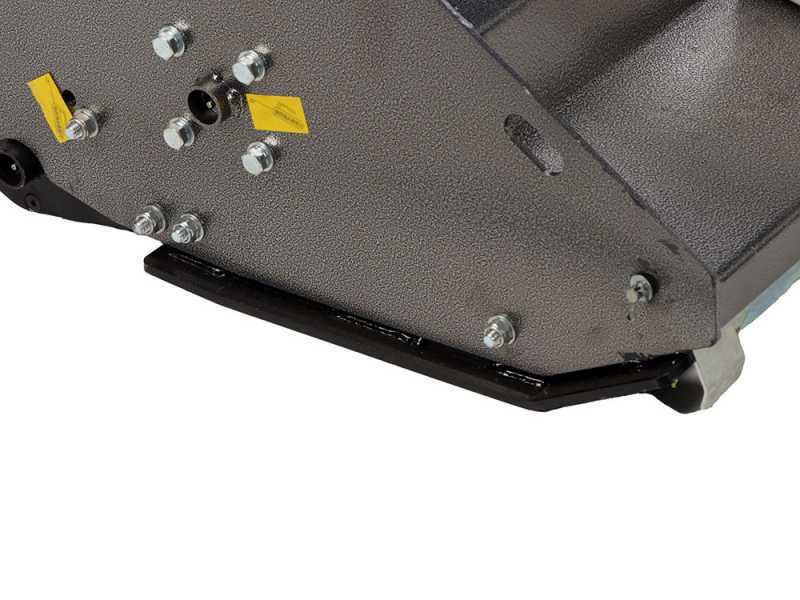

Focus on one of the two standard adjustable side support skids.

Gearbox in oil bath.

B-section 3-belt side drive.

Focus on the protective casing, with central opening for grease nipple.

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

Sturdy set of front protection slaps made of shaped steel.

Detail of the external anchorage of the rear roller, central cavity with lubricator.

Illustration of the double spiral rotor.

Detail of the screw tensioner for belt tensioning

Hammer-cutting Tools

No. of hammers fitted on standard equipment: 28.

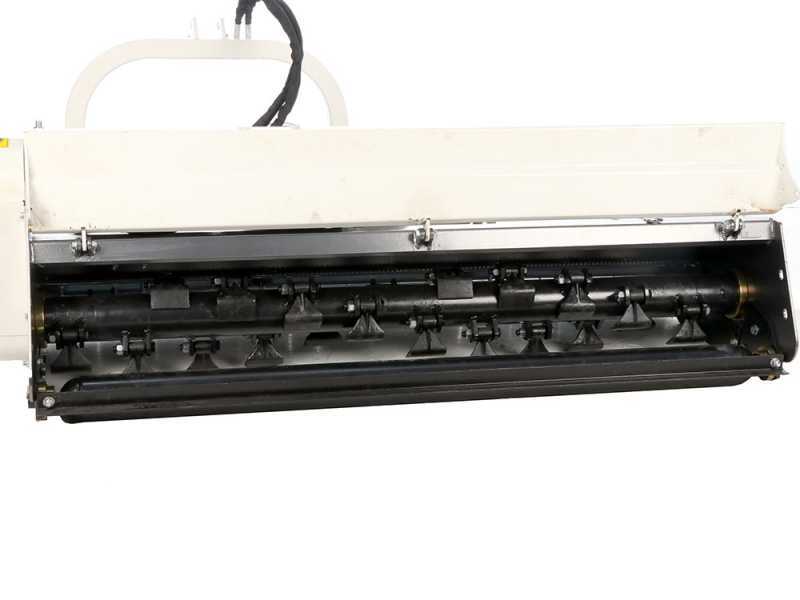

Focus on the cutting hammers, mounted on the rotating roller.

Hole width: 16 mm.

Blade width: 13.5 cm

Weight of the single hammer flail: 800 g

These hammers are fixed to a rotor inside the machine.

It finely shreds grass and twigs, while simultaneously rolling the turf.
Thanks to the rotor speed and great number of hammers (hammer flails), reduces the wave effect of the turf and has an excellent shredding action.

Counter-knife detail

Free items & Standard equipment

Free Items Included & Standard Equipment

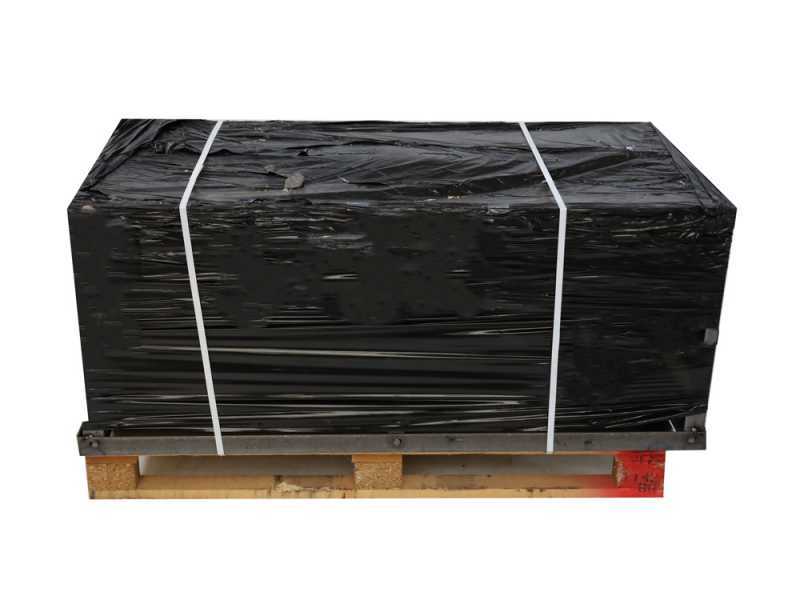

The flail mower is shipped partially assembled on a pallet (you’ll only have to assemble the 3-point hitch and a few other small components)

Cardan shaft included in the package.
