BlackStone RMOH 155 - Tractor-mounted Flail Mower - Medium Series - Hydraulic Displacement

Add a question
ID: 112670

EAN: 8053435096584

MPN: 112670

8,9/10
After-sales assistance & Spare parts
BlackStone RMOH 155 - Tractor-mounted Flail Mower - Medium Series - Hydraulic Displacement
Tractor power
From 35 to 40 HP
Sturdiness/Series
Medium
Weight
305 Kg
Cutting width
155 cm
Sliding motion
Shift
Hydraulic
Standard cutting tools
Hammer flails
Opening rear flap
Hammer flail weight
0.8 Kg
Cardan shaft
Standard
Double spiral rotor
Product Features
Model:
BlackStone RMOH 155
Mulcher type:
Standard rear mulcher
Tractor power:
From 35 to 40 HP
Sturdiness/Series:
Medium
Shift:
Hydraulic
Hydraulic shift:
Yes
Hydraulic shift:
Sliding motion:
Double spiral rotor:
Operating mode:
Tractor-driven PTO
3-point hitch category:
First
Reversible three-point-hitch:
No
Cardan shaft rotation:
Standard
Manufacturing country:
China
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
155 cm
Wood diameter:
Up to 30 mm
No. of blades:
24
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.8 Kg
Hammer flails:
Blades bolt diameter:
16 mm
Hammer width:
13.5 cm
Cutting width:
155 cm
Equipment
Counter-blade:
Single row
Side drive belts:
3
Hydraulic Piston for moving:
Yes
Opening rear flap:
Rear crampons (collecting rods):
No
Rear support roller:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Standard
Instructions manual:
Yes
Dimensions and logistics

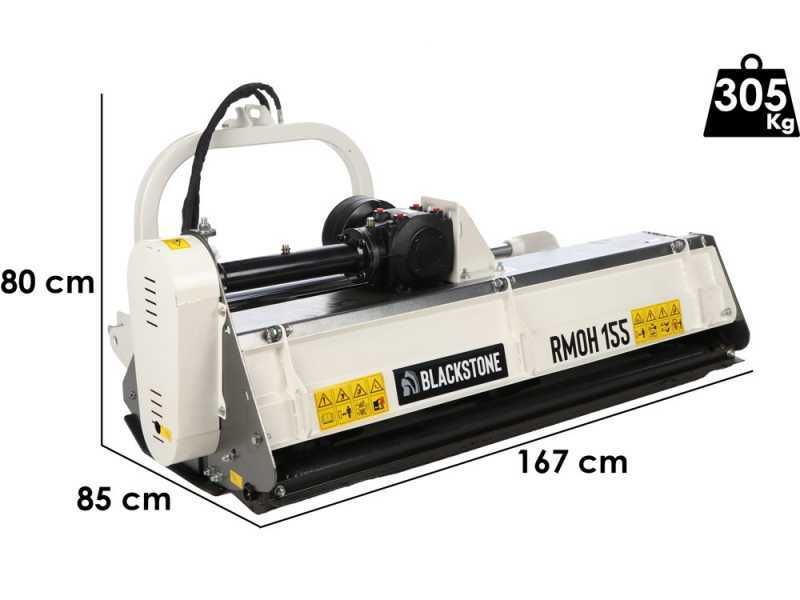

Product dimensions in cm (L x W x H):
167x85x80 cm
Net weight:
305 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
171x62x60 cm
Gross weight (packaging included) :
366 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
Suggested price:
€ 2.154,44
€ 1.995,01
Vat included
You're viewing:
Customers also viewed:
Description

BlackStone RMOH 155 Tractor-Mounted Flail Mower

The BlackStone RMOH 155 tractor flail mower is a durable and versatile machine designed to meet the needs of those seeking efficiency and reliability in the maintenance of green and agricultural areas.

This flail mower is ideal for tractors between 30 and 40 HP, and is stands out for its robustness and user-friendliness.

With a working width of 155 cm, the BlackStone RMOH 155 flail mower guarantees wide and even coverage, optimising working time.

The machine is equipped with a standard cardan shaft that ensures a safe and stable connection to the tractor, improving power delivery and reducing vibrations.

The three drive belts help increase the efficiency and durability of the machine, protecting the engine from overloading and ensuring even shredding.

The flail mower is equipped with 24 hammers to efficiently shred grass, shrubs and various plant residues, making the ground ready for new crops or keeping uncultivated land clean.

Weighing 300 kg, the machine provides the right stability during use, avoiding jolts and ensuring precise work on uneven soil.

Distinctive features of the BlackStone RMOH 155 flail mower

  • 155 cm working width: Wide coverage for greater operational efficiency.
  • Three drive belts: They protect the engine and improve the machine's service life.
  • 24 hammer flails: Effective shredding of grass, shrubs and plant residues.
  • 300 kg weight: Stability during use on uneven soil.
  • Compatibility with 30-40 HP tractors: Suitable for a wide range of agricultural tractors.

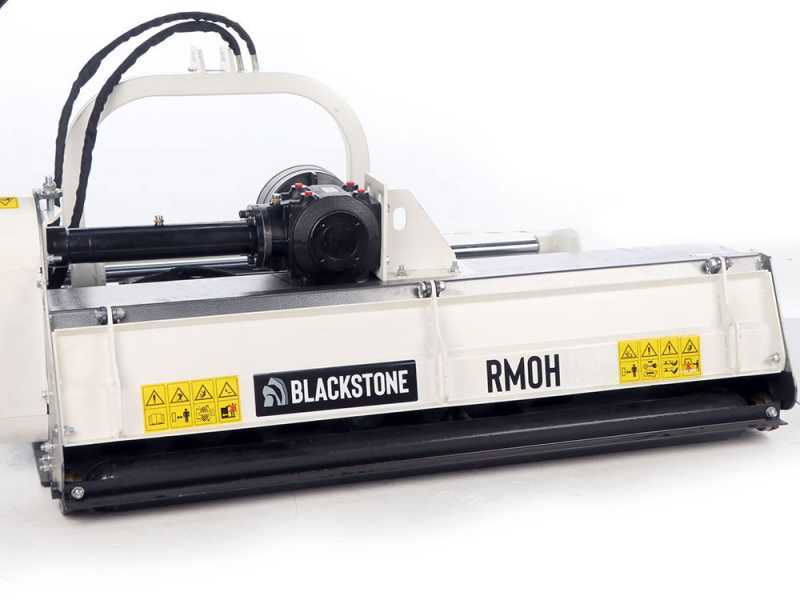

Serviceable Bonnet and Side Belt Drive

The opening bonnet of the Blackstone RMOH-CD 155 flail mower, located at the top of the cutting compartment, allows access to the machine's internal components in a more convenient and practical way for maintenanceinspection and cleaning purposes of any crop or vegetation residue.

Gearbox in oil bath. The housing is made of cast iron, while the internal gears are made of hardened steel.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

3-belt side transmission (most tractor-mounted flail mowers in this weight category are equipped with standard 3-belt transmission)

Focus on the side belt protection guard.

Detail of side lubricator on transmission side, (detail with bonnet removed)


ATTENTION!

The gearbox of this machine can contain no more than 1.2L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it's equipped with the same PTO and with standard clockwise rotation (right-side).

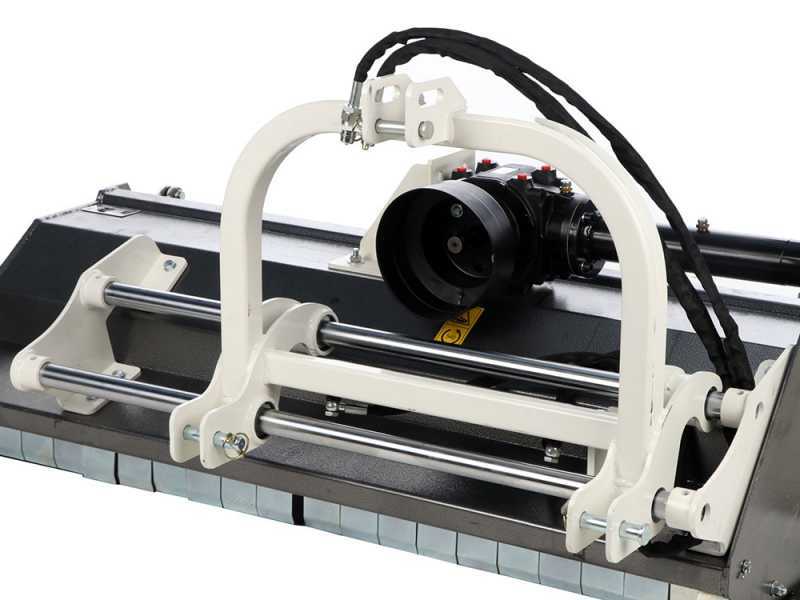

Hydraulic Side Shift and 3-point Hitch

The flail mower is equipped with hydraulic shift.

The 3-point hitch slides on a sturdy tube that runs the full width of the flail mower.

Focus on the piston that controls the hydraulic shift of this flail mower.

Universal standard PTO (1 3/8" Z6)

Universal joints suitable for all tractors on the market.

Detail of the sturdy 1° category 3-point hitch.

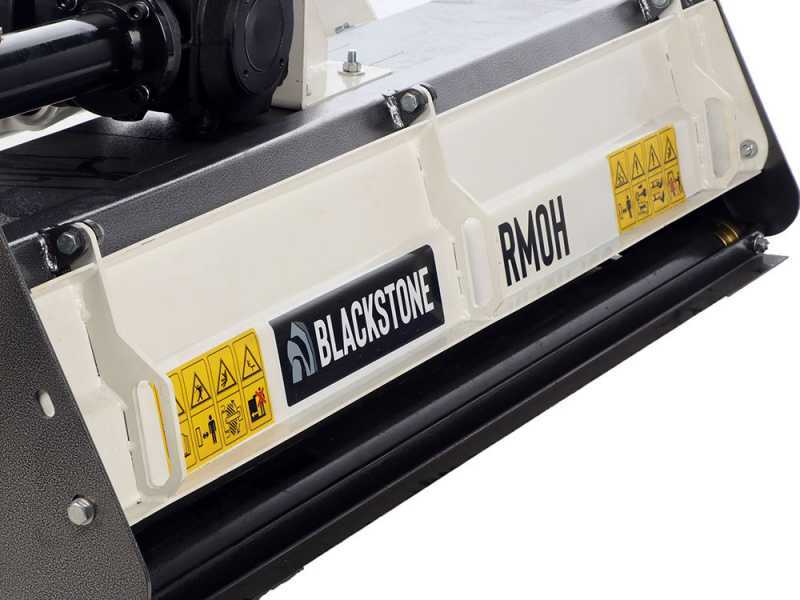

Stabilisation Accessories - Rear Roller and Side Skids

Rear support roller supplied as standard equipment.

Support roller protection rod.

Focus on one of the two standard adjustable side support skids.

Gearbox in oil bath.

B-section 3-belt side drive.

Focus on the protective casing, with central opening for grease nipple.

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

Sturdy set of front protection slaps made of shaped steel.

Detail of the external anchorage of the rear roller, central cavity with lubricator.

Illustration of the double spiral rotor.

Detail of the screw tensioner for belt tensioning

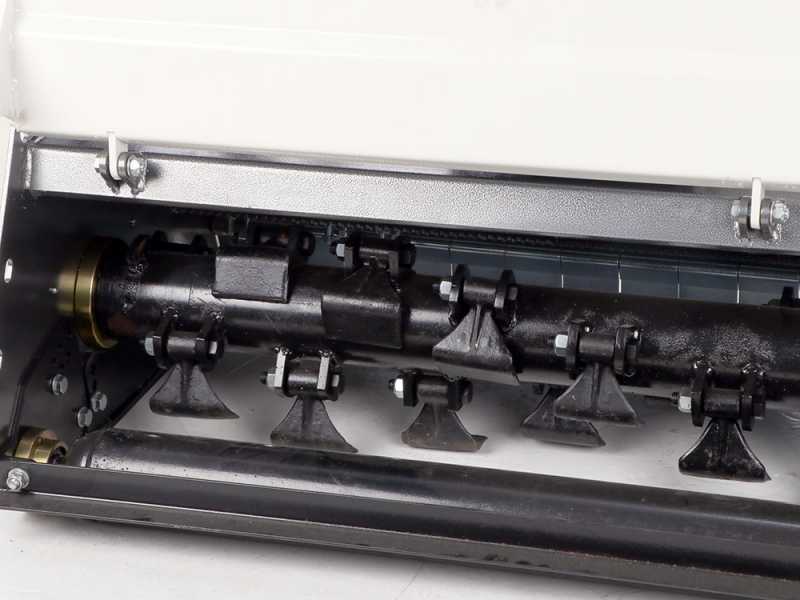

Hammer-cutting Tools

No. of hammers fitted on standard equipment: 24.

Focus on the cutting hammers, mounted on the rotating roller.

Hole width: 16 mm.

Blade width: 13.5 cm

Weight of the single hammer flail: 800 g

These hammers are fixed to a rotor inside the machine.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high rotor speed and the great number of hammers (hammer flails), reduces the wave effect of the turf and has an excellent shredding action.

Counter-knife detail

Free items & Standard equipment

Free Items Included & Standard Equipment

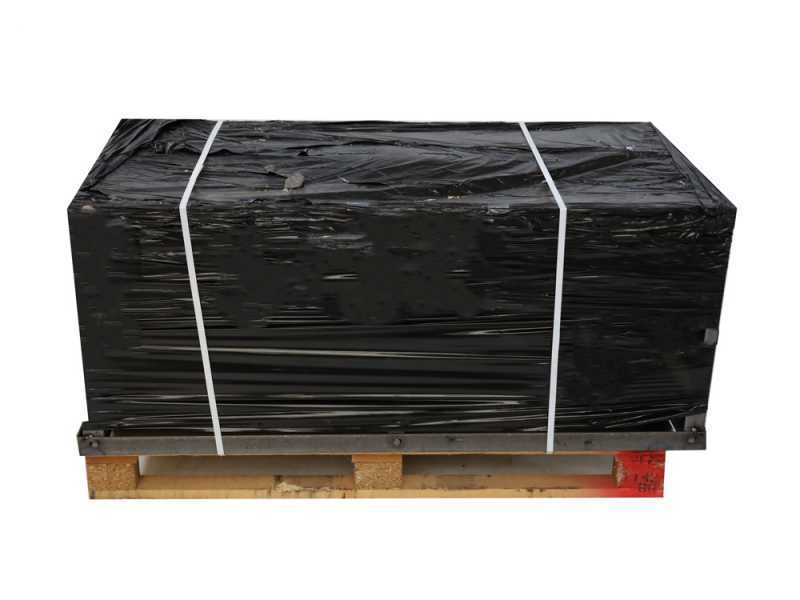

The flail mower is shipped partially assembled on a pallet (you’ll only have to assemble the 3-point hitch and a few other small components)

Cardan shaft included in the package.
