BlackStone RMOH 135 - Tractor-Mounted Flail Mower - Medium Series - Hydraulic Displacement

The RMOH 135 hydraulic displacement flail mower is an advanced agricultural machine, ideal for cutting and shredding vegetation such as trees, shrubs, bushes and grass. Featuring a robust frame, the machine is equipped with a sophisticated cutting system with high-speed rotary hammers, ensuring precise cutting of vegetation.

The hydraulic displacement system, integrated in the frame, allows the flail mower to be positioned laterally with extreme precision. The motion is accurately and safely controlled by a hydraulic piston.

The Blackstone RMOH 135 flail mower is perfect for agricultural use on cultivated land, meadows, pastures and for the maintenance of green areas such as parks and gardens. A cardan shaft included in the package ensures a safe and reliable connection to the tractor.

Designed for mainly hobbyist work, the Medium series flail mower features hydraulic side-shift, three drive belts and a rear roller.

Summary of technical data:

• Effective working width 135 cm
• Effective overall width (with side skids fitted): 150 cm
• Weight: 285 kg
• Side hydraulic shift
• 1° category 3-point hitch
• 3-belt drive transmission

This agricultural machine is an efficient and precise solution for the management and maintenance of vegetation in various agricultural and green areas.

The Blackstone RMOH 135 flail mower's bonnet, located at the top of the cutting compartment, allows access to the machine's internal components in a more convenient and practical way for maintenance, inspection and cleaning purposes from any crop or vegetation residue.

Gearbox in oil bath. The housing is made of cast iron, while the internal gears are made of hardened steel.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

3-belt side transmission (most tractor-mounted flail mowers in this weight category are equipped with standard 3-belt transmission)

Detail of the side belt protection guard.

Detail of the transmission side lubricator.

ATTENTION!

The gearbox of this machine can contain no more than 1.2L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it's equipped with the same PTO and with standard clockwise rotation (right-side).

The flail mower is equipped with hydraulic shift.

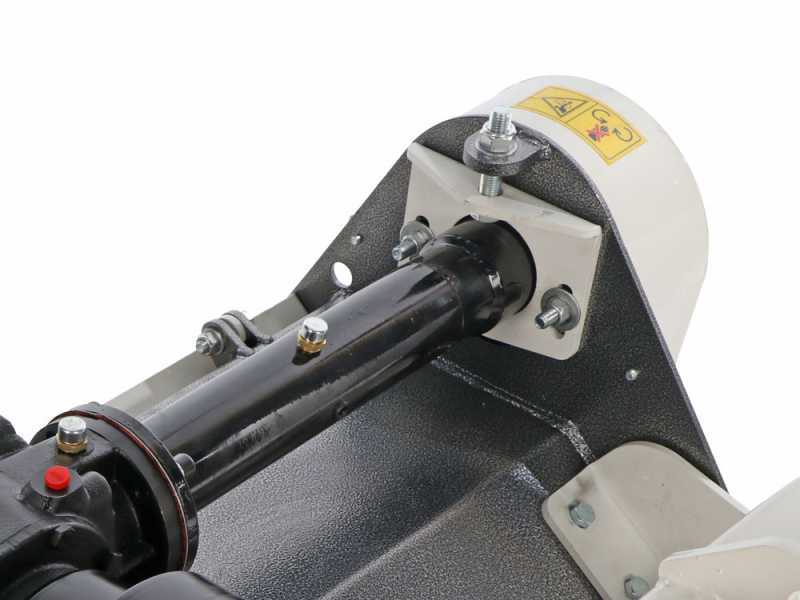

The 3-point hitch slides on a sturdy tube that runs the full width of the flail mower.

Detail of the piston that controls the hydraulic shift of this flail mower.

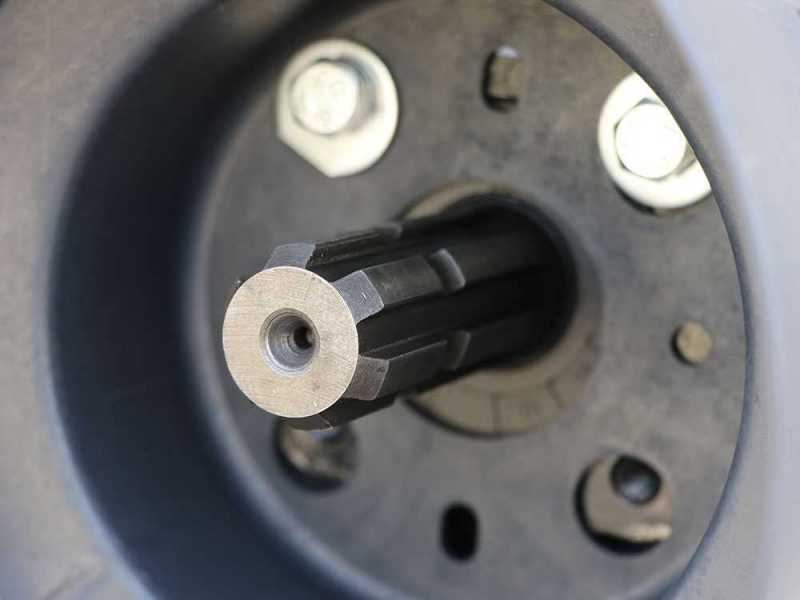

Universal standard PTO (1 3/8" Z6)

Universal joints suitable for all tractors on the market.

Detail of the sturdy 1° category 3-point hitch.

Hydraulic displacement, allowing the machine to move by 35 cm

Rear support roller supplied as standard equipment.

Support roller protection rod.

Detail of one of the two standard adjustable side support skids.

Gearbox in oil bath.

B-section 3-belt side drive.

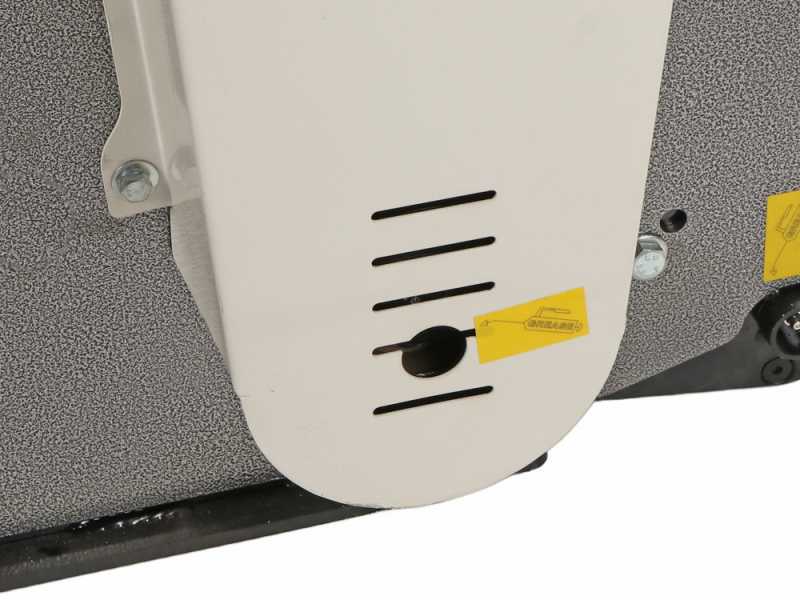

Detail of the protective casing, with central opening for the lubricator.

Detail of the side supporting device with hammer rotor internal locking bearing.

Detail of the external rotor, with central opening provided with greaser.

Sturdy set of front protection slaps made of shaped steel.

Detail of the external anchorage of the rear roller, with central cavity with lubricator.

Illustration of the double spiral rotor.

Detail of the screw tensioner for belt tensioning

No. of hammers fitted on standard equipment: 22.

Close-up of the cutting hammers, mounted on the rotating roller.

Hole width: 16 mm.

Blade width: 13.5 cm

Weight of the single hammer flail: 800 g

These hammers are fixed to a rotor inside the machine.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

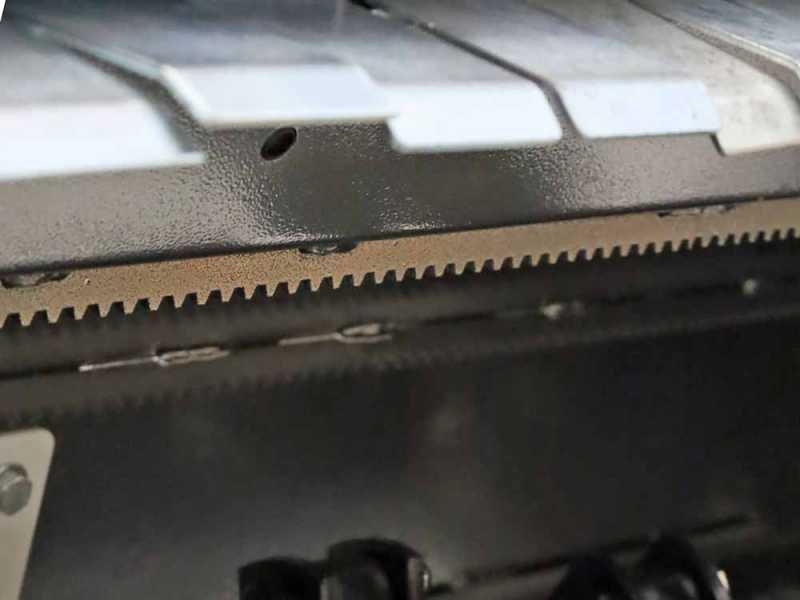

Counter-knife detail
