BlackStone EHL 4 - Electric Log Splitter - Horizontal - 230V

Questions & Answers (1)
ID: 112639

EAN: 8053435096478

MPN: EHL 4

8,9/10
After-sales assistance & Spare parts
BlackStone EHL 4 - Electric Log Splitter - Horizontal - 230V
Max. trunk diameter
25 cm
Piston stroke
37 cm
Operating mode
Single-phase 230 V
Nominal power
2 HP
Engine
Induction
Nominal power (W)
1500 W
Nominal splitting force
4 t
Nominal power
1500 W
Product Features
Model:
EHL 4
Type:
Horizontal
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
4 t
Piston stroke:
37 cm
Worktop log cutting:
No
Ground splitting system:
No
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
2 HP
Nominal power (W):
1500 W
Nominal power :
1500 W
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Manufacturing country:
China
Cutting data
Max. trunk length:
37 cm
Max. trunk diameter:
25 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
No
Retaining side arms:
No
Trunk lifting system:
No
Retractable piston for transport:
No
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
20
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics

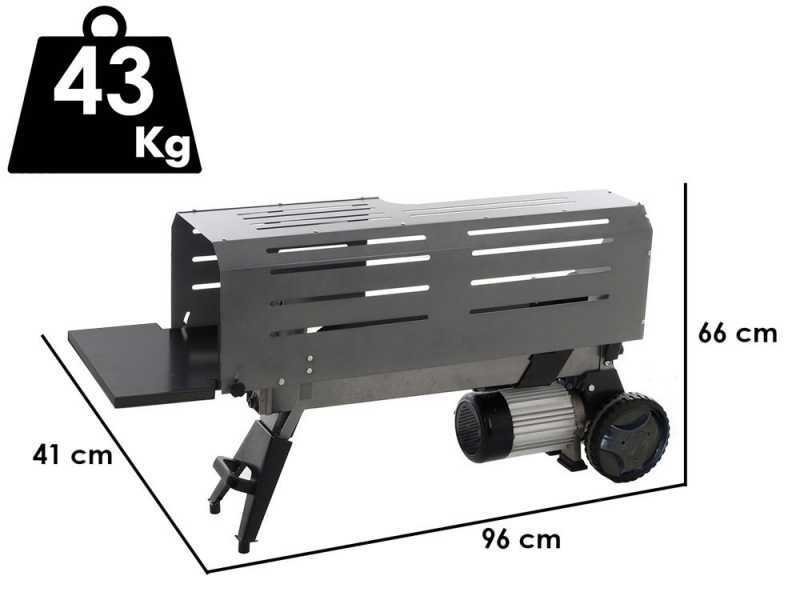

Product dimensions in cm (L x W x H):
96x41x66
Net weight:
43 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
82.5x33x56
Weight including packaging:
45 Kg
Assembly time:
60 minutes
Prompt Delivery
78 items in stock
Free Shipping
Estimated delivery: 16/05/2025 - 20/05/2025
Suggested price:
€ 295,95
€ 261,09
Vat included
You're viewing:
Customers also viewed:
Description

Blackstone EHL 4 log splitter

Blackstone EHL 4 Single-phase 230V 4 Ton Electric Log Splitter.

This Blackstone EHL 4 electric log splitter is equipped with a single-phase 230V/50Hz motor and 1500W power, ideal for home and hobby use. Its pushing capacity reaches 4 tonnes, allowing logs with a diameter between 5 and 25 cm and a maximum length of 37 cm to be processed.

The horizontal structure of the log splitter minimises the effort required to position the logs, allowing them to rest easily thanks to the low height of the support axis. This feature ensures effortless and time-saving operation.

In terms of mobility, the model is equipped with a handle and wheels, making it easy to move around your workspace. Moreover, it is built according to CE safety regulations, ensuring safe and secure operation thanks to its standardised guards.

In summary, the Blackstone EHL 4 log splitter is the optimal solution for those looking for an efficient and easy-to-handle machine, perfect for use in the home and for hobby gardeners.


WARNING:

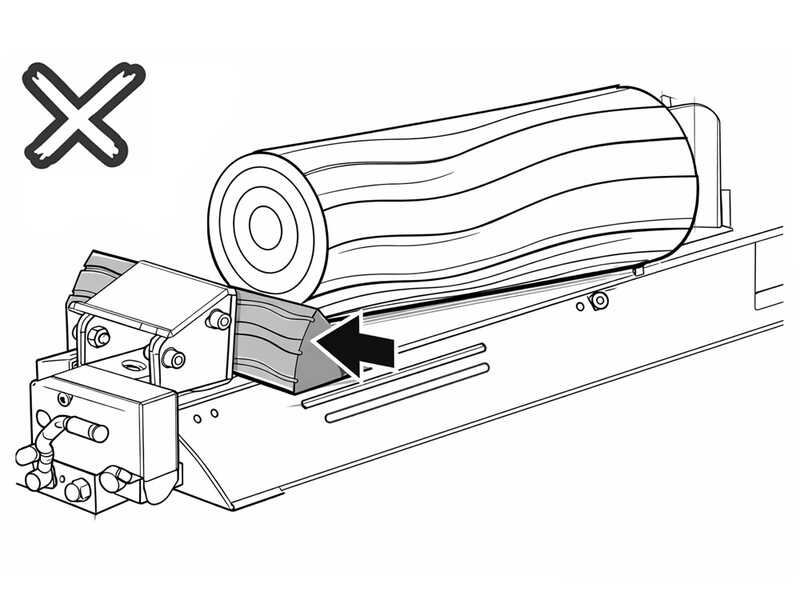

The log splitters included in this category are not suitable for processing wood with particularly twisted fibres such as poplar or pine, large-diameter logs and wood types with frequent knots in the wood. In this case, it is advisable to use heavy-duty models intended for a professional use. Furthermore, the logs should only be split once dried, not green; when the wood is green, it has less tendency to split and open and is therefore less suitable to be split with the log splitter. Once dried, however, it can be split and becomes ready for use in fireplaces, stoves, ovens, etc.

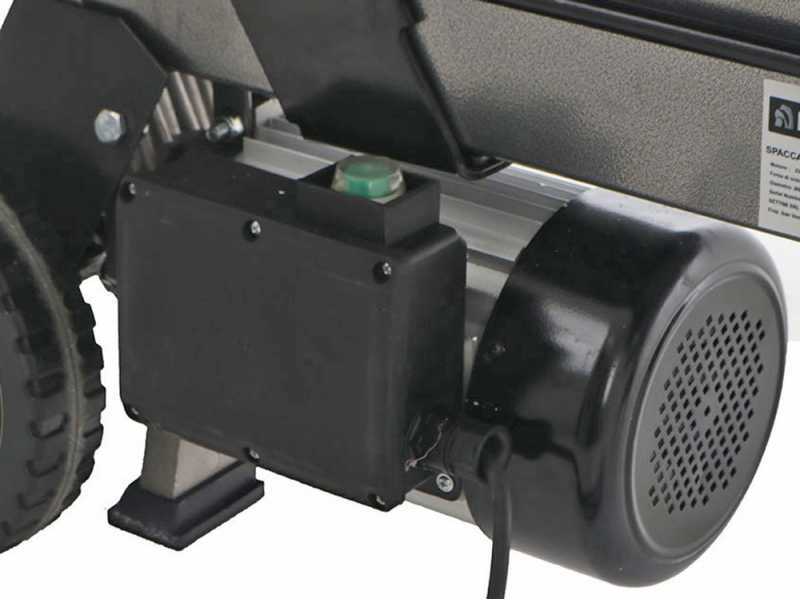

Electric motor

This horizontal log splitter is powered by a single-phase electric motor.

Electric consumption: 1500W

Power supply: 220-240 V 50 Hz

Focus on the on/off switch and operating handle.

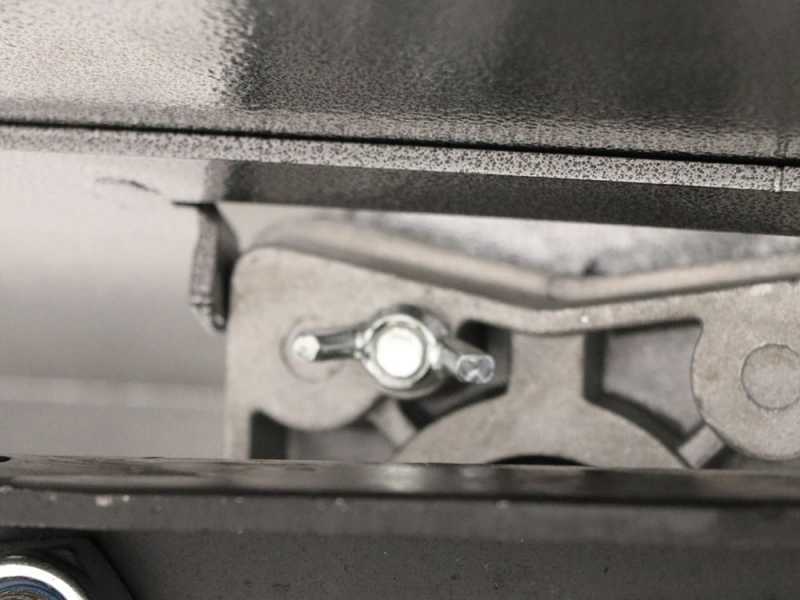

Controls and other features

Two-hand operation:

1) the first hand must press the electric motor drive button (which drives the pump)

2) The second hand pulls the piston drive lever to operate the splitting process.

Oil tank capacity: 1.8lt

Piston head made of cast aluminium

Focus on the sturdy cutting wedge

The heavy-duty multi-welded wedge ensures great performance and long-lasting durability. It can easily split even hardwood.

The handle and transport wheels near the motor guarantee high ease of transport.

Focus on the guards in compliance with the CE standards.

Focus on the oil drain plug.

Free items & Standard equipment

Free items included

The machine is shipped in its original packaging.

The maintenance and instructions manual is included in the package.
