Name: Blackstone BM180 - Tractor-mounted Flail Mower - Medium-light Series
Brand: BlackStone
SKU: 105385
Price: 1834.61 EUR
Availability: InStock
Rating: 4.71 (7 reviews)

Description

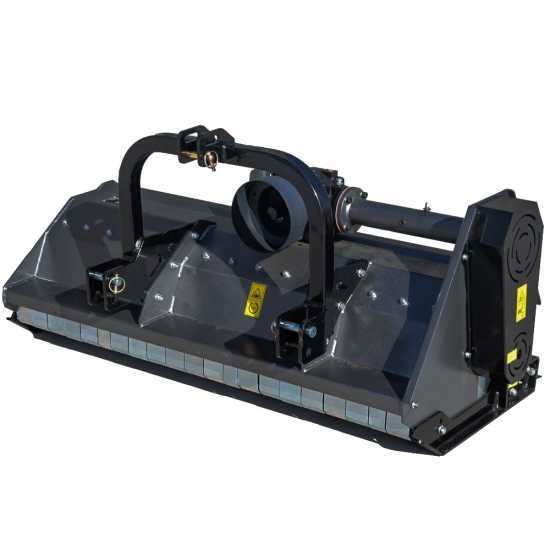

Blackstone BM180 tractor flail mower

The horizontal flail mower for tractor of Blackstone BM180 with hydraulic side shift was designed for the light runners crushing, grass and small bushes of lawns, woods, orchards and uncultivated soils.

The BM series is equipped with an engine hood with opening for an easy maintenance and inspection of the machine.

Suggested for medium-light, hobby purposes.

Hydraulic side shift, 3 drive belts and rear roller.

TECHNICAL DETAILS (in summary):

Real working width: 180 cm
Real width occupied (with side skids assembled): 195 cm
Weight: 309 kg
1° category 3 point linkage
3 belts transmission

STANDARD EQUIPMENT (in summary):

Hammer flails

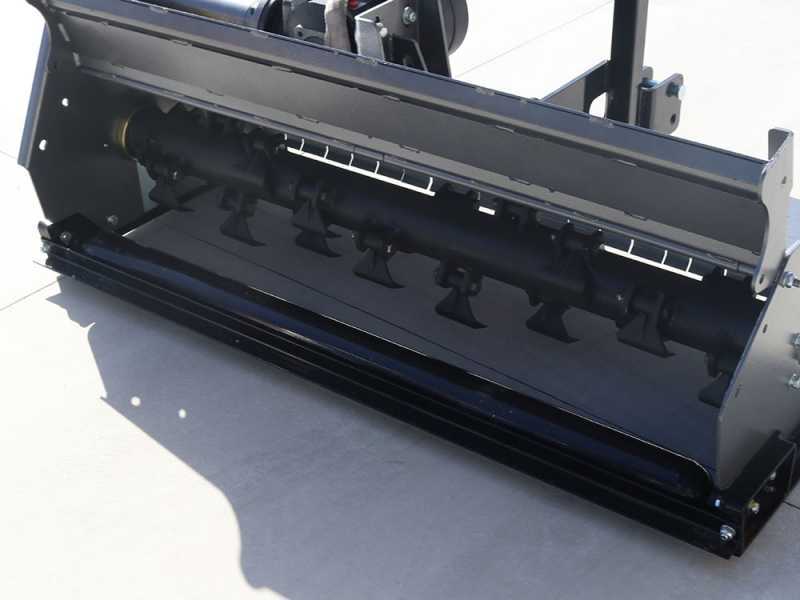

Adjustable skids
Standard-supplied cardan shaft

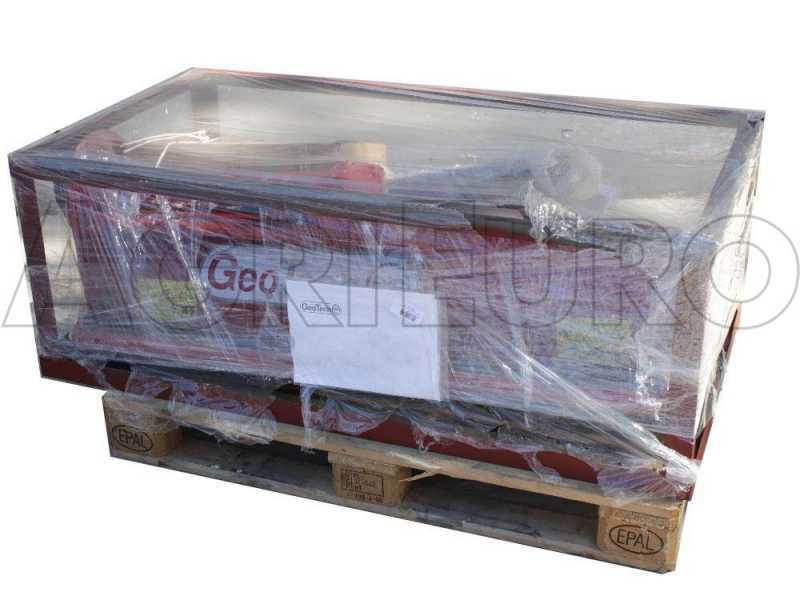

Attention: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

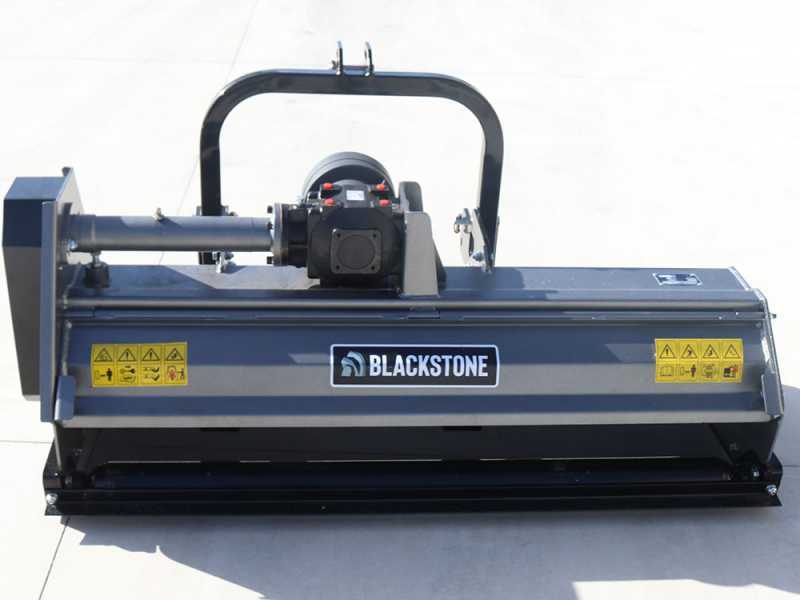

Blackstone BM180 - Tractor-mounted Flail Mower - Medium-light Series

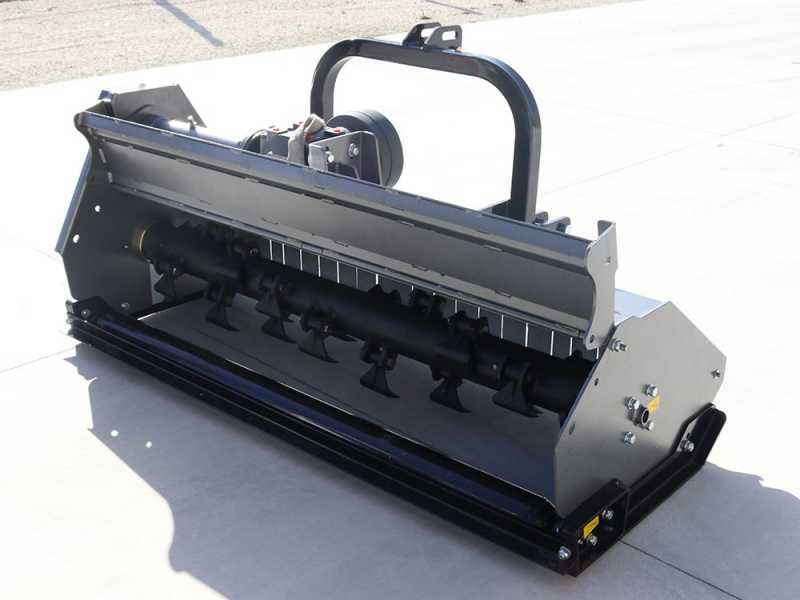

Opening of the engine hood

The special feature of this tractor flail mower is its rear opening of the engine hood.

It enables to adjust the rear unloading space by means of simple screws and to simplify the maintenance operations.

The use of bolts enables to open the small door.

Cutting tools: hammer flails

Nr. of hammer flails on standard equipment: 22

Hammer flail's hole diameter: 16mm

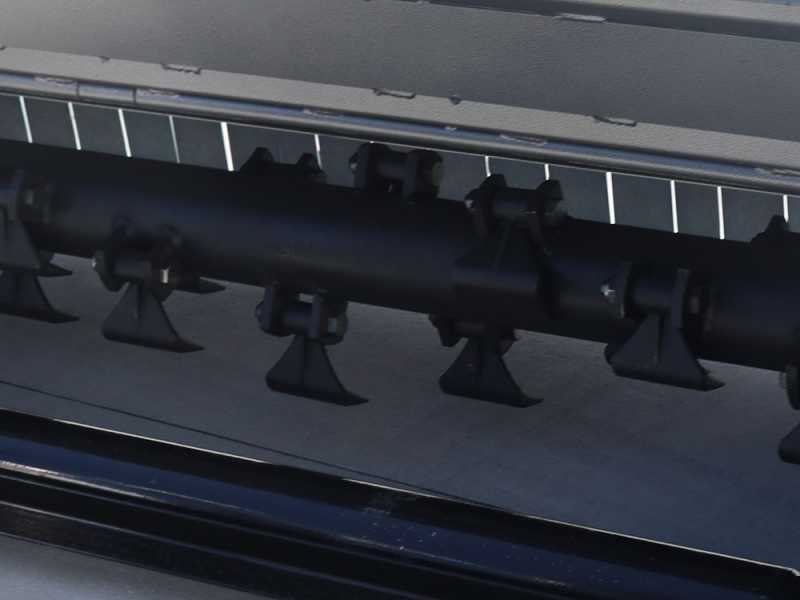

Close-up of the drum's hammer flails, fitted to the rotating roller.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high rotor speed and the high number of hammers (hammer flails), it reduces the wave effect of the turf and has an excellent shredding action.

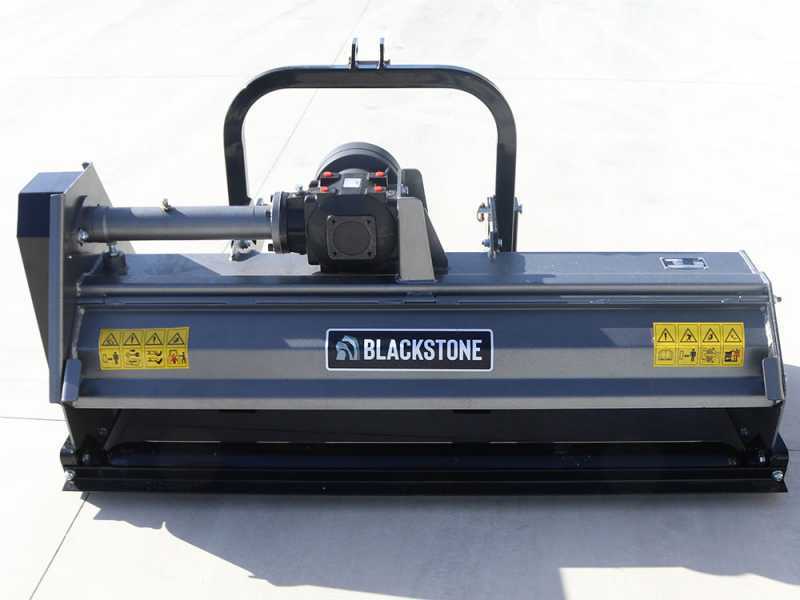

Side belt transmission and gearbox

Oil-bath gearbox. Monocoque shell, hardened steel inner gears.

Equipped with lubricated extension.

3 belts side transmission.

Focus on the side belt protection cover

Focus on the side greaser located on the same transmission's side

This machine's gearbox capacity is under 1 L oil.

Before using this product, please carefully read the instructions manual.

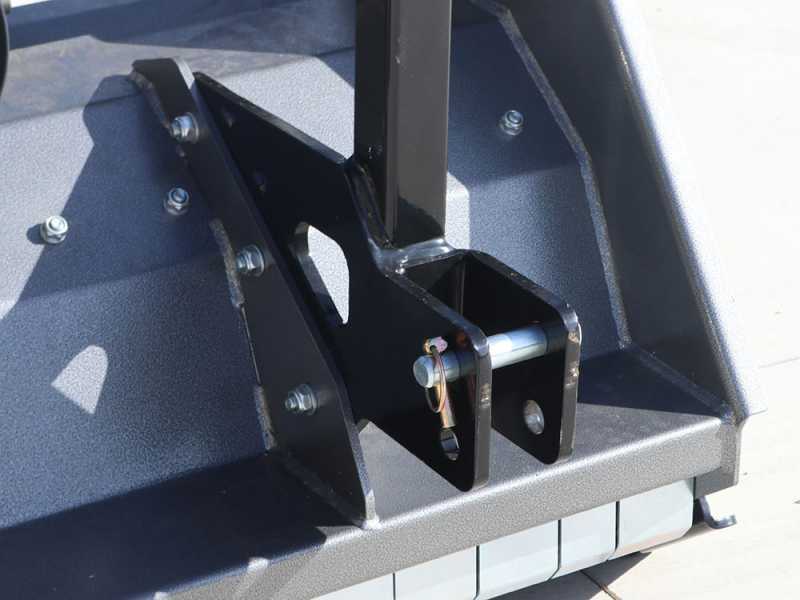

3 points hitch

Universal type PTO (1 3/8" Z6)

Couplings are universal and adaptable to all tractors on the market.

Sturdy 1st category 3-points hitch.

Graphical diagram of three-point hitch distances:

Distance A-B: 686 mm

Distance D-C: 455 mm

Rotor and side bearings

Focus on the side flail support and of the side drum's bearing.

Focus on the outer rotor's anchoring, with central greaser hole.

Good cut on gardens, lawns and urban areas thanks to the hammers. The flail mower is connectable to tractor is by 3 points linkage.

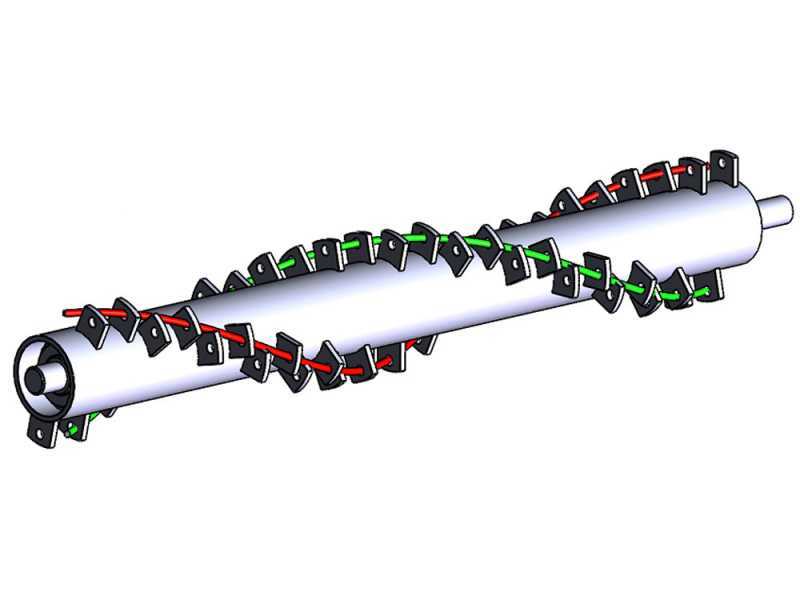

Figurative image of the double-spiral rotor.
