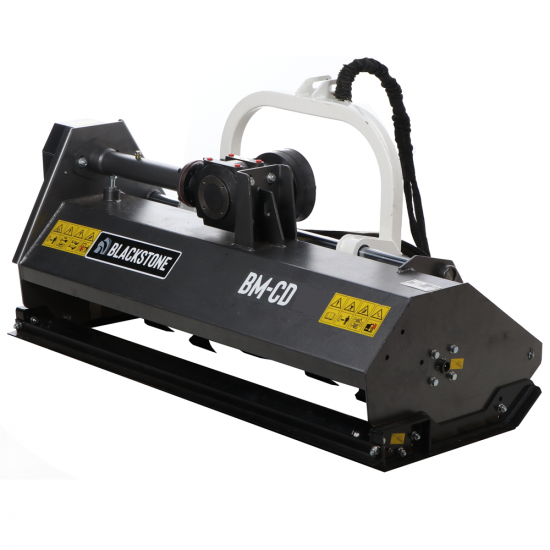

Blackstone BM-CD 180 - Tractor-mounted flail mower - Medium series - Hydraulic shift

The BM-180 flail mower with hydraulic shift is an agricultural machine designed to perform various cutting and shredding operations on vegetation. The distinguishing feature of this powerful machine lies in its innovative hydraulic displacement technology, which allows the machine to be moved laterally with extreme precision during cutting operations, guaranteeing a highly qualitative and efficient working process.

The frame of this flail mower is solid and sturdy, providing a stable and secure base during flail mowing operations. A sophisticated cutting system consisting of hammers, which are able to rotate at high speed, is firmly mounted on the frame, enabling a precise and clean cut of the vegetation. This hydraulic shifting system has been cleverly integrated into the frame itself, allowing the flail mower to be positioned with millimetre precision, taking advantage of the accurate and safe control provided by the hydraulic piston.

An additional advantage of this model is the possibility of fitting a practical inter-row disc, supplied as standard, which further optimises the various chopping jobs.

On this model it is possible to install a practical inter-row disc to optimise the various shredding operations, thanks to a holder that is supplied as standard.

Medium-sizedseries flail mower, suitable for mainly hobby use, equipped with hydraulic side-shift, 4 drive belts, rear roller and double opening bonnet.

TECHNICAL DATA (brief overview):

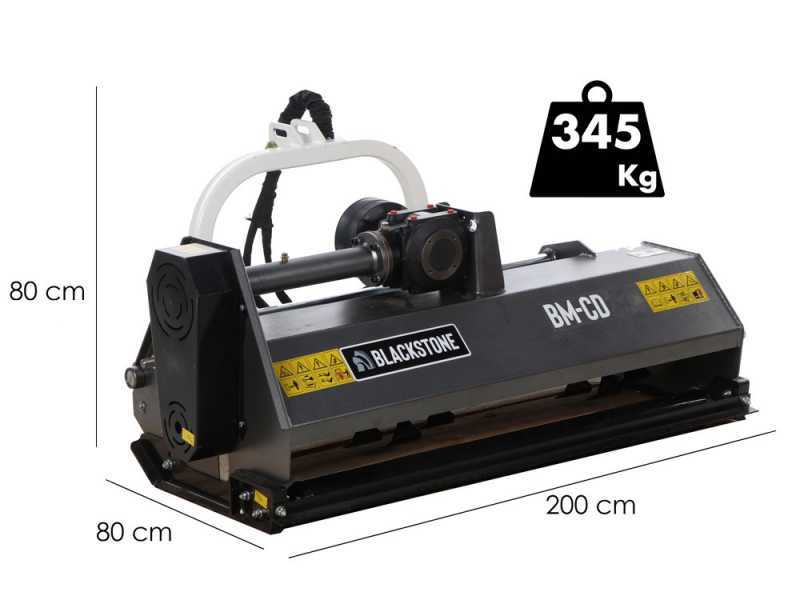

• Real working width: 180 cm
• Real width (side skids already assembled): 200 cm
• Weight: 345 kg

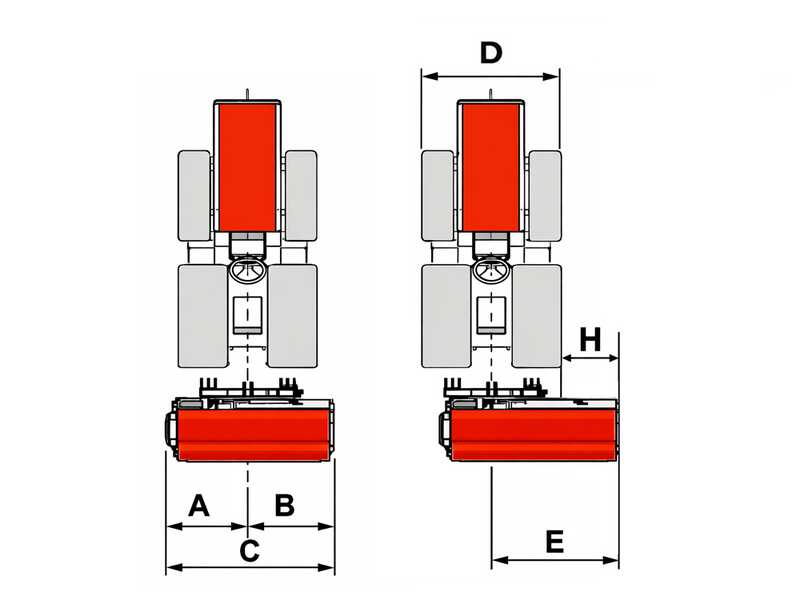

• Side hydraulic shift

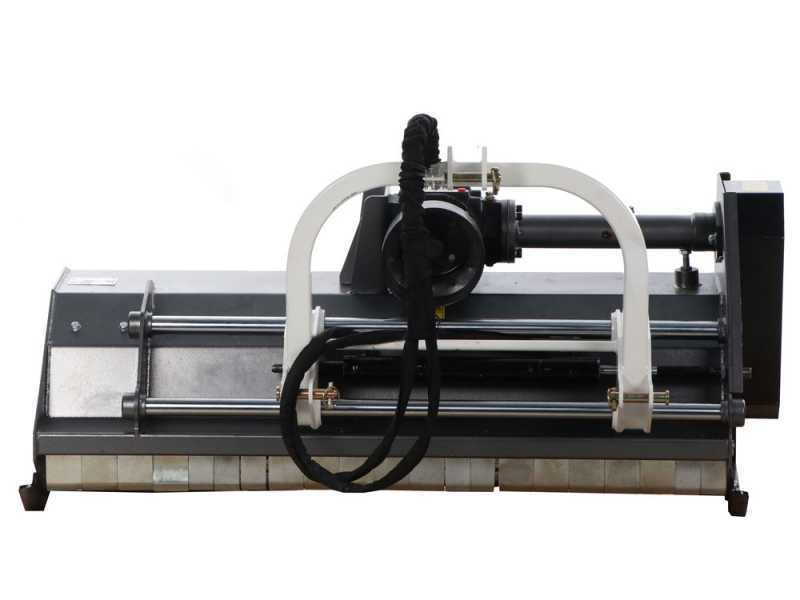

• Category I 3-point hitch
• 4-belt drive transmission

The BM-180 flail mower with hydraulic shift is an agricultural machine designed to perform various cutting and shredding operations on vegetation. The distinguishing feature of this powerful machine lies in its innovative hydraulic displacement technology, which allows the machine to be moved laterally with extreme precision during cutting operations, guaranteeing a highly qualitative and efficient working process.

The frame of this flail mower is solid and sturdy, providing a stable and secure base during flail mowing operations. A sophisticated cutting system consisting of hammers, which are able to rotate at high speed, is firmly mounted on the frame, enabling a precise and clean cut of the vegetation. This hydraulic shifting system has been cleverly integrated into the frame itself, allowing the flail mower to be positioned with millimetre precision, taking advantage of the accurate and safe control provided by the hydraulic piston.

An additional advantage of this model is the possibility of fitting a practical inter-row disc, supplied as standard, which further optimises the various chopping jobs.

On this model it is possible to install a practical inter-row disc to optimise the various shredding operations, thanks to a holder that is supplied as standard.

Medium-sizedseries flail mower, suitable for mainly hobby use, equipped with hydraulic side-shift, 4 drive belts, rear roller and double opening bonnet.

TECHNICAL DATA (brief overview):

• Real working width: 180 cm
• Real width (side skids already assembled): 200 cm
• Weight: 345 kg
• Side hydraulic shift
• Category I 3-point hitch
• 4-belt drive transmission

This flail mower has been designed to support an inter-row disc (available separately on the site), which can be attached to the machine by means of a practical bracket (supplied).

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

3-belt side transmission (most tractor-mounted flail mowers in this weight category are equipped with standard 3-belt transmission)

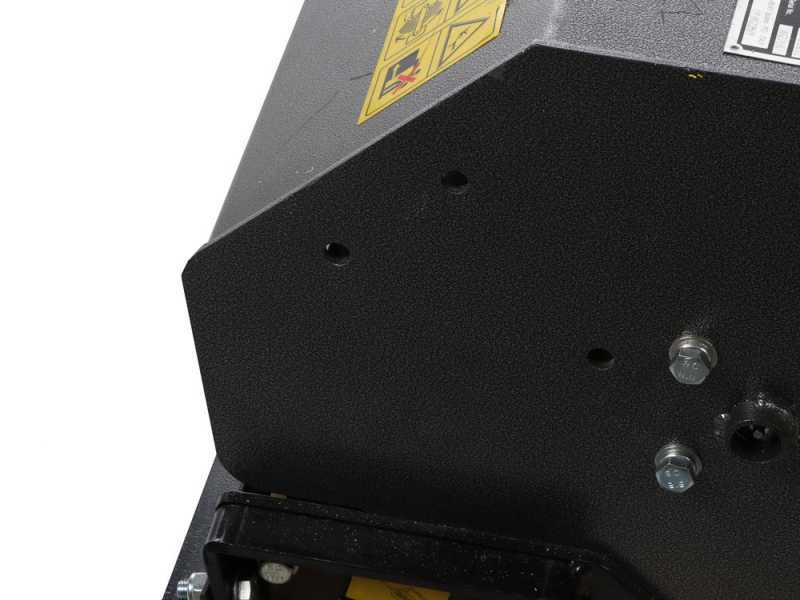

Focus on the side belt protection guard.

Focus on the transmission side grease nipple.

ATTENTION!

The gearbox of this machine can contain no more than 1.2L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

Height-adjustable rear supporting roller provided on standard equipment.

Support roller protection rod.

Focus on one of the two standard adjustable side support skids.

Gearbox in oil bath.

B-section 4-belt side drive.

Focus on the protective casing, with central opening for grease nipple.

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

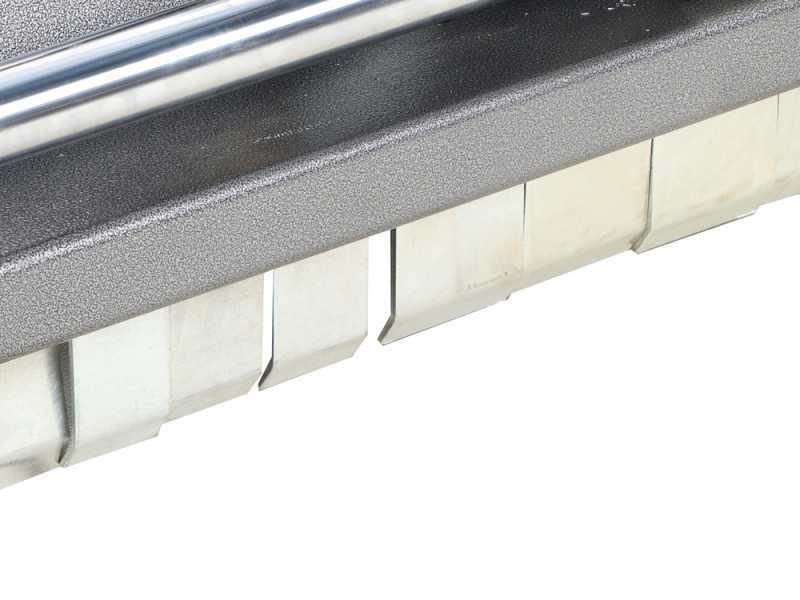

Sturdy set of front protection slaps made of shaped steel.

Focus on the external anchoring of the rear roller, with central opening provided with greaser.

No. of hammers fitted on standard equipment: 22.

Focus on the cutting hammers, mounted on the rotating roller.

Hole width: 16 mm.

Blade width: 13.5 cm

Weight of the single hammer flail: 800 g

These hammers are fixed to a rotor inside the machine.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Figurative image of the double-spiral rotor.
