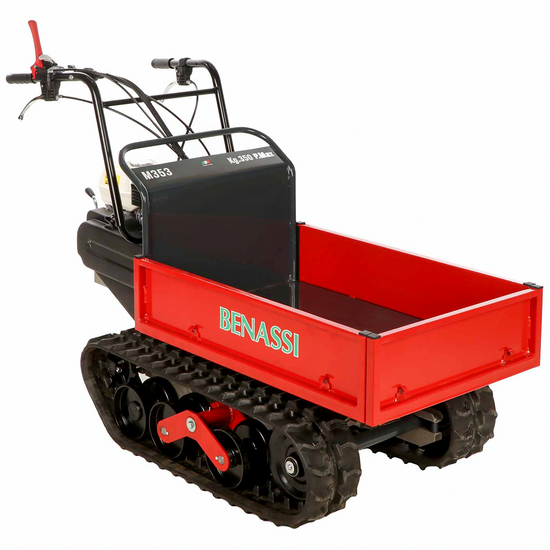

Benassi M353H - Extendable Tracked Power Barrow - Capacity 350Kg

The petrol-powered Benassi M353H power barrow is designed for transporting materials over uneven and sloped terrains. Equipped with a Honda GP160 163 cc engine, it offers a power output of 3.6 kW and a recoil start.

The mechanical gearbox with 3 forward gears and 1 reverse gear allows effective speed management according to the load and terrain.

The primary belt transmission, combined with oil-bath gears, ensures efficient power transmission and long durability. The clutch with belt tensioner allows smooth engagement and disengagement of the drive. Adjustable handlebars ensure optimal machine control, adapting to the operator's height and working conditions.

The frame is equipped with compensation springs that absorb vibrations, improving comfort during use.

The loading platform, with dimensions of 920 x 640 x 210 mm, is expandable to accommodate loads of different sizes. The manual tipping of the skip facilitates material unloading.

Rubber tracks, with dimensions 180 x 60 x 37 mm, provide excellent traction on various types of terrain, including muddy or slippery ones.

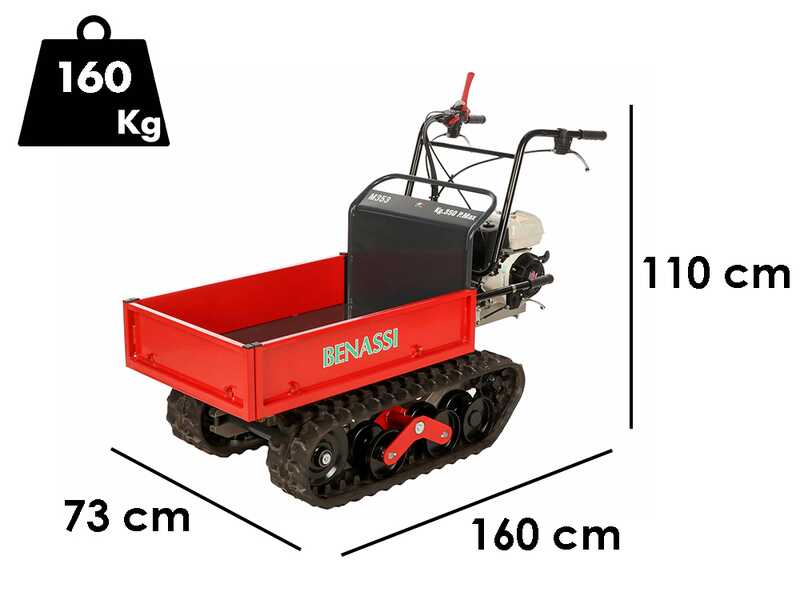

The overall weight of the machine is 160 kg, with a maximum load capacity of 350 kg, making it suitable for agricultural, construction, and forestry applications.

The distinctive features of the petrol-powered Benassi M353H power barrow include:

• Honda GP160 Engine: 163 cc, 4-stroke petrol engine with a power output of 3.6 kW (4.9 HP) and recoil start.
• Mechanical Transmission: combination of belt and oil-bath gears for efficient and durable transmission.
• Clutch with Belt Tensioner: allows smooth engagement and disengagement of the drive, improving manoeuvrability.
• Expandable Loading Platform: dimensions of 920 x 640 x 210 mm, adaptable to loads of different sizes, with manual tipping.
• Rubber Tracks: dimensions 180 x 60 x 37 mm, provide traction on various types of terrain, including challenging ones.

This power barrow is suitable for operators who need a robust and reliable machine for transporting materials in difficult environments.

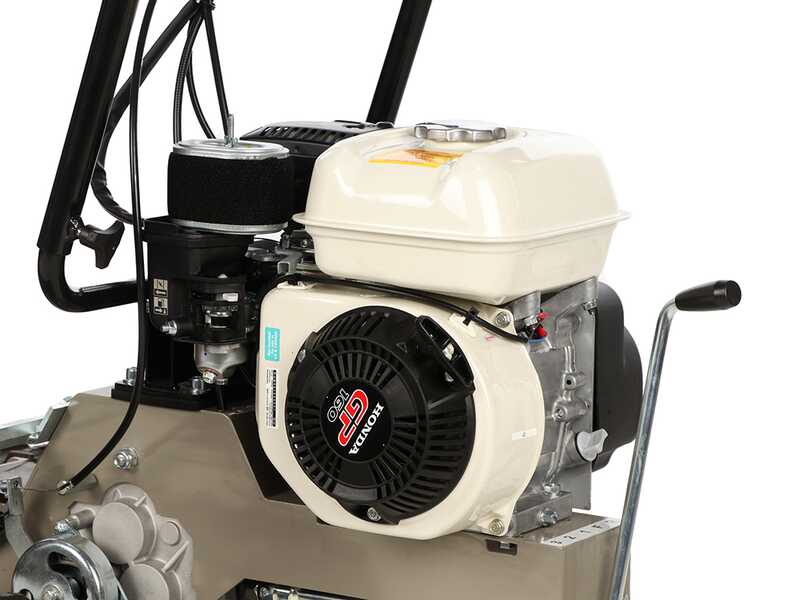

The Honda GP 160 engine is lightweight and high-performance, suitable for tasks requiring moderate power, achieved thanks to the 163cc displacement.

Features:

Latest generation 4-stroke petrol engine with overhead valves "OHV" - horizontal shaft, Otto cycle, 4-stroke, 25° inclined cylinder, forced air cooling, cast iron cylinder

WARNING
The engine is SUPPLIED WITHOUT OIL.
Before starting, carefully read the instruction manual.

Nominal Power: 5.5 HP
The more correct term would be "Commercial" Power, meaning the classic standard of power definition officially used until a few years ago by all major engine manufacturers.

* This data is still widely used and advertised in major sales channels, although it is an inflated figure compared to the actual power.

Effective Power: HP 4.8 (at a rotation speed of 3600 rpm)
Corresponds to the actual power expressed at the engine shaft. It is the one indicated as official in the manufacturer's manual or technical data.

* This data can vary for the same engine model, depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

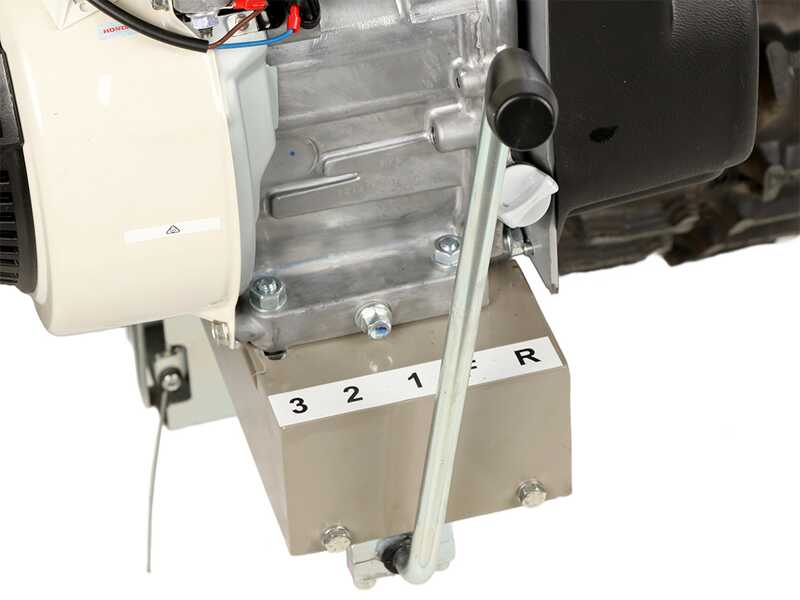

Gearbox: large, reliable, and precise.

Speed:
3 forward gears
1 reverse gear

Large Gearbox, robust and reliable with thick protection from stones or other objects on the ground

Parking Brakes:
Attached to the gearbox, for greater stability and safety.
These activate automatically when the controls are released (leaving the machine in neutral, even on steep slopes, the machine remains perfectly locked)

Transmission:
Robust and durable, allows steering by acting on the single track by deactivating its rotation

Ground clearance of the transmission is 16 cm.

The machine is supplied by the manufacturer with transmission oil at level. However, ALWAYS check the oil levels before starting as specified in the instruction and maintenance manual.

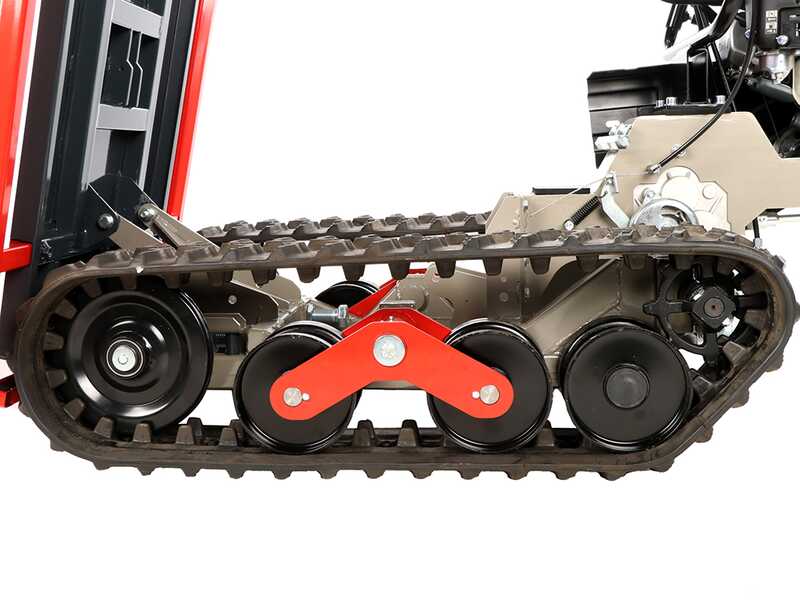

The power barrow features pivoting tracks. The two central rollers unlike the others are mobile and can move according to the obstacle they encounter, thus allowing the machine to always have maximum ground adhesion.

The shape of the tracks allows the power barrow to easily overcome even the most insidious obstacles such as walls and steps, still ensuring safety and stability. With their width and tread profile, they ensure perfect adhesion and stability on any type of terrain.

High-density rubber tracks to ensure superior durability and greater efficiency, with teeth designed for excellent grip on rough terrains, equipped with 4 Rollers.

Track dimensions: 180x60x37 mm

Rear of the track with sharp upper angle "tank type" that allows it to easily climb even steps or other types of obstacles.

The perfect front/rear balance ensures load distribution and perfect ground adhesion.

Track tension adjustable with spring belt tensioner to ensure constant tension.

Robust frame with high-thickness boxed steel structure that limits vibrations and noise. The low centre of gravity also ensures optimal stability during work. The position of the engine and transmission facilitates maintenance.

Track tension adjustment thanks to tensioning springs.

Frame thickness: 4 mm

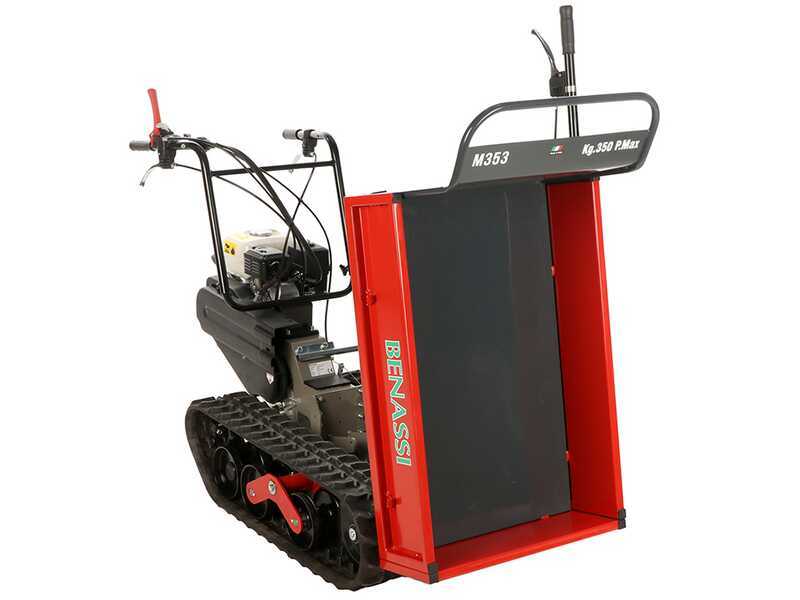

High-strength steel skip, reinforced with tubular steel crossbars at the bottom, making it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate loading/unloading operations

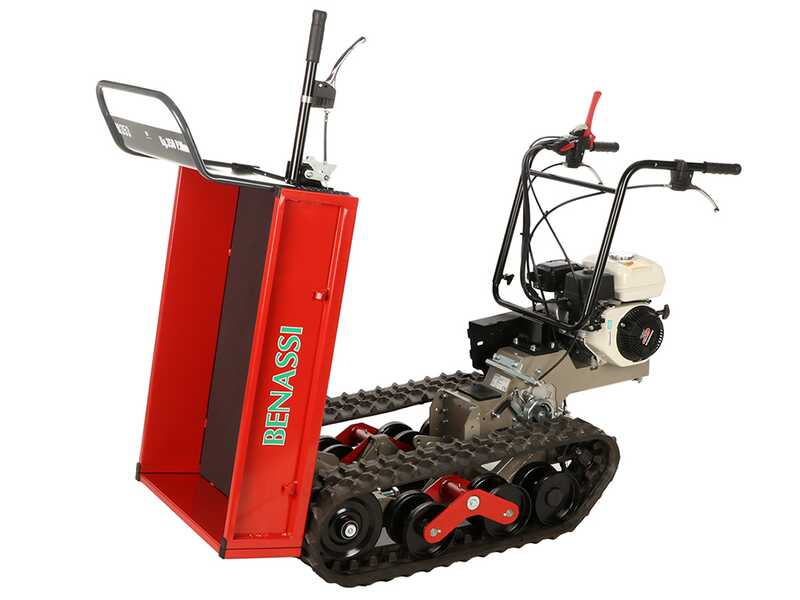

Mechanical tipping: activated manually with the appropriate rubber-coated release lever equipped with a spring, and facilitated (in case of heavy loads) by the long skip lifting lever located on the side.

Opening sides on 3 sides: to significantly increase the dimensions of the loading platform, allowing optimization of even the most voluminous transports.

Detail of the knob screws located under the skip.

Closed skip dimensions: 92x64x21 cm

Open skip dimensions: 103x110x21 cm

Capacity: 350 Kg

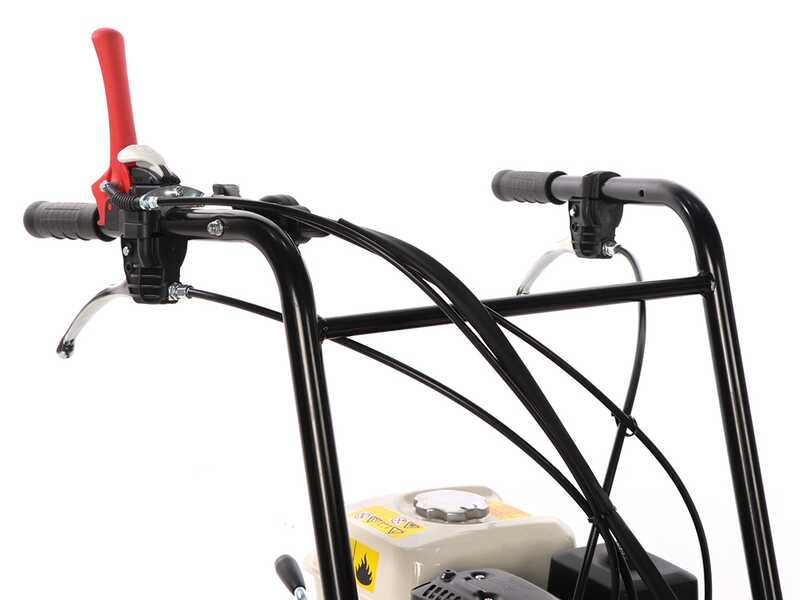

Controls: easy to operate and ergonomic, offering precision and controllability in work.

Wide red activation lever.

The two lower levers are for steering, respectively to the right and left.

The steering is adjustable according to the control lever and allows easy movement. Partially pulling one or the other lever will also partially steer the respective track, right or left.
This allows the power barrow to steer extremely easily, without causing abrupt movements.

Safety brake that allows immediate stopping.

Throttle lever and power supply switch

Skip tipping lever

Gear lever
