Benassi BL365 C - 7 HP Petrol Garden Tiller - Hwasdan H170F Engine

Questions & Answers (1)
ID: K606312

EAN: 8023329608582

MPN: 8605608

8,1/10
After-sales assistance & Spare parts
Benassi BL365 C - 7 HP Petrol Garden Tiller - Hwasdan H170F Engine
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement spark plug kitReplacement spark plug kit
Replacement oval tapered foam air filter for the engineReplacement oval tapered foam air filter for the engine
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Free gift: fuel jerrycan 5 ltFree gift: fuel jerrycan 5 lt
Tarpaulin coverTarpaulin cover
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 01/10/2026 - 05/10/2026
€ 733,70
Vat included
Technical data
Standard milling cutter width
60 cm
Recommended surface
80 m²
Motor type
4-stroke
Motor brand
Producer-manufactured
Motor Model
H170F
Cubic capacity
212 cm³
Nominal power
7 HP
Transmission type
Belt and chain
Gears
1+1
Soil consistency
Soft
Product Features
Model
BL365 C
Type
With belt and chain in oil bath
Operating mode
Spark ignition
Recommended surface
80 m²
Soil consistency
Soft
Soft soil
yes
Starting mode
Recoil
Manufacturing country
China
Motor data
Motor brand
Hwasdan
Motor Model
H170F
Motor type
4-stroke
Cubic capacity
212 cm³
No. of cylinders
1
Nominal power
7 HP
Actual power (HP)
5.6 HP
Fuel
Petrol
Power supply
Overhead valve OHV
Engine lubrication system
Oil bath
Decompression system
Automatic
Manufacturing country
China
Transmission data
Transmission type
Belt and chain
No. of forward speeds
1
No. of reverse speeds
1
Gears
1+1
Operating mode
Lever on the handlebar
Cutting data
Standard milling cutter width
60 cm
Milling cutter diameter
30 cm
No. of blade holders
4
No. of blades
16
Blade engagement
Lever on the handle
Equipment
Milling cutter accessory
Included as standard
Side crop protection discs
Yes
CE Accident prevention system
Yes
Transport wheel
Yes
Rear stake
Yes
Adjustable stake
Yes
Clutch
Belt tensioner
Recoil start system (with rope)
Yes
Height-adjustable handle
Yes
Rubber-coated soft grip
Yes
Folding/removable handle/s
Yes
Free gifts/extra features
Engine maintenance kit
For free
Engine oil bottle for free
2
Wooden pallet (safe shipping)
Yes
Maintenance tool kit
Yes
Instructions manual
Yes
Dimensions and logistics

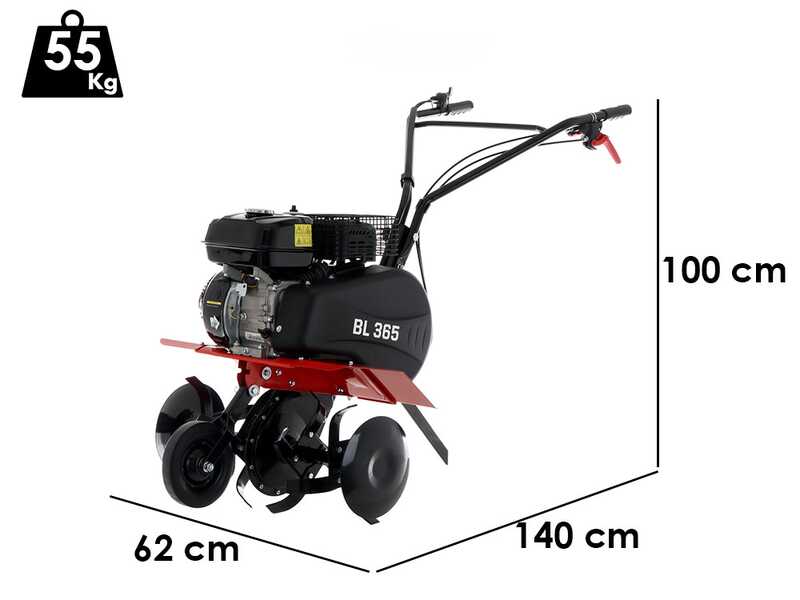

Product dimensions in cm (L x W x H)
140x62x100 cm
Net weight
55 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
80x60x75 cm
Weight including packaging
60 Kg
Assembly time
30 minutes

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Italian Power RG3.6-60 Q-D Garden tiller

Benassi BL365 C garden tiller is an agricultural machine designed to till the soil efficiently and precisely.

This garden tiller, with a Hwasdan H170F engine, is a single-cylinder 4-stroke petrol engine delivering a nominal output of 7 hp.

The Benassi BL365 C rotary tiller has a 60 cm working width, allowing the soil to be prepared quickly and effectively. The machine is able to work on soils of various consistencies, from soft soil to harder areas, thanks to its 4 helical milling cutters.

Recommended for tilling not too extensive soils as vegetable gardens or outdoor areas.

The garden tiller is provided with 4-star 30 cm diameter cutter, which ensures a working width of 60 cm and 15 cm working depth. Easy manoeuvrability thanks to the height-adjustable ergonomic handle and to the controls, which are located on the steering handles.

The machine is equipped with 1 forward and 1 reverse speed gears, which gives to the Operator improved power of the machine. Provided with belt drive transmission and gears in oil bath.

WARNING!

Engine and transmission are provided without oil. Make sure to add oil before the first use.

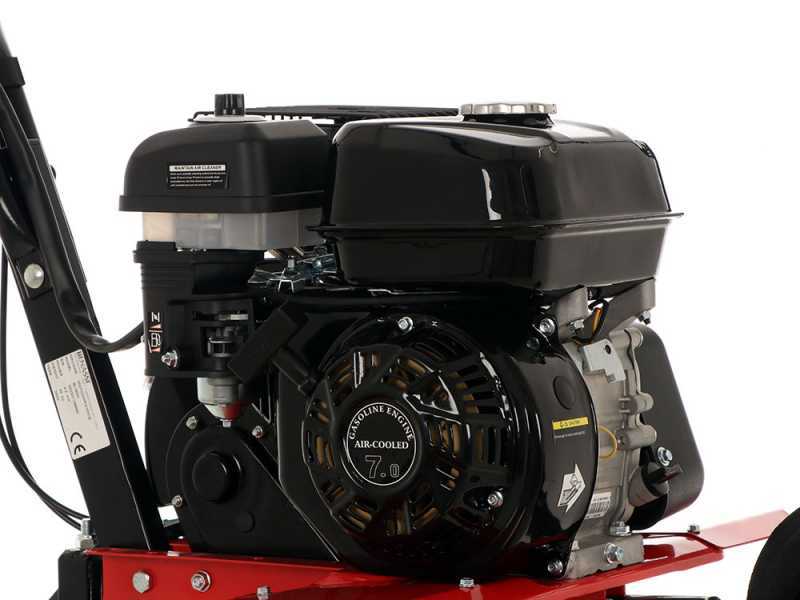

Hwasdan H170F Engine 212 cc

Powerful Hwasdan7 hp 212 cc engine of latest-generation with overhead valve technology.


Features:

Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
Aluminium
Cubic capacity:
212 cc



The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Chain transmission in oil bath and side belt drive

Solid direct transmission by chain (in oil bath).

Intermediate side belt-drive transmission belt, which is firmly covered by a sturdy chain.

The 2 gears, 1 forward and 1 reverse, ensure high manoeuvrability of the machine.

However, we always recommend to avoid bumps or working on stony soils.

Gears are controlled by the two levers on the handle

WARNING!

The transmission is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

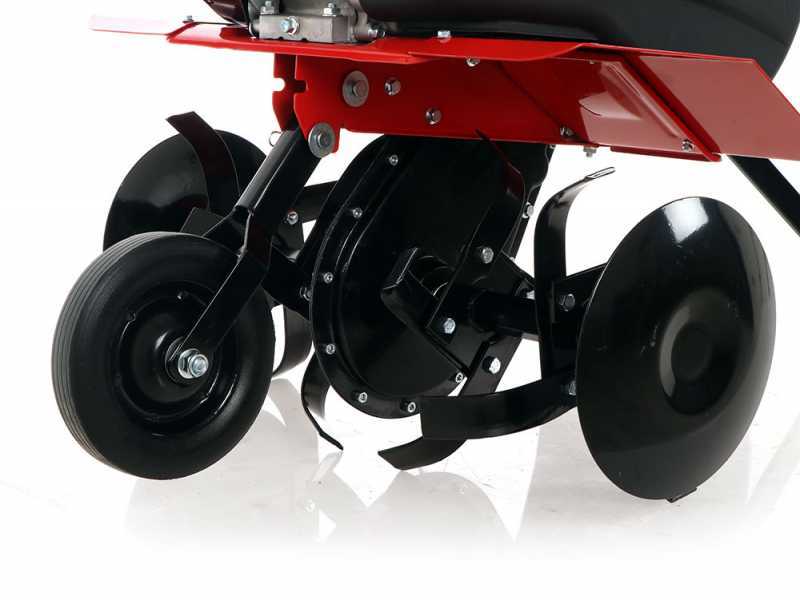

60 cm tiller

This garden tiller is provided with 4-star 30 cm diameter tiller, which ensures a working width of 60 cm. Easy manoeuvrability thanks to the height-adjustable ergonomic handle and to the controls, which are located on the steering handles.

Tiller diameter: 30 mm

Single hoe width: 3.6 cm

WARNING!

The transmission is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Additional specifications

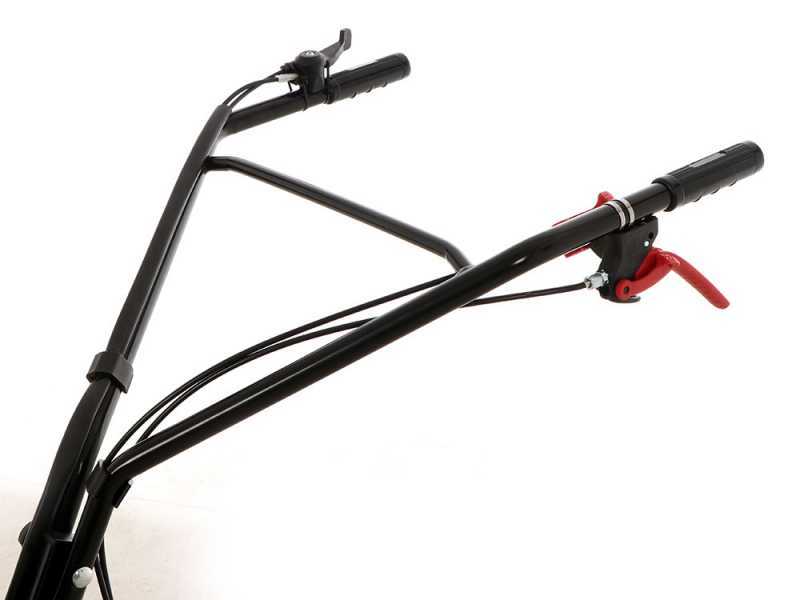

The handlebars, where are located all the main functions of the garden tiller, are adjustable in 3 different positions.

All the user-friendly controls are located on the handlebars:

  • Clutch lever: it manages the motion of the tillers and the machine forwarding speed.
  • Throttle Lever

Focus on the rear wheel.

The garden tiller is equipped with a front wheel that can be positioned.

Recommendations for Use - Petrol Garden Tillers

To ensure the correct operation of the petrol garden tiller and maintain its performance over time, it is important to use the machine in accordance with the specified operating conditions and to follow a few simple recommendations.

Before each use, it is advisable to check the general condition of the machine, ensuring that the tines are correctly assembled, the protective guards are intact, fluid levels are correct and the controls are working properly. A pre-use check allows you to work more safely and reduces the risk of malfunctions.

The petrol garden tiller must only be used on ground suitable for tilling. It is not advisable to work on surfaces containing a high number of stones, rocks, roots, debris or other large foreign objects, as these may strike the tines and place excessive strain on the transmission and mechanical components.

On particularly hard, compacted or previously untilled soil, it is preferable to carry out several passes at progressively greater depths, avoiding subjecting the machine to excessive loads during a single operation.

It is also not recommended to use the rotary tiller on excessively damp ground. High moisture levels cause the soil to adhere to the tines, leading to build-up of material, increased resistance to rotation and a reduction in the quality of the tilling.

Where there is tall grass, wild vegetation or unchopped plant residues, it is advisable to prepare the working area in advance. Plant material can wrap around the rotating parts, causing clogging, reduced efficiency and increased wear on components.

To ensure the machine operates correctly, only use tines, tools and accessories that are compatible with the model in use and approved by the manufacturer. Unsuitable or damaged components can cause abnormal vibrations and compromise the service life of the transmission and frame.

While working, it is important to allow the machine to advance at a rate determined by the capacity of the tines and the characteristics of the soil, avoiding forcing the machine forward with excessive pressure. On hard ground, it is preferable to reduce the working depth and proceed gradually.

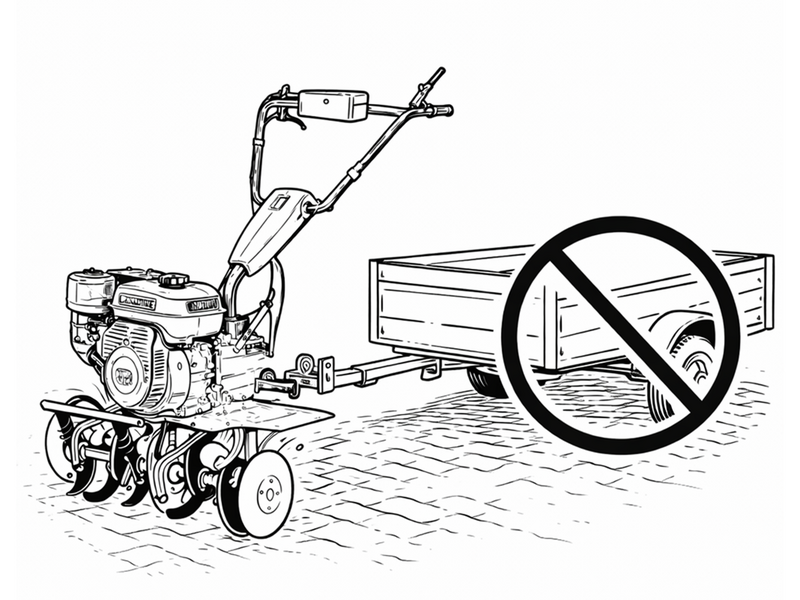

The rotary tiller must be used exclusively for soil cultivation and must not be used to pull, push or perform towing operations with loads, trailers or equipment for which it is not designed. Improper use may result in loss of control, mechanical damage and dangerous situations for the operator.

While in use, all the required guards must remain fitted. Do not touch or work on any  moving parts while the engine is running.

Proper maintenance ensures that the petrol garden tiller continues to perform efficiently. It is advisable to clean the machine regularly, remove any residue from the tines and check the condition of components subject to wear and tear.

It is always important to use fuel and lubricants suitable for the specific model of machine, following the instructions set out in the user and maintenance manual. The use of unsuitable or degraded products may compromise the correct operation of the engine and mechanical components.

If the rotary tiller is to be left unused for a prolonged period, it must be stored in a dry, clean place, protected from the elements.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

COMPLIMENTARY: Tarpaulin cover for lawn mowers

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

The cloth measuring 185 cm long by 80 cm wide by 105 cm in height.

Equipped with elastic on the lower edge to perfectly adhere to the bottom shape of the machine.

Easy to fold and store in its package, requiring minimal space!

Free items included

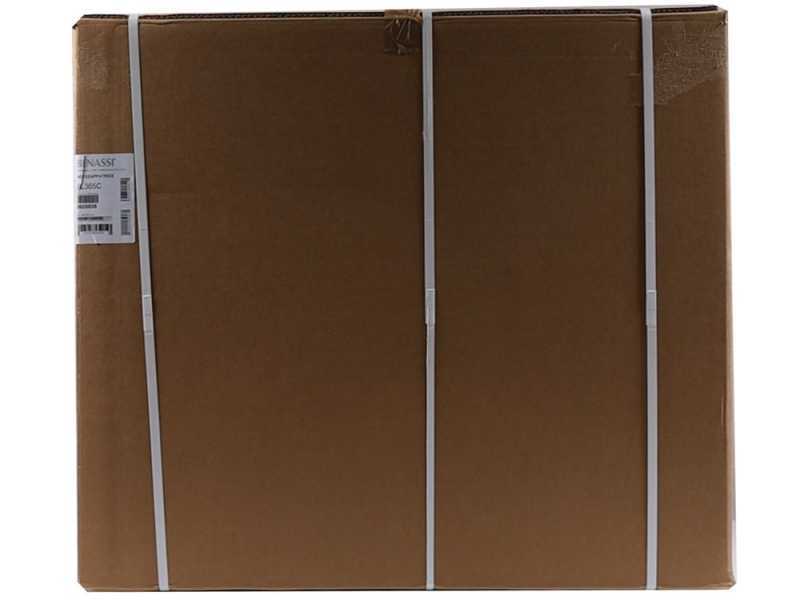

The garden tiller is shipped in its original packaging together with the instructions manual.
