Barbieri RED - Petrol Two-wheel Tractor - Honda GX160 - 4.8HP

Questions & Answers (7)
ID: K606487

EAN: 8053435094931

MPN: 5700.1

7,4/10
After-sales assistance & Spare parts
Barbieri RED - Petrol Two-wheel Tractor - Honda GX160 - 4.8HP
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement sprak plugReplacement sprak plug
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Foam air filterFoam air filter
Foam air filterFoam air filter
Standard milling cutter width
50 cm
Recommended operating area
300 s.q. m.
Motor type
4-stroke
Motor brand
Honda
Motor Model
GX160
Cubic capacity
163 cm³
Nominal power
4.8 HP
Transmission type
Gears in oil-bath
Gears
1+1
Soil consistency
Soft
Conversion via other accessories
Yes
Manufacturing country
Italy
Product Features
Model:
RED GX160
Type:
With gears in oil bath
Conversion via other accessories:
Yes
Operating mode:
Spark ignition
Recommended operating area:
300 s.q. m.
Soil consistency:
Soft
Soft soil:
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX160
Motor type:
4-stroke
Cubic capacity:
163 cm³
No. of cylinders:
Single-cylinder
Nominal power:
4.8 HP
Rated power (HP):
3.9 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.1 L
Oil tank capacity:
0.6 L
Manufacturing country:
Italy
Transmission data
Transmission type:
Gears in oil-bath
No. of forward speeds:
1
No. of reverse speeds:
1
Gears:
1+1
Forward speed:
1.1 km/h
Reverse speed:
1.0 km/h
Operating mode:
Gear lever
Cutting data
Standard milling cutter width:
50 cm
Milling cutter diameter:
30 cm
No. of blade holders:
4
No. of blades:
16
Blade engagement:
Lever on the handlebar
Equipment
Milling cutter accessory:
Included as standard
CE Accident prevention system:
Yes
Anti-vibrating system:
Yes
Clutch:
Cone clutch in oil bath
Recoil start system (with rope):
Yes
Rear wheels size:
3.50 - 6"
Height-adjustable handle:
Yes
Side-adjustable handle:
Yes
Reversible steering handles:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics

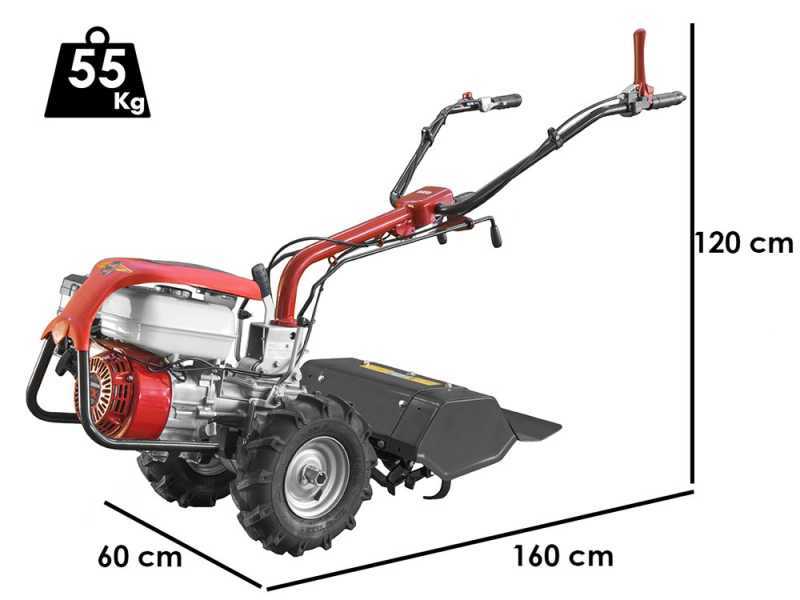

Product dimensions in cm (L x W x H):
160x60x120 cm
Net weight:
55 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120x80x90 cm
Gross weight (packaging included) :
70 Kg
Assembly time:
15 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 27/03/2025 - 02/04/2025
Suggested price:
€ 1.892,06
€ 1.797,46
Vat included
You're viewing:
Customers also viewed:
Description

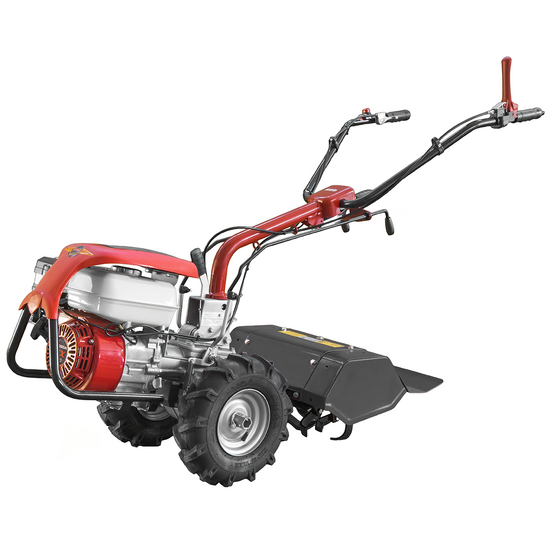

Barbieri RED Two-Wheel Tractor

Barbieri RED two-wheel tractor, a versatile machine suitable for everyday use in a household vegetable garden.

The HONDA GX160 engine and the gearbox with gears in oil bath, offers greater power and long-lasting durability compared to other gardening machines.

A further interesting feature of this machine is the presence of adjustable and reversible handlebars, which allow the use of both front and rear attachments.

This implies that the RED two-wheel tractor can be employed not only for cultivating the soil, but also for other operations such as snow removal or leaf cleaning.

Finally, the lightweight and manoeuvrable design makes it easy to use even in confined spaces, such as flowerbeds or garden edges

Generally, the Barbieri RED two-wheel tractor is an excellent choice for amateurs who want to keep their own vegetable garden tidy without struggling too much.

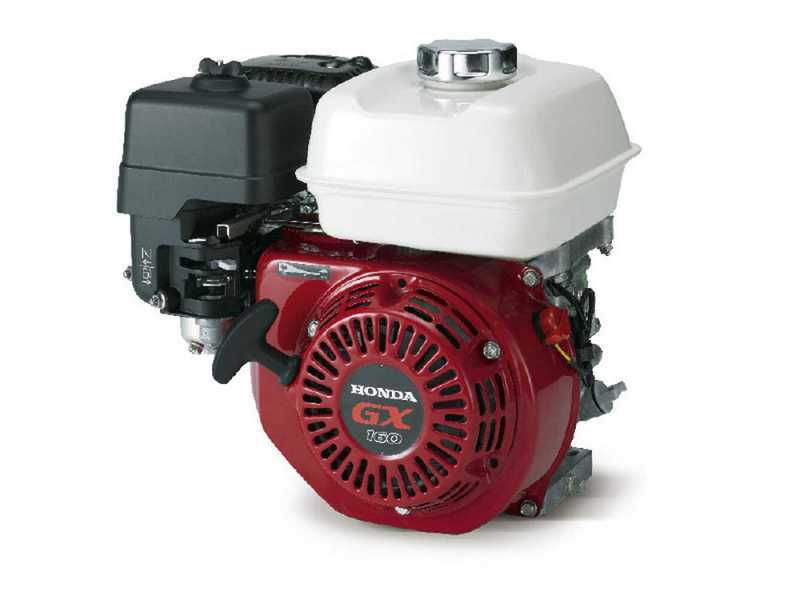

Honda GX 160 Engine

Honda GX 160 is a
super-professional, SUPER-POWERFUL and cutting-edge engine, which belongs to the latest overhead valve technology (OHV).


Features:

Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
Aluminium
Cubic capacity:
163 cc
Compression ratio:
9.0 : 1
Max. rpm:
3600 rpm
Torque value
10.3 Nm / 1.05 kgfm / 2500 rpm
Fuel tank capacity:
3.1 L
Consumption:
1.4 L/h 3000 rpm
Dry weight
15.1 kg

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.


WARNING!

The engine is PROVIDED WITH OIL. CHECK THE OIL LEVEL WITH THE MACHINE ON A FLAT SURFACE.
Please, read carefully the instruction manual before starting it up.

Nominal Power: 5.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.8 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

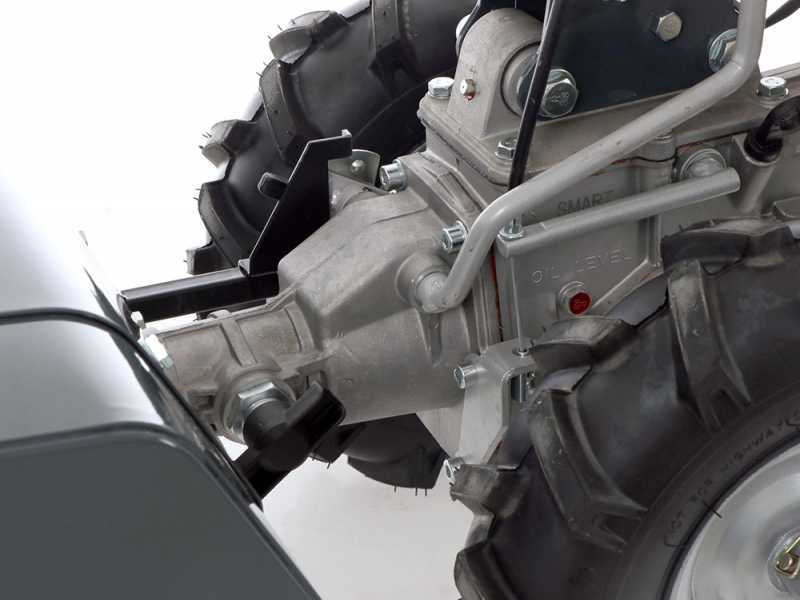

1 + 1 gearbox and transmission

The transmission is made with chain in oil bath and belt

Red lever: it engages the forward motion and the tiller simultaneously.

Through the two levers on the machine dashboard you can select the forward or reverse gear and the machine driving speed.

The transmission and gearbox are oil-immersed gears, the best type of gearbox for a machine of this type; it is solid, sturdy and requires very little maintenance.

However, we always recommend to avoid bumps or working on stony soils.

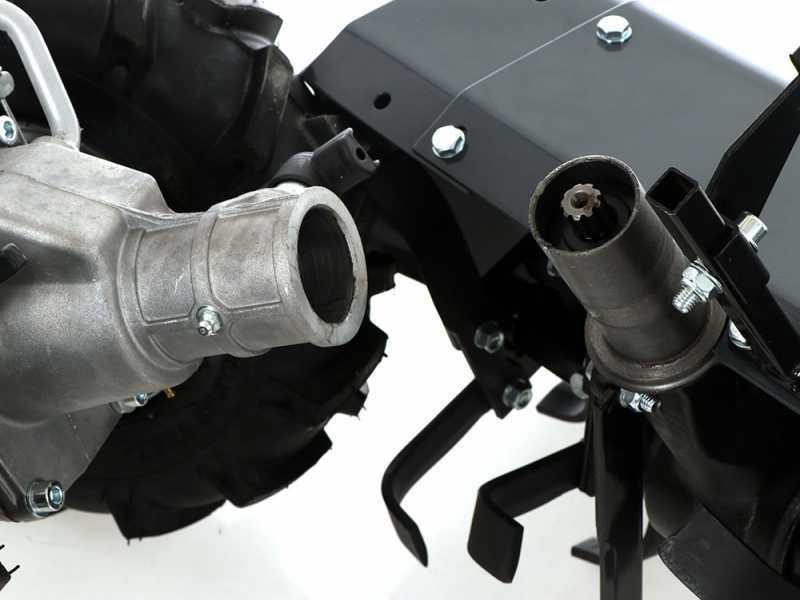

50 cm cutter

Cutter working width: 50 cm with a cutting diameter of 32 cm.

Outer hood made of sheet steel.

Cutter equipped with 4 elements, each with 4 blades, equipped with 4 hoes each

The machine is equipped with a transport wheel for moving on solid, compact ground when not in use.

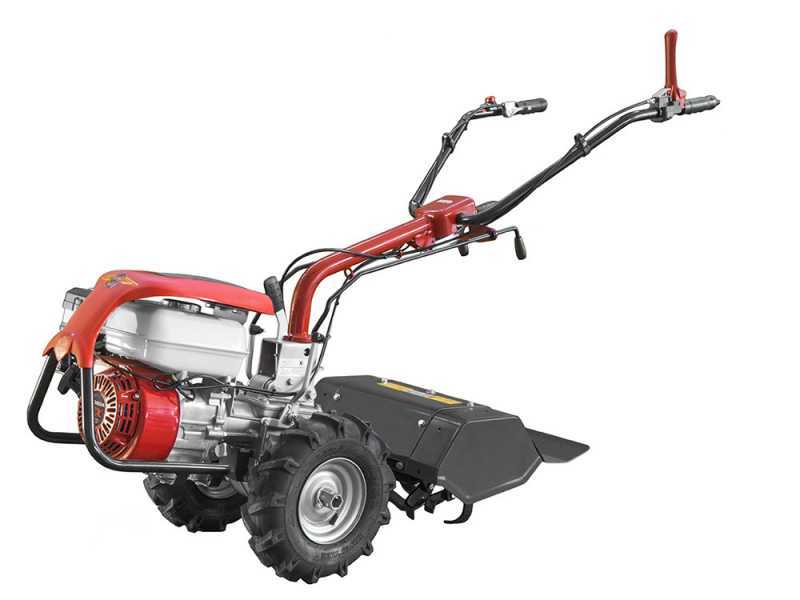

Steering handles and controls

Focus on the steering handles (handlebars) where all the main controls are placed.

Throttle lever

The machine handlebars can be adjusted both laterally (1,2,3) and vertically (1,2,3,4).

Moreover, the handlebars are mounted on the machine body through an anti-vibrating system, in order to guarantee comfort to the user while using the machine.

Treaded Tractor pneumatic drive wheels of large dimensions: 3.50- 6

They guarantee an excellent traction on any kind of surface, even those with gravel or yielding soil

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Standard equipment

Instructions manual included in the package.

The machine is shipped in its original packaging.
