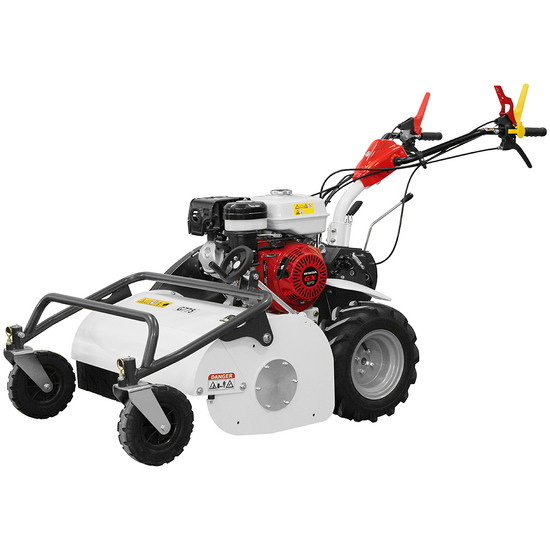

Barbieri G775 - Professional Hammer Rough Cut Mower - Honda GX270

Barbieri G775 hammer rough cut mower is a well-designed machine built following the highest quality standards.

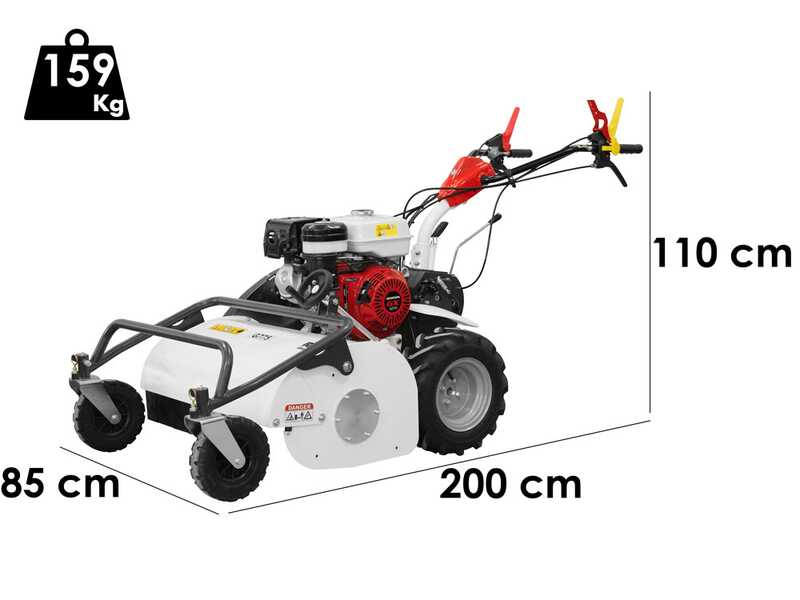

Thanks to its wheeled self-propulsion and assisted steering, this model has outstanding manoeuvrability, which is also facilitated by its fairly low weight of only 159 kg!

Barbieri rough cut mower is provided with a 270cc Honda GX 270 engine and a power capacity of 8.4 HP.

The cutting height is selectable by means of a lever on the right side of the machine. To adjust it, simply press the lever and move it down or up according to the desired result.

It is capable of destroying huge quantities of any wild plants, featuring any diameter, height and size (even 1.5 m height!), thinly crushing them, thanks to is 40 “Y” shaped blades.

Beside grass, it can crush scrubs and brambles (up to 2.5 cm) in any condition, also on uneven terrains and slight slopes.

Provided with two big front pivoting wheels.

This machine is equipped with an impressive working width of about 75cm; this allows even fairly large areas to be worked on in a short time.

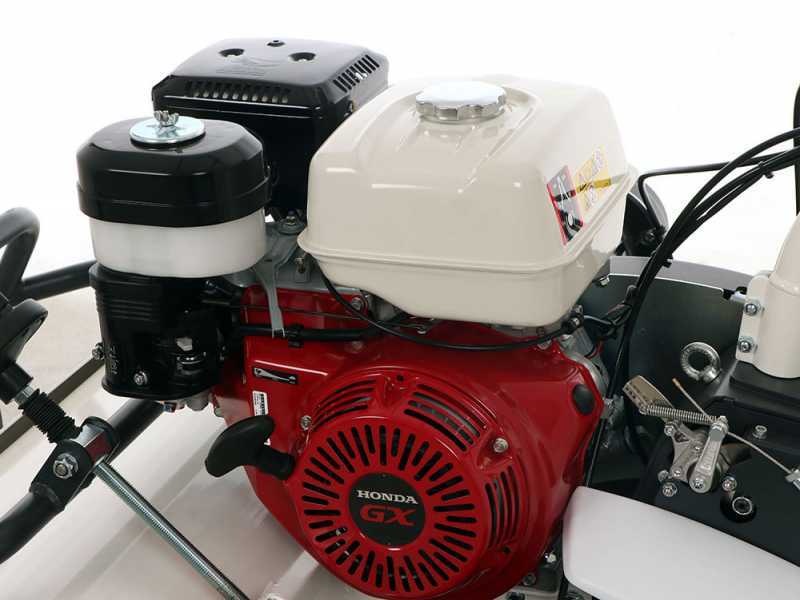

The machine is fitted with a 270cc Honda GX 270 engine.

Features:

Four-stroke petrol engine belonging to the latest technology with overhead valve system "OHV” and automatic decompressor starting system.

Focus on the air filter.

Fuel tank

Engine oil tank:

WARNING!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 8.4 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 6.8 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

3-Speed gearbox in oil bath: 2 forward and a 1 reverse gears.

The gearbox is really sturdy and reliable.

Final drive to the rough cut mower rotor through a drive belt protected by a sturdy casing.

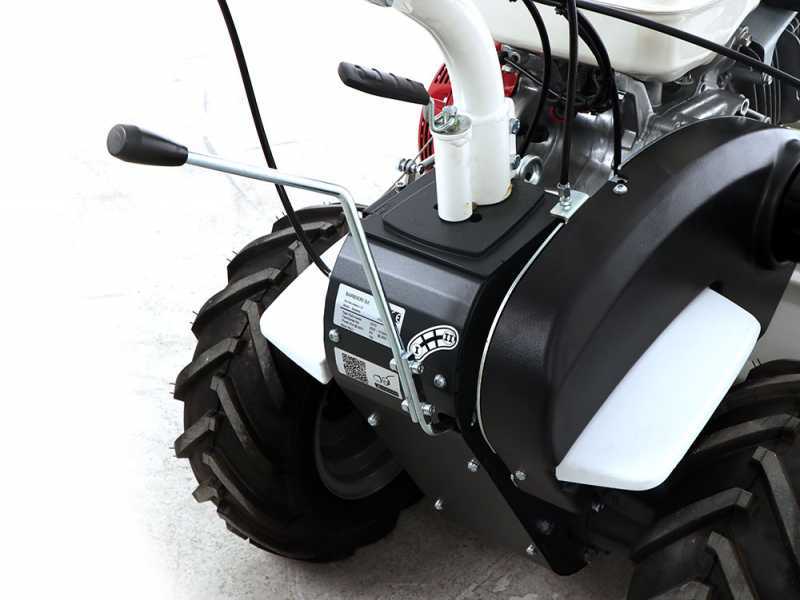

Focus on the gear selector switch

The reverse gear is activated through the lever on the control handlebars.

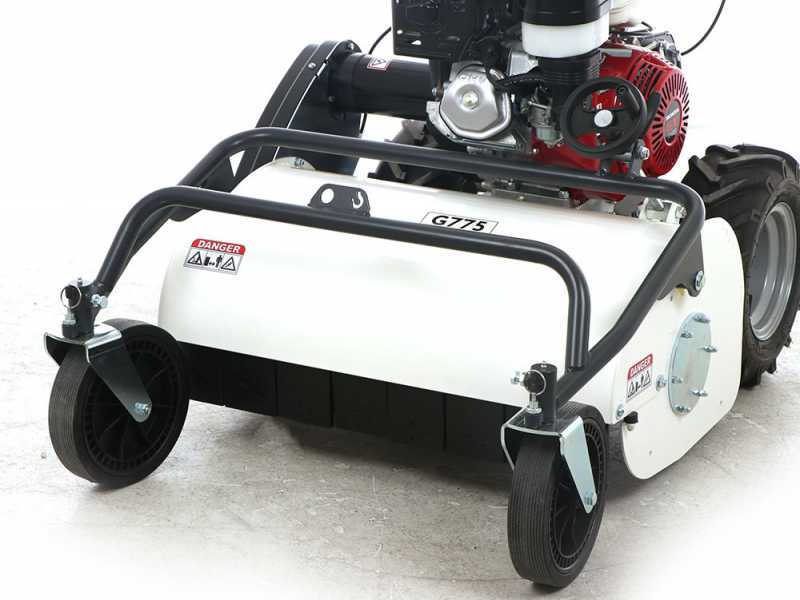

The rough cut mower cutting deck is made of exceptionally thick steel plate.

Sturdy rotor in hardened steel composed by 40 Y-shaped blades. They give this machine unrivalled effectiveness on any type of material (grass but also brushwood, brambles, pruning, up to 2.5 cm in diameter)

Working width: 75 cm

Focus on the blades and their particularly sturdy supports

The cutting deck is equipped with a toothed part that acts as a counter blade for further shredding the grass.

Sturdy front protection flaps mounted on a tilting protective cover.

The rotor disc brake is connected to the clutch, ensuring safe working under all circumstances.

The front wheels are very large and allow the machine to be moved easily and smoothly, also on uneven soil.

The cutting height can easily be adjusted from 30 mm to 160 mm by means a knob.

Right lever:

• The upper red lever turns the knife rotor on and off (i.e. the milling function) and is connected to the safety brake, which quickly stops the rotation of the rotor if it is released.
• The lower lever allows you to put the corresponding truck in neutral or brake to facilitate changing direction.

Gear left lever:

• The upper yellow lever is the feed clutch, it engages and disengages the drive, whatever speed is selected on the gearbox (both forwards and backwards). Releasing this lever stops the machine instantly, for safety reasons.
• The lower lever allows you to put the corresponding truck in neutral or brake to facilitate changing direction.
• The red lever activates the reverse gear

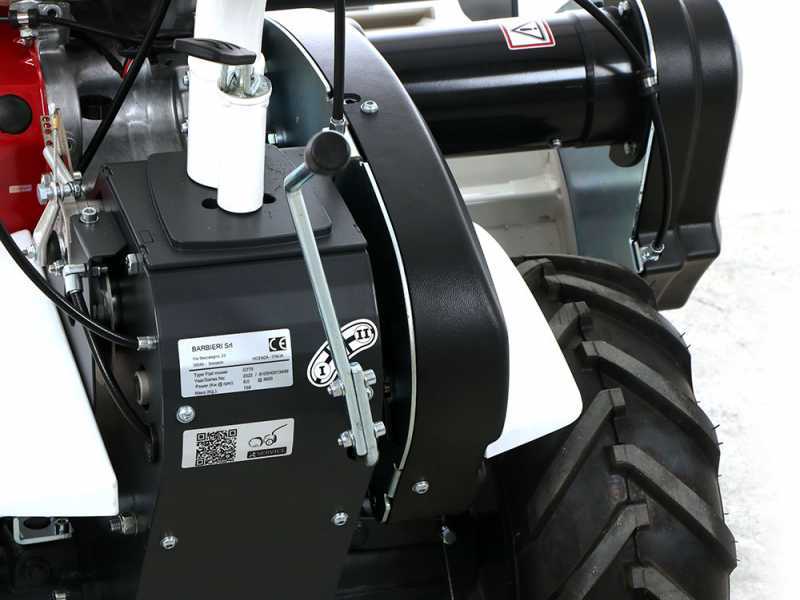

Gear selector switch

Adjustment of control handlebars by lever.

Adjustment of side control handlebars.

Power switch
