Name: Barbieri G760 - Professional Hammer Rough Cut Mower - Honda GX200
Brand: Barbieri
SKU: K606430
Price: 4128.11 EUR
Availability: InStock

Description

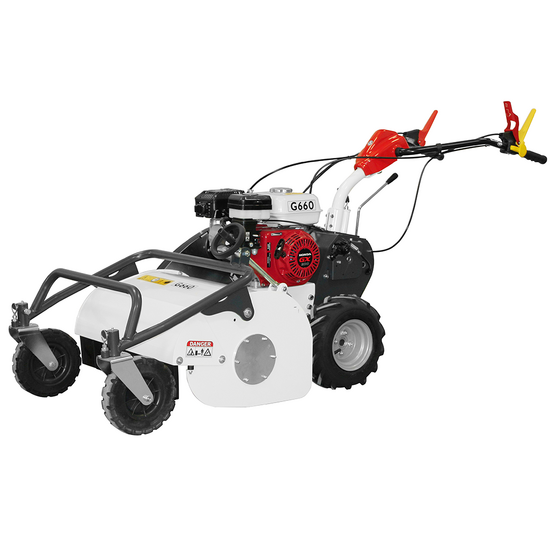

Barbieri G760 Professional Hammer Rough Cut Mower

The Barbieri G760 professional hammer rough cut mower is the perfect machine if you need to carry out mowing operations of tall grass on large plots of land, with uneven or rough pavement, even with brambles and brushwood.

Built following the highest quality standards, it is guaranteed by the Italian brand Barbieri.

Equipped with a 196cc Honda GX200 engine, with 5.0HP, enough for the success of any operation the rough cut mower will undertake.

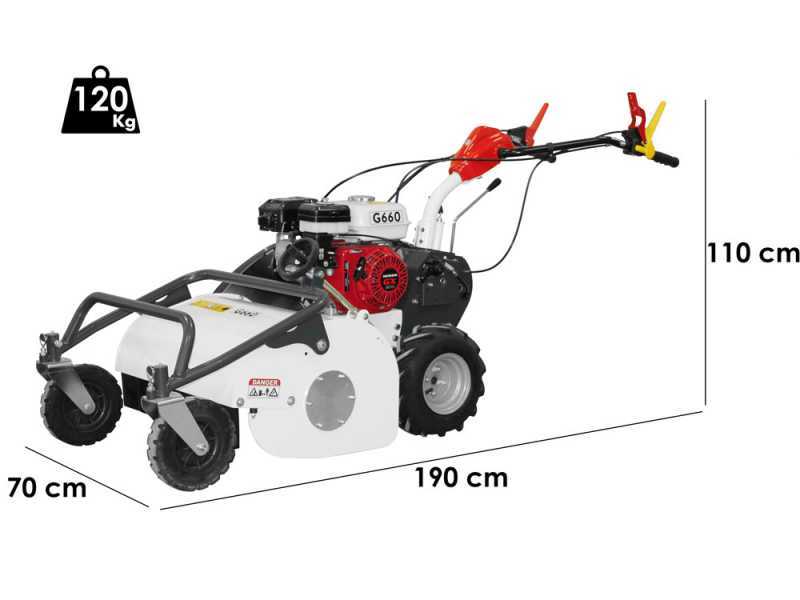

Thanks to its wheeled self-propulsion and assisted steering, this model has outstanding manoeuvrability, which is also facilitated by its fairly low weight of only 120kg!

The cutting height is selectable by means of a knob on the right side of the machine. To adjust it, simply press the lever and move it down or up according to the desired result.

Provided with two big front pivoting wheels, this facilitates machine movement on sloping terrain.

It is capable of destroying huge quantities of any wild plants, featuring any diameter, height and size (even 1.5 m height!), thinly crushing them, thanks to is 32 “Y” shaped blades.

Beside grass, it can crush scrubs and brambles (up to 2.5 cm) in any condition, also on uneven terrains and slight slopes.

Impressing working width: 60cm. This allows even quite large areas to be worked on in a short time.

Barbieri G760 - Professional Hammer Rough Cut Mower - Honda GX200

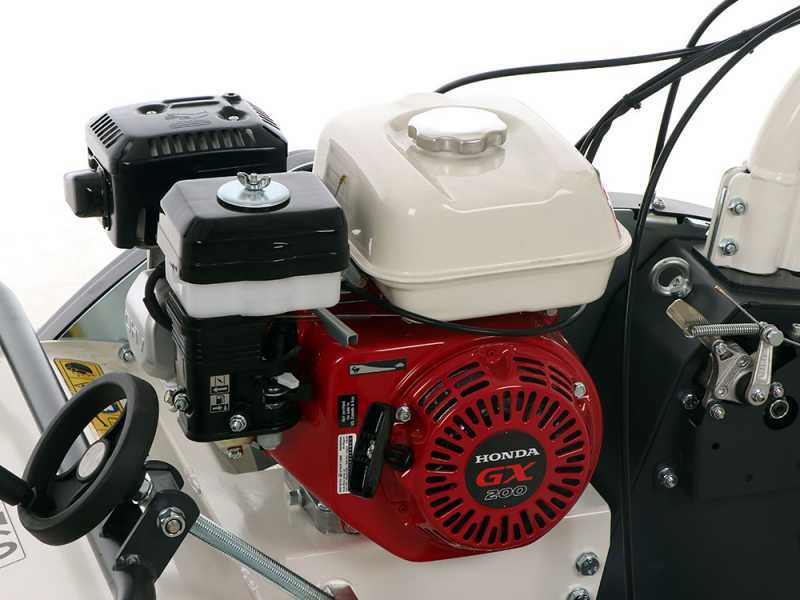

Honda GX200 Engine

Honda GX 200 engine is a highly-duty, powerful and state-of-the-art engine, which belongs to the latest overhead valve technology (OHV).

Features:

Engine type:

4-Stroke, single cylinder - OHV

Cylinder type:

Aluminium

Cubic capacity:

196cm³

Compression ratio:

8.5 : 1

Max. rpm:

3600 rpm

Torque value

12.4 Nm / 1.26 kgfm / 2500 rpm

Fuel tank capacity:

3.1 L

Consumption:

1.7 L/h at 3600 rpm

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

The Honda “GX” series is highly professional and was developed for heavy-duty woks in the building and agricultural field for generators, welders etc. It is characterised by great durability and reliability.

Please carefully read the instructions manual before starting the unit.

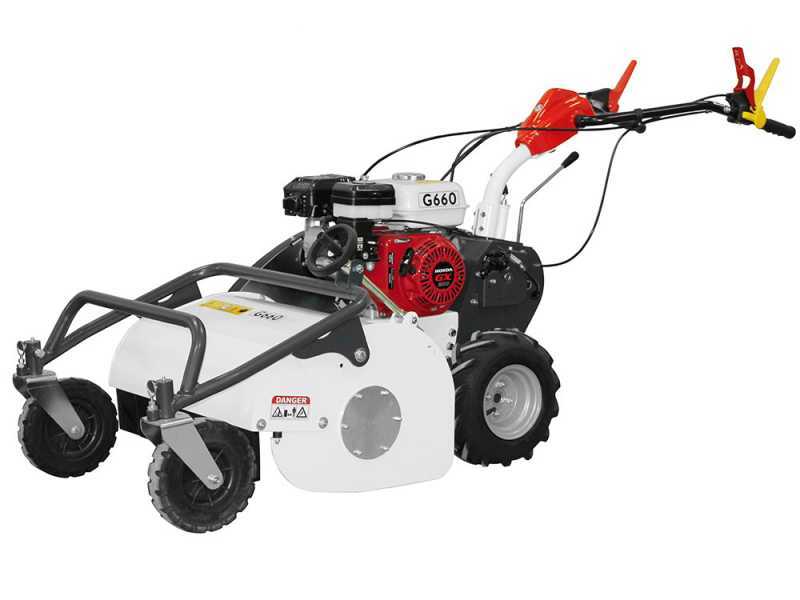

Gear shifting system and transmission

3-Speed gearbox in oil bath: 2 forward and a 1 reverse gears.

The gearbox is really sturdy and reliable.

Final drive to the rough cut mower rotor through a drive belt protected by a sturdy casing.

Focus on the gear selector switch

The reverse gear is activated through the lever on the control handlebars.

Speed:

1° gear: 1.96 Km/h
2° gear: 3.35 Km/h
Reverse speed: 1.19 Km/h

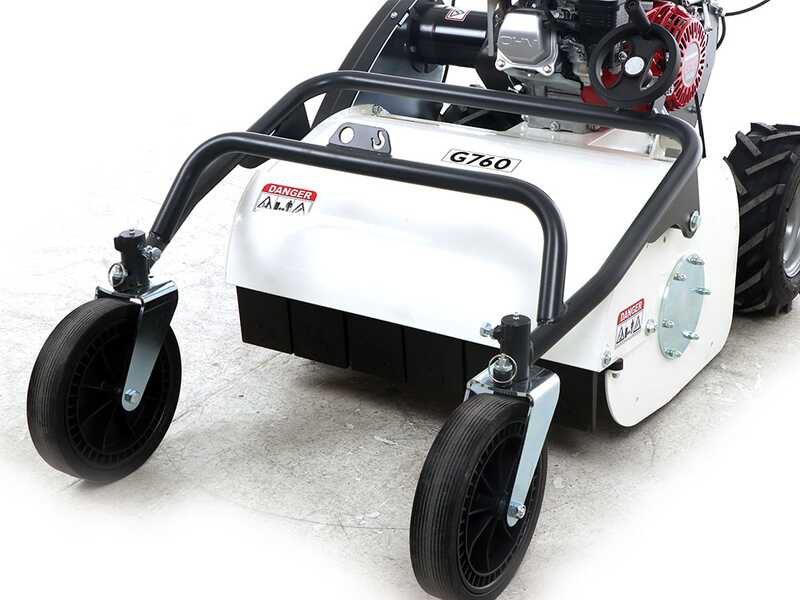

Cutting deck

The rough cut mower cutting deck is made of exceptionally thick steel plate.

Sturdy rotor in hardened steel composed by 36 Y-shaped blades. They give this machine unrivalled effectiveness on any type of material (grass but also brushwood, brambles, pruning, up to 2.5 cm in diameter)

Working width: 60 cm

Focus on the blades and their particularly sturdy supports

The cutting deck is equipped with a toothed part that acts as a counter blade for further shredding the grass.

Sturdy front protection flaps mounted on a tilting protective cover.

The rotor disc brake is connected to the clutch, ensuring safe working under all circumstances.

The front wheels are very large and allow the machine to be moved easily and smoothly, also on uneven soil.

The cutting height can easily be adjusted from 30 mm to 160 mm by means a knob.

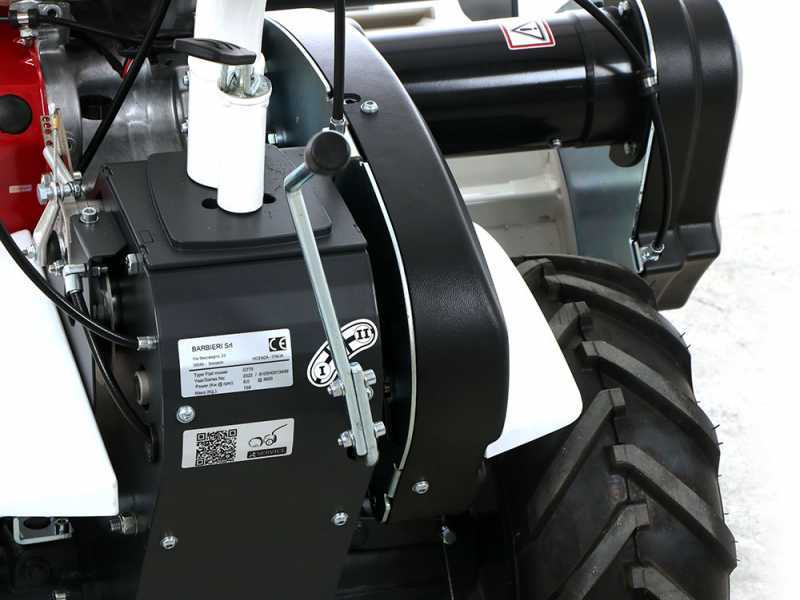

Controls and settings

Right lever:

The upper red lever turns the knife rotor on and off (i.e. the milling function) and is connected to the safety brake, which quickly stops the rotation of the rotor if it is released.
The lower lever allows you to put the corresponding truck in neutral or brake to facilitate changing direction.

Gear left lever:

The upper yellow lever is the feed clutch, it engages and disengages the drive, whatever speed is selected on the gearbox (both forwards and backwards). Releasing this lever stops the machine instantly, for safety reasons.
The lower lever allows you to put the corresponding truck in neutral or brake to facilitate changing direction.
The red lever activates the reverse gear

Gear selector switch

Adjustment of control handlebars by lever.

Adjustment of side control handlebars.

Power switch

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

Honda GX 120/GX 160/GX 200
Honda GP160/GP 200
Loncin 120/160/196 cc
Axo 120/160/196 cc
Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.
