Baesso - Manual Grape Crusher with Flywheel And Aluminium Rollers

Questions & Answers (2)
ID: 3101

EAN: 8051411790662

MPN: 3101

Baesso - Manual Grape Crusher with Flywheel And Aluminium Rollers
+200 sold
Max. hourly output
800 Kg/h
Motor type
Hand-operated
Hopper opening size
50 x 75 cm
Manufacturing country
Italy
Product Features
Model:
Hand-operated crusher - small size
Type:
Grape crusher
Body material:
Enamel painted steel
Configuration:
With support frame
Operating mode:
Hand-operated
Hopper opening size:
50 x 75 cm
Max. hourly output:
800 Kg/h
Manufacturing country:
Italy
Motor data
Motor type:
Hand-operated
Transmission data
Transmission type:
Gearbox
Equipment
Pair of rollers:
Yes
Centrifugal grate:
No
Dimensions and logistics
Net weight:
19 Kg
Packaging:
On pallet
Assembly time:
5 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 14/10/2024 - 16/10/2024
€ 266,84
VAT Included
You're viewing:
Customers also viewed:
Description

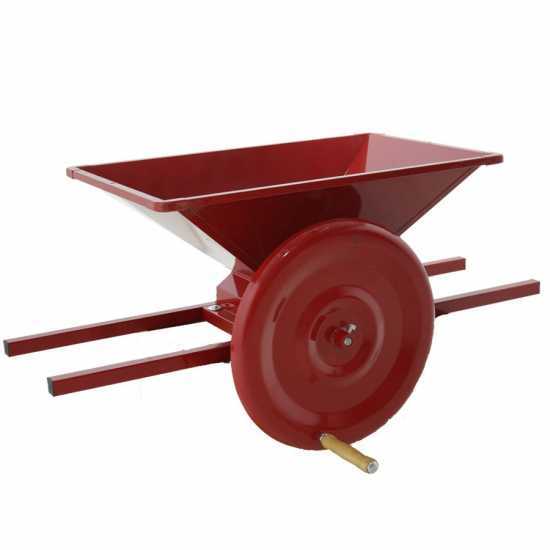

Manual Grape Crusher with Supporting Frame

Manual grape crusher with self-adjustable rollers equipped with agitator. The rollers are fixed to a special support that not only allows to properly adjust the crushing degree, but also guarantees the integrity of the rollers and gears from the passage of any solid parts.

It features a simple and modern design, accurately designed structure built with specific techniques that make it user-friendly and easy to use.

The long service life of the grape crusher is guaranteed by the easy maintenance, as all the rotating components work on ball bearings or bushings.

The output capacity is approx. 500-800 Kg/h.

Upper loading hopper and aluminium rollers

75 x 50 loading hopper

The large size of the hopper make the machine very easy use, facilitating the dropping of the crates of grapes inside the machine.


This grape crusher is one of the few machines fitted with two counter-rotating aluminium rollers.

Most of the grape crushers on the market are equipped with plastic rollers.

These rollers carry out an initial processing of the grapes, performing a “first crushing” action that generates small cracks on the surface of the grape that facilitate the overflow of the first pomace.

Manual side gear transmission

The side drive transmits the rotary motion to the rollers.

The machine is equipped with practical wooden knob and flywheel for grapes processing.

The gears are made of high density teflon.

Free items & Standard equipment

Standard equipment

The grape crusher is shipped in its original packaging. Only the flywheel and knob need to be mounted.
