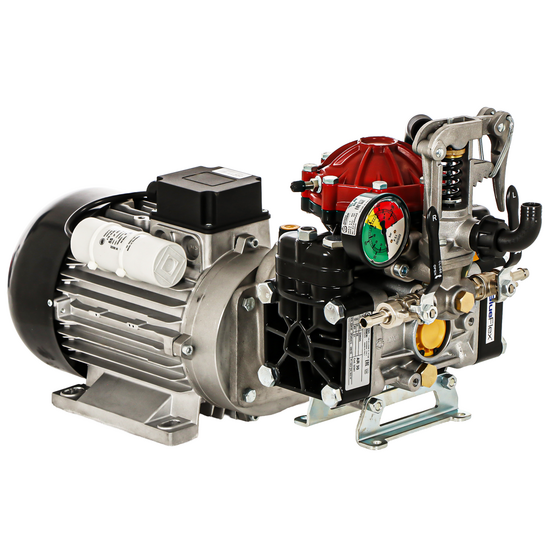

The Annovi Reverberi AR 30 EM electric spray pump is an electric pump unit designed for agricultural applications that require efficiency, reliability and high performance.
This unit is equipped with a BlueFlex™ diaphragm pump with 2 diaphragms, combined with a 230V single-phase 4-pole electric motor. The unit is equipped with an integrated GI 40 control unit, which allows easy adjustment and monitoring of pressure and flow.
It is suitable for use in pesticide treatments, weed control and high-pressure washing, both in advanced hobby and professional applications.
The electric motor develops a power of 2.5 HP and operates at 550 rpm, ensuring a maximum flow rate of 36.2 litres per minute and a maximum pressure of 30 bar (580 psi).

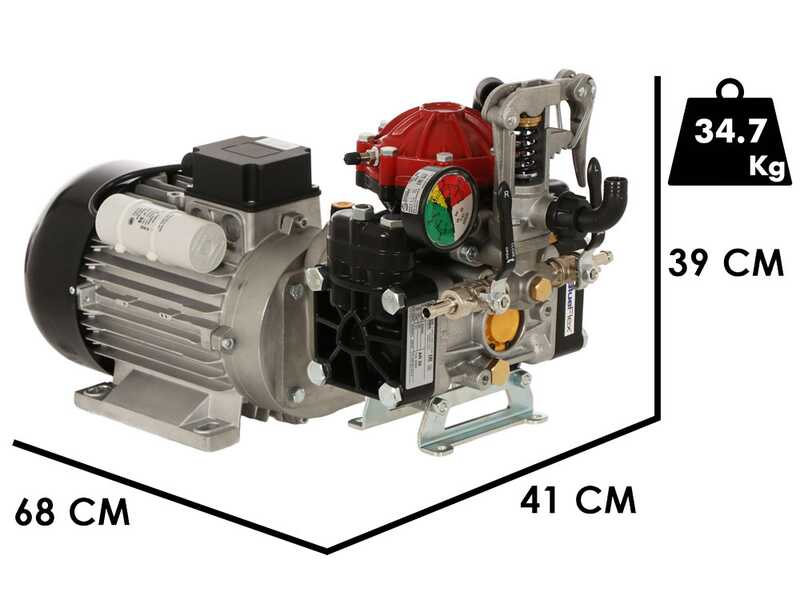

This allows for even distribution of the liquid even over large surfaces. The motor pump has a compact and sturdy design: the structure is made of corrosion and heat-resistant materials, with a maximum inlet liquid temperature of 60°C. The net weight of the unit is 34.7 kg, while the packaging dimensions are 680x410x390 mm.
The predominant colour is blue, with grey and black details highlighting functional components and connections. The rational layout of the connections – with 25 mm suction and two 10 mm outlets – simplifies connection to pipes and spraying accessories. The design is functional and designed for fixed installation or on sprayers.
The features that distinguish this Annovi Reverberi AR 30 EM electric spray pump from other similar models are:
- Single-phase 4-pole electric motor: develops 2.5 HP of power and guarantees reliability and durability thanks to its low speed (550 rpm);
- BlueFlex™ diaphragm pump: equipped with 2 diaphragms resistant to chemicals and plant protection products, ideal for intensive and continuous treatments in agriculture;

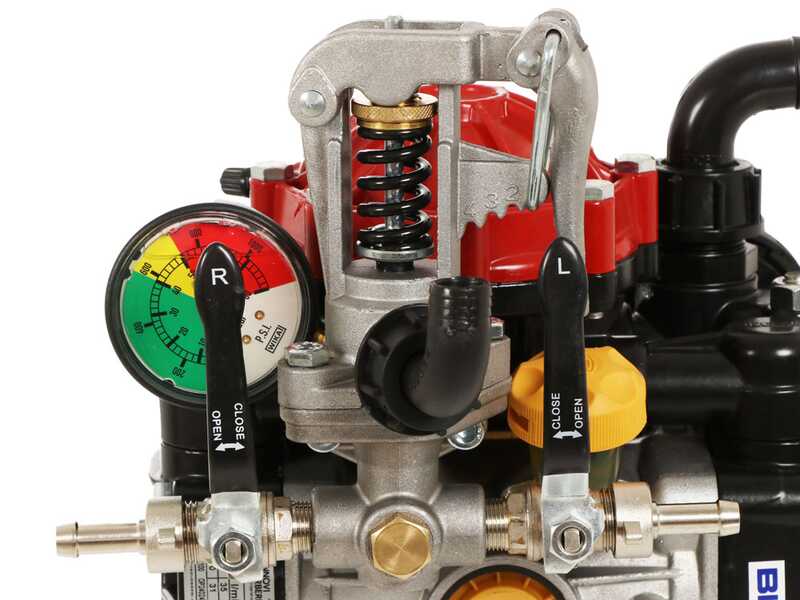

- Integrated GI 40 control unit: allows precise pressure and flow control, improving the operating efficiency and safety of the electric pump unit;
- Compact and sturdy structure: designed to withstand harsh environmental conditions, with high-quality materials and mechanical protection on the most exposed components;
- High hydraulic performance: flow rate of 36.2 L/min and pressure up to 30 bar make the unit suitable for use on large agricultural surfaces and for professional washing operations.
