AMA MTZ100G - 7 HP Petrol Garden Tiller - 212 cc Engine

Questions & Answers (8)
ID: K602778

EAN: 8033807334759

MPN: 92298

7,3/10
After-sales assistance & Spare parts
AMA MTZ100G - 7 HP Petrol Garden Tiller - 212 cc Engine
+100 sold
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Foam air filterFoam air filter
Foam air filterFoam air filter
2 Bottles of 1L transmission oil2 Bottles of 1L transmission oil
Out of stock
Free Shipping
€ 668,15
Vat included
Technical data
Standard milling cutter width
100 cm
Recommended surface
150 m²
Motor type
4-stroke
Motor brand
Producer-manufactured
Motor Model
FC170F-1
Cubic capacity
212 cm³
Nominal power
7 HP
Gears
3+1
Soil consistency
Hard
Product Features
Model
MTZ100G
Type
With gears in oil bath
Operating mode
Spark ignition
Recommended surface
150 m²
Soil consistency
Hard
Hard soil
yes
Starting mode
Recoil
Manufacturing country
China
Motor data
Motor brand
AMA
Motor Model
FC170F-1
Motor type
4-stroke
Cubic capacity
212 cm³
No. of cylinders
1
Nominal power
7 HP
Rated power (HP)
5.7 HP
Fuel
Petrol
Power supply
Overhead valve OHV
Engine lubrication system
Oil bath
Decompression system
Automatic
Manufacturing country
China
Transmission data
Transmission type
Gears and chain
No. of forward speeds
3
No. of reverse speeds
1
Gears
3+1
Operating mode
Lever on the handlebar
Manufacturing country
China
Cutting data
Standard milling cutter width
100 cm
Narrow milling cutter width
3 cm
Milling cutter diameter
35 cm
No. of blade holders
6
No. of blades
24
Blade engagement
Lever on the handle
Equipment
Milling cutter accessory
Included as standard
Side crop protection discs
Yes
CE Accident prevention system
Yes
Safety lever for reverse gear
Yes
Rear stake
Yes
Adjustable stake
Yes
Battery for electric start
No
Electric start with key
No
Recoil start system (with rope)
Yes
Height-adjustable handle
Yes
Side-adjustable handle
Yes
Rubber-coated soft grip
Yes
Folding/removable handle/s
Yes
Free gifts/extra features
Engine maintenance kit
For free
Engine oil bottle for free
2
Wooden pallet (safe shipping)
Yes
Maintenance tool kit
Yes
Instructions manual
Yes
Dimensions and logistics

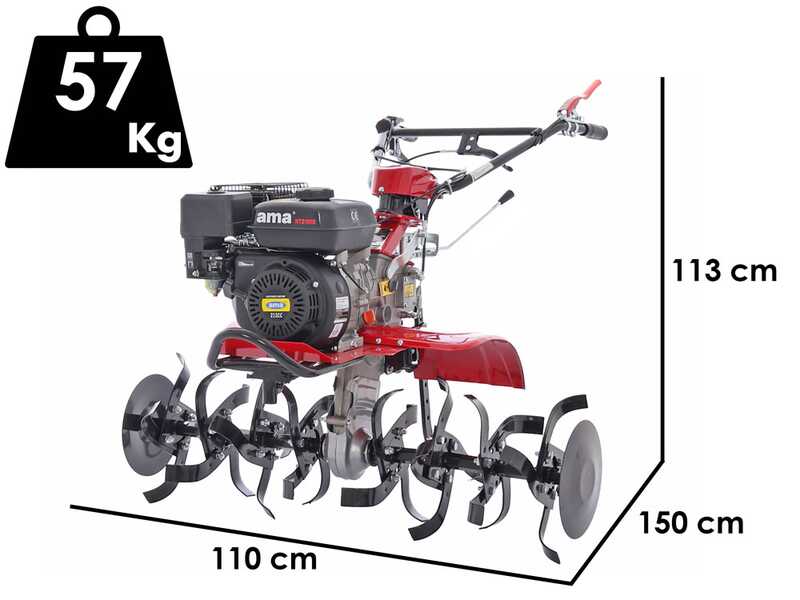

Product dimensions in cm (L x W x H)
150x110x113 cm
Net weight
57 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
885x50x76 cm
Weight including packaging
97 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
60 minutes
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

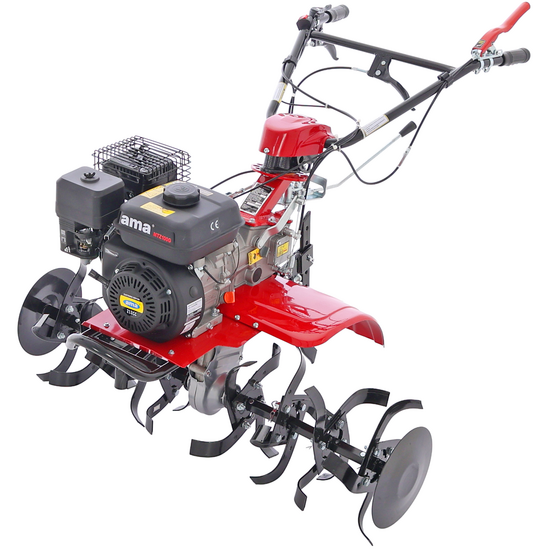

AMA MTZ100G Garden Tiller

The AMA MTZ100G garden tiller is a compact medium-sized, handy, powerful and highly-reliable machine.

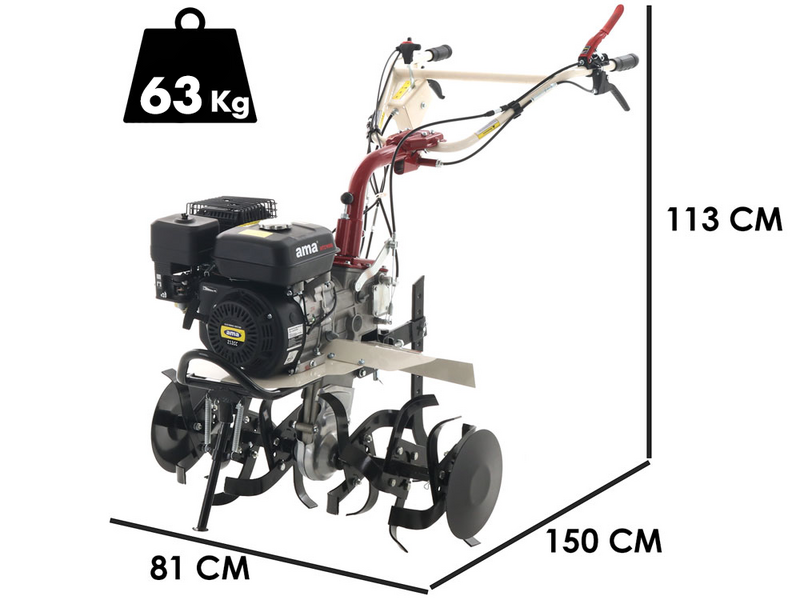

This garden tiller weighs 63 Kg, which is a definite plus as the weight helps with ground penetration.

This model is intended for large-sized land to till or hard ground or with the presence of small stones (where a smaller-sized, more lightweight garden tiller or equipped with a less sturdy transmission, such as belt-driven models would not be able to work as effectively).
Versatile, sturdy and powerful, on medium-compact soils, this garden tiller is perfect for quickly preparing the seedbed, making finely crushed and well-ventilated soil soft and ready for cultivation.

It can be used by anyone, even less experienced users.

Also remarkable are the ergonomics of the controls and ease of use coupled with safety at all times for the operator.

Major features:

  • The length and position of the steering handles guarantee an easy handling and reduced effort for the operator.
  • The lever for the steering handles side adjustment allows to rotate them during work in order to avoid obstacles or to change the machine direction.
  • Lever for quick vertical steering handles adjustment.
  • Tine diameter: 350 mm
  • Soil working depth: ≥10 cm

WARNING!

Engine and transmission without oil. Make sure to add oil before starting the unit.

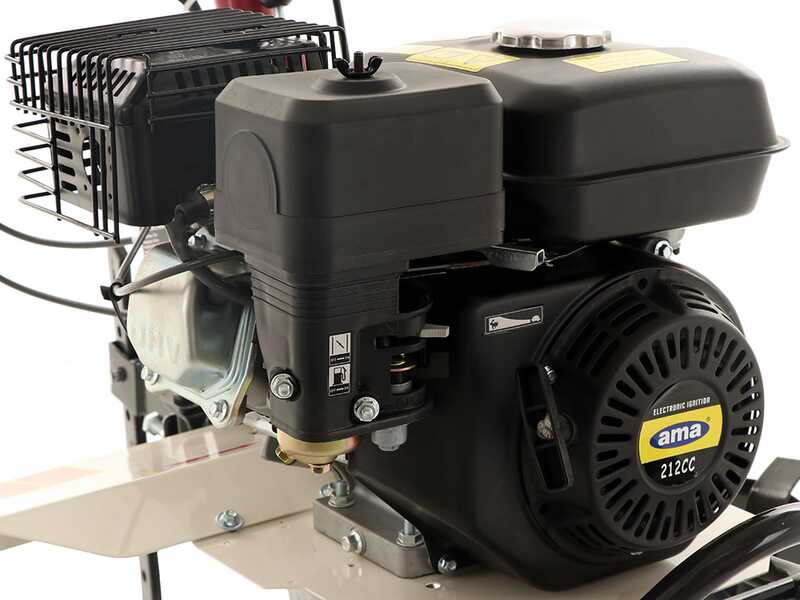

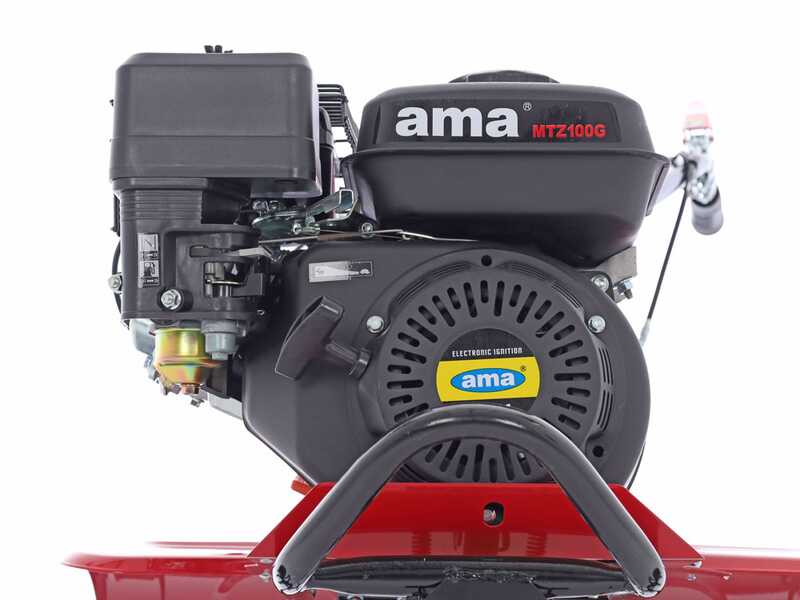

AMA 212 cc petrol engine

Features:

  • Engine type: Single cylinder 4-stroke - OHV
  • Cylinder type: Aluminium
  • Cubic capacity: 212 cm³
  • Power supply: Petrol
  • Nominal Power: 7 Hp

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

Powered by a 7 Hp engine, which ensures great power.

Focus on the filter.

Focus on the spark plug.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Carefully read the instruction manual before starting the unit.

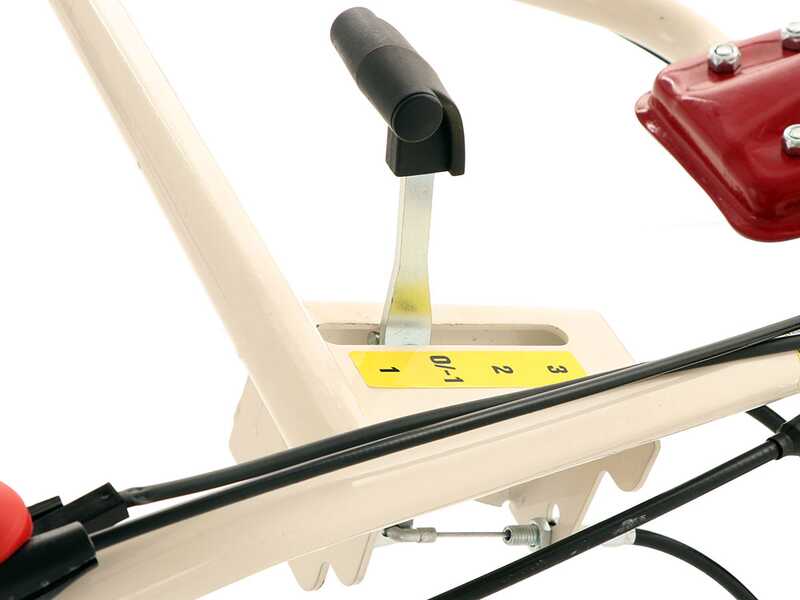

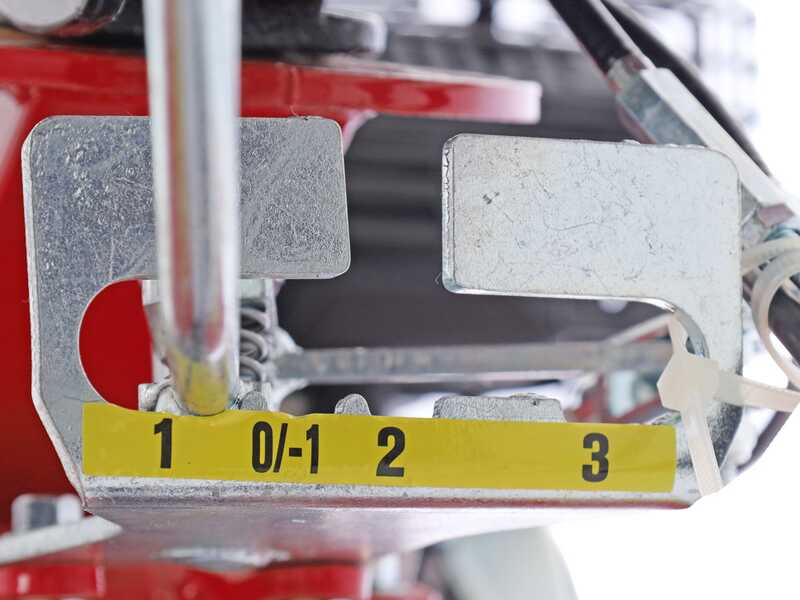

Transmission and 3+1 gearbox

The gearbox features 3+1 gears, which can be engaged via the special lever located on the steering handles.

Main specifications of the gearbox:

  • overall size and sturdiness, also visually detectable
  • upper gear tempering
  • precise gear shifting engagement
  • accuracy in gear manufacturing

The transmission on the lower side on the engine is protected by a sturdy housing.

The gearbox is made with gears in oil bath with direct drive and clutch lever placed on the shaft.

WARNING!

Warning! The transmission is PROVIDED WITHOUT OIL.

Please make sure to carefully read the instructions manual before starting the machine.

Steering handles, controls and additional features

The steering handles are height adjustable by means of the special lever made of cast steel placed between them.

Operating controls:

- Right lever, which engages the reverse gear when the unit is in neutral.

- Left-side red lever, which operates the forward gear.

- Left lower lever: steering handles side adjustment

- Throttle lever

- Gear-engaging lever

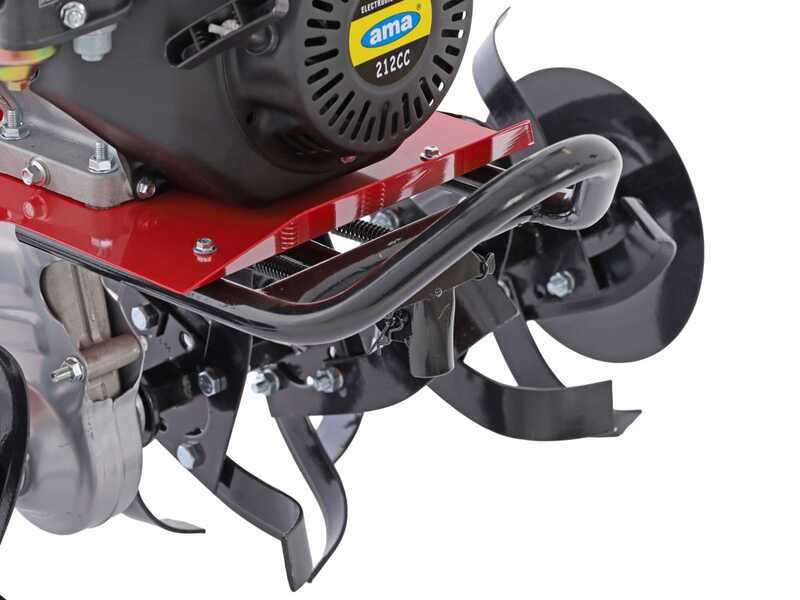

Large front bumper: the tiller bumper features a retractable supporting foot.

Focus on the tine stone guard.

Adjustable stake

WARNING!

Carefully check that all cables are correctly adjusted before use, in particular the cable of the right-hand reverse gear lever.

It is also important to check that the earth cable has been fitted correctly and that the red safety lever is working properly (when the lever is released, the garden tiller must switch off immediately!)

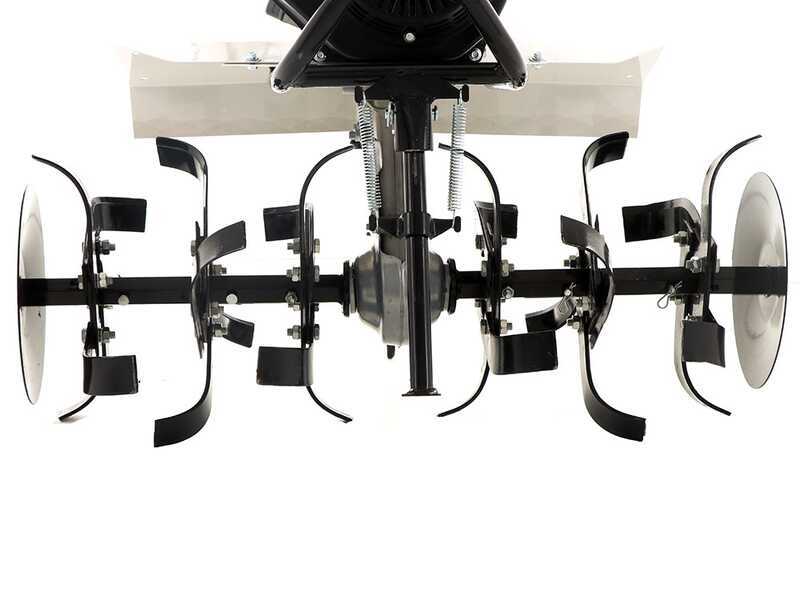

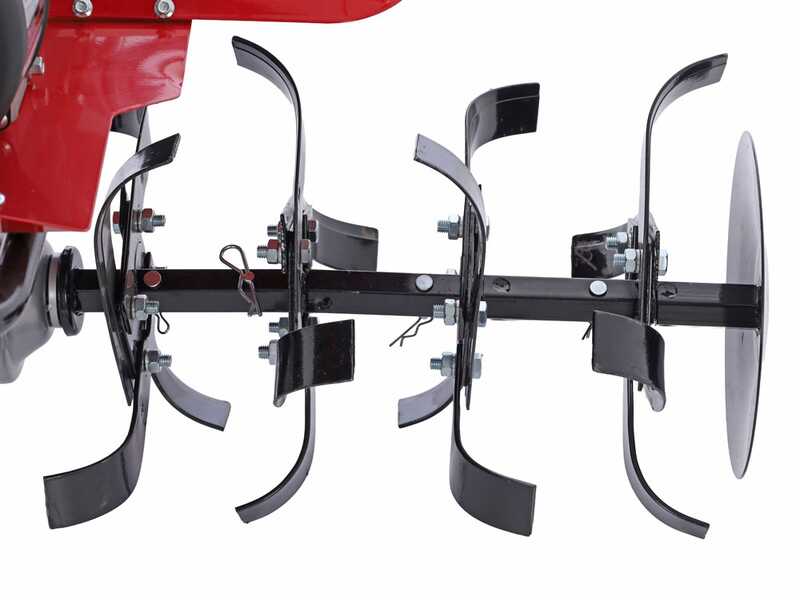

Tine with adjustable working height

Tine: 77 cm, with 6 rows of rotary hoes + side crop protection discs.

Easily adjustable to 53 cm with a short operation.

The working width adjustment can be carried out easily: just insert or remove the most external element and insert the crop protection disc.

This garden tiller can be also operated without the crop protection discs.

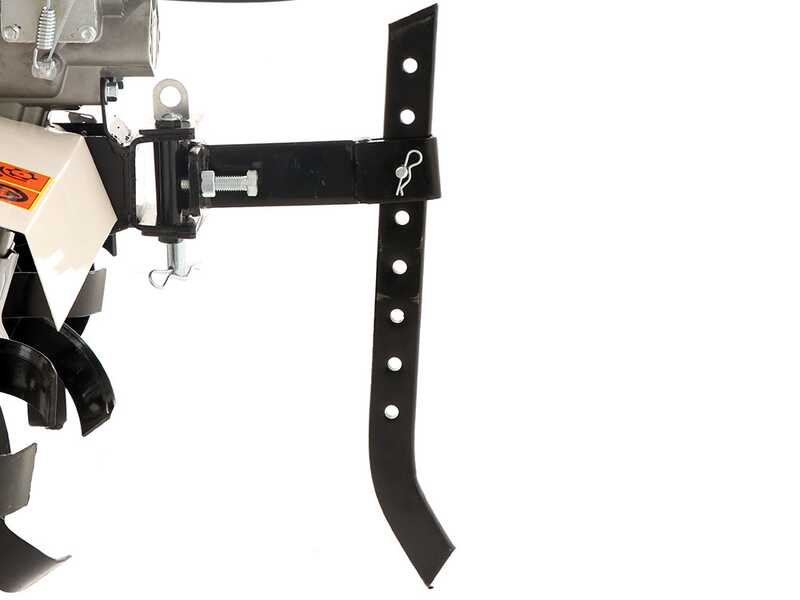

Height and side adjustable rear stake.

Hexagonal hoes shaft diameter: 23mm.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

COMPLIMENTARY: 80w90 Oil for Transmission

2 1 L bottles of 80W90 transmission oil.

Suitable for the majority of machines on the market.

Free items included

The garden tiller is shipped in its original packaging.
