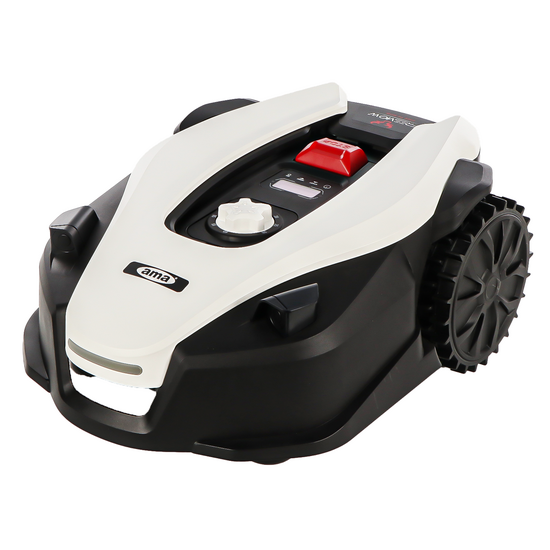

AMA FREEMOW RBA2001 - Robot Lawn Mower

The AMA FREEMOW RBA2001 robot lawn mower is an advanced device ideal for automated lawn care, designed for areas up to 2000 square metres and capable of handling up to four separate zones.

This mower has a cutting deck with three floating blades that rotate bidirectionally, a feature that extends the life of the blades. The 22 cm cutting width ensures efficient lawn coverage.

For safety, the FREEMOW RBA2001 features an instant blade stop system. The cutting height is adjustable between 20 and 60 mm, allowing the operator to adapt it to different lawn requirements.

Brushless digital motors for the drive and blades ensure greater efficiency and durability of the mower.

The smart navigation system allows the robot to handle narrow passages and passageways, increasing the cutting performance by up to 30% thanks to SMART technology, which avoids unnecessary pressure on edges and trampling on the lawn.

The cutting mode can be automatic or programmed, with intelligent self-programming to optimise work.

When needed, the robot automatically returns to base to recharge thanks to the latest 20V/5Ah lithium battery and rapid recharging, allowing longer work sessions and reducing downtime.

Wi-Fi and Bluetooth connectivity, together with the App available for Apple and Android, allows for easy and customised management of the mower.

The FREEMOW RBA2001 operates with a noise level of only 62 dB(A) and can cope with slopes of up to 35%.

It is weather-resistant and features an LED for easy interaction.

Mechanical sensors on the body, accelerometer and ultrasonic sonar detect obstacles, allowing the robot to change direction without interruption and increase mowing efficiency.

The anti-theft system with PIN guarantees the security of the device.

The mower is equipped with four wheels, two of which are rear self-cleaning drive wheels and two front pivoting, which improve manoeuvrability.

An adjustable rain sensor stops work in case of rain and only resumes it when the lawn is dry, with the possibility of disabling this function if necessary.

Finally, the FREEMOW RBA2001 is automatically upgraded via USB or App, allowing the user to keep the device up-to-date.

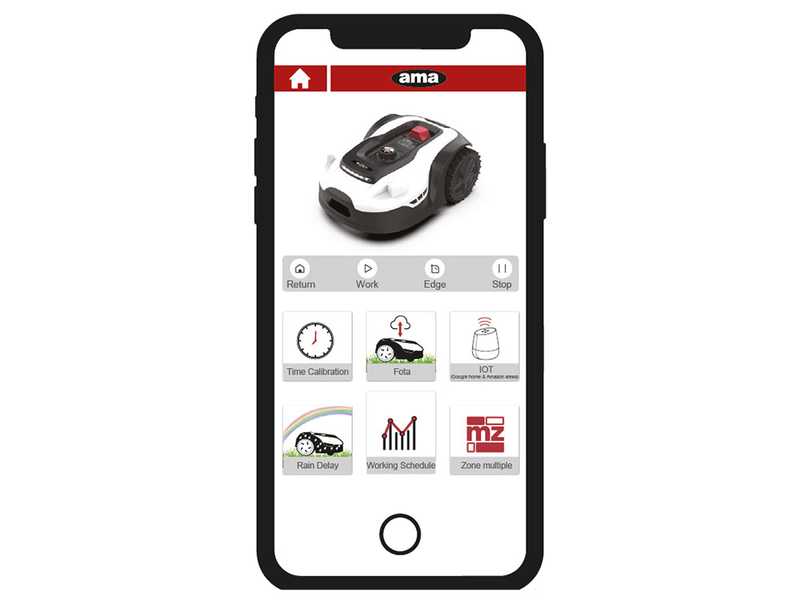

At hand. Created for a fast and easy use, it is possible to manage and switch all the machine settings. All the menu settings with the touch of a button.

All the machine settings are verifiable through the APP.

With a single account, you can manage more than one robot. Thanks to the APP you can rapidly check the robot status, you can decide to start or stop it remotely.

The weekly working schedule can be set automatically by the machine or, in case of specific needs, the user can decide days, hours and also when to do the edge cutting. Through a useful calendar, you can check the robot activities day by day. Furthermore, is it possible to share the machine management with other family members but also technical assistance, facilitating the service, which can be done also remotely.

An APP to check every setting, useful, functional and easy to use.

Menu:

In the main screen, you can start and stop the robot, check the charge status, the rain sensor data, the LAN or Bluetooth connection status and the daily working schedule.

Working record and Daily log:

In the working record you can explore the calendar, see the machine operations day by day and check whether there have been problems and what kind.
Should a more detailed analysis be necessary, it is possible to download logs with the working record. Logs are very comprehensive and provide a precise detail of every movement made by the machine.
To download the logs, simply switch on the device with a USB stick inserted.

Double schedule*:

In this screen we can set the week schedule, its working hours, day by day. It is possible to set up to two work breaks for all models except the RBA500, which has only one.
From this screen, by selecting the day of the week, it is possible to choose when and how often to cut the edge.

APP share:

You can open this page by swiping the machine icon on the right. Here, you can share the robot with other people without providing email and password.
If you share the machine, a QR code will be released and this can be acquired by another user (ex. the reseller for remote assistance).

*Available on L SERIES models.

As soon as the product is delivered, you can start it autonomously: even the less expert user, who has never had experience with a cutting device, will be immediately able to start the AMA Robot lawn mower according to the instructions detailed described in the instructions manual.

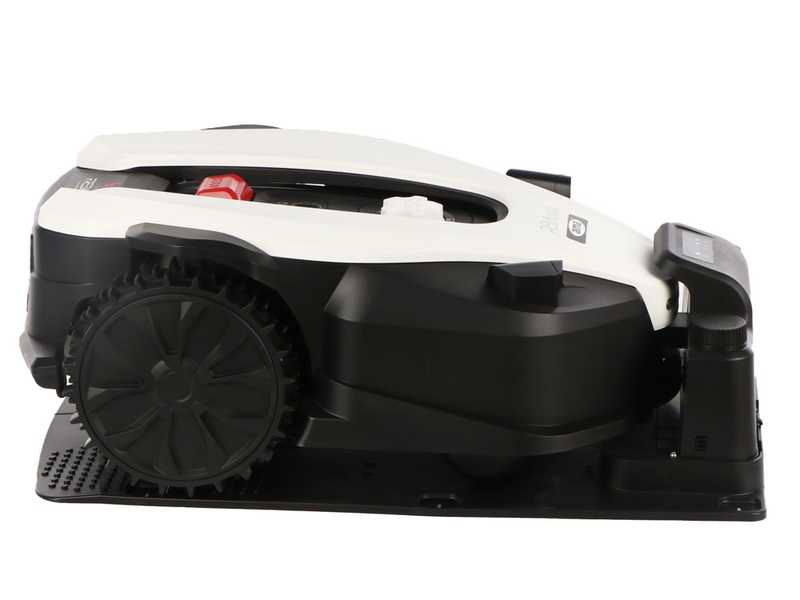

AMA RBA2001 can be easily installed with very few simple steps:

1. Assemble and tighten the charging station;

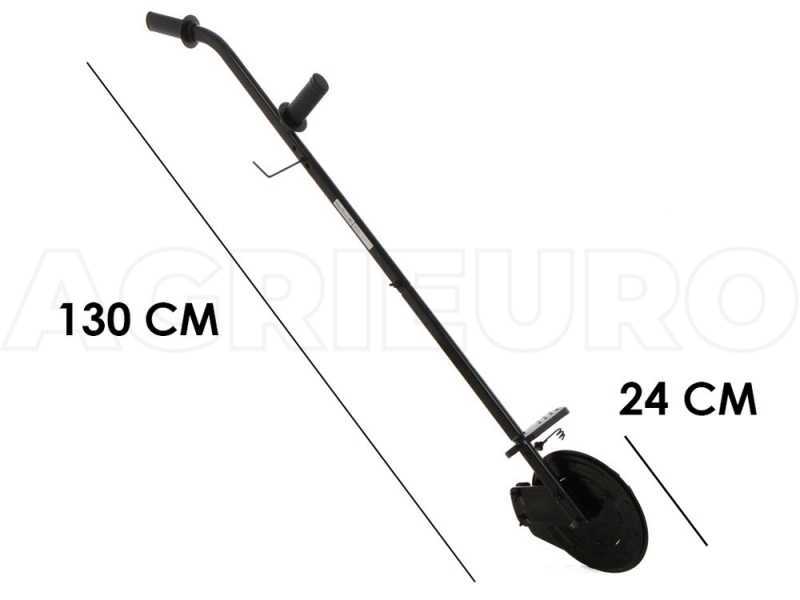

2. Fix the perimeter wire with the proper fixing pegs around the working area;
3. Set the robot using the app or display.

As soon as the charging station (provided with charger) has been mounted and the working area has been delimited (a very easy operation where you need to bury the supplied wire), the robot is ready to work.

This robot lawn mower is ideal for every user. From now on:

• You will be fully aware of the product you've purchased, having a thorough knowledge of its specifications and features; whereas the traditional selling of the robot is generally based on the user's lack of knowledge of the installed system
• You will be able to use your robot lawn mower independently, without the need of constant support from a technician, and ask for assistance even in case of small issues, which are very often subject to constant maintenance costs, year after year.
• Therefore, you will save money compared to other conventional robots, also thanks to minimal installation and maintenance costs

Main features:

• Cutting motor: Brushless
• Traction Motor: Brushless
• Battery voltage: 20 V
• Battery capacity: 5 Ah
• Noise level: 62 dB
• Weight: 7.6 Kg

Some of the robot lawn mower controls are located in the user-friendly keyboard with LED, which is placed on the top of the machine.

Other important features:

• Quick stop control: By pressing the red STOP button at any time during operation, the robot mower and blade rotation will stop;
• Rain sensors: In case of heavy rain, the robot automatically returns to the station cover and will resume mowing in the next cycle.
• Shockproof sensors for detecting obstacles: The robot lawn mower is equipped with sensors which, in case of contact with obstacles, make it change the driving direction.
• Lifting sensor: If the robot is lifted during operation, the starting system is switched off and the blades stop immediately.
• Anti-theft device with PIN code
• Front Led Light;

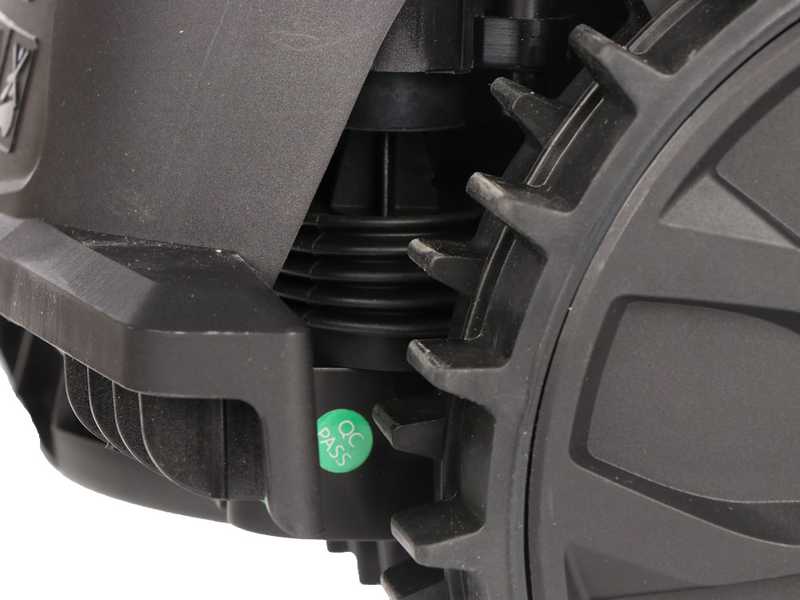

• Large non-slip wheels and double front pivoting wheels.

MOWING SPECIFICATIONS:

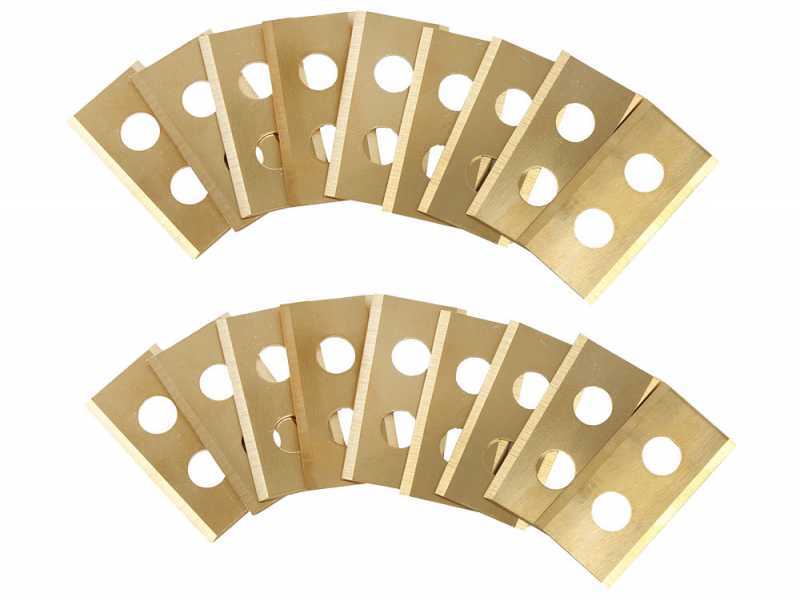

• Mulching: 3 steel blades for mulching cutting. This system allows finely shredding the grass clippings without having to collect them in a grass collector. Grass decomposes naturally, water and nutritional substances returns to soil for a wonderful, healthy lawn!
  This cutting helps fertilisation and saves time by skipping the harvesting phase.
• Edges: Unique cutting system beyond the wheels. For a perfect lawn finishing.
• Max. cutting area 1600 s.q. m.
• 22 cm cutting width
• Maximum slopes: 35%
• Adjustable cutting height from 20 to 60 mm

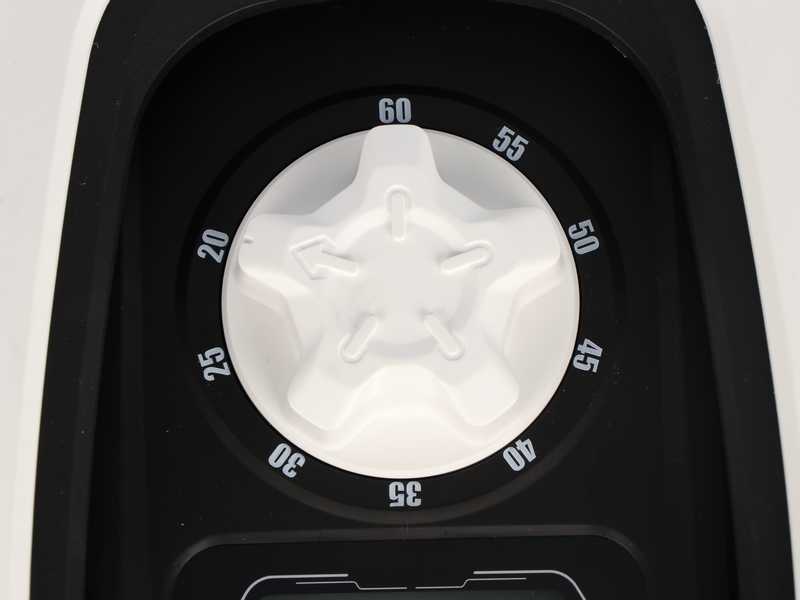

Possibility to adjust the height thanks to the handy knob which enables to move the floating cutting deck from 20 mm to 60 mm. In addition, the 220 mm high rear wheel grip and a front rotating wheel allow the robot to overcome slopes and tricky terrain.

Freemow RBA robot lawn mower is equipped with a new 3-pivoting blades cutting system. This special movement of the blades guarantees an exceptional service life and, more generally, greater protection of the entire machine, as they are better able to absorb possible impacts with foreign objects.
