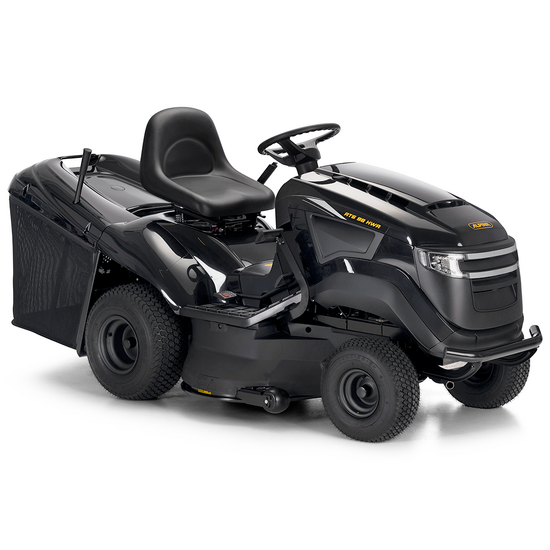

Alpina AT6 98 HWA - Ride-on Lawn Mower - Collection Bag - Hydrostatic Transmission

The Alpina AT6 98 HWA ride-on lawn mower is a powerful product for lawn care, designed to offer high performance and an optimal cutting experience.

With its Stiga ST 550 Twin engine with 10.6 kW and 586 cc displacement, this ride-on mower is perfect for those who need a robust and reliable product for large gardens.

The 98 cm cutting width and the height adjustment from 30 to 90 mm allow it to adapt to different types of terrain and grass conditions, always ensuring precise and clean results.

Among its distinctive features, there is the hydrostatic pedal transmission system that allows easy speed adjustment during work, offering maximum control in every situation.

Equipped with two cutting modes:

• 300L Collection Bag
• Mulching

Additionally, the grass collection function in the large 300-litre bag and the possibility of using the mulching system allow efficient management of the cut material, reducing the need for manual collection.

The ride-on mower also features a functional design, with LED lights for optimal visibility even during the darkest hours. Anti-scalp wheels and the 98 cm twin-blade deck allow for an even and uncompromised cut, even on more challenging terrains.

Main Features:

• Powerful ST 550 Twin Engine with 10.6 kW and 586 cc for excellent performance

• 98 cm Cutting Width and adjustable height from 30 to 90 mm

• Hydrostatic Pedal Transmission for precise speed control

• 300-litre Collection Bag and mulching function for efficient grass management

• Ergonomic Design with LED lights for maximum comfort during use

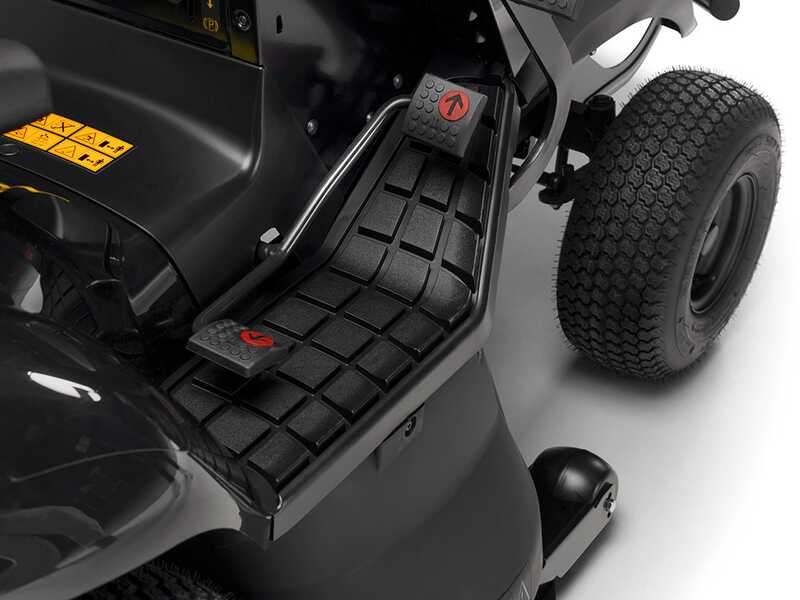

The hydrostatic transmission is a modern and functional type of transmission, increasingly common in garden tractors.

Its operation is very simple: to move forward, just press the pedal with the tip of your foot. The tractor will move forward based on the pressure applied. To engage reverse, simply press the other end of the pedal with your heel.

Releasing your foot from the pedal will stop the tractor.

This transmission is increasingly used and sought after by users due to its practicality compared to manual transmission. The latter, in fact, requires the operator to stop every time they want to change speed, to engage the gear, release the clutch, and restart.

The hydrostatic transmission, on the other hand, allows for immediate speed variations without ever stopping, making it perfect for large areas where obstacles or trees need to be navigated around.

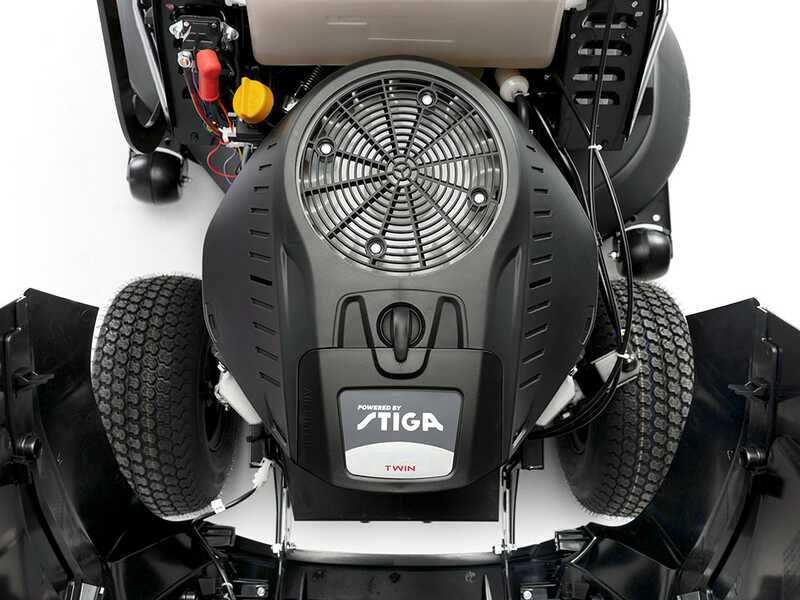

The engine mounted on the AT6 98 HWA tractor is an ST 550, ideal for high and versatile performance.

A twin-cylinder engine, 586 cc displacement, 4-stroke petrol engine of the latest generation with overhead valve "OHV".

This is a professional-grade engine with high reliability and durability. One of the most famous engines in the world, both in the field of tractors and in the gardening and agriculture sector in general.

It develops a power of 10.6 kW, allowing the machine to cover large areas in a very short time, as well as powering the large rear wheels and cutting blades.

It has a fuel tank with a capacity of up to 8 litres.

At maximum power, it reaches 2600 rpm and is air-cooled.

Nominal Power: 18 HP
The more correct term would be "Commercial" Power, meaning the classic standard of power definition officially used until a few years ago by all the most well-known engine manufacturers.

* This data is still more widespread and advertised in the main commercial sales channels, although it is an increased data compared to the actual power.

Effective Power: 14.21 HP (at a rotation speed of 2600 rpm)
This corresponds to the real power expressed at the engine shaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This is data that can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

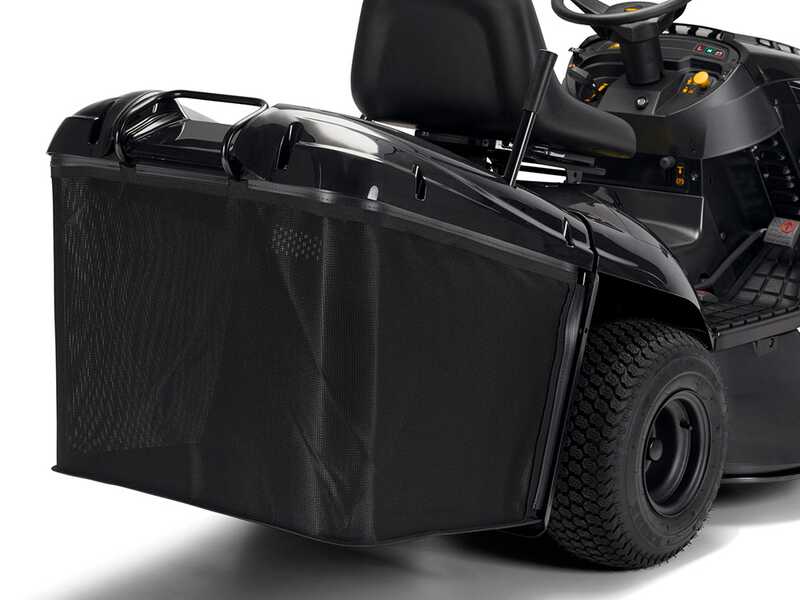

1- COLLECTION WITH 300L BAG (standard):

The grass is collected inside the collection bag, one of the most widespread methods. The bag emptying system is very simple: It is done by grabbing the appropriate handle. You can then empty the bag at the desired point without any effort.

Equipped with an acoustic signal that warns the operator when the bag is full.

2- MULCHING (included):

The grass is finely chopped inside the cutting deck and then released directly onto the lawn. With this method, the grass will be so fine that it will seem as if it has been collected, giving a truly satisfying aesthetic appearance. Moreover, with this method, the decomposing grass will become a nutrient for the lawn itself.

It is useful to remember that, to ensure the absolute efficiency of the system, the lawn must still be irrigated, and the grass cut very often.

Conversion: remove the collection bag and insert the mulching plug into the central tunnel.

The cutting deck of the tractor features two steel blades, for a width of 98 cm.

The deck is floating, meaning it adapts to terrain imperfections, as long as they are not excessive, for an impeccable cut on any occasion.

The blade engagement is electromagnetic, and is activated via the yellow button on the control block. This system allows for a quick and immediate blade engagement.

There are 7 different cutting positions, ranging from 30 to 90 mm. The adjustment is made via a side lever, located near the tractor seat.

There are also two anti-scalp wheels, for better ground adherence.

- Detail of the anti-scalp wheels

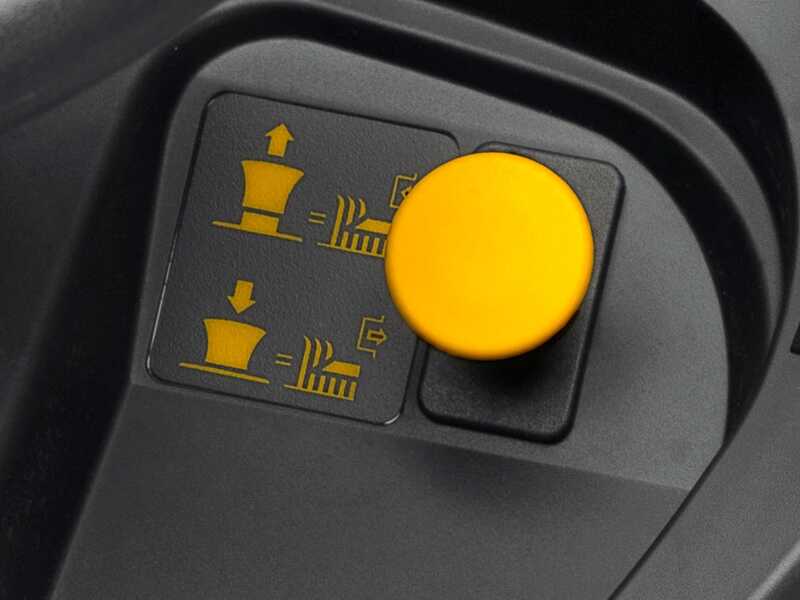

- Detail of the electromagnetic blade activation

- Detail of the height adjustment lever

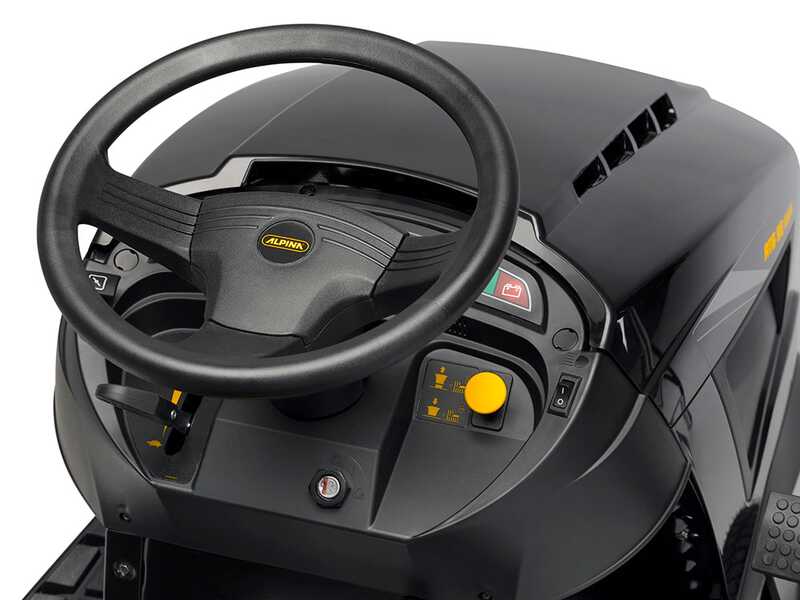

The controls and adjustments of the AT6 98 HWA tractor are:

• Engine throttle lever
• Parking brake
• Ignition block with key
• Pedal brake
• Electromagnetic blade engagement with yellow button to the right of the steering wheel
• Lever for adjusting the cutting height of the deck
• Hydrostatic pedal transmission allows engaging forward and reverse gear.
• Control lights indicating the machine's operating status and alerting in case of malfunctions
• ON/OFF button for front lights
• Choke valve
• Orange button for blade activation in reverse

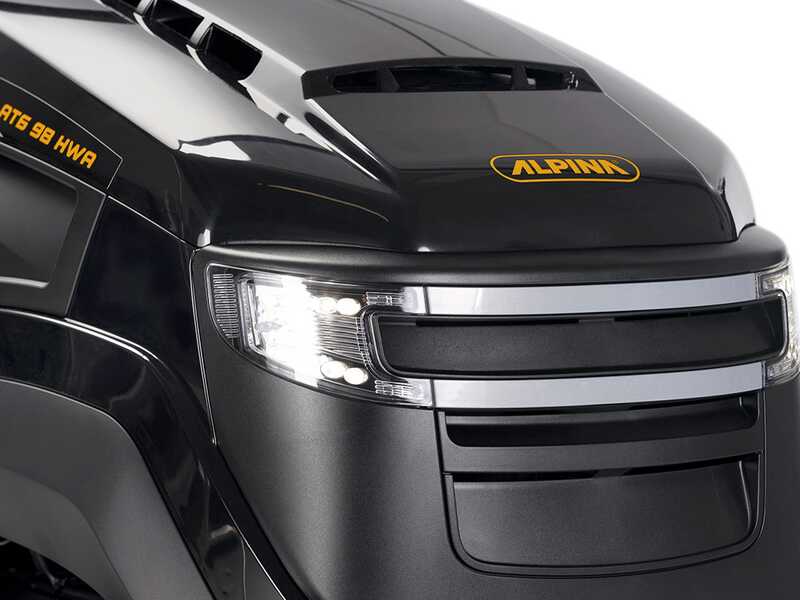

Other features of the Alpina AT6 98 HWA ride-on lawn mower:

• Engine bonnet can be opened to allow cleaning and maintenance operations
• Ergonomic steering wheel
• Robust front bull bar: prevents frontal impacts and protects the machine
• Rear wheels with dimensions 18 x 8.5-8
• Front wheels: wheel dimensions are 15 X 6.00-6
• Anti-scalp wheels of the cutting deck
• cupholder compartment
• Bag with quick discharge directly from the seat
• Lights
