AL-KO T18-103.4 HD-A V2 - Riding-on Mower - Hydrostatic Gearbox - Grass Collector

Add a question
ID: K608171

EAN: 4003718356908

MPN: 123088

7,0/10
After-sales assistance & Spare parts
AL-KO T18-103.4 HD-A V2 - Riding-on Mower - Hydrostatic Gearbox - Grass Collector
+10 sold
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
FREE SPARK PLUGFREE SPARK PLUG
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Oil engine replacement kitOil engine replacement kit
Blade sharpenerBlade sharpener
Grass collector
Mulching cutting system
Optional
Front bonnet
Motor brand
Producer-manufactured
Motor Model
Pro 600 V2
Cubic capacity
586 cm³
Nominal power
20 HP
No. of cylinders
Twin-cylinder
Recommended operating area
6500 s.q. m.
Cutting width
103 cm
No. of blades
2
Collection basket capacity
220 l
Reverse speed cutting
Blade engagement
Electromagnetic
Gear shifting system
Hydrostatic
Gears
Unlimited
Manufacturing country
Austria
Product Features
Model:
T18-103.4 HD-A V2
Body:
Plastic
Front bonnet:
Grass collection system:
Standard equipment
Mulching cutting system:
Optional
Cut with rear discharge:
Optional
Cutting system:
3 in 1 - Collection + Mulching (optional) + Rear discharge (optional)
Collection bag capacity:
220 L
Collection basket capacity:
220 l
Recommended operating area:
6500 s.q. m.
Starting mode:
Electric
Manufacturing country:
Austria
Motor data
Motor brand:
AL-KO
Motor Model:
Pro 600 V2
Motor type:
4-stroke
Cubic capacity:
586 cm³
No. of cylinders:
Twin-cylinder
Nominal power:
20 HP
Rated power (HP):
12 HP
Fuel:
Petrol
Tank capacity:
7 L
Oil tank capacity:
1.7 L
Transmission data
Gear shifting system:
Hydrostatic
Gearbox:
In oil bath
No. of forward speeds:
Unlimited
Gears:
Unlimited
Forward speed:
8
Reverse speed:
8
Operating mode:
Foot operated
Cutting data
Body material:
Enamelled steel
Cutting width:
103 cm
No. of blades:
2
Blade type:
Cutting blades
Blade engagement:
Electromagnetic
Max. cutting height:
80 mm
Min. cutting height:
30 mm
No. of cutting positions:
6
Reverse cutting system:
Yes
Non-marking wheels:
2
Equipment
Collection bag:
Standard equipment
Rear grass discharge deflector:
Optional
Electric start with key :
Yes
Rear wheels size:
18 x 8.50 - 8.5
Front wheels size:
15 x 6.00 - 6
Seat type:
Comfort
High backrest:
Yes
Seat adjustment:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

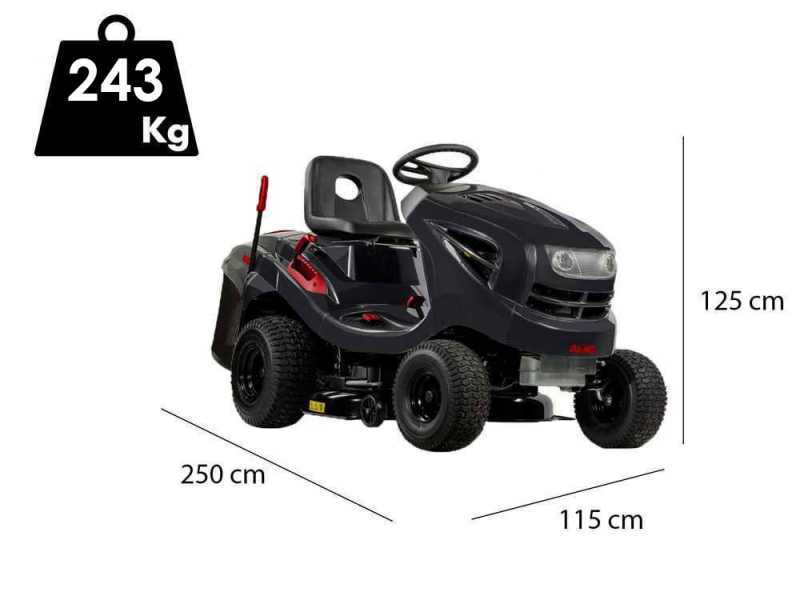

Product dimensions in cm (L x W x H):
250x115x125 cm
Net weight:
243 Kg
Packaging:
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H):
198x120x109 cm
Weight including packaging:
260 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
90 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 22/05/2025 - 26/05/2025
€ 4.309,90
Vat included
You're viewing:
Customers also viewed:
Description

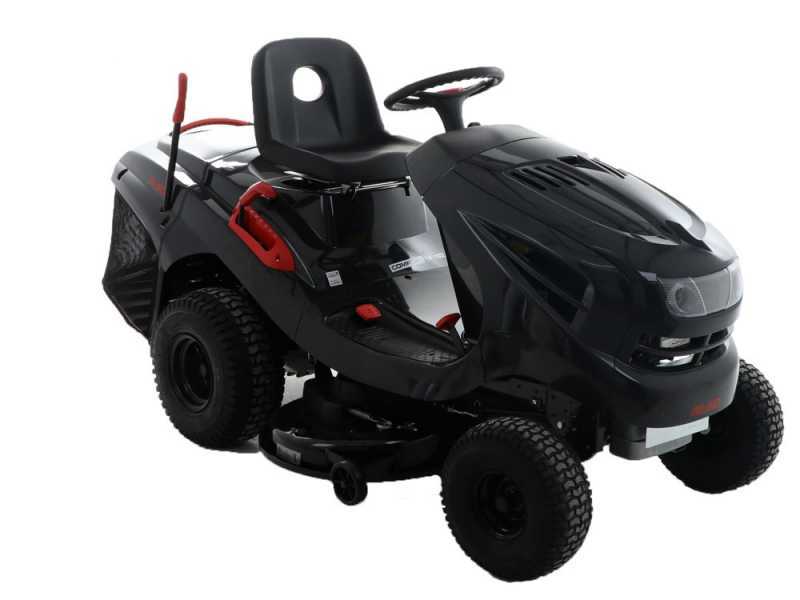

AL-KO T18-103.4 HD-A V2 Riding-on Mower

The AL-KO T18-103.4 HD-A V2 riding-on mower is an optimal solution for a wide range of work, thanks to its high manoeuvrability and precision.

This model is equipped with a large 103 cm cutting deck, integrating double blades with electromagnetic drive, ensuring a clean and accurate grass cut.

The grass cuttings can be stored in the 220 L grass catcher or, using the mulching function, left on the lawn as a natural fertiliser for the soil. Activating mulching is simple: simply lock the mechanism at the back of the tractor.

The 586 cc AL-KO Pro 600 V2 engine ensures reliability and powerful performance, with a power output of 9.0 kW and a 1.7 L oil tank.

The cutting height can be adjusted in six different settings, from a minimum of 30 mm to a maximum of 80 mm, to perfectly suit all cutting requirements.

For work in reduced visibility conditions, optional headlights can be added. The machine is fitted with extra-wide, 18-inch tyres, ideal for moving easily over any soil.

Additional features include anti-skid wheels on the sides, a non-slip steering wheel and a simple control lock, which increase user-friendliness.

The AL-KO lawn tractor is therefore a versatile, semi-professional machine, suitable for a variety of uses in the gardening sector.

Cutting Systems

The riding-on mower is equipped with the following cutting systems:

1- GRASS COLLECTION SYSTEM (on standard equipment):

The grass is collected into the large 220 L grass collector.

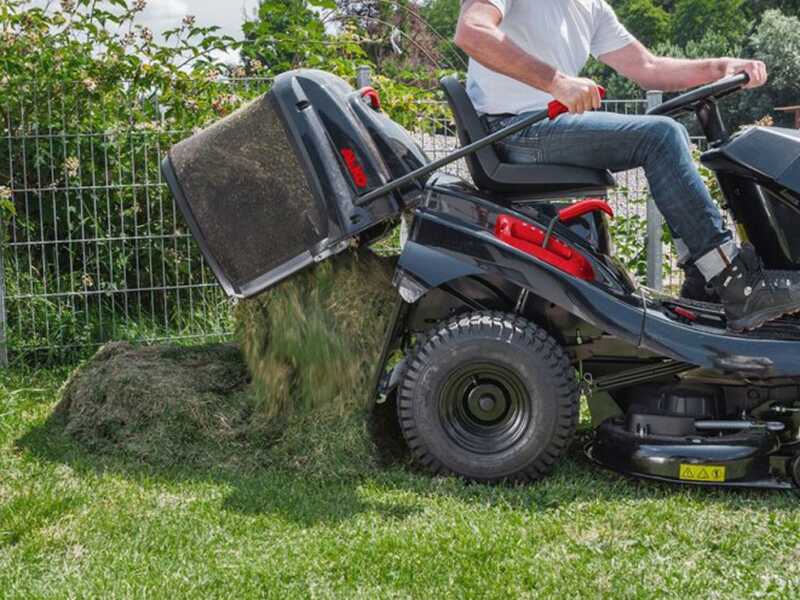

Emptying the collector is very easy, just pull the lever on it and the grass cuttings will be released wherever you want with minimal effort.

2- MULCHING (optional):

A cutting system that crushes the grass clippings so finely that they will be barely noticeable on the lawn. With this method, the grass will become a nutrient for the lawn, creating a biological cycle which is very important for the life of the turf.

Remember that for the best possible results using this cutting system, the lawn must be watered regularly, and cut often.

3- REAR DISCHARGE (optional):

The grass is discharged behind the riding-on mower via a compatible deflector. To apply it, simply remove the collection basket from its housing and fit the deflector.

Converting the machine from a cutting system to the other one is very easy.

Conversion: remove the grass collector and enter the mulching plug in the proper housing.

AL-KO Pro 600 V2 Engine

The AL-KO Pro 600 V2 586 cc engine delivers optimal and efficient results.

- Twin-cylinder engine, 12 HP.

- 8 Km/H max. forward speed

- 3.5 Km/H max. reverse speed

- 1.7 L grass collector.

- Low vibration level

- Electric start with key.



Rated power: 12 Hp (at 2450 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

Nominal Power: 18 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

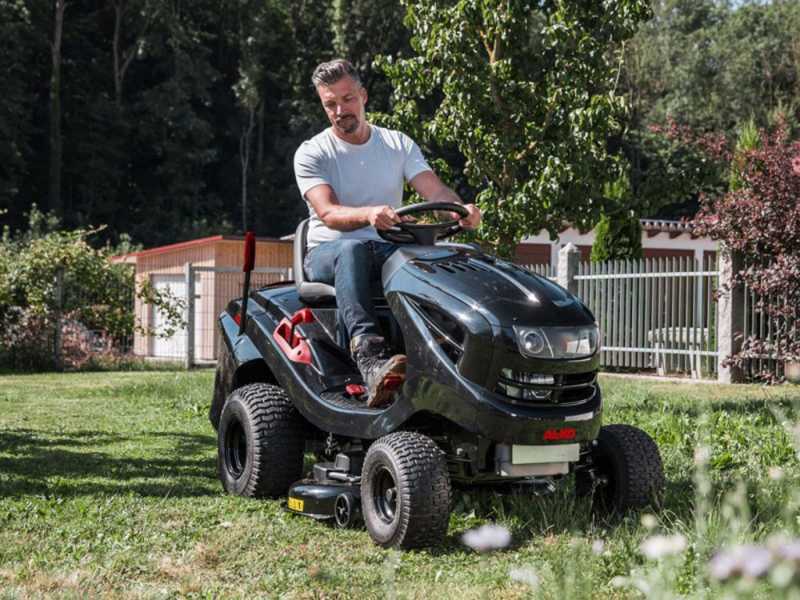

Hydrostatic transmission

A hydrostatic double-pedal gearbox for extreme comfort even during use.

Its operation is easy and fast: just press the two pedals on the footboard to respectively drive forward or reverse.

The driving speed will increase or decrease according to the pressure exerted on the pedal.

By releasing the pedal, the machine will stop.

This type of gearbox is much more functional than the manual one, allowing the riding-on mower to be used even on terrain with many obstacles.

  • Focus on the footstep
  • Focus on the forward pedal
  • Focus on the reverse pedal

Cutting Deck and Grass Collector

The cutting deck of the T18-103.4 HD-A V2 riding-on mower features two blades for a cutting width of 103 cm.

The cutting height can be adjusted in 6 different positions via a convenient side lever, from 30 mm to 80 mm.

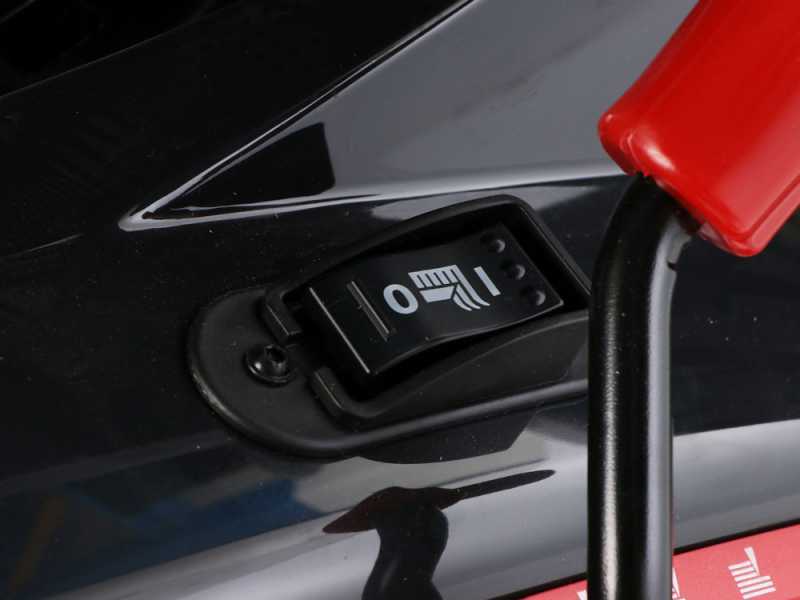

Electromagnetic blade engagement via a button on the control panel.

Anti-scalp wheels for excellent grip to the ground, and which will not damage the lawn while mowing.

220 L grass collector with hard top fabric, a sturdy and elastic material.

  • Focus on the anti-scalp wheels.
  • Focus on the cutting deck
  • Cutting height adjustment lever

Controls

The controls of the T18-103.4 HD-A V2 mower include:

  • Speed regulator
  • Parking brake
  • Ignition lock with key
  • Braking pedal
  • Cutting height adjustment lever

- Focus on the control panel

- Focus on the ignition lock

Additional Features

AL-KO riding-on mower additional features:

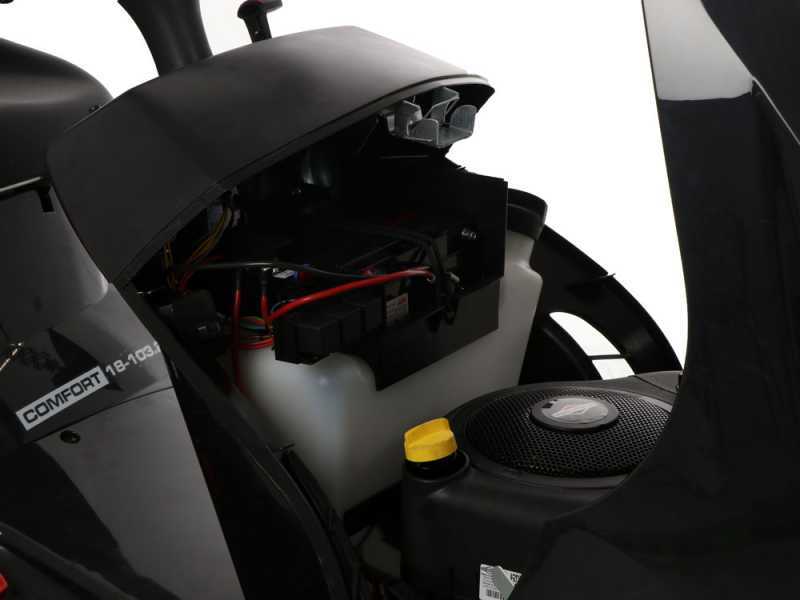

  • Openable engine cover for cleaning and maintenance operations
  • Adjustable Operator’s seat
  • Non-slip steering wheel
  • Rear wheels: 18x8.50-8
  • Front wheels: 15x6.00-6
  • Grass collection basket

- Focus on the overturned Operator’s seat

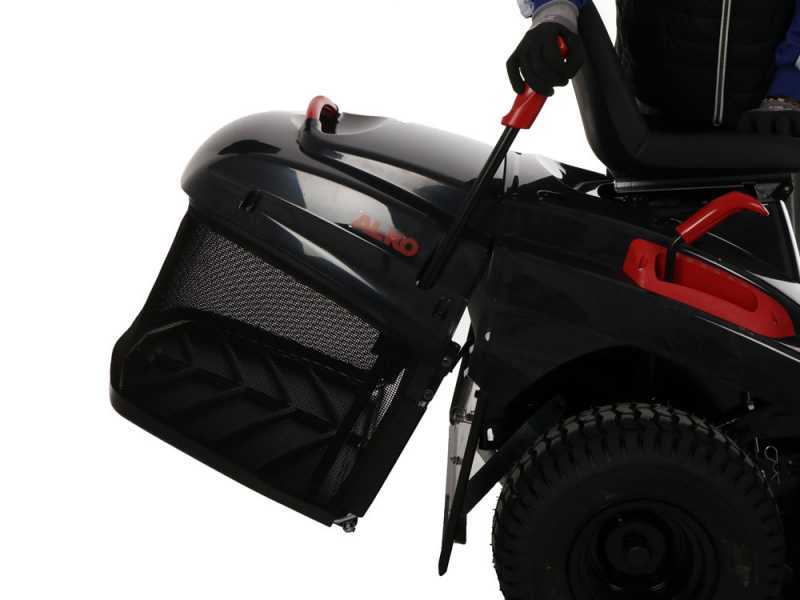

- Focus on the grass collector operating lever

Free items & Standard equipment

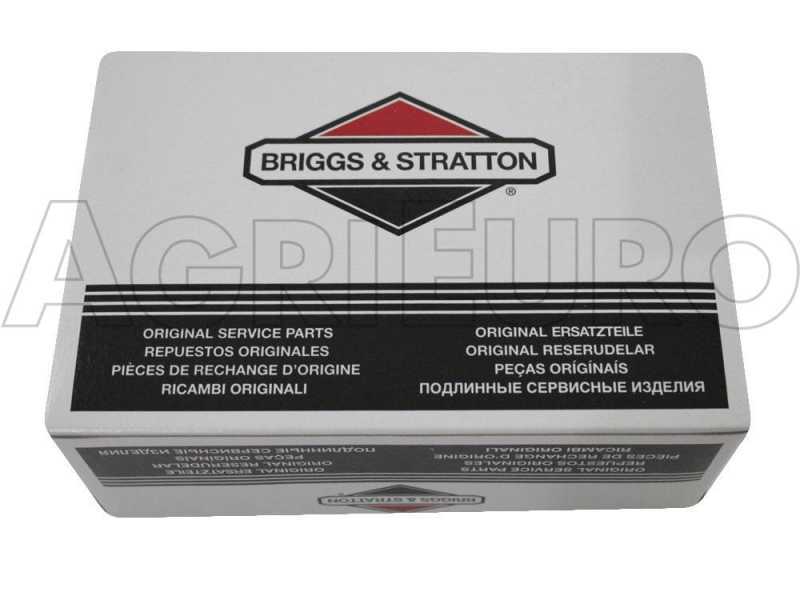

1° GIFT: Spare parts and maintenance kit for Briggs&Stratton twin-cylinder engines 700 Series

Set of spare parts and accessories for servicing the following BRIGGS & STRATTON engines:

  • 7200 Series

WARNING: this set is not suitable for other brands or models on the market. We do not supply sets other than those already posted on this website.

The kit includes:

  • Professional 2x spark plug for the engine.
  • Multi tool spark plug wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
  • Specific syringe for engine oil suction.
  • Waste oil collection bottle for easy waste oil disposal.
  • Funnel for oil draining and refilling.

2° GIFT: Safety kit

SAFETY KIT

Protective earmuffs to work with maximum comfort
Ear protection must be performed correctly in every working condition. In this case, the earmuffs provided on the standard kit are specifically designed to protect the operator from the noise coming from the mower.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

3° GIFT: 1 L oil bottles

FOR FREE: two sae 10W 40 1 L bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 Hp. Good cleansing and dispersion.

4° GIFT: Blade sharpener

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver / drill, and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Standard Equipment

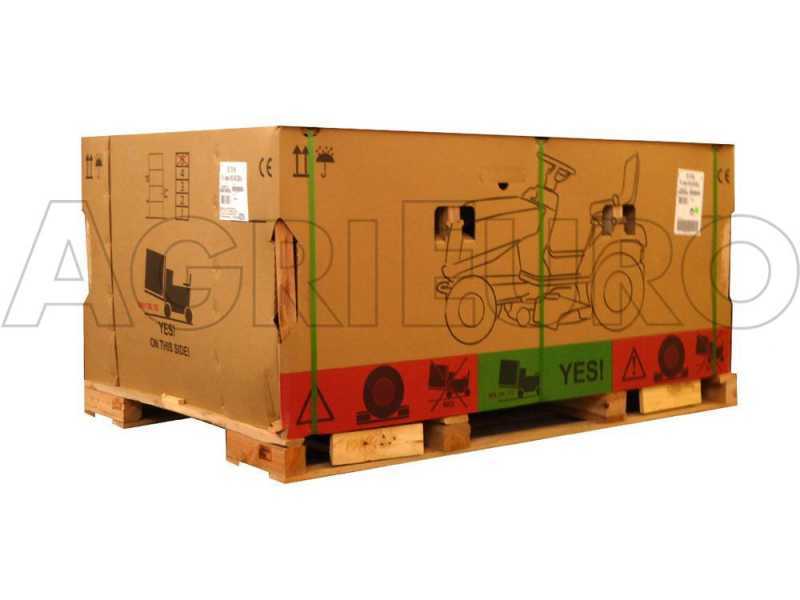

The AL-KO riding-on mower-on is shipped in its original packaging.

Assembly, use and maintenance instructions are included in the packaging.

Once assembled, the riding-on mower, carefully read the instructions manual before use.
