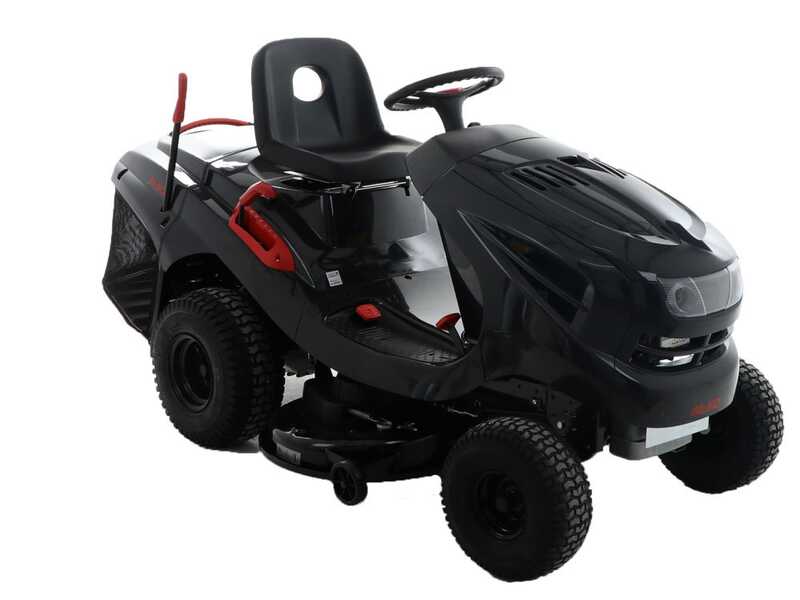

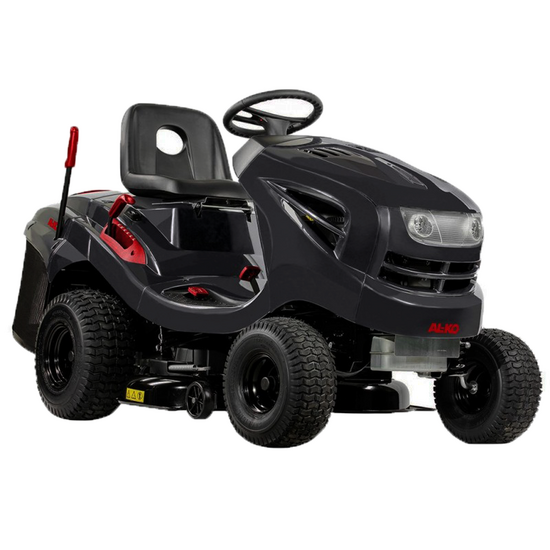

AL-KO T15-93.2 HD-A Easy - 18 HP Riding-on Mower

The AL-KO EASY 15-93.2 HD-A is a functional and manoeuvrable riding-on mower, realised with high-quality components.

Belonging to the Easy line, it will be ideal for mowing medium to large lawns, with a maximum recommended area of 4500 s.q. m. It is provided with a 93 cm cutting deck, made of steel and with 2 electromagnetically driven blades.

The grass is collected into the large 220 L grass collector. This can be quickly and easily emptied whenever and wherever you need, thanks to a practical lever on its side.

Besides the grass collection, the riding-on mower is also equipped with (optional) mulching cutting system. Simply close the opening on the rear part of the machine with the proper kit to convert this riding-on mower for the mulching system.

Converting between cutting systems is immediate quick, and requires no extra tools.

The machine is powered by the AL-KO Pro 450 4-stroke engine featuring 452 cc and 7.7 kW mounted under the front bonnet.

The headlights are optional and can be easily assembled if needed.

The cutting height is adjustable in 6 different heights, from 30 mm to 80 mm, and can be adjusted by means of a practical lever near the steering wheel of the machine.

The 18-inch tyres ensure a great grip on the ground, and easy manoeuvrability on any surface.

Anti-scalping side wheels mounted on the cutting deck.

Ergonomic, non-slip steering wheel and user friendly control lock for smooth operation.

The right compromise for those looking for a functional but semi-professional machine.

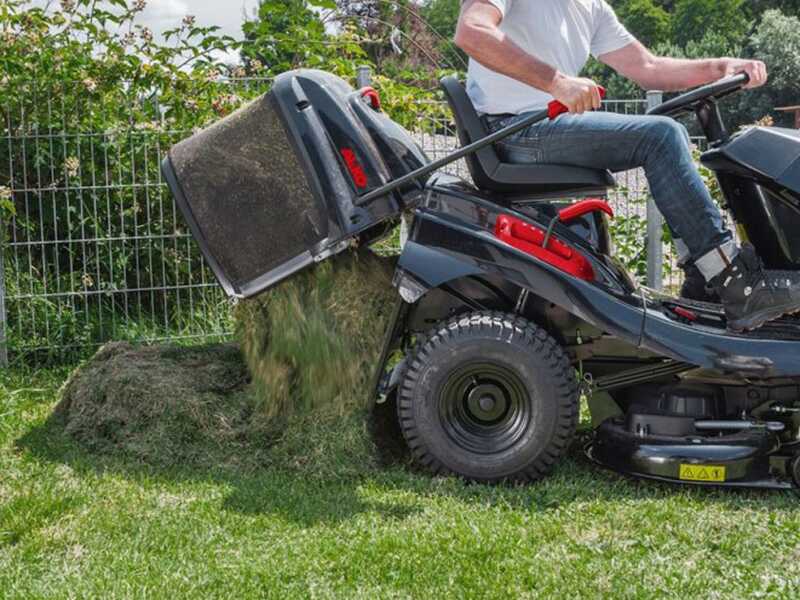

The riding-on mower is equipped with the following cutting systems:

1- GRASS COLLECTION SYSTEM (on standard equipment):

The grass is collected into the large 220 L grass collector.

Emptying the collector is very easy, just pull the lever on it and the grass cuttings will be released wherever you want with minimal effort.

2- MULCHING (optional):

Simply close the rear discharge opening to operate with this cutting system. In this way the grass clippings will be finely crushed more times into the cutting deck. The grass clippings will be barely noticeable and become a natural fertiliser for the lawn.

Remember that for the best possible results using this cutting system, the lawn must be watered regularly, and cut often.

Converting between cutting systems is immediate quick, and requires no extra tools.

Conversion: remove the grass collector and enter the mulching plug in the proper housing.

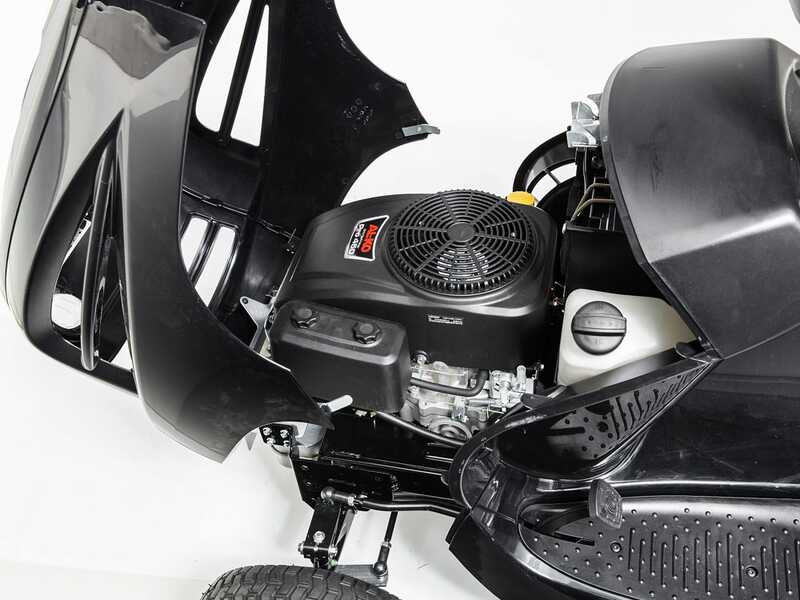

The AL-KO Pro 450 engine featuring 452 cc will guarantee optimal and efficient results.

- single cylinder 4-Stroke

- Power: 10.32 Hp.

- Max. forward speed: 8 Km/h

- Max. reverse speed: 3.5 Km/h

- Fuel tank capacity: 7 L.

- Vibration level: low

- Start system: electric start with key.

Rated power: 10.32 Hp (at 2600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

Nominal Power: 18 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

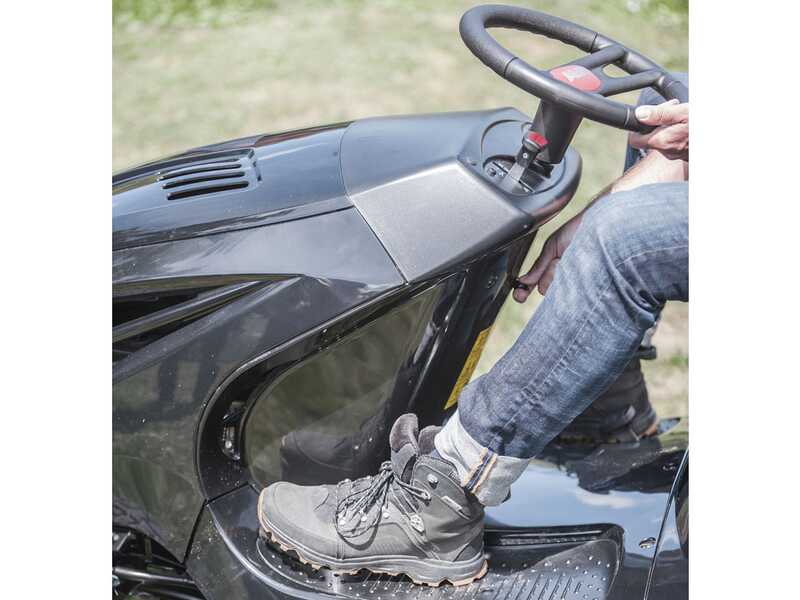

This model of AL-KO riding-on mower is provided with a hydrostatic double-pedal gear transmission for extremely ease of use.

- It works as follows:

By pressing the pedals on the footboard, it is possible to move forward or reverse respectively. Depending on the pressure on the pedals, the driving speed will increase or decrease.

With the breaking pedal, the riding-on mower will stop.

This type of gearbox is much more functional than the manual one, allowing the riding-on mower to be used even on terrain with many obstacles.

• Focus on the footboard
• Focus on the forward pedal
• Focus on the reverse pedal
• Focus on the braking pedal

The cutting deck of the AL-KO riding-on mower is provided 2 steel blades, ensuring a 93 cm cutting width.

The cutting height can be adjusted in 6 positions by means a side lever, from 30 mm to 80 mm.

Electromagnetic blade engagement through a button.

Anti-scalp wheels for a better grip to the ground, and which will not damage the turf while mowing.

220 L grass collector with hard top fabric, a sturdy and elastic material.

The grass collector can be easily entered or removed from the riding-on mower according to your needs.

• Focus on the anti-scalp wheels.
• Focus on the cutting deck
• Cutting height adjustment lever
• Grass collection

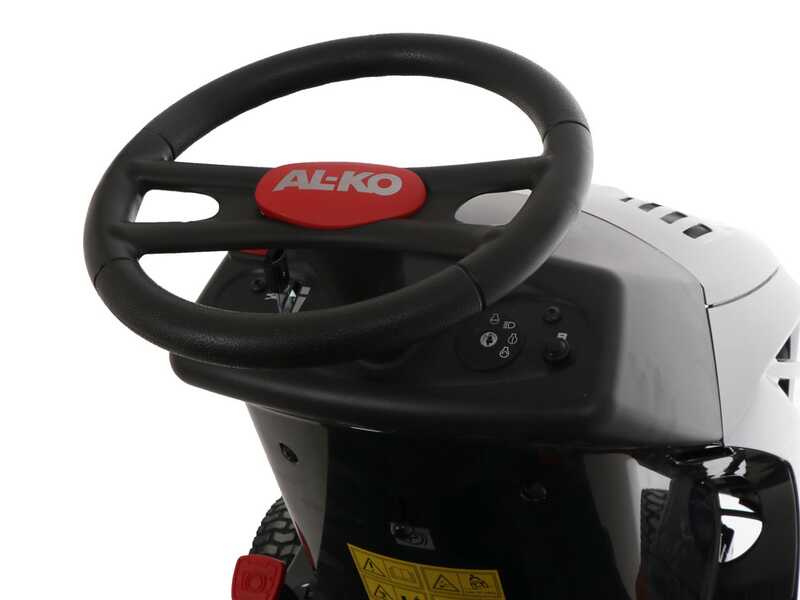

AL-KO 15-93.2 HD-A easy line riding-on mower controls:

• Parking brake
• Ignition lock with key
• Speed regulator
• Braking pedal
• Cutting height adjustment lever
• Electromagnetic blade engagement

- Focus on the control panel

- Focus on the ignition lock

- Footboard with hydrostatic transmission

AL-KO riding-on mower additional features:

• Openable engine cover for cleaning and maintenance operations
• Adjustable Operator’s seat
• Non-slip steering wheel
• Rear wheels: 18x8.50-8
• Front wheels: 15x6.00-6
• Grass collection

- Focus on the overturned Operator’s seat

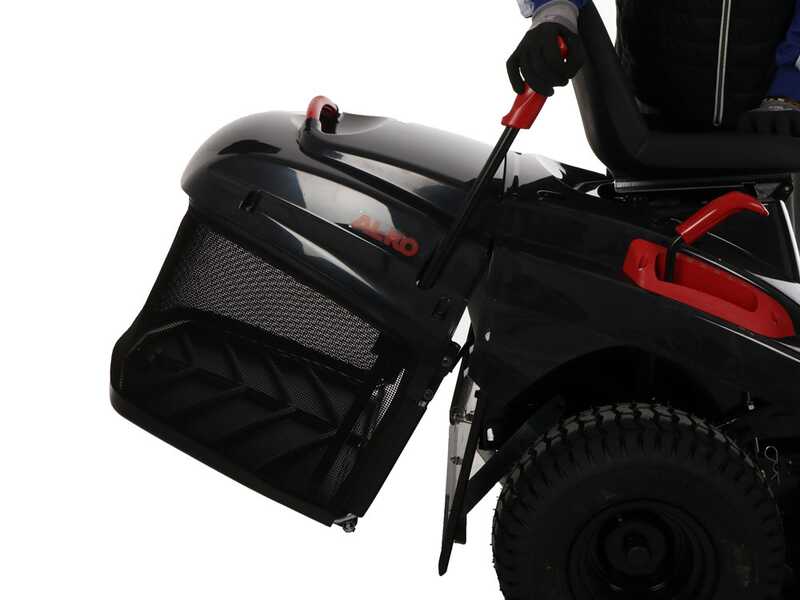

- Focus on the grass collector operating lever
