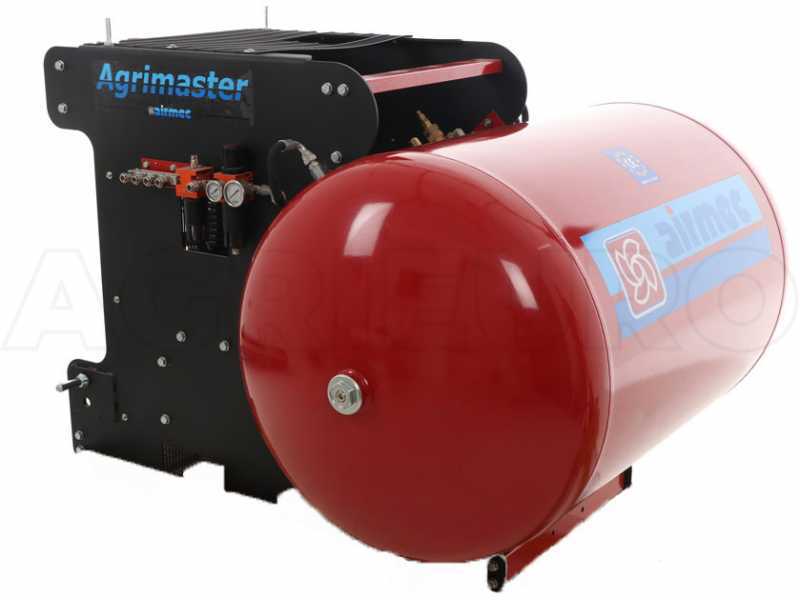

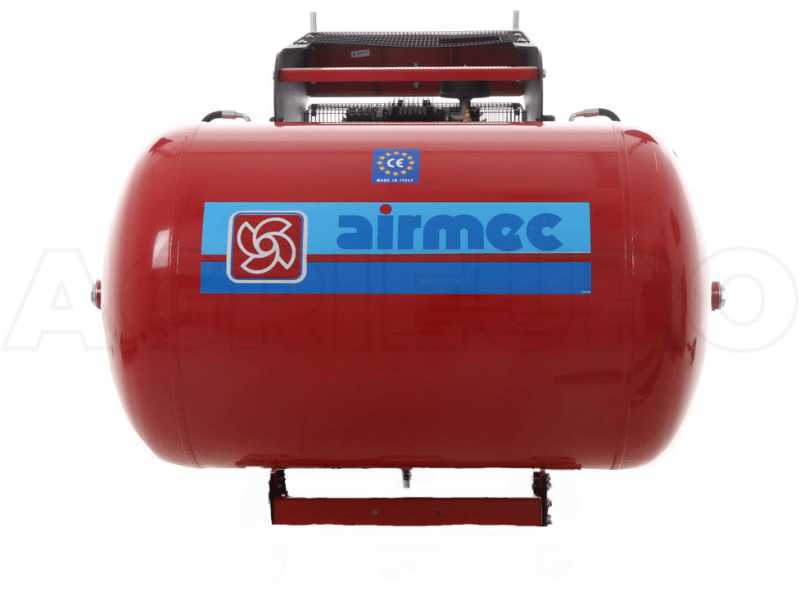

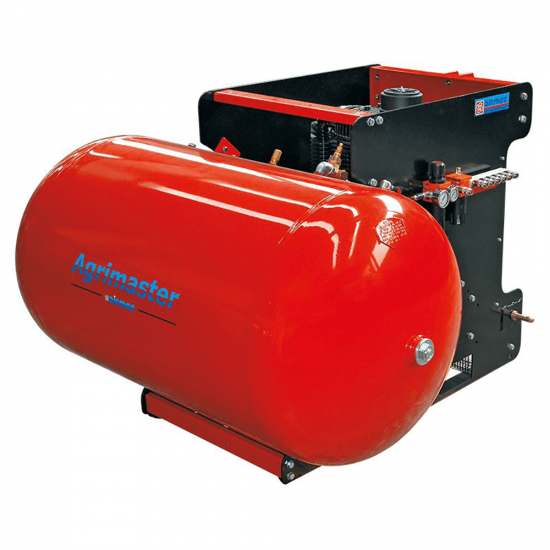

Airmec Agrimaster 1000/650 PTO Driven Air Compressor with 650 L Maxi Air Tank

Airmec Agrimaster 1000/650 PTO Driven Air Compressor with 650 L Maxi Air Tank
Special offer
Operating mode
Tractor-driven PTO + maxi tank
Max. operating pressure
14.5 bar
Air compressor tank
650 L
Air intake flow
1020 L/min
Pump type
Two-stage
Cylinder head rpm
1400 RPM
Tractor power
30 to 35 HP
Manufacturing country
Italy
€ 4.016,97
-14 %
€ 3.441,29
VAT Included
Prompt Delivery
4 items in stock
|
Free Shipping
You should receive it by 07/07/2022
ID: 1305

EAN: 8006414033056

MPN: 141791600

General features

The Airmec Agrimaster 1000/650 PTO-driven air compressor is a professional product intended for use in combination with a tractor equipped with a power take-off, to simultaneously power different compressed air equipment.

It mounts the CHINOOK series K30 heavy-duty cylinder head. The cylinder heads mounted on this air compressor are regarded by industry professionals as the ABSOLUTE BEST ON THE MARKET, due to their proven long service life. Attention: only the best manufacturers in the sector fit CHINOOK heads, such as WORTEX, AIRMEC, CAMPAGNOLA and a few others.

This air compressor mounts a twin-cylinder head with a cast iron cylinder (long life guarantee). High air output: 1020 L/min. It can operate up to:

  • 5 olive harvesters
  • 10 pruning shears
  • 2 pruning saws

Characterized by a sturdy top-quality construction, it boasts a supporting frame in high-strength reinforced steel. Crushproof supporting structure made entirely of high-thickness steel

The price offered is about 20-25% actually lower than the average market price that you can see in any shop. The high price competitiveness was achieved due to the economy of scale resulting from the purchase of a large stock. The sales price includes VAT. A receipt is issued, invoice on request.

The product guarantees all the quality of Made in Italy.

Technical specifications and details

Technical features:

  • Large-sized cylinder head with large air output: 1020 L/min
  • Maxi air stock tank: 650 L (large working range. It allows you to work several hours with the tractor switched off, reducing wear, fuel consumption and noise pollution).
  • Maximum pressure: 14.5 bar
  • WEIGHT: 380 kg

Details:

REINFORCED SUPER STEEL FRAME: crushproof frame, made entirely of VERY THICK steel, tightly closed and covered.
Guarantees an extremely long service life to the product.

DOUBLE AIR OUTLET SYSTEM:

  • One on the right side
  • One on the left hand side


The only air compressor on the market to have two separate air outlet systems from the tank (all compressors on the market, even the largest, only have one)

ADVANTAGES:

  • Allows to operate multiple equipment at the same time
  • Possibility of simultaneous use of equipment with different operating pressure. For example, it is possible to adjust the outlet pressure of one of the two systems to 7 bar and the other to 10 bar.
  • Possible simultaneous use of equipment requiring different degrees of lubrication. For example, the pneumatic saw (good lubrication level) together with the pneumatic pruning shears (low lubrication level)
  • Need to refill lubricating oil half as often (both lubricators are refilled each time)

2 AIR OUTLET SYSTEMS:

  • Glycerine pressure gauge that signals the air pressure inside the tank, thus indicating the status of the air stock
  • Heavy-duty pressure regulator MADE IN ITALY with condensate separation filter entirely made in aluminum with glycerine pressure gauge
  • No. 01 quick output joint, located before the lubricator
    Suitable for all other uses other than agriculture, which normally do not require the introduction of oil into the air through the lubricator (almost no compressor on the market has this additional outlet)
  • Heavy-duty aluminium lubricator MADE IN ITALY
  • No. 04 quick output joints

Air valve at the inlet of each outlet system: it facilitates maintenance operations, such as topping up oil in the lubricator even when the compressor air tank is full.

Operation at low rpm: it only takes about 1200 rpm of your tractor engine to obtain the 1020 L/min of maximum air pumping performance from your compressor cylinder head

Super-robust cooling flywheel made of CAST IRON.


Pulley made of alloy

MODERN MACHINE DESIGN WITH ATTENTION TO DETAILS, as only a large industrial group like Speroni/Airmec knows how to do.

No load operation system and maximum pressure control by means of a professional pilot check valve

No. 02 Standard hose reel supports

Tank drain equipped with valve

THE AIR COMPRESSOR IS SHIPPED ALREADY ASSEMBLED AND READY FOR USE

WARNING: The packaging includes the machine only, without pneumatic equipment (olive harvesters, pruning shears, hoses or other).

Product Features
Model:
Agrimaster 1000/650
Tractor power:
30 to 35 HP
Operating mode:
Tractor-driven PTO + maxi tank
Max. operating pressure:
14.5 bar
Number of tanks:
1
Tank capacity:
650 L
Air compressor tank:
650 L
Quantity of powered harvesters:
Up to 5
Quantity of powered shears:
Up to 9
Quantity of powered chainsaws:
Up to 2
Power consumption :
30 HP
Manufacturing country:
Italy
Pump data
Pump brand:
Chinook
Model:
K 30
Air intake flow:
1020 L/min
Pump type:
Two-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes (3 manifolds)
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1400 RPM
Pulleys material:
Cast iron
Equipment
No. of outlet couplings:
14
Hose reel support/s:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Net weight:
380 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
150 x 155 x 106 cm
Gross weight (packaging included) :
400 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
