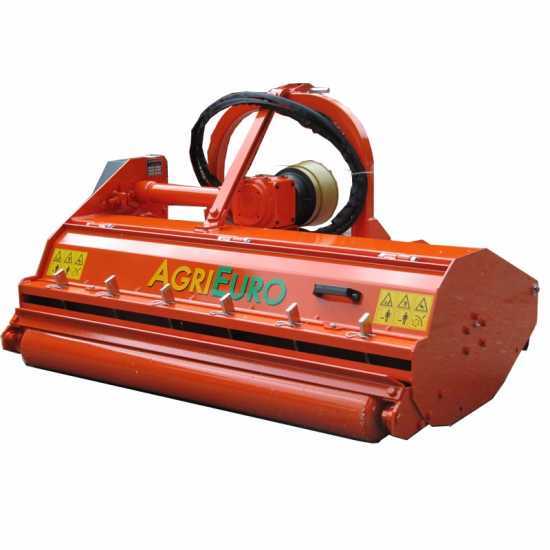

AgriEuro Top Line MS 140 - Tractor-mounted Flail Mower - Medium Series - Hydraulic Shift

Questions & Answers (3)
ID: 2910

EAN: 9993089404931

MPN: 2910

9,0/10
After-sales assistance & Spare parts
AgriEuro Top Line MS 140 - Tractor-mounted Flail Mower - Medium Series - Hydraulic Shift
+20 sold
Tractor power
from 30 to 35 HP
Sturdiness/Series
Medium
Weight
345 Kg
Cutting width
140 cm
Shift
Hydraulic
Standard cutting tools
Toothed hammer flails
Rear brush rakes
Opening rear flap
Hammer flail weight
1.8 Kg
Cardan shaft
Yes
Manufacturing country
Italy
Product Features
Model:
MS 140
Mulcher type:
Standard rear mulcher
Tractor power:
from 30 to 35 HP
Sturdiness/Series:
Medium
Shift:
Hydraulic
Manual shift:
No
Hydraulic shift:
Yes
Hydraulic shift:
Fixed 3-point hitch:
No
Reversible three-point-hitch:
No
Cardan shaft rotation:
Standard
Manufacturing country:
Italy
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
140 cm
Wood diameter:
Up to 50 mm
No. of blades:
10
Standard cutting tools:
Toothed hammer flails
Hammer flail weight:
1.8 Kg
Toothed hammer flails:
Blades bolt diameter:
20 mm
Hammer width:
15.5 cm
Cutting width:
140 cm
Equipment
Collection bag:
No
Counter-blade:
Double row
Side drive belts:
3
Hydraulic Piston for moving:
Yes
Opening rear flap:
Pantograph arm:
No
Rear crampons (collecting rods):
Yes
Rear brush rakes :
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Accessory on request
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Net weight:
345 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
150x110x85 cm
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
10 - 12 days from purchase
Free Shipping
€ 3.197,00
VAT Included
You're viewing:
Customers also viewed:
Description

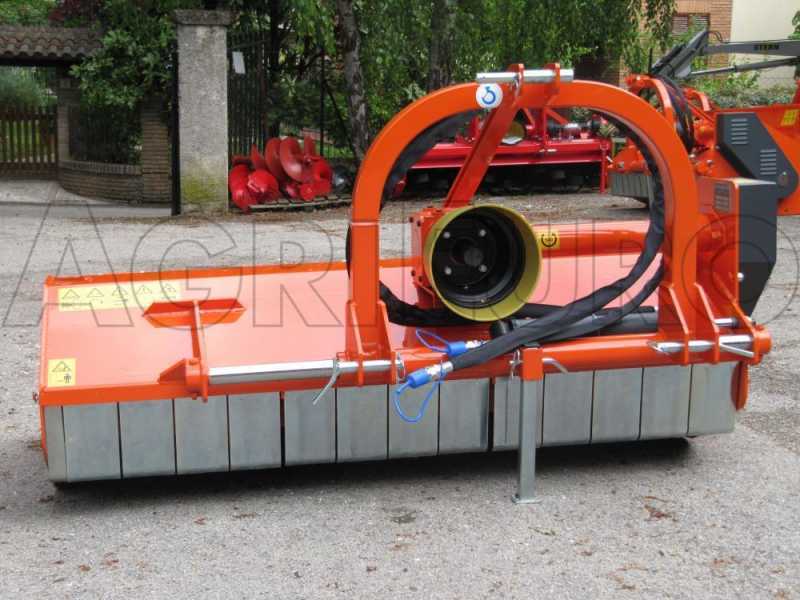

Introduction to the product

... wood and grass medium series flail mower with excellent components, in terms of price and equipment they are second to none ...

The medium grass and pruning residuals flail mower is ideal for the different materials (grass, pruning residuals, straw, underbrush, etc…) working. It is provided with hydraulic side shift on chromium-plated double bars made of C45 steel, rear cover that can be opened for inspection, 3 transmission belts, C roller swivelling bearings with double lips double retaining rings, side adjustable skids and Comer gear box with lubricated extension.

TECHNICAL DETAILS (in summary):

  • Real working width: 140 cm
  • Real width occupied (with side skids assembled): 15 3 cm
  • Weight: 313 kg

STANDARD EQUIPMENT (in summary):

  • Hydraulic side shift (30 cm)
  • Toothed hammer flails
  • Counter-blades bar
  • Rear brush rake (collecting shafts)
  • Rear flap door
  • Rear roller
  • Cardan shaft

Cutting tools: toothed hammer flails

Nr. of toothed hammer flails on standard equipment: 10

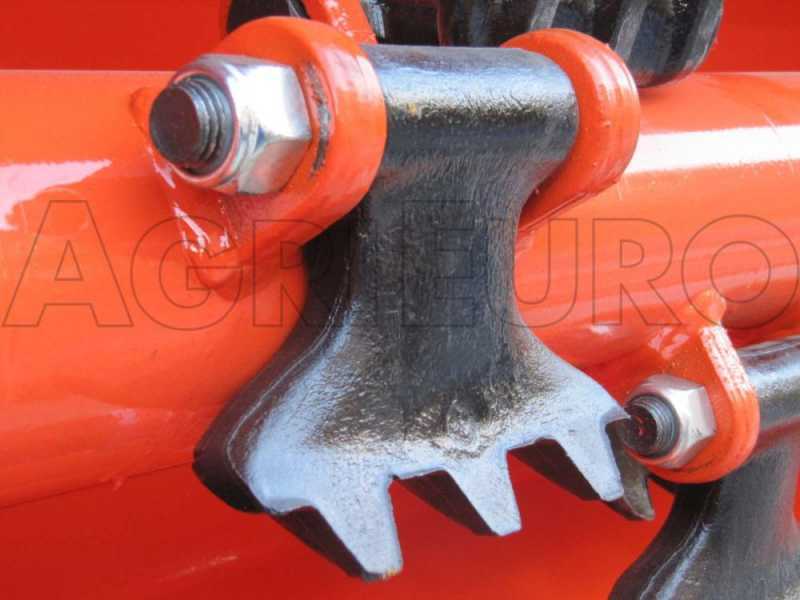

Toothed hammer flails on standard equipment

They are the heaviest hammer flails on market (the most common are up to 1,6 kg).

The toothed hammer flails are more sturdy and heavy than the common flat flails. They allow even the wood and small stones crunching, not only grass and straw. This is possible also thanks to their three strong "teeth" able to easily break and pass over them. They are firmly fixed to the frame by means of a 20 mm diameter and 150 mm length tempered steel bolt. The bolt dimensions make impossible it can be broken if hit (the 90% of flail mowers on market have the hammer flails fixed by means of 16mm diameter bolts).

Provided with double counter-blades bar . It is opposite to the hammer flails rotation with a counter-blade function for a fine crunching.

Hammer flails trajectory particular: very close to the counter-blades sharp edge.

Rotor, reinforced hammer flails supports, side bearings

High thickness rotor. It can resist to many years job and accidental hits.

It is electronically balanced.

Molded steel resistant hammer flails support brackets. Support brackets and rotor give a good solidity to the flail mower

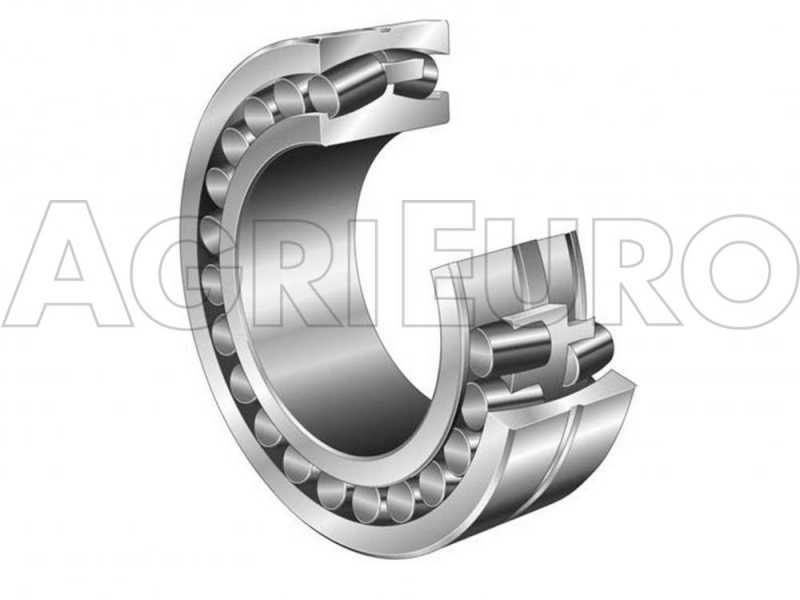

Moreover, rotor is assembled on the steel side support and are provided with highly professional swivelling C roller bearings with double retaining double lips rings.
The roller bearings represent the most professional and reliable technology on the flail mowers field.

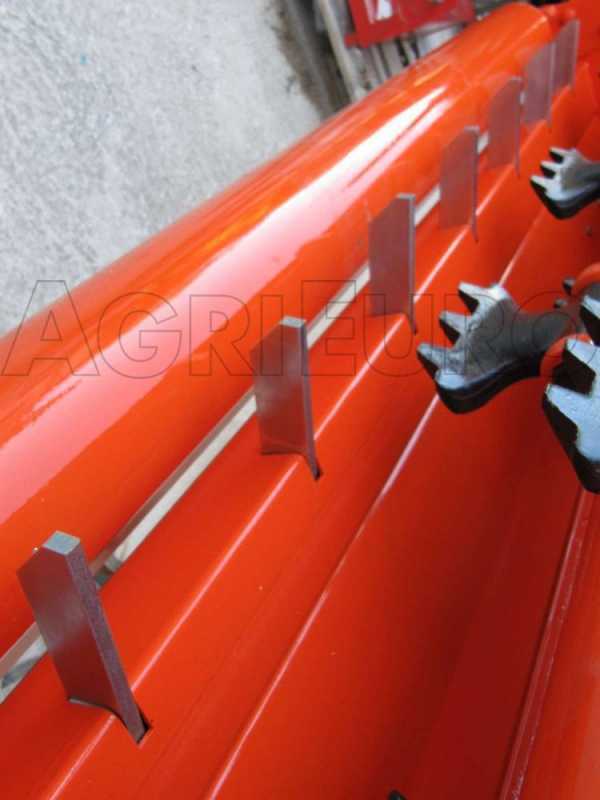

Series of rear brush rakes - collecting shafts

Rear collecting shaft series (rakes). Ideal for pruning residuals or any cultivation residuals. This is a very important tool there is not any other flail mower on market able to efficiently crunch pruning residuals without leaving medium-big sized fragments after their transit. This happens because flail mower cutting height is generally regulated at 3-4 cm from the ground level: without any “rake” action, all branches laying on the ground would be left behind as the hammer won’t be able to catch them. Another particular to be noticed is that the tractor’s wheels running over them may burrow them. Collecting shafts make a truly raking function by taking off and lifting these residuals from the ground. In this way any branch or residual will flee from this system. Each flail hammer will run really close to each single collecting shaft. It will catch the object from the shaft and will bring again in the crunching cycle. At the end of the job, it will be very difficult to find any intact pruning residual after this flail mower transit!

ASSEMBLY: shaft need to be regulated at a height that can allow them to work close to the ground on a free position. Indeed, they must be free to vertically swing by adapting themselves to the ground gradients thanks to their inclination towards the rear direction.
In case shaft meets an obstacle, it can be lifted and won’t be folded.

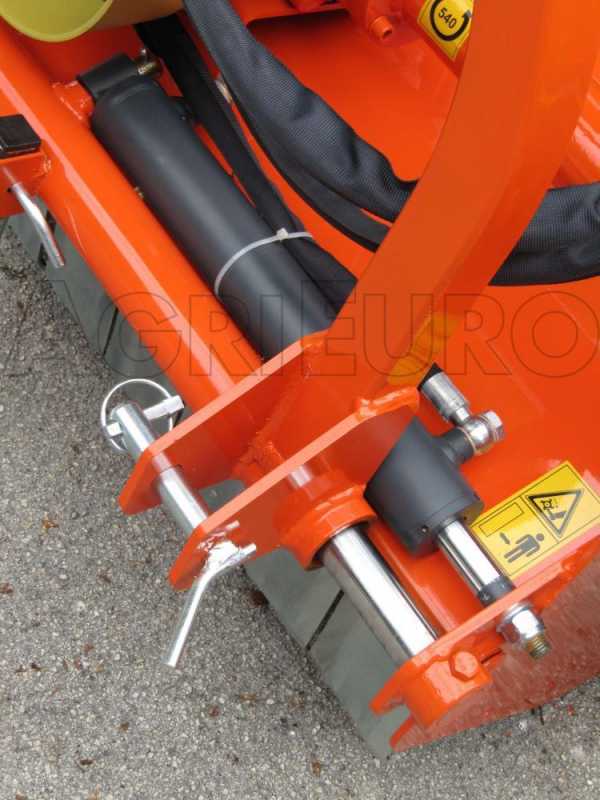

Hydraulic side shift and fixed 3 points linkage


Side movement actioned by means of an hydraulic cylinder. Provided with two fast linkage tubes to be connected to the tractor’s hydraulic joints. The movement obtained is 30 cm.

It is very solid movement, structured by means of two C45 steel RODS resistant to accidental hits.

Particolare degli Joints particular, very close to the machinery frame , and not protuberant. This allows the flail mower to work very close to the tractor, avoiding the stone is thrown towards the operator and mostly eliminating any possibility the machinery could be lifted as its weight will charge the tractor in a minor way. This allows the machinery connection despite its big weight, also to tractors of minor mass and dimensions compared to it.

The pins of the 3-point hitch measure: 22 mm the two lower ones at the base, while the third, the one at the top measures 19/25 mm respectively.

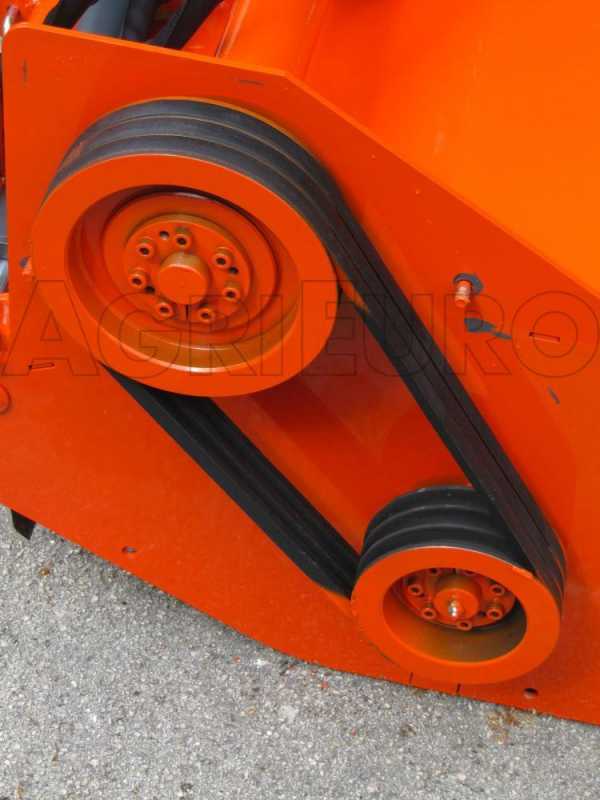

Side belt transmission and reduction gearbox group

Big size oil bath reduction gearbox group, original made by COMER. The outer body is moulded, while the inner gear made of tempered steel. Provided with lubricated extension.

Side 3 big section belts transmission (the most part of the flail mowers on market have a 2 belt transmission)

Belt protection side shield, with optimized dimension: only 9 cm depth 3 big section belts. This kind of side shield save room on the product’s total width making it smallest product on market compared with their working width. Considering the room taken from the slides the total flail mowers width is only 13 cm more than the cutting width!!

Greaser side transmission particular, easy to access from a dedicated opening

Belts tension adjusting plate particular

Standard 1 3/8" z6 power take-off PTO (suitable for each model of recently manufactured tractors): whether you are dealing with older tractors, it is recommended to previously check that they provide the same power take-off type featuring the standard right/clockwise rotation.

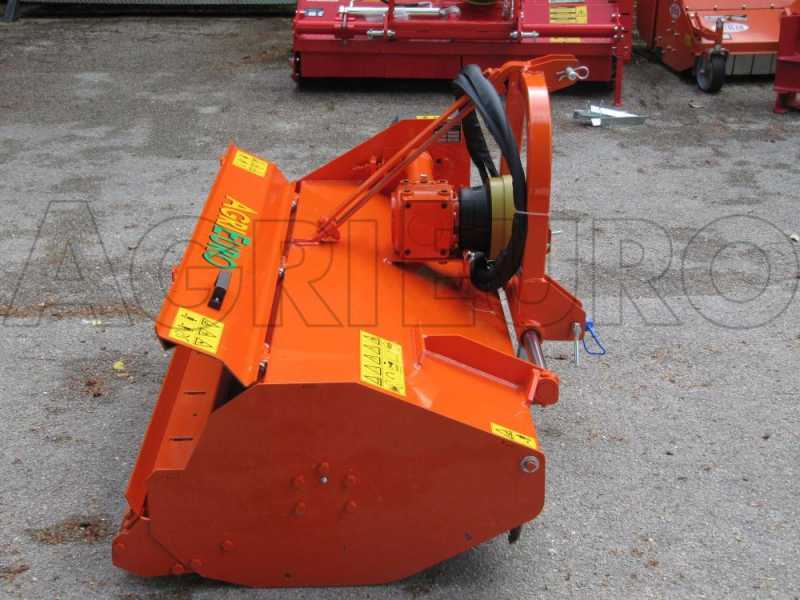

Rear door flap

This flail mower is supplied with a 3 strong hinges door flap. To open it is easy, it is enough to remove two bolts. Provided with lifting handle. Extremely useful for inner maintenance, cleaning, tools replacement, etc...

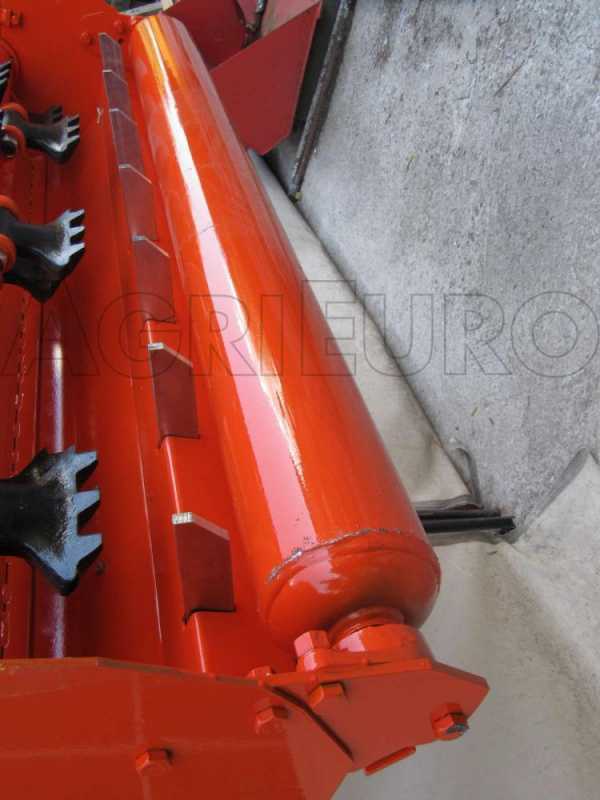

Stabilizer accessories - rear roller and side skids

Rear height adjustable roller exceptional diameter: 190 mm. Without any doubt, the biggest in its category. Provided with roller scratching bar

Big bearing with cast iron plate for the roller fixing particular

Roller side supporting plate particular, with holes for the height adjustment
Side skids supplied extra price on request (not needful for this product as the rear roller have a balancing function by itself)
Front protection flaps made of folded steel . Lay foot.

Free items & Standard equipment

Standard equipment

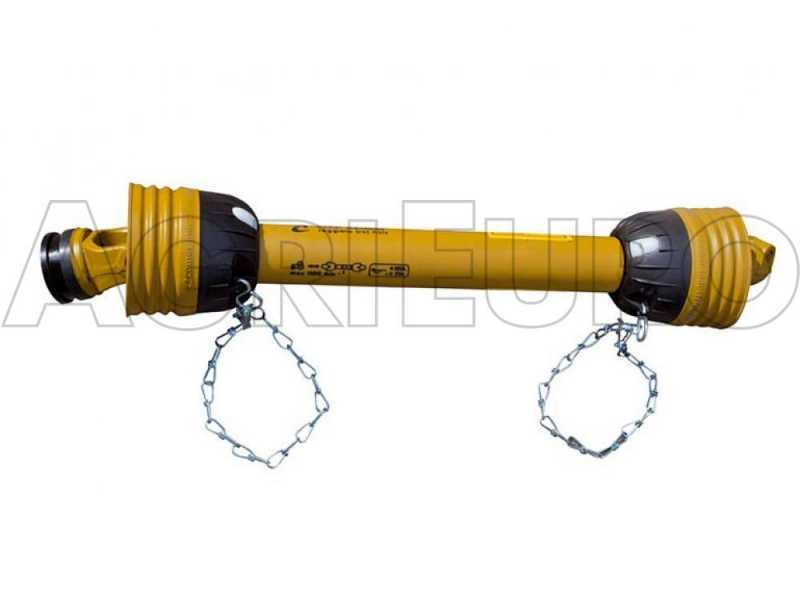

Cardan shaft
