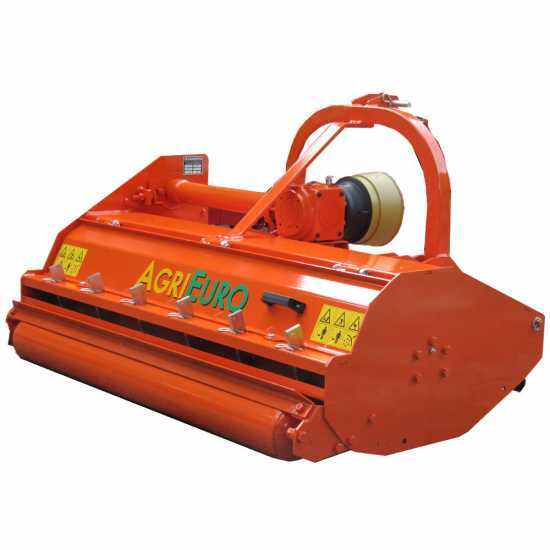

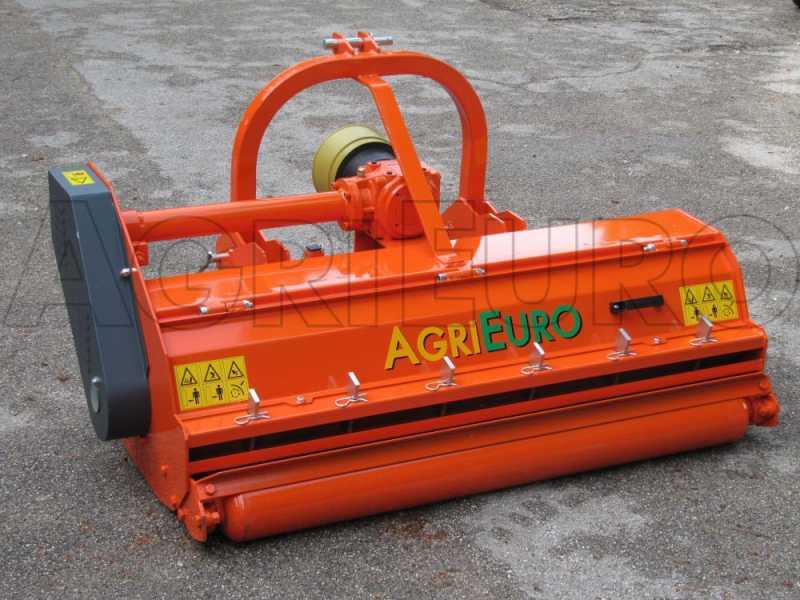

AgriEuro Top Line MF 140 - Tractor-mounted Flail Mower - Medium series

... wood and grass medium series flail mower with excellent components, in terms of price and equipment they are second to none ...

The heavy grass and pruning residuals flail mower is ideal for the different materials (grass, pruning residuals, straw, underbrush, etc…) working. It is provided with double boxed frame with rear cover that can be opened for inspection, 3 transmission belts, C roller swivelling bearings with double lips double retaining rings, side adjustable skids and Comer gear box.

TECHNICAL DETAILS (in summary):

• Real working width: 140 cm
• Real width occupied (with side skids assembled): 153 cm
• Weight: 239 kg

STANDARD EQUIPMENT (in summary):

• Toothed hammer flails
• Double lower counter-blades row
• Rear brush rake (collecting shaft)
• Rear door flap
• Rear support roller

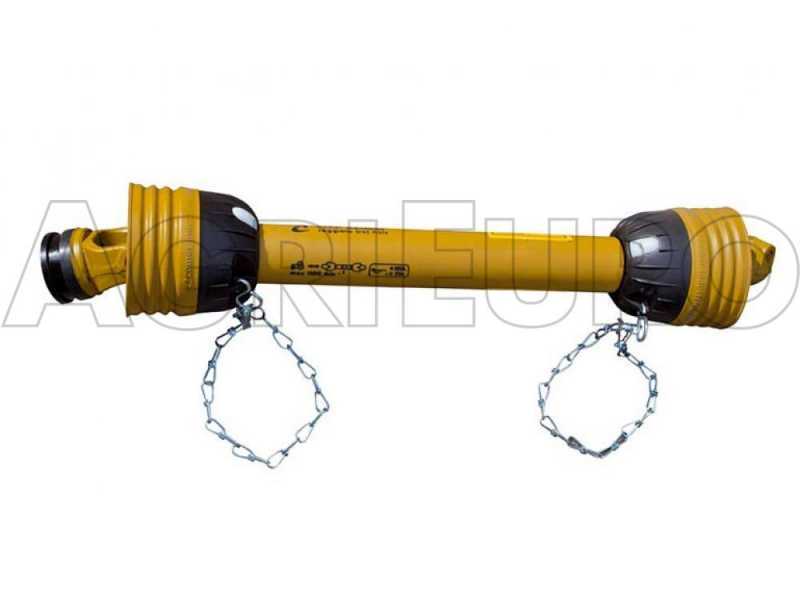

• Cardan shaft

Nr. of toothed hammer flails on standard equipment: 10

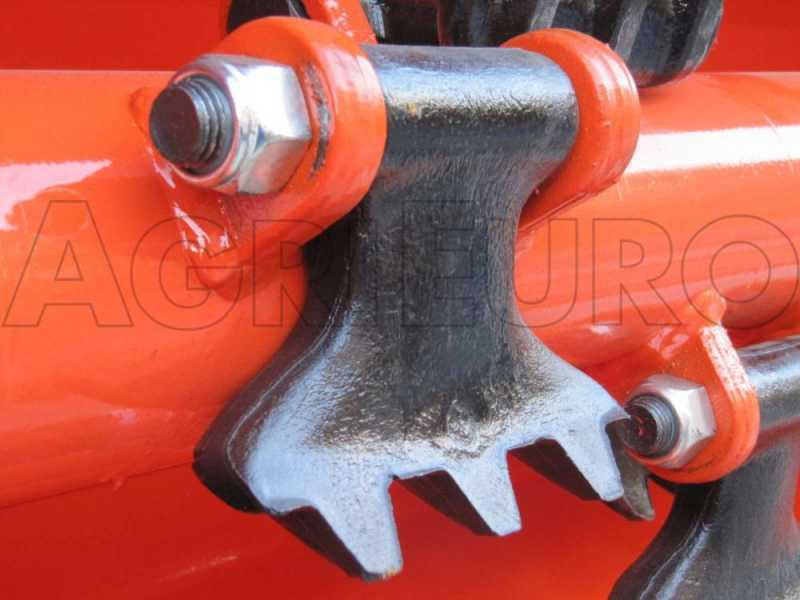

Toothed hammer flails on standard equipment

They are the heaviest hammer flails on market (the most common are up to 1,6 kg).

The toothed hammer flails are more sturdy and heavy than the common flat flails. They allow even the wood and small stones crunching, not only grass and straw. This is possible also thanks to their three strong "teeth" able to easily break and pass over them. They are firmly fixed to the frame by means of a 20 mm diameter and 150 mm length tempered steel bolt. The bolt dimensions make impossible it can be broken if hit (the 90% of flail mowers on market have the hammer flails fixed by means of 16mm diameter bolts).

Provided with double counter-blades bar . It is opposite to the hammer flails rotation with a counter-blade function for a fine crunching.

Hammer flails trajectory particular: very close to the counter-blades sharp edge.

High thickness rotor. It can resist to many years job and accidental hits.

It is electronically balanced.

Molded steel resistant hammer flails support brackets. Support brackets and rotor give a good solidity to the flail mower
Moreover, rotor is assembled on the steel side support and are provided with swivelling C roller bearings with double retaining double lips rings.
The roller bearings represent the most professional and reliable technology on the flail mowers field.

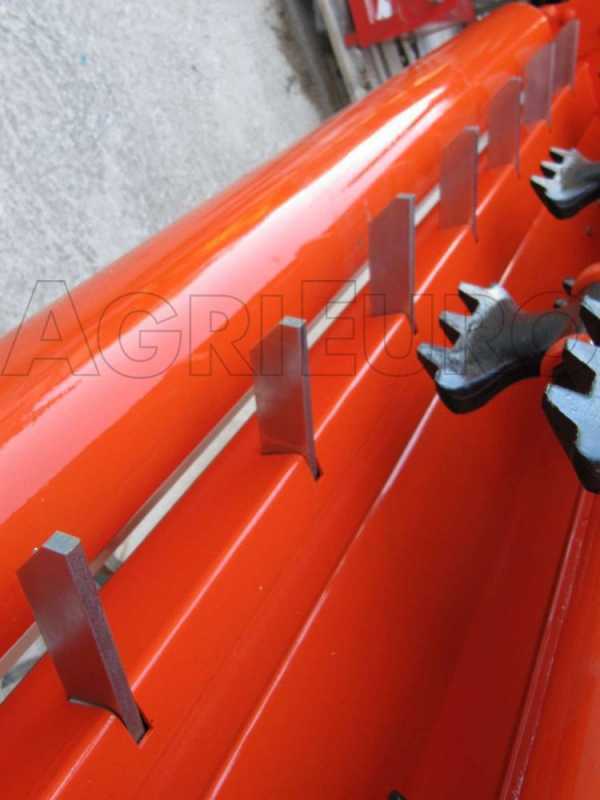

Rear collecting shaft series (rakes). Ideal for pruning residuals or any cultivation residuals. This is a very important tool there is not any other flail mower on market able to efficiently crunch pruning residuals without leaving medium-big sized fragments after their transit. This happens because flail mower cutting height is generally regulated at 3-4 cm from the ground level: without any “rake” action, all branches laying on the ground would be left behind as the hammer won’t be able to catch them. Another particular to be noticed is that the tractor’s wheels running over them may burrow them. Collecting shafts make a truly raking function by taking off and lifting these residuals from the ground. In this way any branch or residual will flee from this system. Each flail hammer will run really close to each single collecting shaft. It will catch the object from the shaft and will bring again in the crunching cycle. At the end of the job, it will be very difficult to find any intact pruning residual after this flail mower transit!

ASSEMBLY: shaft need to be regulated at a height that can allow them to work close to the ground on a free position. Indeed, they must be free to vertically swing by adapting themselves to the ground gradients thanks to their inclination towards the rear direction.
In case shaft meets an obstacle, it can be lifted and won’t be folded.

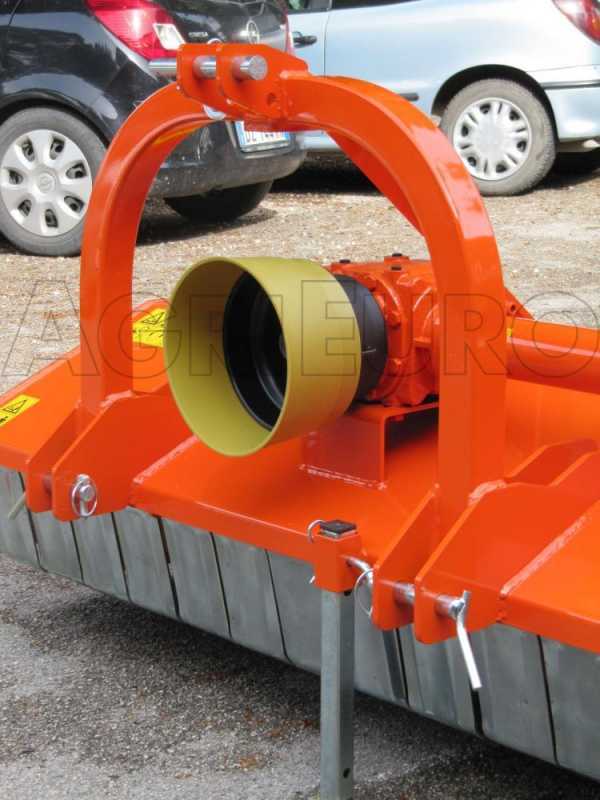

Provided with standard 3 point fixed linkage
Joints are very close to the machinery frame, and just a little protuberant. This allows the flail mower to work very close to the tractor, avoiding the stone is thrown towards the operator and mostly eliminating any possibility the machinery could be lifted as its weight will charge the tractor in a minor way. This allows the heavier machinery connection if compared to the tractor’s mass and dimensions.

The pins of the 3-point hitch measure: 22 mm the two lower ones at the base, while the third, the one at the top measures 19/25 mm respectively.

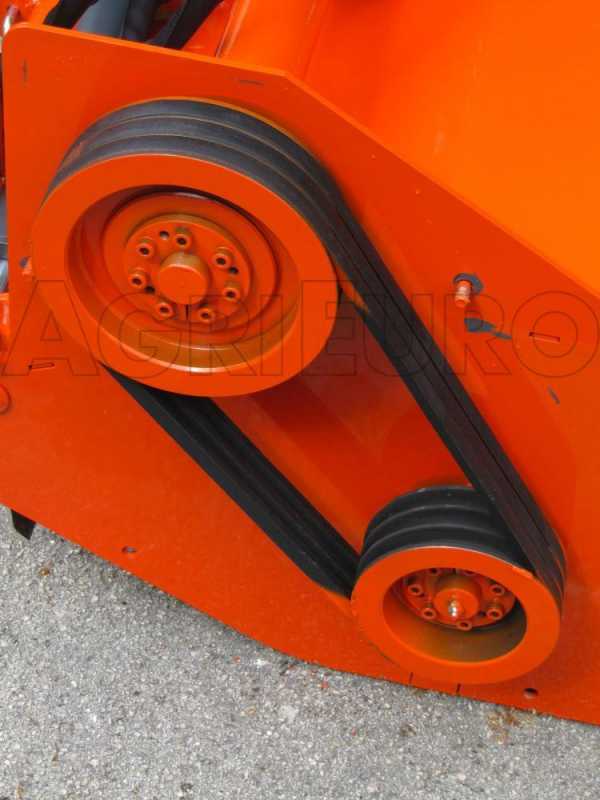

Big size oil bath reduction gearbox group, original made by COMER. The outer body is moulded, while the inner gear made of tempered steel. Provided with transmission shaft. Side 3 big section belts transmission (the most part of the flail mowers on market have a 2 belt transmission) Belt protection side shield, with optimized dimension: only 9 cm depth 3 big section belts. This kind of side shield save room on the product’s total width making it smallest product on market compared with their working width. Considering the room taken from the slides the total flail mowers width is only 13 cm more than the cutting width!! Greaser side transmission particular, easy to access from a dedicated opening Belts tension adjusting plate particular

Standard 1 3/8" z6 power take-off PTO (suitable for each model of recently manufactured tractors): whether you are dealing with older tractors, it is recommended to previously check that they provide the same power take-off type featuring the standard right/clockwise rotation.

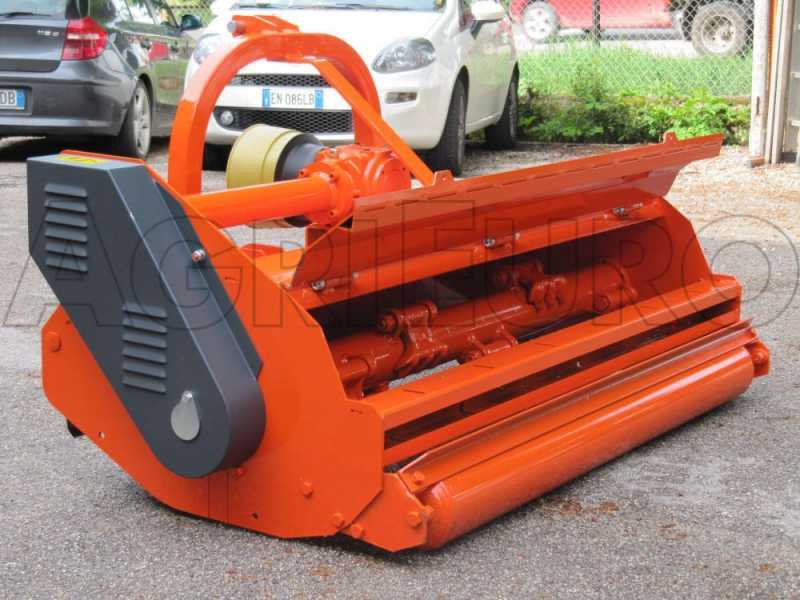

This flail mower is supplied with a 3 strong hinges door flap. To open it is easy, it is enough to remove two bolts. Provided with lifting handle. Extremely useful for inner maintenance, cleaning, tools replacement, etc...

Rear support height adjustable roller on standard equipment.

Big bearing with cast iron plate for the roller fixing particular

Roller side supporting plate particular, with holes for the height adjustment
Side skids supplied extra price on request (not needful for this product as the rear roller have a balancing function by itself)

Strong protection front flaps made of folded steel
