Description

AgriEuro tractor-mounted vertical log splitter

The AgriEuro SIT 10T is a vertical log splitter for domestic use.

With its 20 ton splitting force it can break knotty logs of different sizes up to max. 112 cm in height.

It is equipped with a large capacity pump that ensures high splitting force and operating speed and provided with adjustable piston limit switch control system.

This heavy-duty log splitter can operate very quickly and it is equipped with special safety devices to protect the Operator while working.

This machine is provided with ground split system and is entirely made in Italy.

WARNING!

The machine is NOT provided with four-way wedge

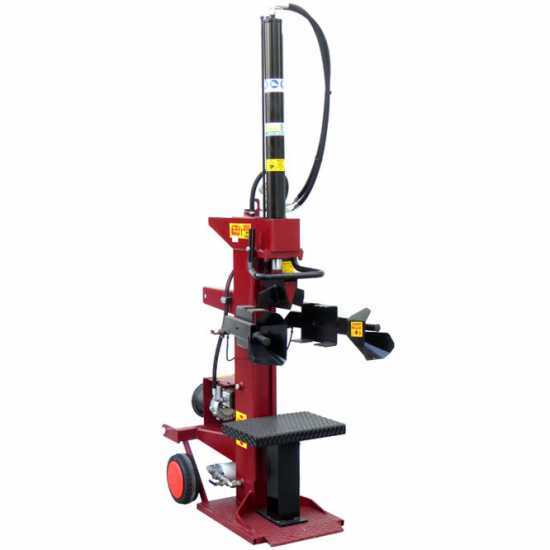

AgriEuro SIT 20 Tons Tractor-mounted Vertical Log Splitter - 1000 mm Piston Stroke

Tractor cardan shaft-powered log splitter

This log splitter is tractor-mounted and can be connected to the tractor via a cardan universal joint.

Equipped with a high-performance hydraulic pump that supplies oil (drawn from the tank) to the hydraulic pushing cylinder. The hydraulic pump features a pressure gauge for checking the oil pressure.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means the three-point linkage on the sturdy machine frame.

Focus on the oil-bath steel gear multiplier coated with cast aluminium.

The multiplier transfers torque from the tractor to the hydraulic pump by means of the cardan universal joint.

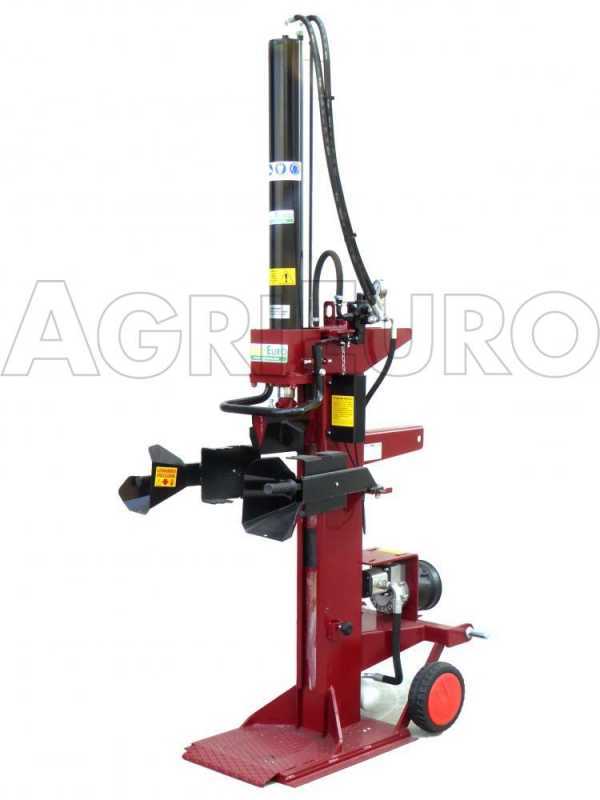

Wedge and 1000 mm piston stroke

With a 20 tons splitting force, this log splitter can break knotty logs of different sizes, up to a max. of 112 cm height, thanks to its exceptionally sturdy and large 1000 mm piston cylinder with an 115 mm outer diameter and 60 mm internal diameter.

Adjustable piston stroke: when splitting short logs, you can speed the operations as the piston stroke can be adjusted by means of a tightening screw.

Operation

The log splitter is equipped with a built-in variable speed cylinder drive circuit that has to be necessarily operated with both hands for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until splitting the log.

By releasing the levers, the piston will automatically return to its initial position.

Other features

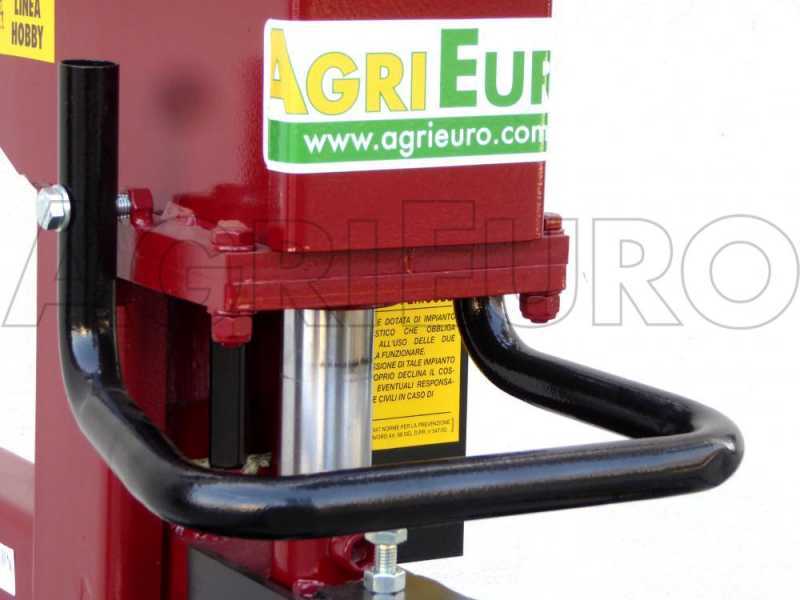

Wedge lift-locking device: pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Focus on the hydraulic distributor

Focus on the removable cutting plate. The plate can be removed so the Operator can split the logs down to ground level.

Focus on the hydraulic oil tank cap

Focus on the hydraulic oil level

Focus on the oil filter: replaceable heavy-duty large cartridge oil filter.

Focus on the lower support platform

Focus on the transport wheels

Focus on the lifting connection

Focus on the lower three-point linkage

Focus on the upper three-point linkage

Pressure gauge that measures oil pressure inside the circuit
