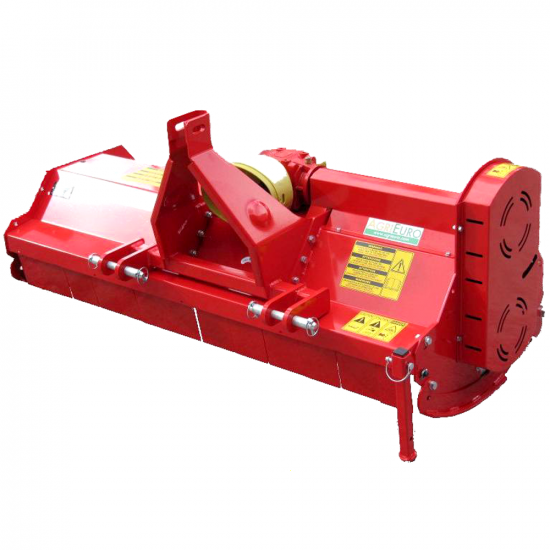

AgriEuro FL 190 Fixed Tracor-mounted Flail Mower with 3-point Hitch Medium Series - Counterclockwise PTO (left-hand rotation)

Questions & Answers (4)
ID: 113097

EAN: 8000001128033

MPN: FL190MSX

9,1/10
After-sales assistance & Spare parts
AgriEuro FL 190 Fixed Tracor-mounted Flail Mower with 3-point Hitch Medium Series - Counterclockwise PTO (left-hand rotation)
+70 sold
10 - 12 days from purchase
Free Shipping
€ 2.842,90
Vat included
Available versions
Technical data
Tractor power
From 40 to 45 HP
Sturdiness/Series
Medium
Weight
310 Kg
Cutting width
190 cm
Standard cutting tools
Hammer flails
Hammer flail weight
0.8 Kg
Cardan shaft
Yes
Fixed hitch
yes
Cardan shaft rotation
Counterclockwise
Manufacturing country
Italy
Product Features
Model
FL 190
Mulcher type
Standard rear mulcher
Tractor power
From 40 to 45 HP
Sturdiness/Series
Medium
Shift
Fixed hitch
Fixed hitch
yes
Cardan shaft rotation
Counterclockwise
Manufacturing country
Italy
Transmission data
Integrated free wheel device
Yes
Side drive belts
3
Cutting data
Cutting width
190 cm
Wood diameter
Up to 40 mm
No. of blades
28
Standard cutting tools
Hammer flails
Hammer flail weight
0.8 Kg
Blades bolt diameter
14 mm
Hammer width
8.5 cm
Max. cutting height
90 mm
Min. cutting height
20 mm
Cutting width
190 cm
Equipment
Collection bag
No
Counter-blade
Single row
Rear support roller
Yes
Free gifts/extra features
Side skids
Yes
Cardan included
Yes
Cardan shaft
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
Width: 202 cm
Net weight
310 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
85x205x85 cm
Unloading with hydraulic tail lift
Yes
Assembly time
Assembled
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

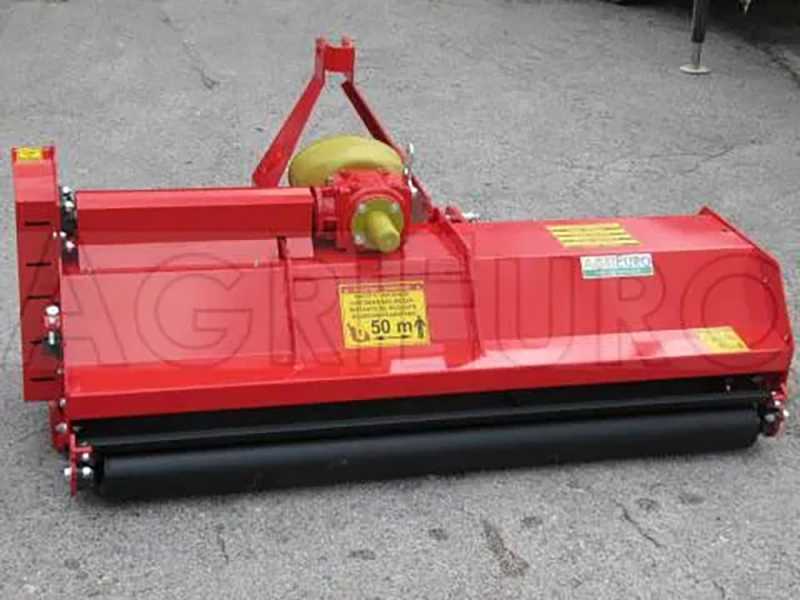

AgriEuro FL 190 tractor-mounted flail mower

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

The AgriEuro series FL tractor-mounted fixed flail mower with 3-point hitch features a medium-heavy structure that can be used for shredding medium-sized twigs, grass and shrubs on meadows, forests, orchards and uncultivated land.

----- MADE IN ITALY -----

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations. Thanks to the sharpened toothed hammers it ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Standard features:

- Flail mower with hammer rotor (hammer flails);
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy gearbox in oil bath with built-in freewheel;
- Reverse gearbox (for connection to tractors with old left-hand PTOs)
- 3-belt drive with turnbuckle;
- Adjustable rear roller;
- Pair of adjustable skids;
- CE-compliant safety guards;
- Standard PTO shaft included.
- Outer width: 202 cm
Real operating width: 190 cm
- Weight: 310 Kg
Working height: 2 / 9 cm
Sturdy 3-point hitch
-Universal joints suitable for all tractors on the market
- No. of hammer flails: 28
- Hammers mounted on extremely sturdy supports welded to the rotor.


Attention: this product is not available for prompt delivery but will be custom-made according to the order. Therefore, it is excluded from the Right of Withdrawal and the 30-day Return policy, as per Legislative Decree no. 206/2005, Article 59, paragraph 1, letter c.



Machine features

Rear support roller mounted on bearing supports and equipped with a scraper bar.

Height adjustable roller.

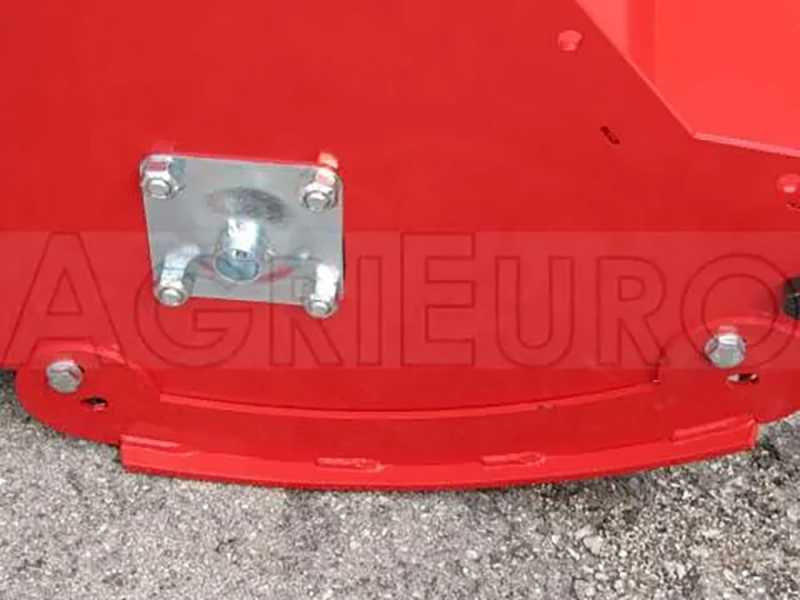

The side skids supplied as standard are adjustable.
Sturdy front flaps made of thick steel
Side belt protection cover, equipped with ventilation openings (for regular cooling).

The side belts are 3.

Easy tensioning of the side drive belts by means of a proper screw.

The flail mower is equipped with a sturdy gearbox with gears in oil bath.

Also equipped with an additional rear PTO with reverse rotation.

*useful for those very old tractors equipped with a left PTO (which rotates in reverse).

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

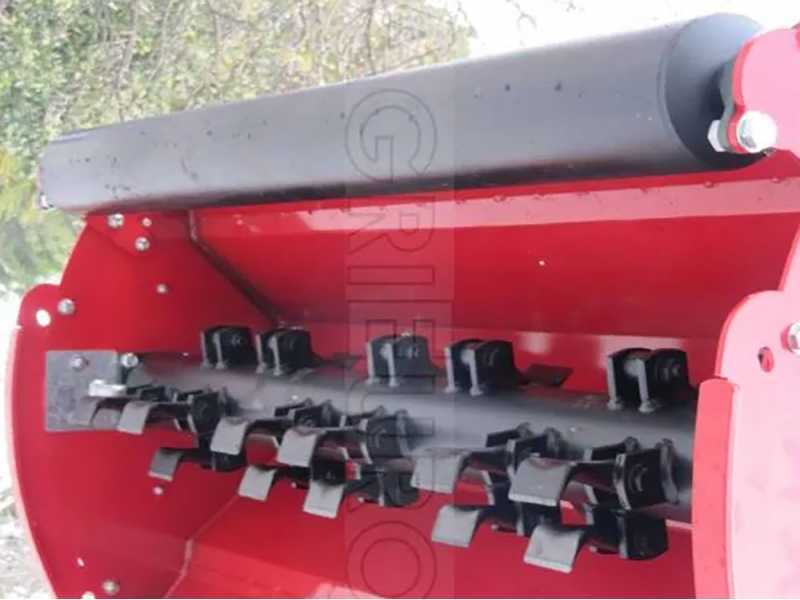

Cutting tools: hammer flails

No. of hammer flails fitted on standard equipment: 28

The hammers (hammer flails) are mounted on extremely sturdy supports welded to the rotor.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

  • Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
  • Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
  • Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
  • Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
  • Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
  • Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
  • Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
  • Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
  • Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.

Free items & Standard equipment

Free items included

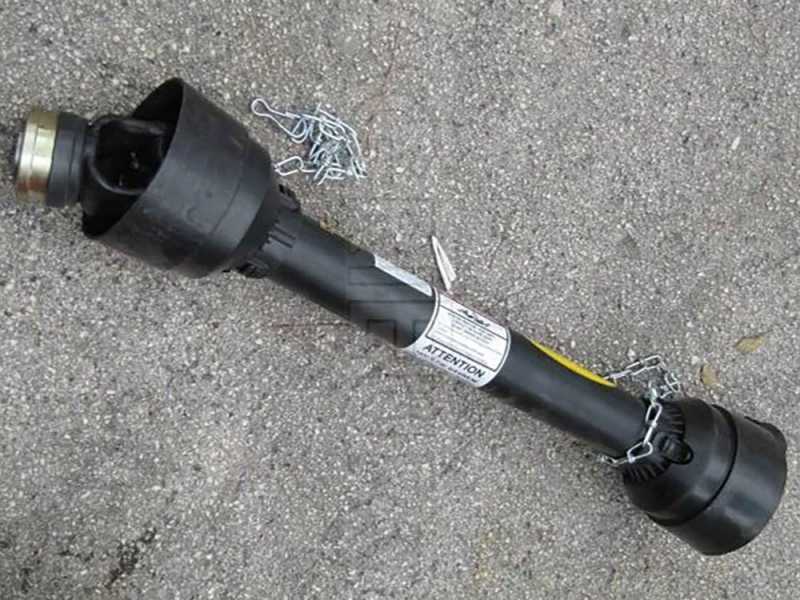

Standard PTO for connecting the machine to the tractor included with the FL tractor-mounted flail mower.
