AgriEuro FL 190 Fixed Tracor-mounted Flail Mower with 3-point Hitch Medium Series

Questions & Answers (2)
ID: 2363

EAN: 9993081518209

MPN: 2363

9,1/10
After-sales assistance & Spare parts
AgriEuro FL 190 Fixed Tracor-mounted Flail Mower with 3-point Hitch Medium Series
+70 sold
Tractor power
From 40 to 45 HP
Sturdiness/Series
Medium
Weight
310 Kg
Cutting width
190 cm
Standard cutting tools
Hammer flails
Hammer flail weight
0.8 Kg
Cardan shaft
Yes
Fixed hitch
Manufacturing country
Italy
Product Features
Model:
FL 190
Tractor power:
From 40 to 45 HP
Sturdiness/Series:
Medium
Shift:
Fixed hitch
Fixed hitch:
Manual shift:
No
Hydraulic shift:
No
Fixed 3-point hitch:
Yes
Reversible three-point-hitch:
No
Cardan shaft rotation:
Standard
Manufacturing country:
Italy
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
190 cm
Wood diameter:
Up to 40 mm
No. of blades:
28
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.8 Kg
Hammer flails:
Blades bolt diameter:
14 mm
Hammer width:
8.5 cm
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Cutting width:
190 cm
Equipment
Collection bag:
No
Counter-blade:
Single row
Side drive belts:
3
Pantograph arm:
No
Rear brush rakes (collection rods):
No
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
Width: 202 cm
Net weight:
310 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
85x205x85 cm
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 06/08/2024 - 08/08/2024
€ 2.847,60
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

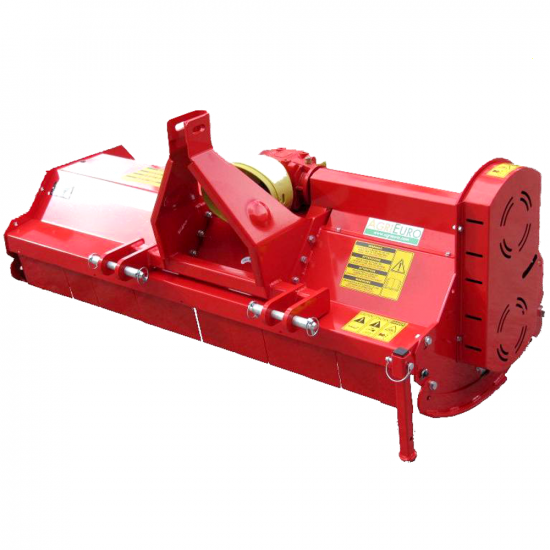

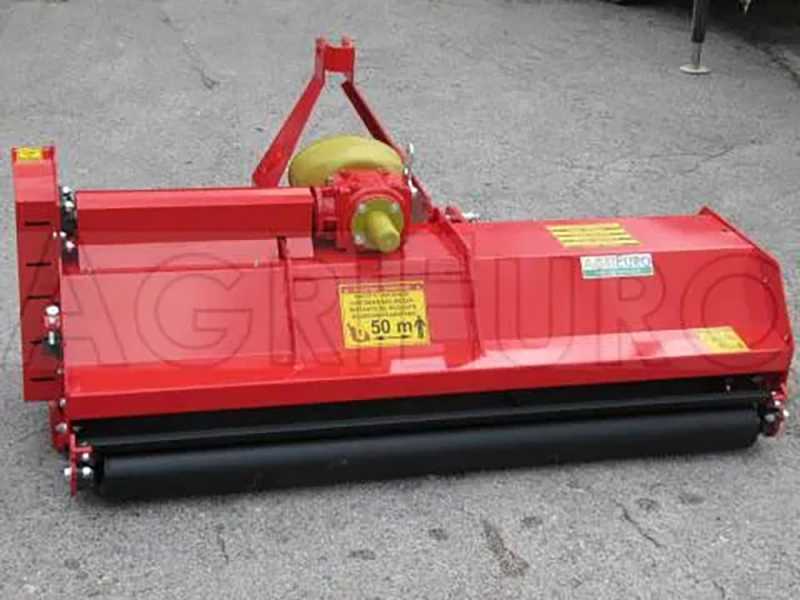

AgriEuro FL 190 tractor-mounted flail mower

The AgriEuro series FL tractor-mounted fixed flail mower with 3-point hitch features a medium-heavy structure that can be used for shredding medium-sized twigs, grass and shrubs on meadows, forests, orchards and uncultivated land.

----- MADE IN ITALY -----

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations. Thanks to the sharpened toothed hammers it ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Standard features:

- Flail mower with hammer rotor (hammer flails);
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy gearbox in oil bath with built-in freewheel;
- Reverse gearbox (for connection to tractors with old left-hand PTOs)
- 3-belt drive with turnbuckle;
- Adjustable rear roller;
- Pair of adjustable skids;
- CE-compliant safety guards;
- Standard PTO shaft included.
- Outer width: 202 cm
Real operating width: 190 cm
- Weight: 310 Kg
Working height: 2 / 9 cm
Sturdy 3-point hitch
-Universal joints suitable for all tractors on the market
- No. of hammer flails: 28
- Hammers mounted on extremely sturdy supports welded to the rotor.

Machine features

Rear support roller mounted on bearing supports and equipped with a scraper bar.

Height adjustable roller.

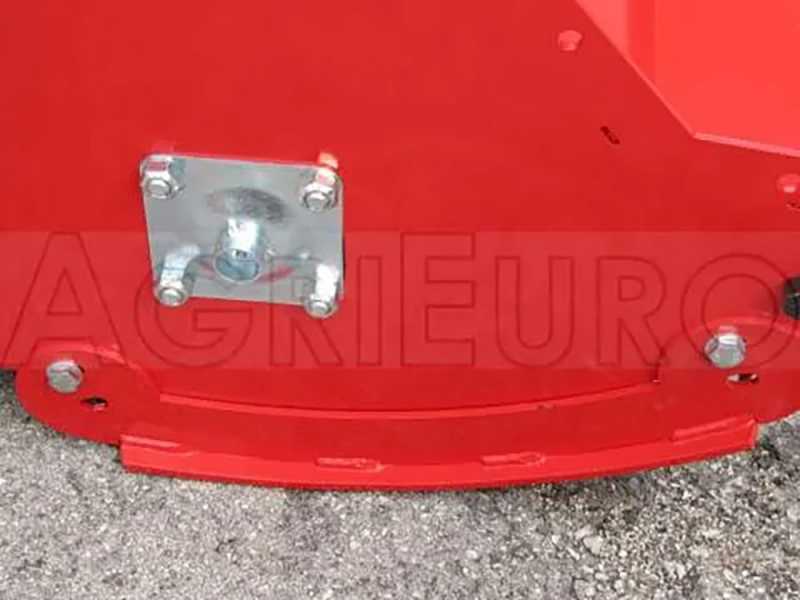

The side skids supplied as standard are adjustable.
Sturdy front flaps made of thick steel
Side belt protection cover, equipped with ventilation openings (for regular cooling).

The side belts are 3.

Easy tensioning of the side drive belts by means of a proper screw.

The flail mower is equipped with a sturdy gearbox with gears in oil bath.

Also equipped with an additional rear PTO with reverse rotation.

*useful for those very old tractors equipped with a left PTO (which rotates in reverse).

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

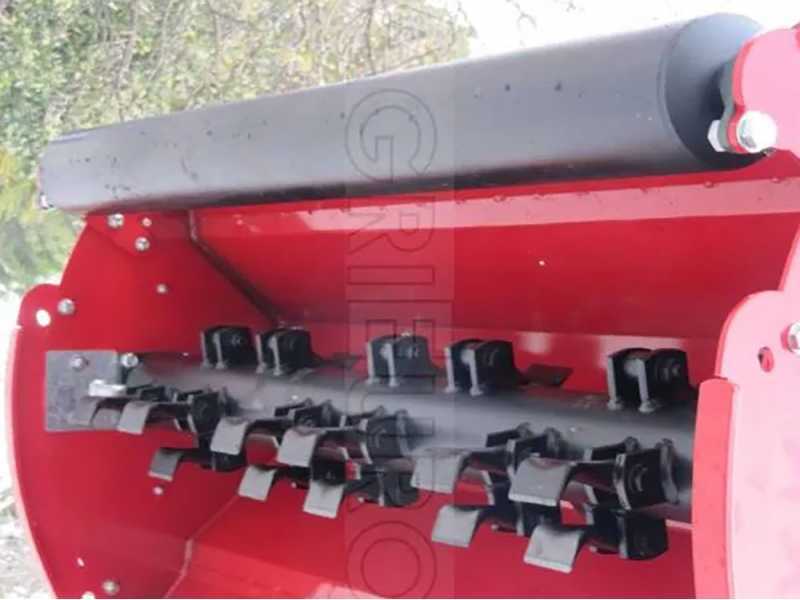

Cutting tools: hammer flails

No. of hammer flails fitted on standard equipment: 28

The hammers (hammer flails) are mounted on extremely sturdy supports welded to the rotor.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Free items & Standard equipment

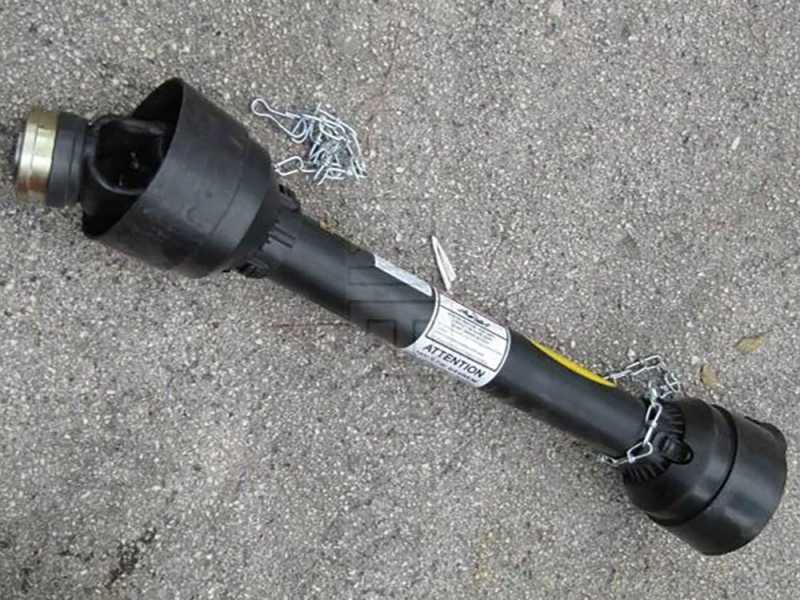

Free items included

Standard PTO for connecting the machine to the tractor included with the FL tractor-mounted flail mower.
