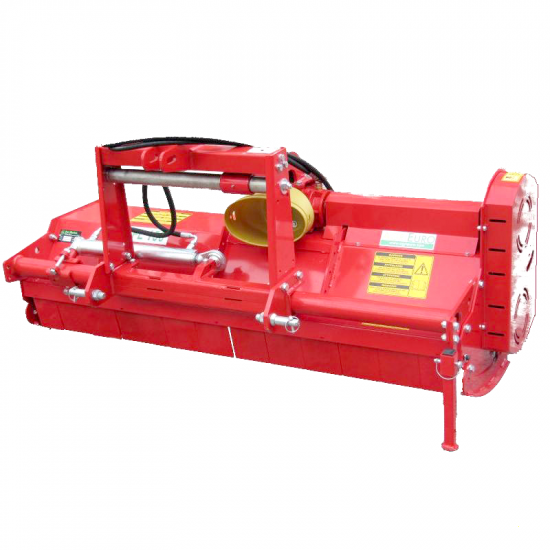

AgriEuro FL 164 tractor-mounted flail mower - hydraulic shift

The AgriEuro FL Series tractor-mounted flail mower with hydraulic shift features a medium-heavy structure that can be used for shredding medium-sized twigs, grass and shrubs on meadows, forests, orchards and uncultivated land.

----- MADE IN ITALY -----

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations. Thanks to the sharpened toothed hammers it ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Standard features:

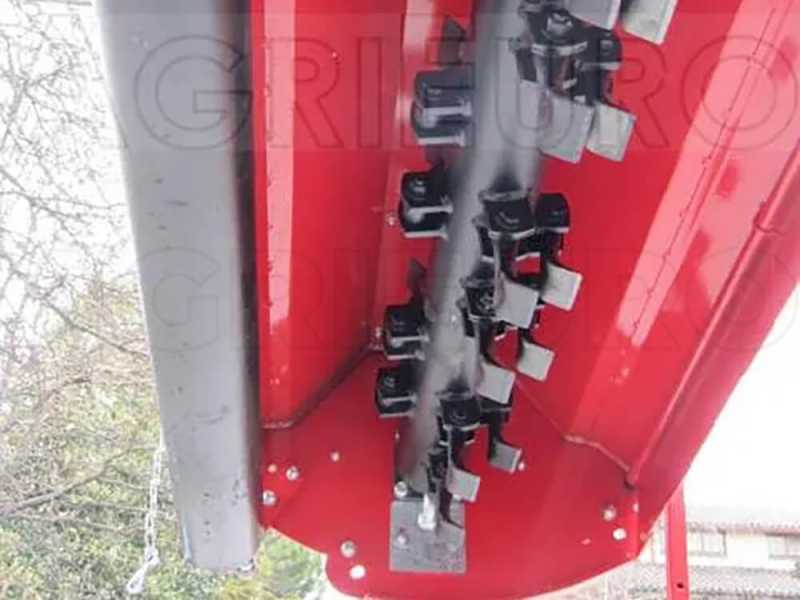

- Flail mower with hammer rotor (hammer flails);

- Hydraulic side shift;
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy gearbox in oil bath with built-in freewheel;
- Reverse gearbox (for connection to tractors with old left-hand PTOs)
- 3-belt drive with turnbuckle;
- Adjustable rear roller;
- Pair of adjustable skids;
- CE-compliant safety guards;

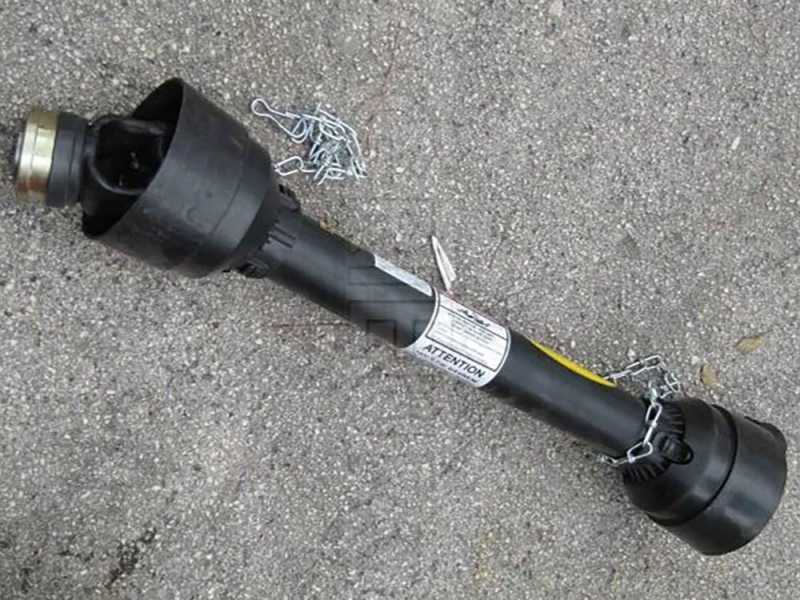

- Standard PTO shaft included;
- Outer width: 176 cm
Real operating width: 164 cm
- Weight: 290 Kg
- No. of hammer flails: 24
- Working height: 2 / 9 cm

AgriEuro FL 164 Flail Mower with Hydraulic Side Shift Medium Series

Machine features

Rear support roller mounted on bearing supports and equipped with a scraper bar.

Height adjustable roller.
The side skids as standard can be adjusted.
Sturdy front flaps made of thick steel
Side belt protection cover, equipped with ventilation openings (for regular cooling).

The side belts are 3.

The 3-point hitch slides on a sturdy tube that runs the full width of the flail mower.

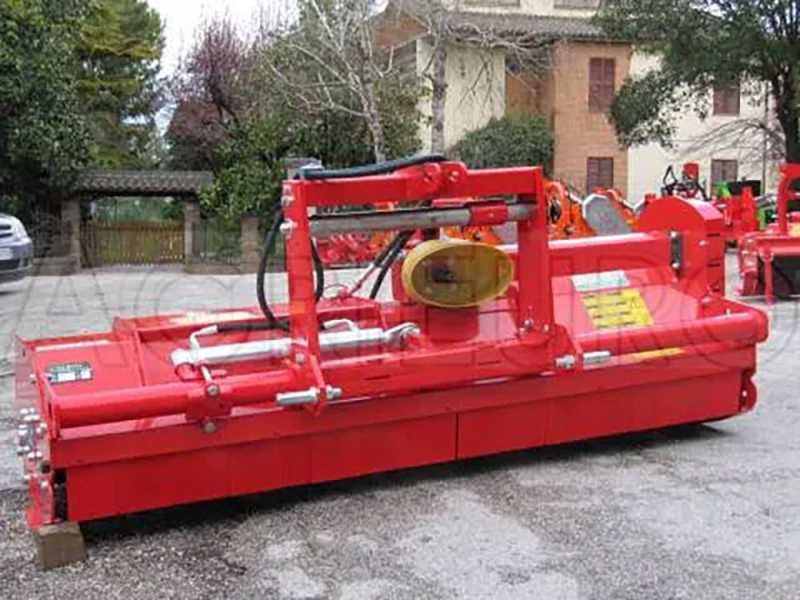

Focus on the sturdy piston that controls the hydraulic shift of this flail mower.
Focus on the additional reinforcement sliding device at the back of the 3-point hitch.

Easy tensioning of the side drive belts by means of a proper screw.

The flail mower is equipped with a sturdy gearbox with gears in oil bath.

Also equipped with an additional rear PTO with reverse rotation.

*useful for those very old tractors equipped with a left PTO (which rotates in reverse).

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).
