CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

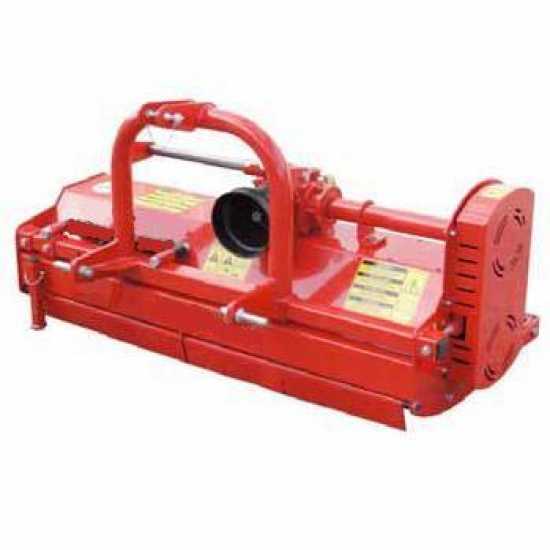

The AgriEuro tractor-mounted flail mower series CE 164 features a medium/light body that can be used for shredding twigs, grass and small shrubs.
Standard features:

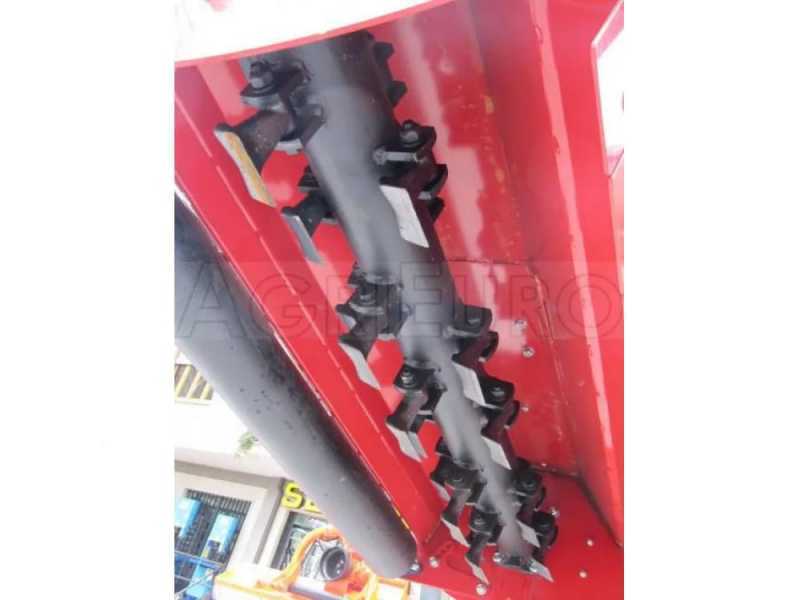

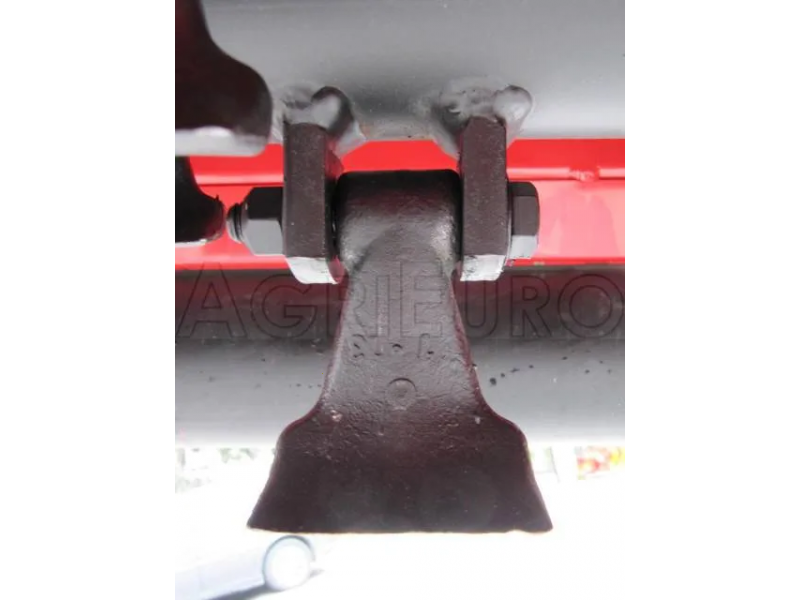

- Flail mower with hammer rotor (hammer flails);
- Mechanical side shift (manual);
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy gearbox in oil bath with built-in freewheel;
- Reverse gearbox (for connection to tractors with old left-hand PTOs)
- 2-belt drive with turnbuckle;
- Adjustable rear roller;
- CE-compliant safety guards
- Standard PTO shaft included.
Total width: 176 cm
Operating width: 164 cm
Weight: 280 Kg
Working height: 2 / 9 cm
Manual mechanical shift supplied as standard.

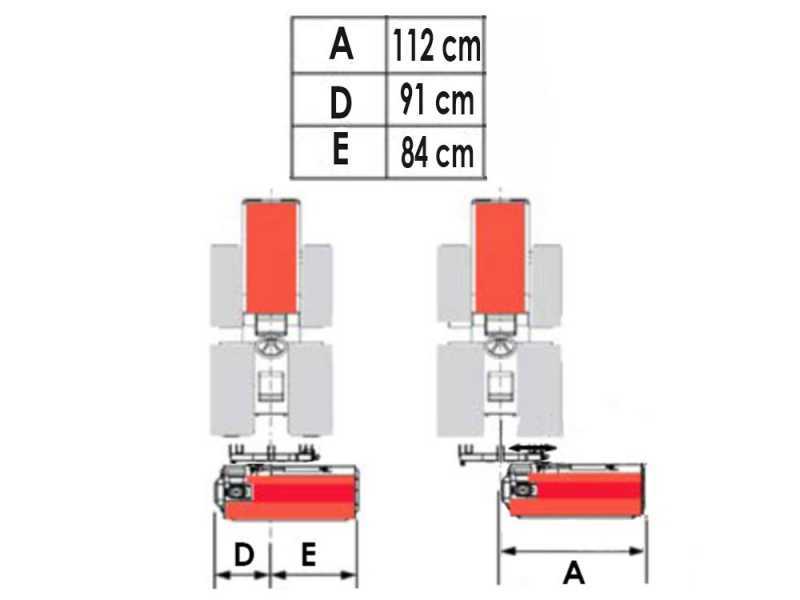

The 3-point hitch slides on a square shaped tube that runs the full width of the flail mower
3 positions: the draw bar is equipped with 3 holes that allow the flail mower to be set in 3 different positions:
- Centred on the tractor track
- Partially shifted to the side
- Completely shifted to the side
To move the flail mower, simply remove and then replace the fixing bolt.
