AgriEuro CE 112 Tractor-mounted Flail Mower with Hydraulic Shift, Medium-light Series - Counterclockwise PTO (left-hand rotation)

Questions & Answers (3)
ID: 113089

EAN: 8000001092457

MPN: CE112MSHSX

AgriEuro CE 112 Tractor-mounted Flail Mower with Hydraulic Shift, Medium-light Series - Counterclockwise PTO (left-hand rotation)
+50 sold
Tractor power
From 25 to 30 HP
Sturdiness/Series
Medium-light
Weight
220 Kg
Cutting width
106 cm
Shift
Hydraulic
Standard cutting tools
Hammer flails
Hammer flail weight
0.8 Kg
Cardan shaft
Yes
Cardan shaft rotation
Bi-directional
Manufacturing country
Italy
Product Features
Model:
CE 112
Tractor power:
From 25 to 30 HP
Sturdiness/Series:
Medium-light
Shift:
Hydraulic
Manual shift:
No
Hydraulic shift:
Yes
Hydraulic shift:
Fixed 3-point hitch:
No
Reversible three-point-hitch:
No
Cardan shaft rotation:
Bi-directional
Manufacturing country:
Italy
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
106 cm
Wood diameter:
Up to 40 mm
No. of blades:
16
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.8 Kg
Hammer flails:
Blades bolt diameter:
14 mm
Hammer width:
8.5 cm
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Cutting width:
112 cm
Equipment
Collection bag:
No
Counter-blade:
Single row
Side drive belts:
2
Hydraulic Piston for moving:
Yes
Rear support roller:
Yes
Free gifts/extra features
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
Widh: 124 cm
Net weight:
220 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
85x125x85 cm
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
10 - 12 days from purchase
Free Shipping
€ 2.391,91
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

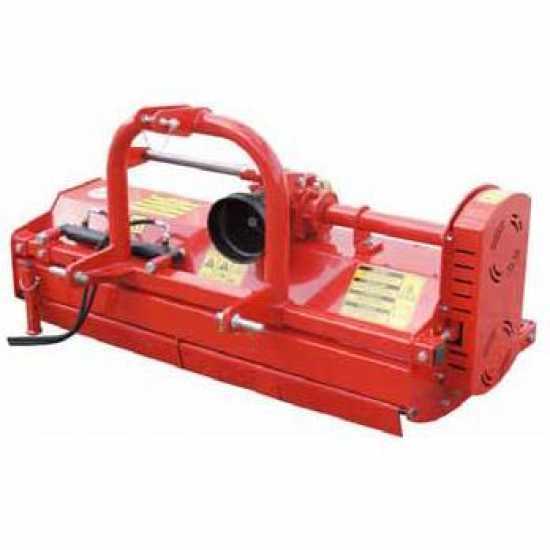

AgriEuro CE 112 tractor-mounted flail mower

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

The AGRIEURO CE series tractor-mounted flail mower with hydraulic shift features a medium/light body that can be used for shredding twigs, grass and small shrubs.

Standard features:
- Flail mower with hammer rotor (hammer flails);
- Hydraulic side shift;
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy gearbox in oil bath with built-in freewheel;
- Reverse gearbox (for connection to tractors with old left-hand PTOs)
- 2-belt drive with turnbuckle;
- Adjustable rear roller;
- CE-compliant safety guards;
- Standard PTO shaft included.

Total width: 124 cm

Operating width: 106 cm

Weight: 220 Kg

Working height: 2 / 9 cm
Hydraulic side shift supplied as standard.

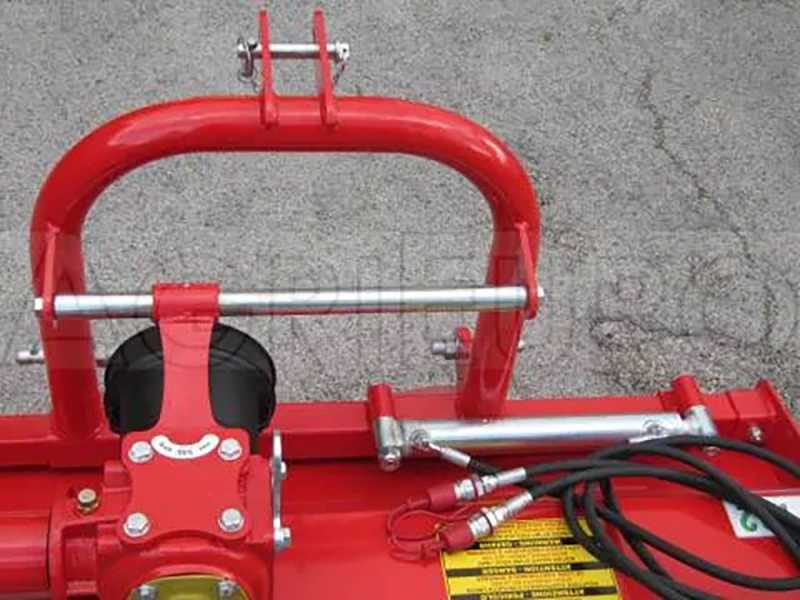

The 3-point hitch slides on a square shaped tube that runs the full width of the flail mower.

Focus on the sturdy piston that controls the hydraulic shift of this flail mower.

Focus on the additional reinforcement sliding device at the back of the 3-point hitch.

Hammers (hammer flails): No. 16

Hammers (hammer flails) mounted on extremely sturdy supports welded to the rotor.

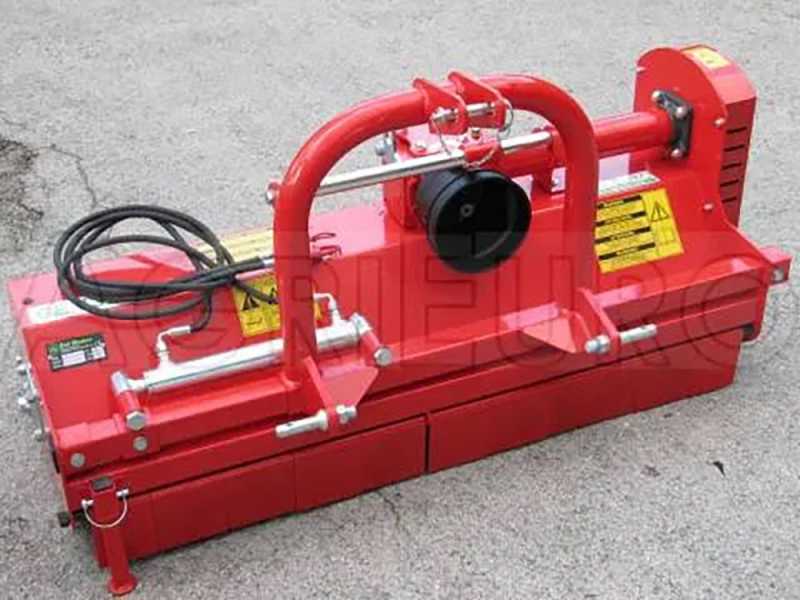

Flail mower features

The rear support roller is mounted on bearing supports and equipped with a scraper.

It is height adjustable.

Equipped with sturdy front flaps made of thick steel.

Side belt protective cover, equipped with several ventilation openings (for regular cooling)

2-Belt side drive.

Body thickness: 5 mm.

Easy tensioning system for the side drive belts by means of a special screw: simply tighten the screw a few turns to tension the belts.

The flail mower is equipped with a sturdy gearbox with gears in oil bath.

Also equipped with an additional rear PTO with reverse rotation.

*useful for those very old tractors equipped with a left PTO (which rotates in reverse).

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO

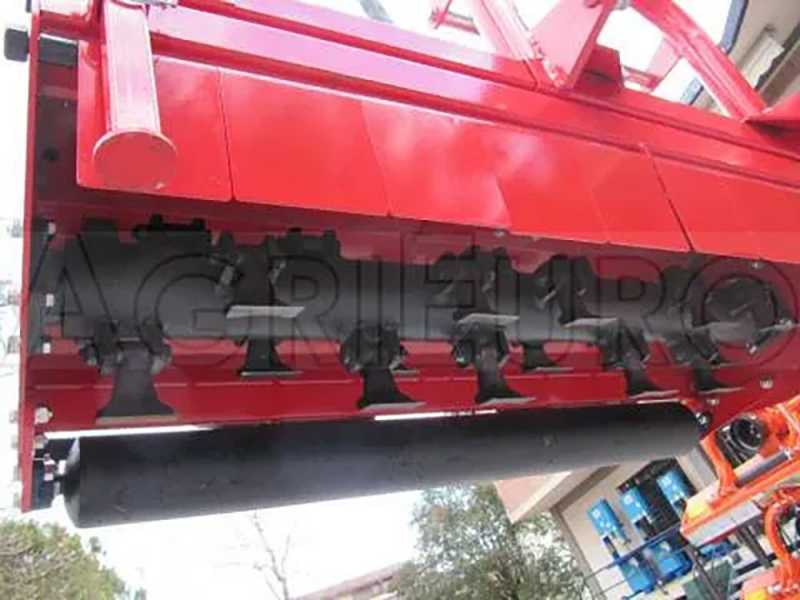

Cutting tools - hammer flails

No. of hammer flails fitted on standard equipment: 16

The hammers (hammer flails) are mounted on extremely sturdy supports welded to the rotor.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Free items & Standard equipment

Free items included

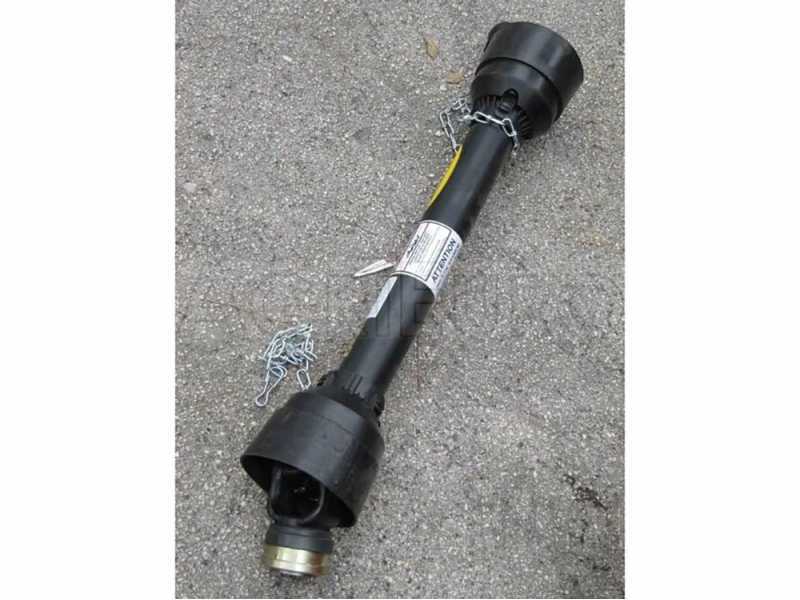

Standard PTO for connecting the machine to the tractor included with the tractor-mounted flail mower.
