Description

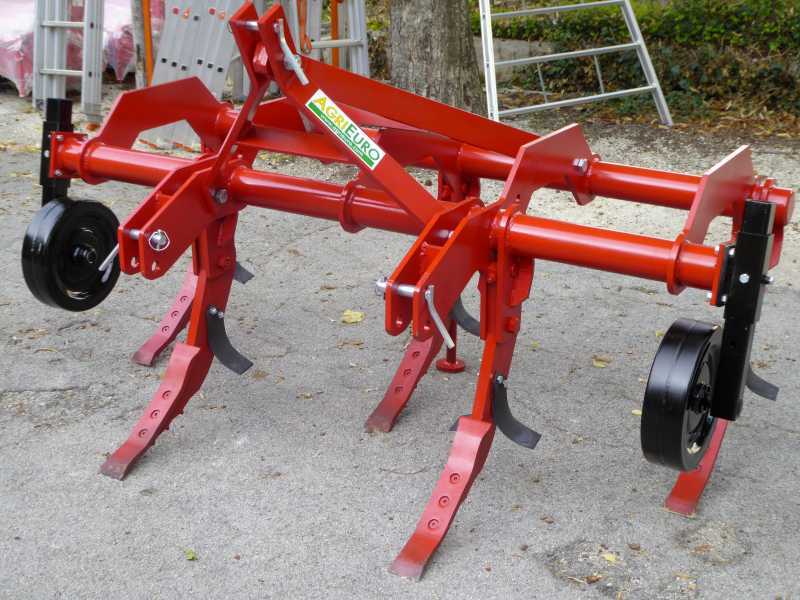

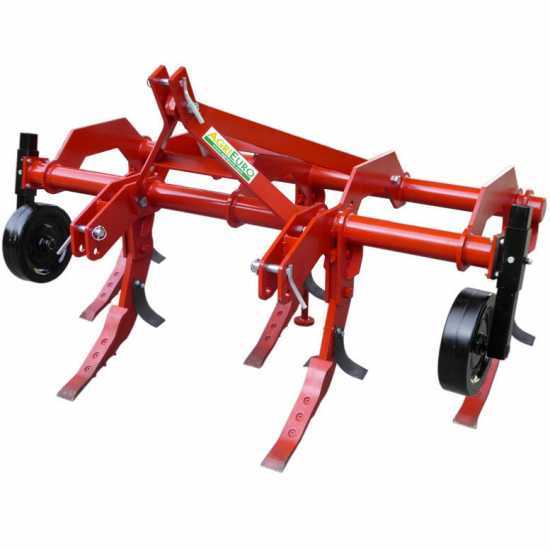

AgriEuro Tractor-mounted Subsoiler

The AgriEuro 200 tractor-mounted 5-tine subsoiler is a sturdy machine that, once connected to the tractor by the 3-point hitch, allows subsoiling (or scarifying) the soil.

Subsoiling consists of breaking up the compact, more or less deep layers of soil. This process is commonly alternated with tilling, which does not turn the soil, but breaks up clods.

This specific soil preparation process:

Considerably saves time time, halving the time needed to till the soil with a tiller.
Preserves the content of organic substance and micro-organisms in the soil.
Increases useful space for roots.
Increases drainage capacity.
Improves permeability and aeration.
Unlike ploughing, it does not leave a plough plan.

TECHNICAL DATA:

Total width: 200 cm
Tines thickness: 20 mm
Tines width: 70 mm
Tines length: 440 mm
Ploughs thickness: 7 mm
Ploughs width: 70 mm
Working depth: 30-50 cm
Ground clearance: 74 cm
Weight: 480 Kg

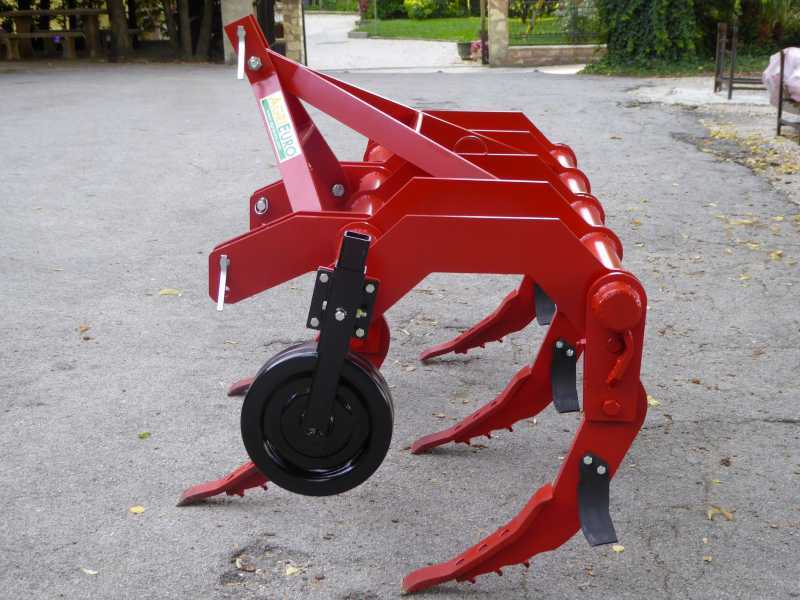

AgriEuro 200 Heavy Series Tractor-mounted Subsoiler - 5 tines - Wheels

Subsoiling

The force required for a subsoiler is generally less than that required for a plough. This allows almost twice the area to be worked in the same amount of time compared with a rotary tiller.

This agricultural subsoiler (also called Ripper) features a working depth of up to 30-50 cm depending on the power of the tractor. The machine is connected to the tractor via the 3-point hitch and operated via the hydraulic lift system.

The subsoiler is particularly effective with compact, dry soil, allowing it to be broken up effectively. As a result of its action, the soil will be loosened on the surface and marked by a series of small furrows.

The tillage from the bottom up creates a certain amount of macroporosity and soil fragmentation, thus causing little or no change in the profile of the layers. In less compact soils, the operation is in any case effective in breaking up plough plans and improving water drainage.

This multi-tine subsoiler consists of a sturdy support frame and 5 tines, shaped and angled forward to facilitate effective soil penetration due to the tractor fast forward motion.

Main Features

This subsoiler is equipped with sturdy tines featuring a safety device with bolt. They are mounted on a double bar tubular frame.

The tine subsoiler will come with a wide range of accessories:

3-Point hitch
Safety bolt on each tine that protects the subsoiler against damage in case of striking a buried rock or tree root. The bolt is designed to break on impact, preventing further damage.
Reversible and replaceable share
Pairs of adjustable iron gauge wheels
Pairs of winged-soil lifting attachments which allow a better and more effective soil tillage.

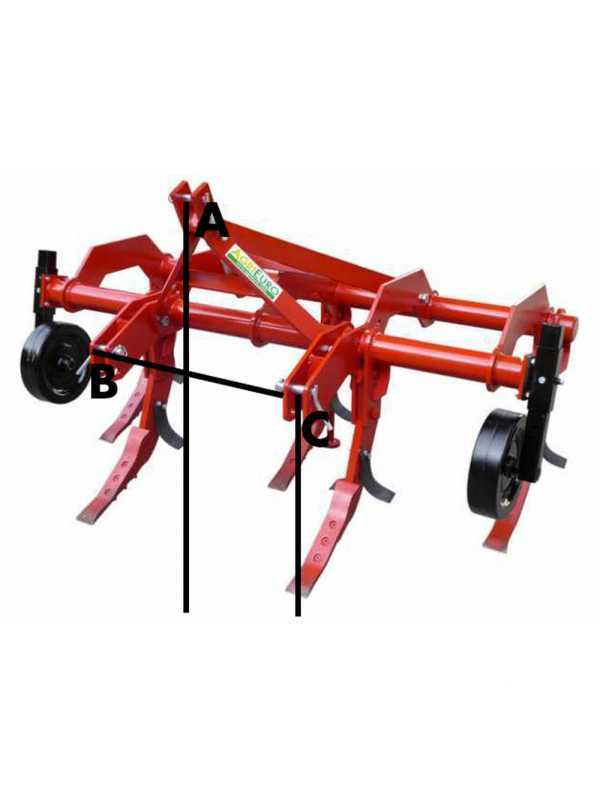

Pins dimensions:
