20T tractor log splitter - Horizontal

Questions & Answers (18)
ID: 0371

EAN: 8050246354162

MPN: 0371

9,1/10
After-sales assistance & Spare parts
20T tractor log splitter - Horizontal
+300 sold
Technical data
Max. trunk diameter
70 cm
Piston stroke
66 cm
Max. pressure
250 bar
Retractable piston for transport
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
20 t
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model
Profi 20 T
Type
Horizontal
Double speed
No
Operating mode
Tractor-driven PTO
Nominal splitting force
20 t
Piston stroke
66 cm
Adjustable piston stroke (for short logs)
No
Worktop log cutting
No
Ground splitting system
No
Manufacturing country
Italy
Motor data
Manufacturing country
Italy
Pump data
Pump type
Hydraulic
Flow rate
25 L/min
Max. pressure
250 bar
Oil tank
Yes
Hydraulic cylinder outer diameter
105 mm
Piston diameter
50 mm
Manufacturing country
Italy
Cutting data
Max. trunk length
68 cm
Max. trunk diameter
70 cm
Equipment
Frame
Standard
Pump
Standard
Vertical log splitter safety lever
No
Retaining side supports
Yes
Trunk lifting system
No
Retractable piston for transport
Yes
Tractor three-point hitch
Yes
Replaceable wedge guides
Yes
Cartridge oil filter
No
Free gifts/extra features
Splitting wedge
No
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
177x125x90 cm
Net weight
300 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
138x128x90 cm
Weight including packaging
310 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 19/08/2025 - 21/08/2025
€ 1.949,80
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

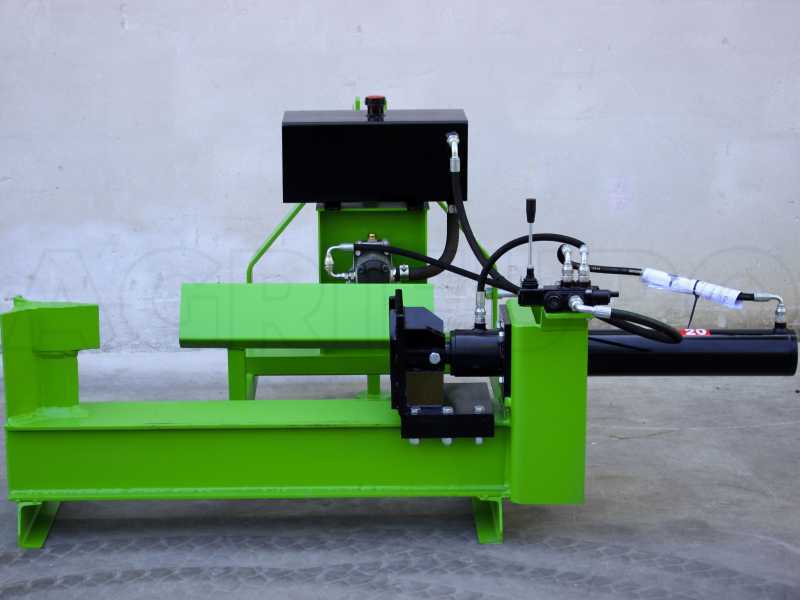

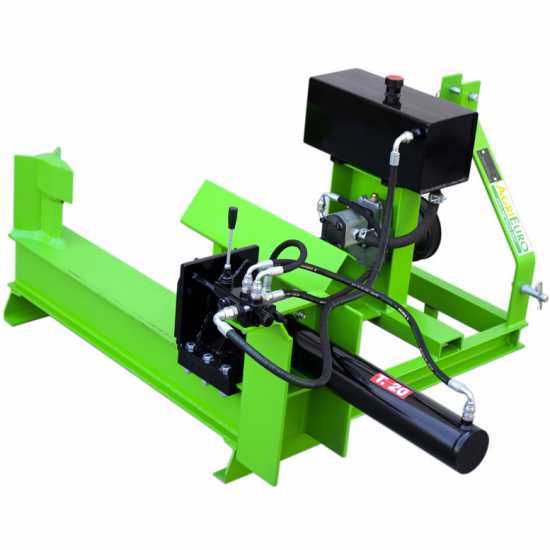

Profi 3-point linkage 20 tons horizontal log splitter

This log splitter is a SEMI PROFESSIONAL machine in terms of power, performance, sturdiness and weight. Please read the data below.

HORIZONTAL - PROFI 20 T log splitter

Designed for all those looking for a very powerful but user-friendly machine.

HIGHLY-POWERFUL, thanks to its 20 tons (making it one of the most powerful on the market)

HORIZONTAL STRUCTURE: it allows splitting even large-sized logs without having to lift them up (you can place them on the machine without any effort, given the low height of the support leg)

LINEAR DESIGN: unbeatable in terms of reliability and durability;

Product 100% Made in Italy.

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

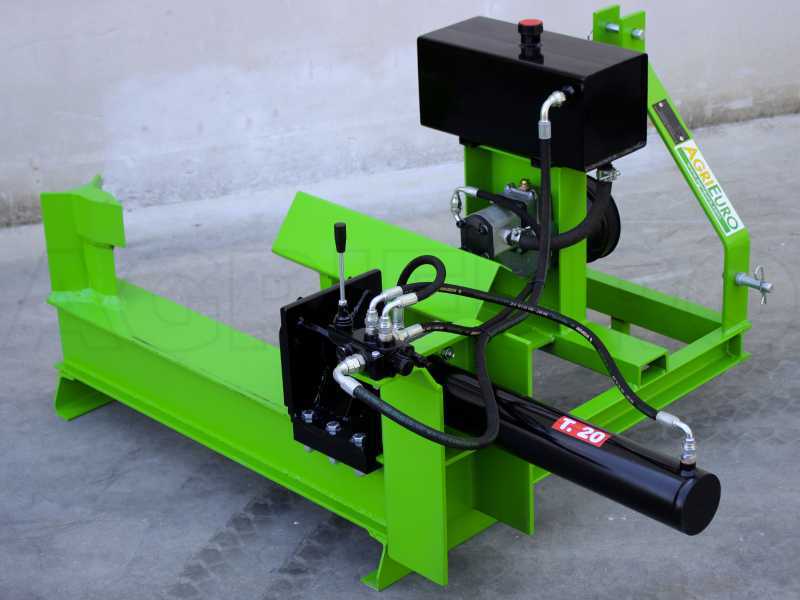

Main features

LARGE-SIZED PISTON: 105 mm outer piston diameter (90 mm bore). This is another feature that proves the great sturdiness and high splitting power of this log splitter (20 tons).

Sturdy sliding push plate made of highly-thick steel, mounted on sturdy steel guides.

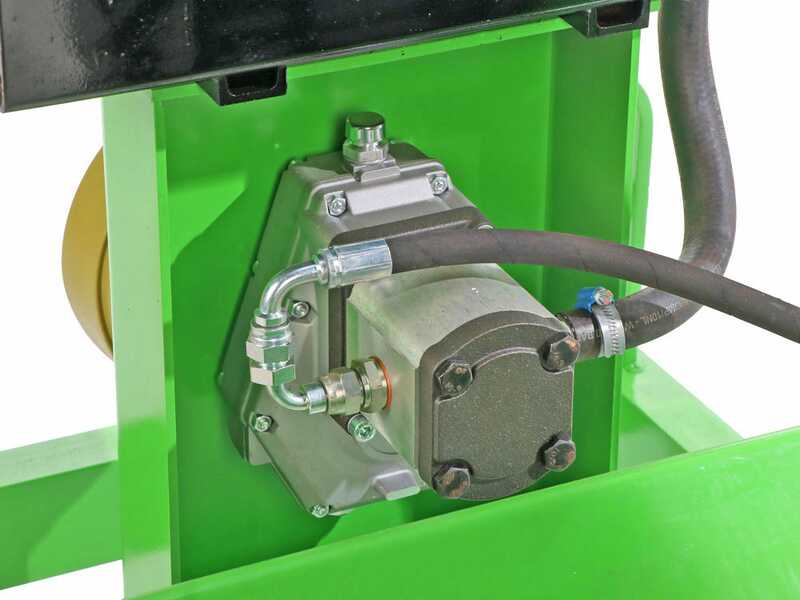

LARGE HYDRAULIC PUMP:

ADVANTAGES:
- It enables the machine to reach its high splitting power (20 T)
- It gives the piston high speed

Other features

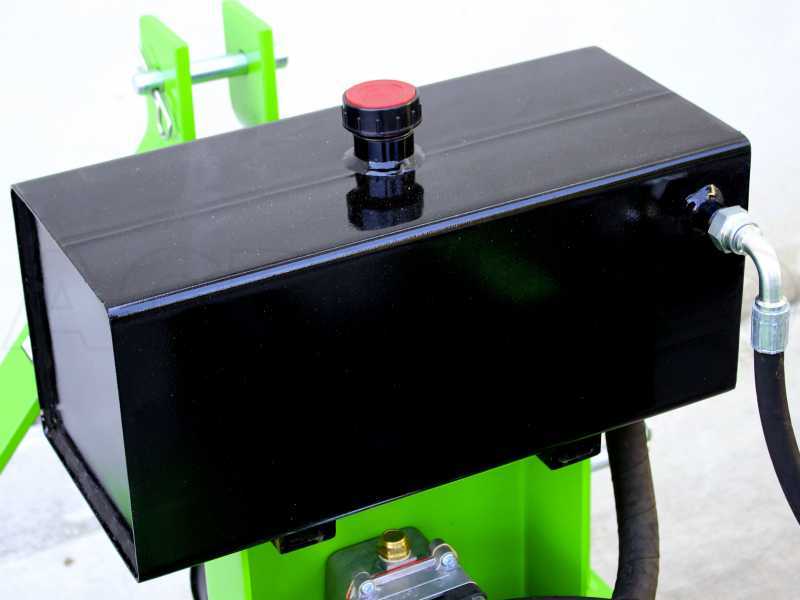

Large hydraulic oil tank above the pump.

DOUBLE-BLADE WEDGE: the upper one more protruding, the lower one more rearward. It allows you to split even the hardest, most twisted and gnarled logs, thanks to a first penetration of the smallest and more protruding upper blade;

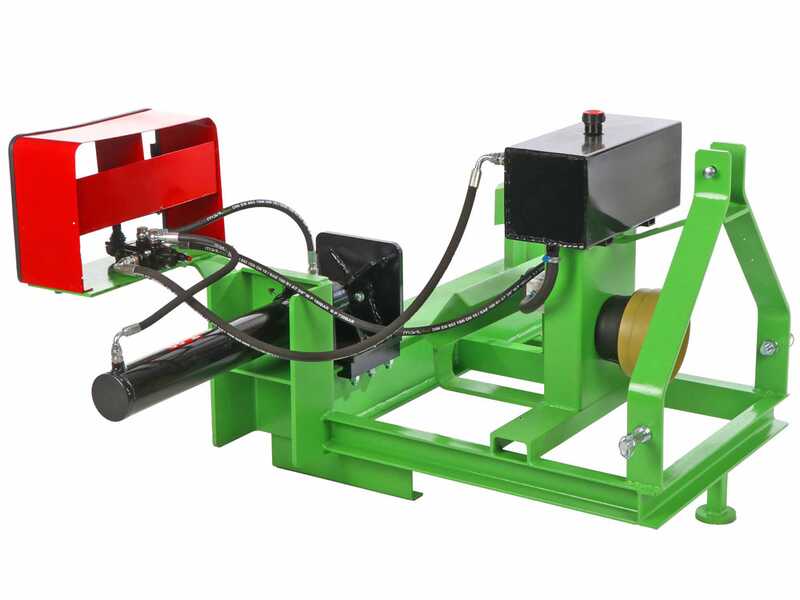

STURDY FRAME: entirely made of heavy-duty steel. Large support leg;

Equipped with three-point linkage and PTO unit for universal joint connection to the tractor (universal joint not included);

Single-lever hydraulic distributor for piston operation;

Equipped with side support for logs with extremely large diameters;

Real splitting length: 66 cm

Dimensions:
Width: 177 cm
Depth: 125 cm
Height: 90 cm

WEIGHT: 300 kg

Possibility to retract the piston inside the machine, unscrewing the 4 proper bolts to reduce its size during storage.

The log splitter is shipped already assembled and ready for use. You'll only have to screw the 4 piston bolts.
