Description

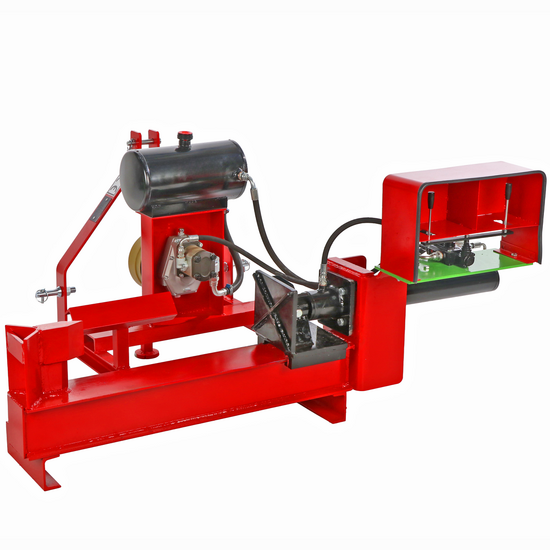

Premium Line 16T tractor-mounted log splitter

The Premium Line 16T tractor-mounted log splitter is a horizontal hydraulic machine designed to split large logs using the tractor's power take-off. It is typically used in agricultural and forestry contexts for preparing wood-fired directly on the farm or in wooded areas.

It is operated by a hydraulic system connected to the tractor, which powers the thrust cylinder responsible for the splitting phase.

The design is functional, with a low support surface that facilitates the positioning of the logs and a retractable piston for easy transport.

The main technical and construction features are as follows:

Nominal splitting force of 16 tonnes: hydraulic force suitable for splitting hard and knotty wood, with controlled piston advance;
Maximum log diameter of 40 cm: allows the processing of large sections of wood, typical of agricultural and forestry felling;
Piston stroke of 66 cm: allows complete splitting cycles even on long logs without intermediate repositioning;
Maximum operating pressure of 250 bar: consistent with the power developed by the hydraulic cylinder;
Tractor-mounted with 3-point hitch: stable connection to the rear lift for transport and use;
Retractable piston for transport: reduces longitudinal dimensions during transport;

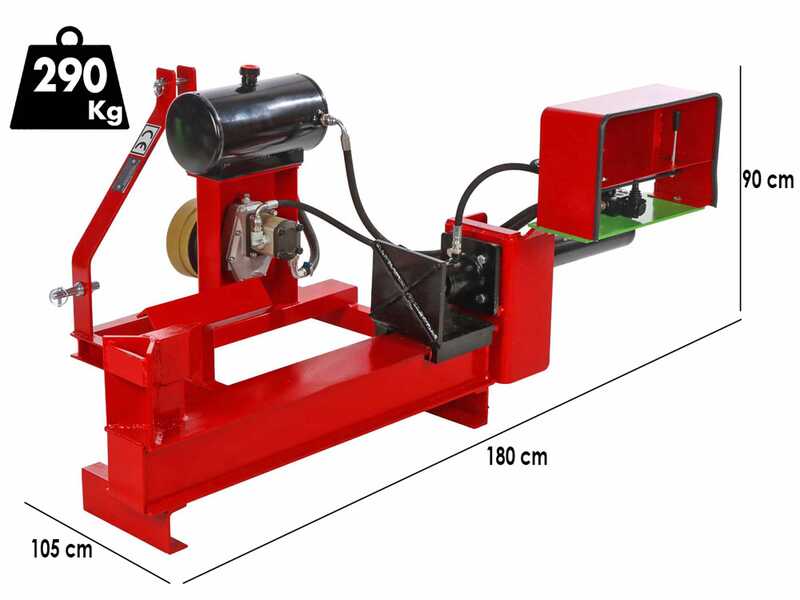

16T tractor-mounted log splitter - Horizontal

General features

The double-blade wedge is a sturdy element designed to ensure efficient splitting. The upper blade, which protrudes further, initially penetrates the wood, while the lower blade follows, allowing you to work easily even on particularly hard, twisted or knotty logs.

The model includes a three-point attachment and a power take-off unit for coupling to the tractor via a cardan joint.

The two levers, with metal covers and separated from each other, allow direct control of the hydraulic piston, with a symmetrical arrangement that facilitates operation while maintaining a stable and safe operating position, in accordance with CE standards.

The supporting frame is very sturdy and has guides that ensure smooth movement of the piston. The structure is designed to guarantee stability and durability even under heavy loads. In addition, the machine is equipped with a sturdy support foot for greater stability during operation.

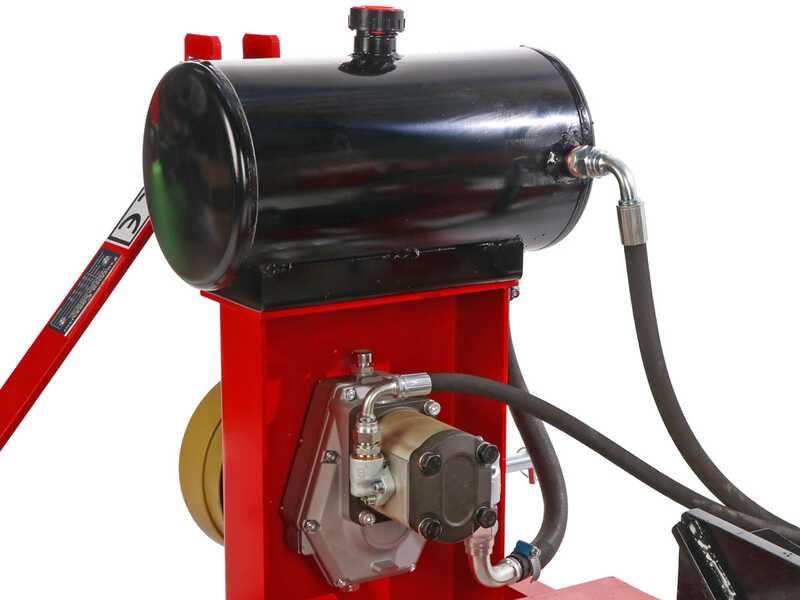

The large hydraulic oil tank is positioned above the pump, optimising the efficiency of the hydraulic system. The lever distributor allows precise control of the piston movement, ensuring fast and safe operation. (Detail of the cap)

The effective splitting length is 66 cm, allowing you to work with large logs. In addition, the piston can be reduced in size during storage by unscrewing four special bolts, thus facilitating storage.

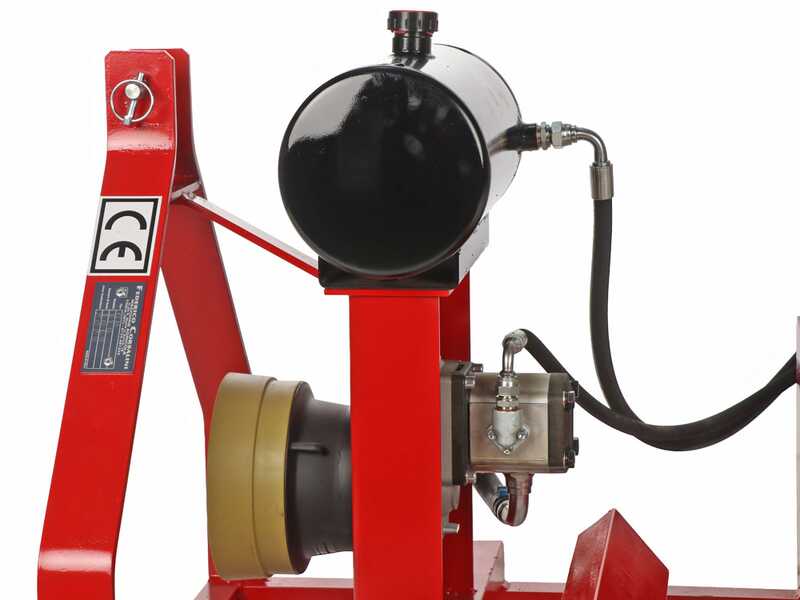

Piston and hydraulic pump

The large piston, with a diameter of 90 mm (75 mm bore), is an essential component that contributes to the overall robustness of the machine.

The thrust platform is made of thick steel and mounted on sturdy steel guides. This ensures strength and stability during operation, making the device reliable even in the most demanding working conditions. (Detail of the operating head)

The large hydraulic pump offers several advantages:

It allows the machine to express its full power, up to 16 tonnes, ensuring high performance even on large logs.
In addition, thanks to this pump, the piston can operate at high speed, improving efficiency and reducing working times.
