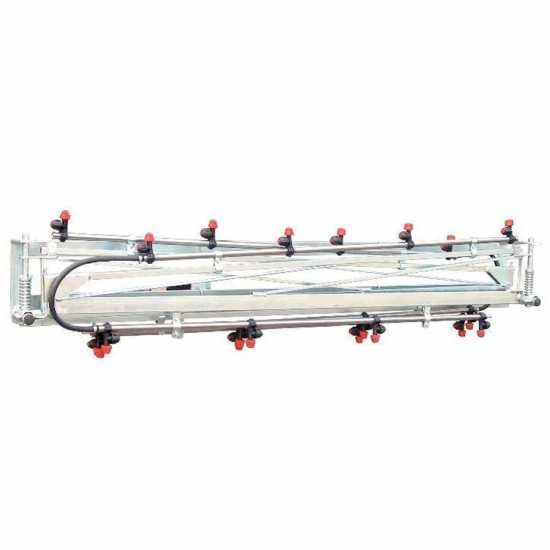

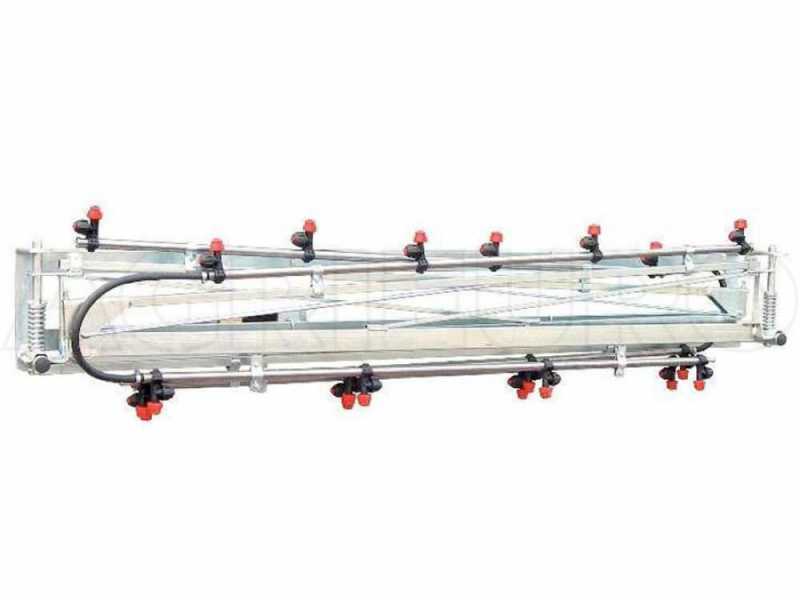

Consisting of 5 sections:
- 1 Central supporting frame with 4 nozzles (with membrane anti dripping device)
- 2 Side middle arms with 4 nozzles each (with membrane anti dripping device)
- 2 Outer side arms with 4 nozzles each
- Arms locking by means of a spring-loaded clamping
GENERAL FEATURES:
- No. 20 heavy-duty nozzles with membrane anti dripping device
- Hot galvanised heavy-duty tubular steel frame
- STAINLESS STEEL tubes
- Weight 30 Kg
Characteristics and components of jets:
- Nozzle holder with bayonet quick coupling
- Membrane anti-drip filter
- Standard fan nozzle type SF 110° in Delrin with high chemical stability, for herbicide, fungicide and insecticide treatments
Technical characteristics:
- Spray angle: 110°
- Working pressure: 1/5/7 bar
- Max pressure: 15 bar
FREE ITEMS INCLUDED:
-Pair of brackets for the assembly to the sprayer frame
(in some cases it could be necessary to drill 2 additional holes on the sprayer frame for the assembly)
- 6 m high pressure hose Ø 10x17 for the boom linkage to the sprayer pressure adjustment unit
Standard example of a barrel with a mounted boom (12 m model in the pic)
