Zanon Karbonium EVO AL 300/K electric battery-powered olive harvester - 210/340 - Telescopic pole

Questions & Answers (2)
ID: K605665

EAN: 9999237546805

MPN: 1.040.033

8,0/10
After-sales assistance & Spare parts
Zanon Karbonium EVO AL 300/K electric battery-powered olive harvester - 210/340 - Telescopic pole
+200 sold
FREE
Awelco Automatic20 Battery ChargerAwelco Automatic20 Battery Charger
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
AgriEuro BandanaAgriEuro Bandana
Head material
Aluminium
Motion
Double side
Speed (bpm)
1200 bpm
Max. prongs opening
50 cm
Pole material
Aluminium
Telescopic pole
Max. length
340 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
500 W
Motor speed levels
1
Motor type
Battery-powered
Battery type
Car type
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
Karbonium evo 300/K
Use:
For olive harvester only
Power supply:
Lead-acid battery 12 V
Head material:
Aluminium
Type:
12 V battery-powered
Operating mode:
12 V battery-powered
Motor position:
Up - on the head
Motion:
Double side
Speed (bpm):
1200 bpm
No. of prongs:
4+4
Prongs length:
32 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
50 cm
Min. length:
210 cm
Max. length:
340 cm
Pole material:
Aluminium
Max. power even with low battery:
Yes
Energy Saving System:
Yes
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor position:
On the head
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type
Motor speed levels:
1
Nominal power (W):
500 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Recommended battery:
80 Ah
Motor power:
33 V
Manufacturing country:
Italy
Equipment
Extension pole :
210-340 cm
Telescopic pole:
Extension power cable:
15 m
Free gifts/extra features
Ear muffs:
yes
Prongs/rods:
2
Prongs/rods:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
340x50x16 cm
Net weight:
2.4 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
218x37x22 cm
Gross weight (packaging included) :
6.4 Kg
Assembly time:
5 minutes
Prompt Delivery
20 items in stock
Free Shipping
Estimated delivery: 21/11/2024 - 25/11/2024
€ 1.076,34
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

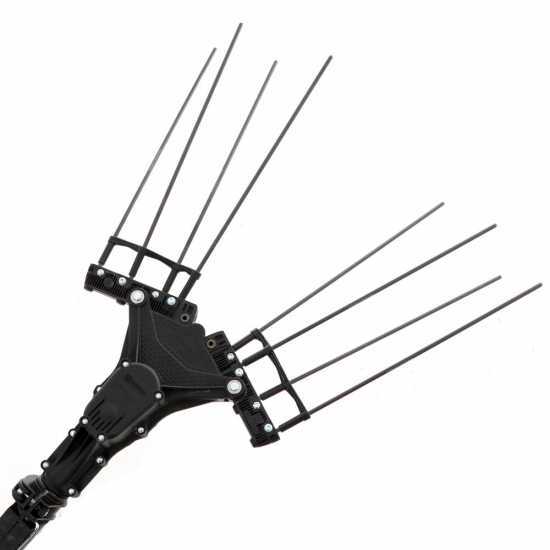

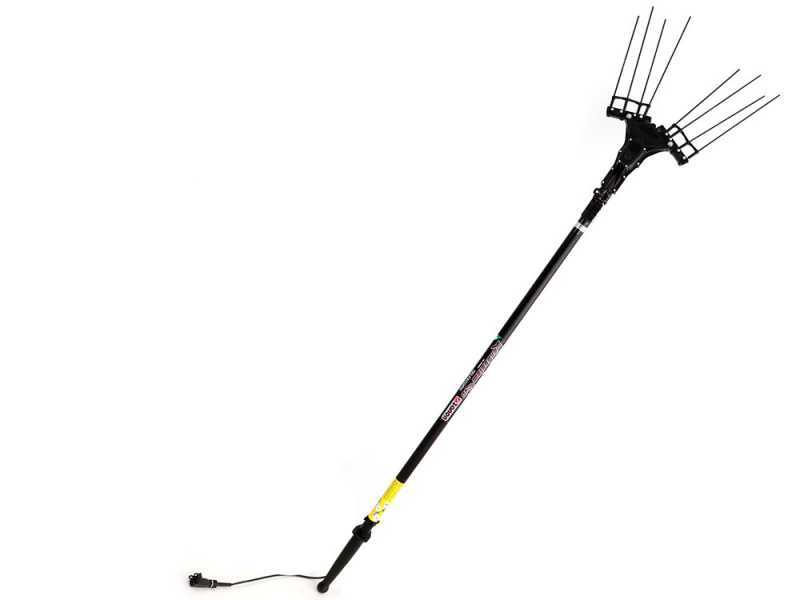

Zanon Karbonium EVO AL 300/K Battery-operated olive Harvester

The Zanon Karbonium EVO AL 300/K olive harvester is a high performance olive harvester with strong power that guarantees a high collection capability along with the telescopic pole.

The Zanon Karbonium EVO AL 300/K olive harvester is apt for all harvest requirements, thus it is very versatile and effective in each situation.

It is fitted with 4+4 32 cm long carbon fibre rods which are easily replaceable.

Designed on the principle of high frequency oscillations it simulates the flight of a bat taking all its advantages, like the unbeatable lightweight, speed and silence.

The engine in the head of the machine is isolated so as to guarantee a long lifetime. It is powered by 12V battery.

"Karbonium Evo" is equipped with a transmission in closed box with lubricated gears made in special steel mounted on bearings and a sturdy frame in ergal that guarantees the perfect transmission and long lifetime.

This version is very easy and comfortable to use with just 2.4 kg leightweight thanks to the aluminium telescopic pole.

The total length of the machins is 210-340 cm.

The Zanon Karbonium EVO AL 300/K olive harvester is shipped with the 15 m long power cable.

IT CAN BE USED EVEN TO COLLECT HAZELNUTS.

FOR FREE:

Telwin Touring 18 battery charger. The battery charger has a perfect size for the charge of 12V, 24V or 48V batteries.

80Ah battery

It is able to provide more than 8 hours of running time. It allows you to tackle your entire work day without problems.

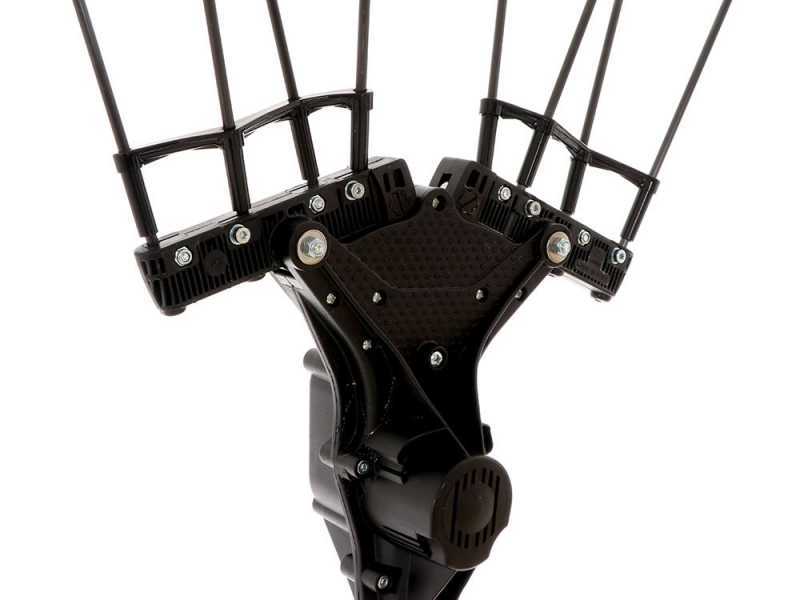

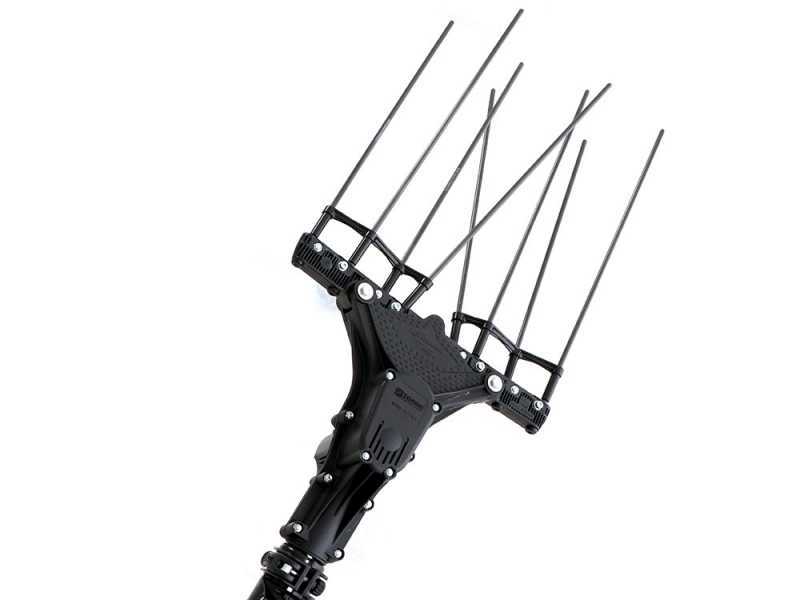

Head and prong motion

The ZANON Olive Harvester is equipped with 4+4 prongs made of carbon, easy to replace that are placed on the machine head.

The two supports consist of 8 teeth made of carbon fibers that are easy to replace, while both the control unit and the trasmission are hermetically sealed to protect the machine from any possible external agents. This important feature ensures continuous work to the machine with low maintenance requirements. Focus on the long prongs of over 32 cm length, which allows to deeply penetrate in the crown.

Great head tilt for the olives easy harvesting.

Tecnical features of the head:

  • Working width: min 240 mm – max 570 mm.
  • Output: 80/120 kg/hour
  • Hits per minute: 1200

Energy-saving electric motor

The Karbonium evo is equipped with a transmission in closed box with lubricated gears made of special steel mounted on bearings and a sturdy frame in ergal that guarantees perfect transmission and durability over time.

A standard power supply has to be connected to a 12V cc battery that powers the engine.

In order to ease the power supply there is a 15 m long cable fitted with user-friendly pincers and connectors.

The motor works with 33V direct current.

The necessary current is managed by a control unit that works also as transformer (12V cc input - 33Vcc output).

Equipped with electronic control unit complete with thermal and absorption protections.

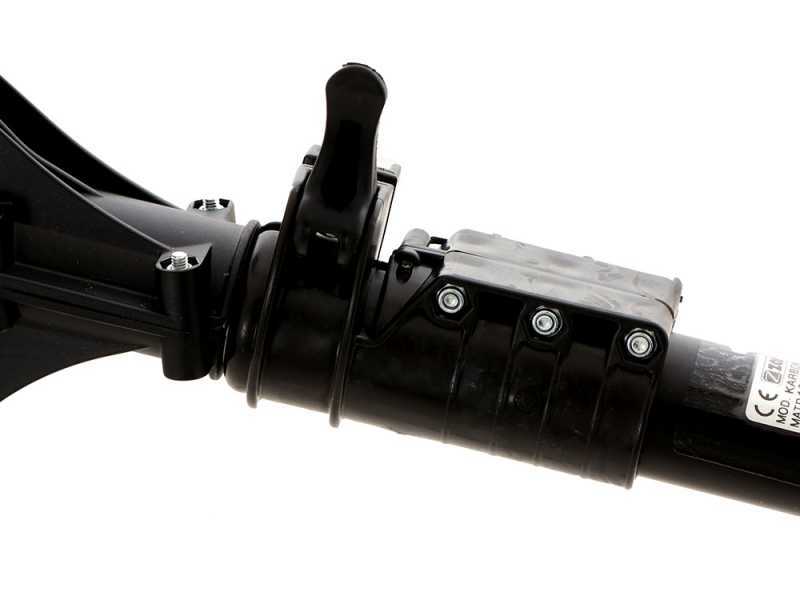

Telescopic pole

The olive harvester pole is adjustable in each position from 210 cm up to 340 cm length (referring to the machine total length).

Indeed, thanks to the quick fit, it is possible to rapidly lengthen the olive harvester desired length.

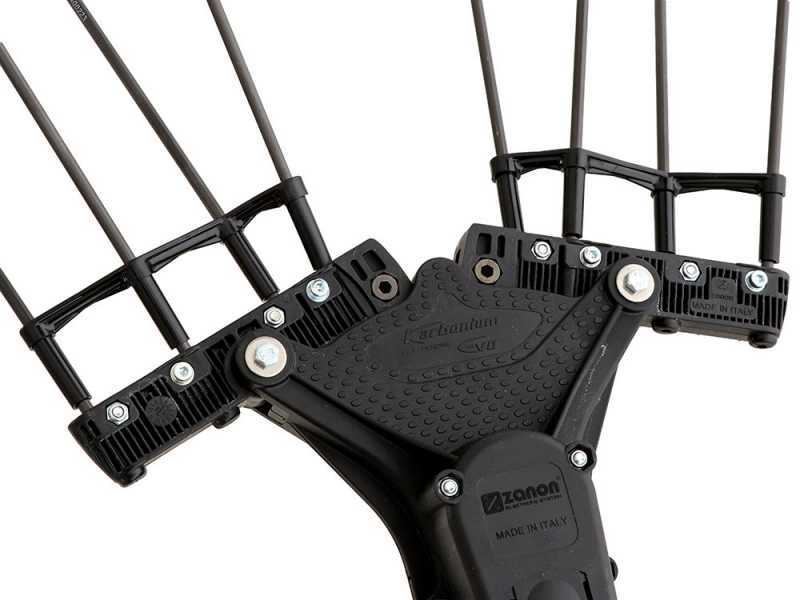

Additional features

Focus on the engine start switch.

Focus on the professional power connect

Here the main strong points of this product:

  • Parts of the head: 4+4 flexible rods made of carbon fibre for an easy and fast replacement
  • Electric engine: 33V cc with high performance and low electric consumptions
  • Power: electric
  • Ergonomic hand grip with switch, cable and non-crease protection
  • Output: 80/120 kg/hour

Free items & Standard equipment

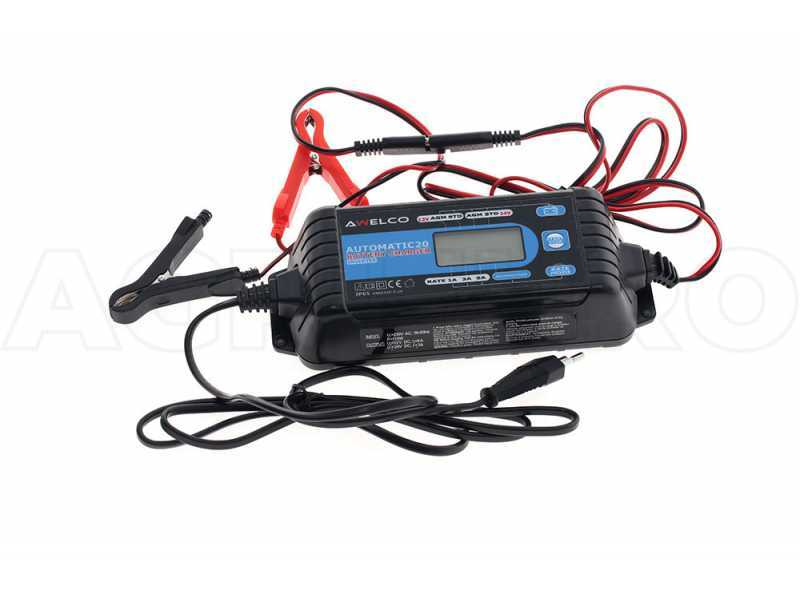

COMPLIMENTARY: Awelco Automatic20 Battery Charger

The Deca SM Automatic20 battery charger maintainer is an automatic charger with a charge maintenance program (Pulse charging). This type of charger is compact, efficient and easy to use. Suitable for motorcycles, cars, vans, campers and small displacement tractors.

Characterized by a special automatic charging cycle that allows you to never damage the battery, it is also possible to leave it connected to the battery because it has the MAINTENANCE function (maintenance function "Pulse Maintenance"). This way, the battery is always ready to use.

It is highly safe: it does not damage the electronics of the vehicle, it does not create sparks, it is equipped with protection against polarity reversals and short-circuits.

This product is innovative, versatile and low weight (only 0.60 kg).

This small car battery charger is suitable for outdoor use thanks to the IP65 protection level and its retractable hook.

5 ways of use:

  • Charging
  • Impulses
  • Maintenance
  • Sulphate batteries reconditioning
  • Operation testing

Technical features:

  • Power supply: 230V single-phase
  • Power: 65W
  • Nominal battery voltage 12V / 24V
  • Average charging current: 3A - 6A
  • Charging programs: 4 + TEST
  • Battery type: Pb, Gel, Pb/Ca, Agm
  • Battery capacity: 2 - 120 Ah min / max
  • Battery capacity in charge maintenance: 120Ah max
  • Protection rating: IP65
  • Charging process LED display, maintenance and testing
  • Equipped with cable pliers and cable with eyelets
  • With one 10-stage multi-stage charging process

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Standard equipment

The olive harvester is shipped in its original packaging

Connection cable

Instructions manual

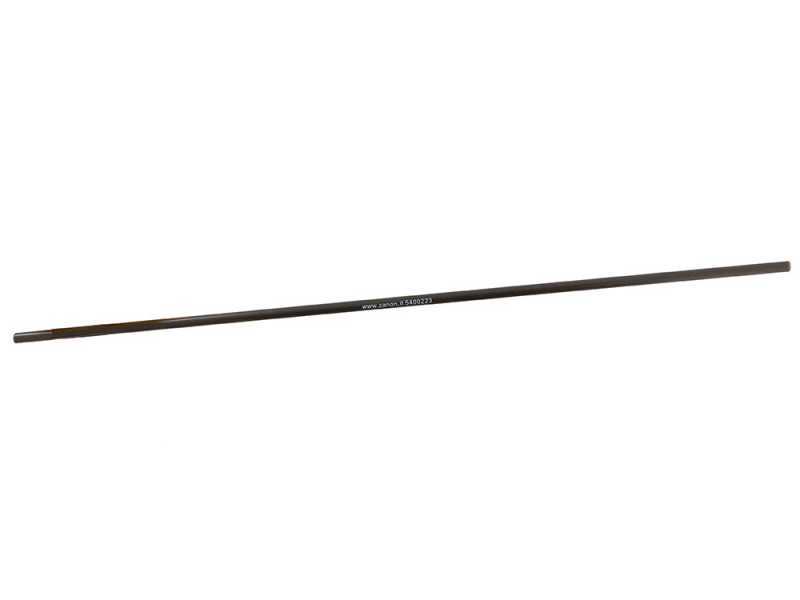

2 spare prongs
