Name: Zanon Karbonium EVO AL 200/K electric battery-powered olive harvester - 170/250 - Telescopic pole
Brand: Zanon
Price: 1010.41 EUR
Availability: InStock
Rating: 5 (4 reviews)

Description

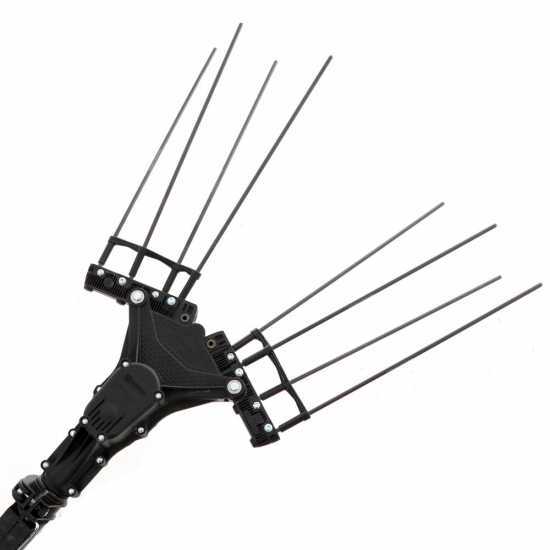

Zanon Karbonium EVO AL 200/K Battery-operated Olive Harvester

The Zanon Karbonium EVO AL 200/K olive harvester is a high performance olive harvester with strong power that guarantees a high collection capability along with the telescopic pole.

The Zanon Karbonium EVO AL 200/K olive harvester is apt for all harvest requirements, thus it is very versatile and effective in each situation.

It is fitted with 4+4 32 cm long carbon fibre rods which are easily replaceable.

WIDE PATENTED SWINGING MOTION:

The two arms make an alternative movement with high width, with the following swinging of the 8 carbon fibre rods for a better performance.

The engine in the head of the machine is isolated so as to guarantee a long lifetime. It is powered by 12V battery with control system of the engine effort. Low electric consumption technology is combined with high performances.

This version is very easy and comfortable to use with just 2.2 kg leightweight thanks to the aluminium telescopic pole.

The total length of the machins is 170-250 cm.

The Zanon Karbonium EVO AL 200/K olive harvester is shipped with the 25 m long power cable.

IT CAN BE USED EVEN TO COLLECT HAZELNUTS.

FOR FREE:

Telwin Touring 18 battery charger. The battery charger has a perfect size for the charge of 12V, 24V or 48V batteries.

80Ah battery

It is able to provide more than 8 hours of running time. It allows you to tackle your entire work day without problems.

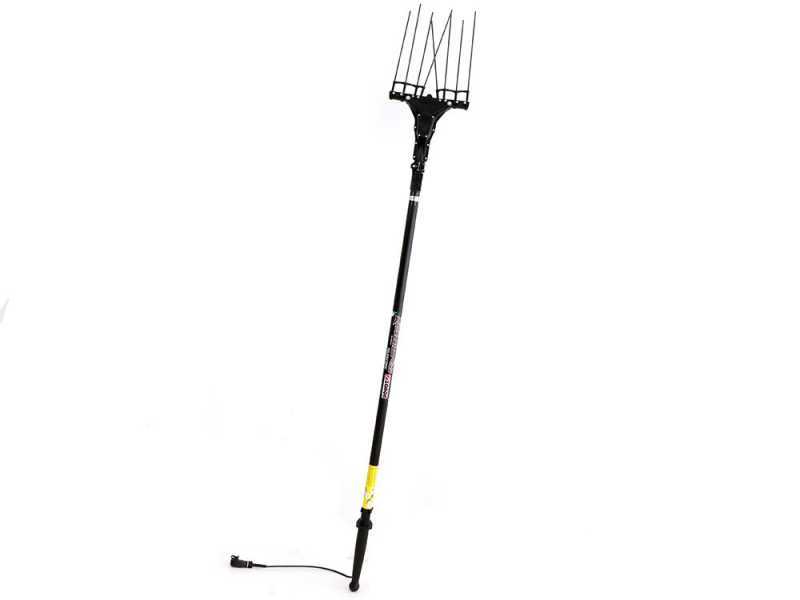

Zanon Karbonium EVO AL 200/K electric battery-powered olive harvester - 170/250 - Telescopic pole

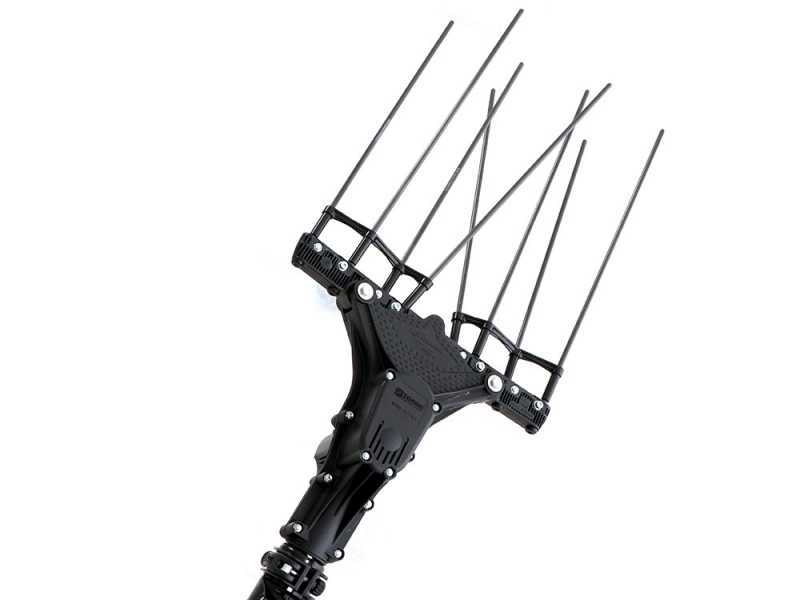

Head and prong motion

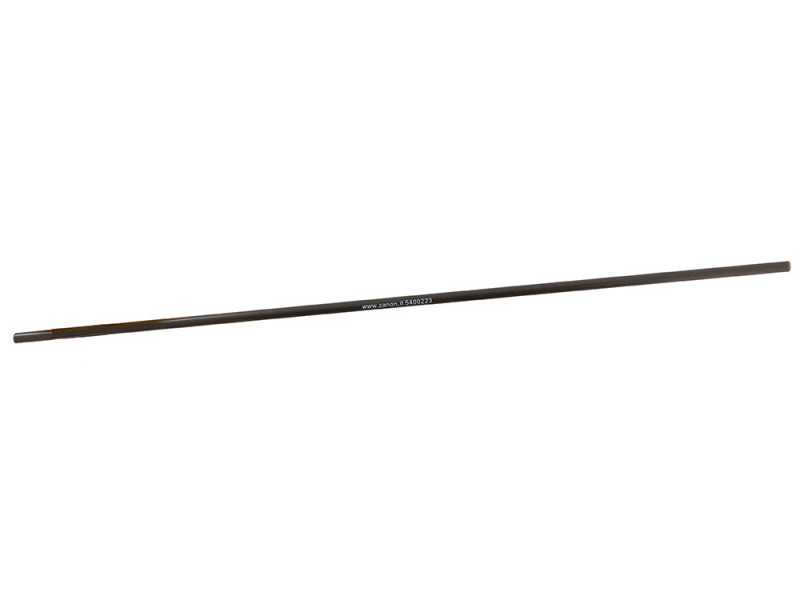

The ZANON Olive Harvester is equipped with 4+4 prongs made of carbon, easy to replace that are placed on the machine head.

The two supports consist of 8 teeth made of carbon fibers that are easy to replace, while both the control unit and the trasmission are hermetically sealed to protect the machine from any possible external agents. This important feature ensures continuous work to the machine with low maintenance requirements. Focus on the long prongs of over 32 cm length, which allows to deeply penetrate in the crown.

Great head tilt for the olives easy harvesting.

Tecnical features of the head:

Working width: min 240 mm – max 570 mm.
Optimal entrance angle to the crown: 12° – 20° – 28°
Output: 80/120 kg/hour
Hits per minute: 1200

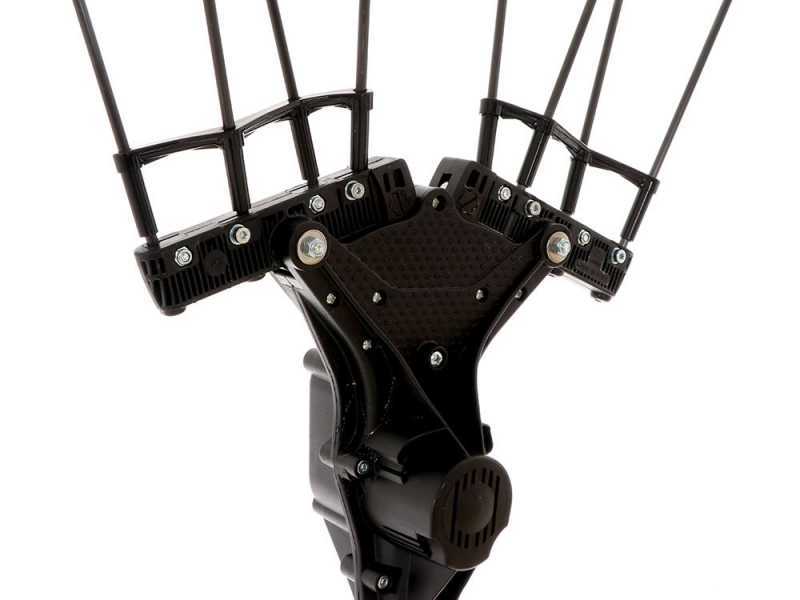

Energy-saving electric motor

The Karbonium evo is equipped with a transmission in closed box with lubricated gears made of special steel mounted on bearings and a sturdy frame in ergal that guarantees perfect transmission and durability over time.

A standard power supply has to be connected to a 12V cc battery that powers the engine.

Thanks to the electronic control with microprocessor, the olive harvester works continuously without depending on the charge of the battery and without loosing the harvesting efficacy: the highest power of the olive harvester is always available.

In order to ease the power supply there is a 15 m long cable fitted with user-friendly pincers and connectors.

The motor works with 33V direct current with cooling fan.

The necessary current is managed by a control unit that works also as transformer (12V cc input - 33Vcc output).

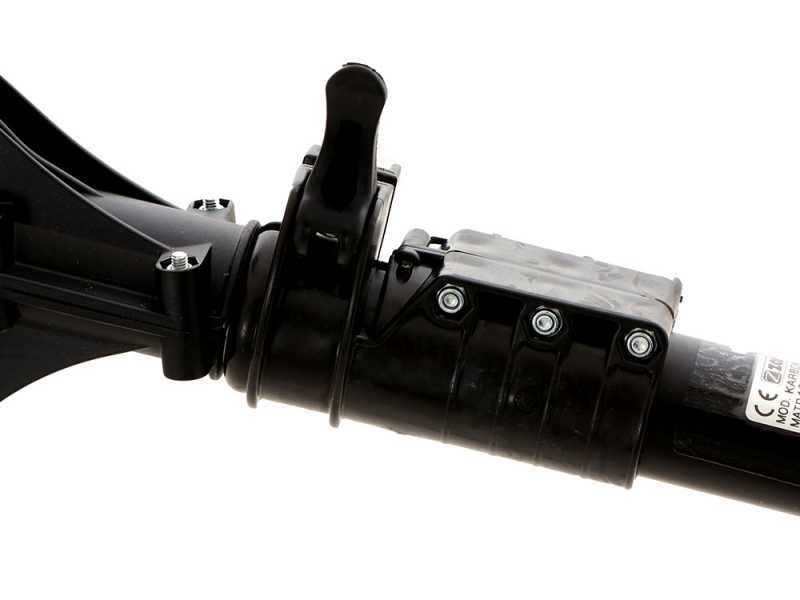

Telescopic pole

The olive harvester pole is adjustable in each position from 210 cm up to 340 cm length (referring to the machine total length).

Indeed, thanks to the quick fit, it is possible to rapidly lengthen the olive harvester desired length.

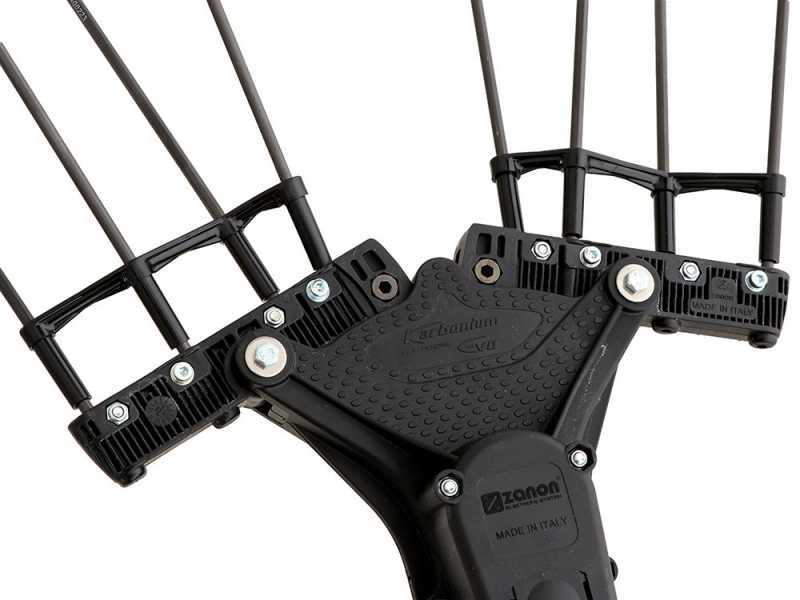

Additional features

Focus on the engine start switch.

Focus on the professional power connect

Here the main strong points of this product:

Isolation system of the inner parts of the head
Parts of the head: 4+4 flexible rods made of carbon fibre for an easy and fast replacement
Electric engine: 33V cc with high performance and low electric consumptions
Control system of the motor effort
Power: electric
Ergonomic hand grip with switch, cable and non-crease protection
Output: 80/120 kg/hour

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

AgriEuro Headscarf

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.
