Zanon Falcon AL 200/F electric battery-powered olive harvester - 170/250 - telescopic pole

Add a question
ID: K600072

EAN: 9999237546812

MPN: H10400070

8,0/10
After-sales assistance & Spare parts
Zanon Falcon AL 200/F electric battery-powered olive harvester - 170/250 - telescopic pole
FREE
80 Ah (80 Amperes) battery80 Ah (80 Amperes) battery
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
AgriEuro BandanaAgriEuro Bandana
Head material
Aluminium
Motion
Double side
Speed (bpm)
1200 bpm
Max. prongs opening
50 cm
Pole material
Aluminium
Telescopic pole
Max. length
250 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
500 W
Motor speed levels
1
Motor type
Battery-powered
Battery type
Car type
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
Falcon AL 200/F
Use:
For olive harvester only
Power supply:
Lead-acid battery 12 V
Head material:
Aluminium
Type:
12 V battery-powered
Operating mode:
12 V battery-powered
Motor position:
Up - on the head
Motion:
Double side
Speed (bpm):
1200 bpm
No. of prongs:
4+4
Prongs length:
34 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
50 cm
Min. length:
170 cm
Max. length:
250 cm
Pole material:
Aluminium
Max. power even with low battery:
Yes
Energy Saving System:
Yes
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor position:
On the head
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type
Motor speed levels:
1
Nominal power (W):
500 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Recommended battery:
80 Ah
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Extension pole :
170-250 cm
Telescopic pole:
Extension power cable:
12 m
Free gifts/extra features
Prongs/rods:
2
Prongs/rods:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
250x50x16 cm
Net weight:
2 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
218x37x22 cm
Gross weight (packaging included) :
5.8 Kg
Assembly time:
5 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 14/11/2024 - 18/11/2024
€ 812,97
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

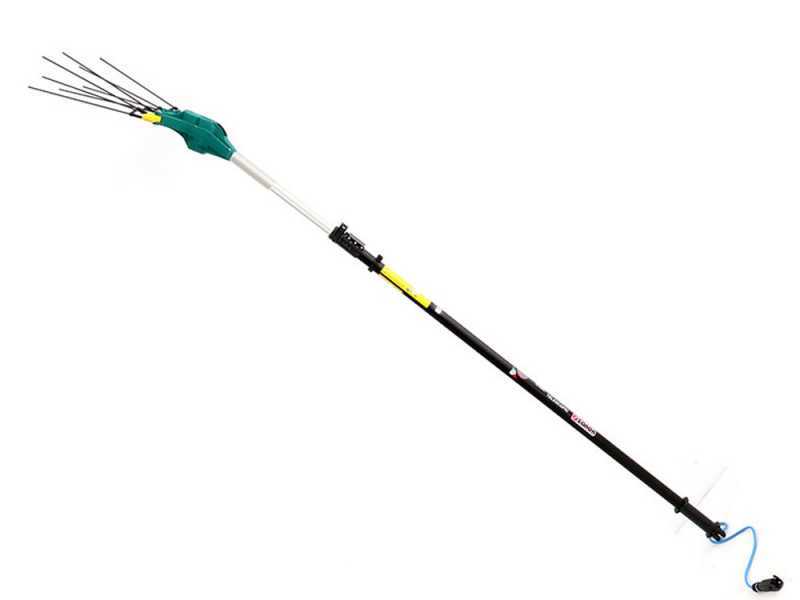

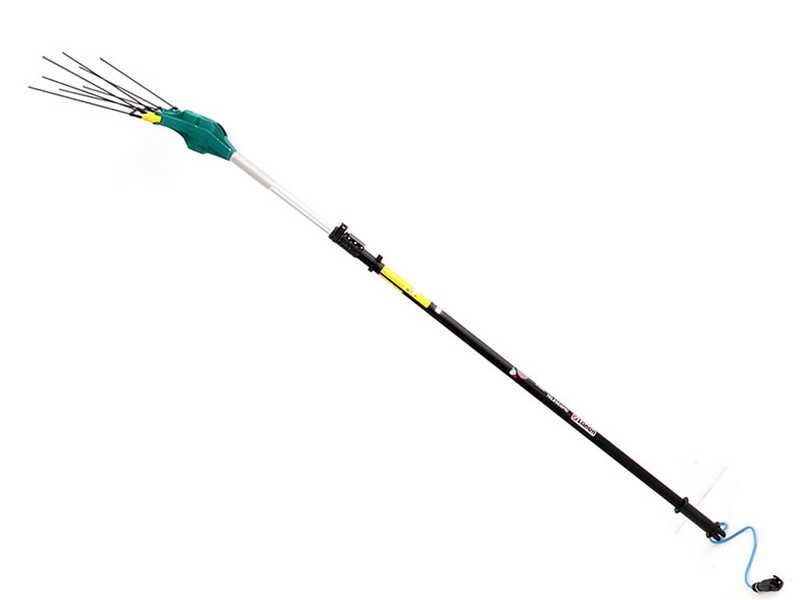

Zanon Falcon AL 200/F Battery-operated olive Harvester

The Zanon Falcon AL 200/F olive harvester is a high performing machine providing high power that, combined with the supplied telescopic pole, ensures a big harvesting capacity. The Zanon Falcon AL 200/F fits all necessities, so proving out to be a versatile and efficient olive harvester in any situation.

Falcon represents the domestic version of the Karbonium Evo olive harvester from which it takes the operating principle. The innovative harvesting concept introduced by the Karbonium Evo is the basis of the design of the new Falcon. This model can be used both in the small olive grove and also in larger areas where the harvest takes a lot of hours during the day and for a long period.

It is fitted with 4+4 34 cm long carbon fibre rods which are easily replaceable.

The engine in the head of the machine is isolated so as to guarantee a long lifetime. It is powered by 12V battery. This version is very easy and handy to use and weighs only 2.4 kg thanks to the telescopic aluminium pole.

The total length of the machins is 170-250 cm.

The Zanon Karbonium EVO AL 200/F olive harvester is shipped with the 25 m long power cable.

IT CAN BE USED EVEN TO COLLECT HAZELNUTS.

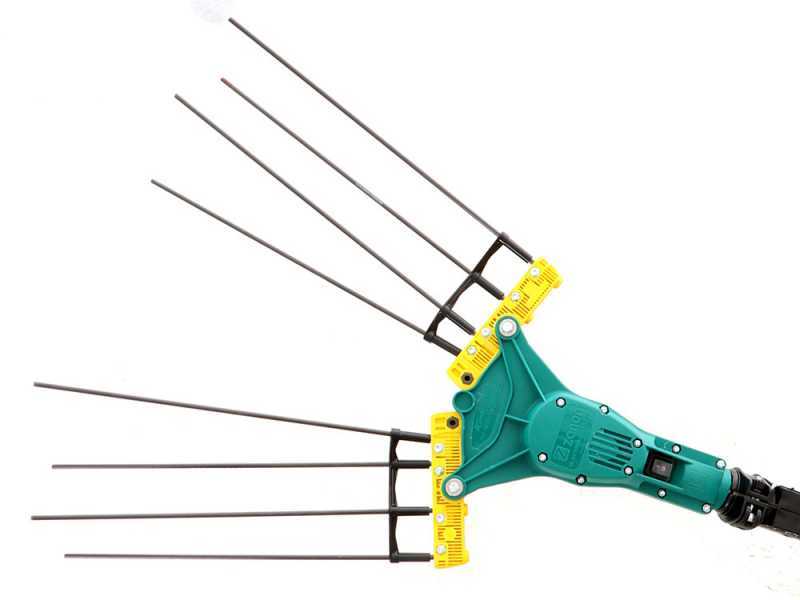

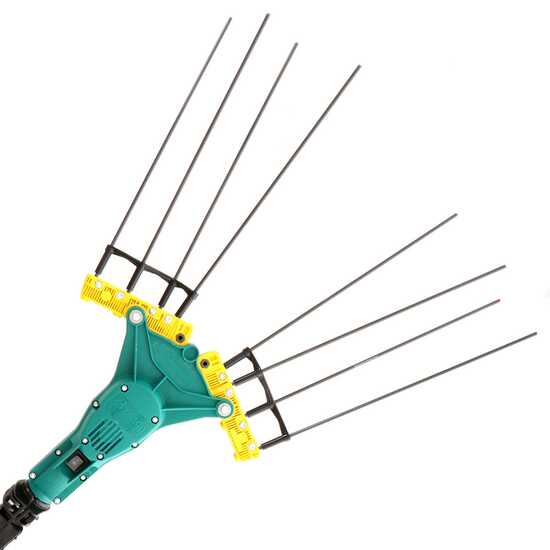

Head and prong motion

The ZANON Olive Harvester is equipped with 4+4 prongs made of carbon, easy to replace that are placed on the machine head.

The two supports consist of 8 teeth made of carbon fibers that are easy to replace, while both the control unit and the trasmission are hermetically sealed to protect the machine from any possible external agents. This important feature ensures continuous work to the machine with low maintenance requirements. Focus on the long prongs of over 34 cm length, which allows to deeply penetrate in the crown.

Tecnical features of the head:

  • Working width: min 200 mm – max 480 mm.
  • Output: 70/110 kg/hour
  • Hits per minute: 1200

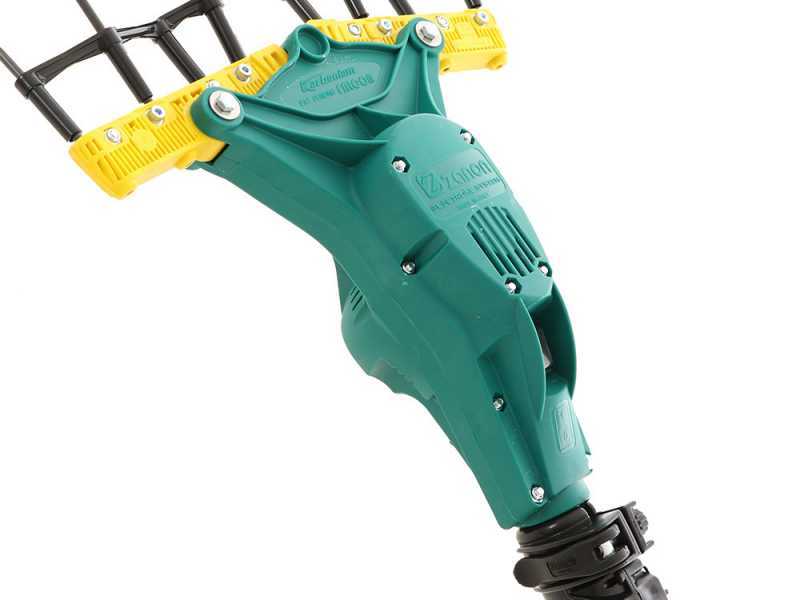

Energy-saving electric motor

Falcon is equipped with a transmission in closed box with lubricated gears made of special steel mounted on bearings and a sturdy frame in ergal that guarantees perfect transmission and durability over time.

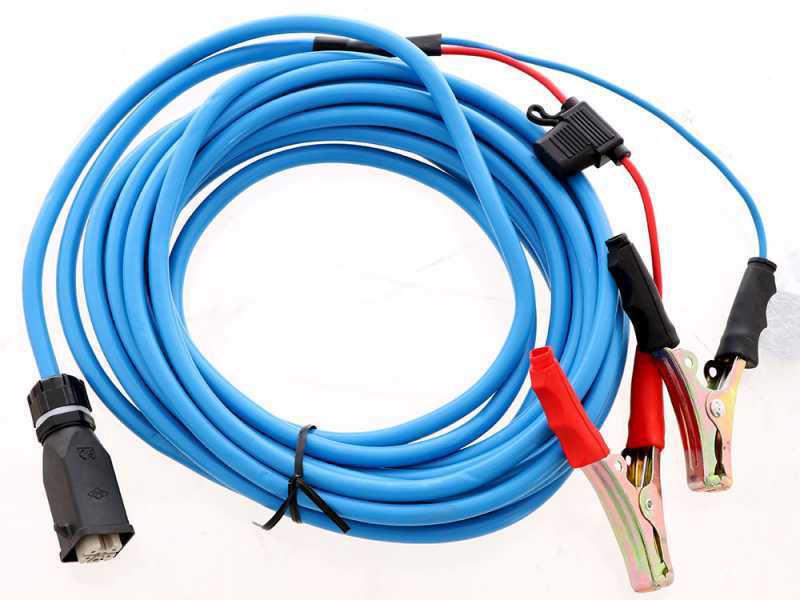

In order to ease the power supply there is a 12 m long cable fitted with user-friendly pincers and connectors.

The motor works with 12V direct current (500W).

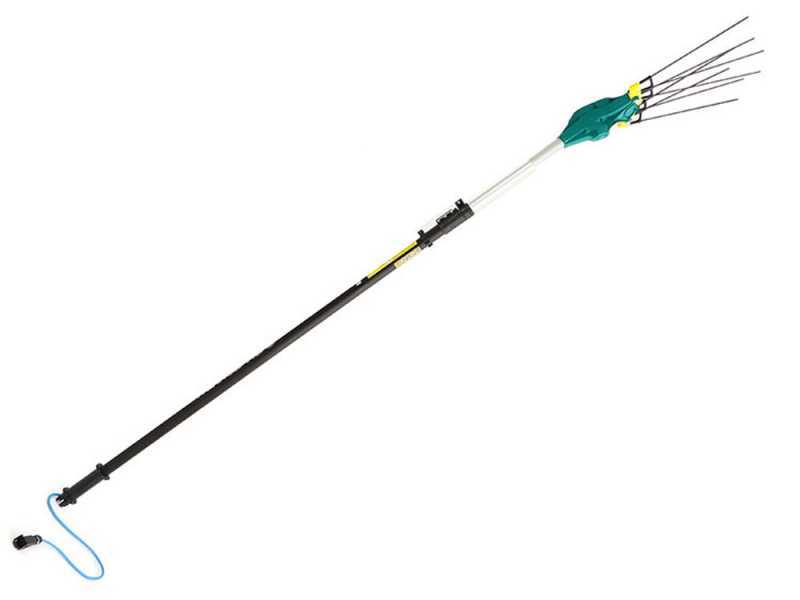

Telescopic pole

The olive harvester pole is adjustable in each position from 170 cm up to 250 cm length (referring to the machine total length).

Indeed, thanks to the quick fit, it is possible to rapidly lengthen the olive harvester desired length.

Additional features

Focus on the engine start switch.

Focus on the professional power connect

Here the main strong points of this product:

  • Parts of the head: 4+4 flexible rods made of carbon fibre for an easy and fast replacement
  • Electric engine: 12V cc with high performance and low electric consumptions
  • Power: electric
  • Ergonomic hand grip with switch, cable and non-crease protection
  • Output: 70/110 kg/hour

Free items & Standard equipment

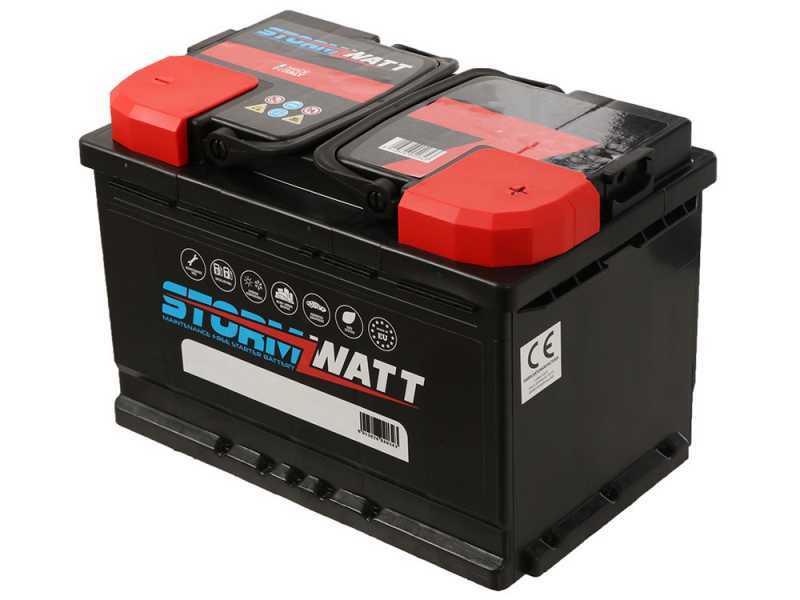

FOR FREE: 80 Ah battery

This large battery guarantees more than 8 hours of working autonomy. It is suitable for all the olive harvesters listed on our website.

It therefore allows you to work for the entire day without any problems.

Equipped with a pull-out handle for easy movement.

CAPACITY: 80 Amperes.

12V - 700A (EN)

SIZE: 315x175x190 (h) mm.

WEIGHT: 18 KG.

This is a professional lead-acid battery (it is a standard 80Ah car battery).

For fully charging it in just a few hours overnight, we recommend a battery charger with a charging capacity of at least 12-14 Ah/h



COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Standard equipment

The olive harvester is shipped in its original packaging

Connection cable

Instructions manual.

2 spare prongs.
