Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

Semi-Pro
Add a question
ID: K603694

EAN: 8054213020616

MPN: WP2421180

Wortex
Catalog Wortex
8,1/10
After-sales assistance & Spare parts
68Pictures
1Videos
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Engine first maintenance kitEngine first maintenance kit
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Oil engine replacement kitOil engine replacement kit
Blade sharpenerBlade sharpener
Load capacity
500 Kg
Barrow body type
Extendable sides
Body tipping
Manual
Max. slope
20 %
Type
Tracked
Starting mode
Electric
Motor brand
Loncin
Motor Model
G252
Motor type
4-stroke
Cubic capacity
252 cm³
Nominal power
8 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Product Features
Model:
SFL 500-E
Type :
Tracked
Self-propelling:
Yes
Load capacity:
500 Kg
Max. slope:
20 %
Barrow body type:
Extendable sides
Extendable body:
✔
Body tipping:
Manual
Box size:
104x63x32.5 cm
Extended box size:
117x89x32.5 cm
Effective inner height:
325 mm
Starting mode:
Electric
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G252
Motor type:
4-stroke
Cubic capacity:
252 cm³
No. of cylinders:
1
Nominal power:
8 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.6 L
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Transmission type:
Gears in oil bath
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Equipment
Side panels hand levers:
Yes
Motor safety brake:
Yes
Box:
Extendable
Body thickness:
2 mm
Assisted steering:
Yes
Track width:
180 mm
Track length on the ground:
1060 mm
Total rollers no.:
3
Electric start with key :
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Wooden pallet (safe shipping):
Yes
Maintenance tool kit:
Yes
Instructions manual:
Yes
Dimensions and logistics

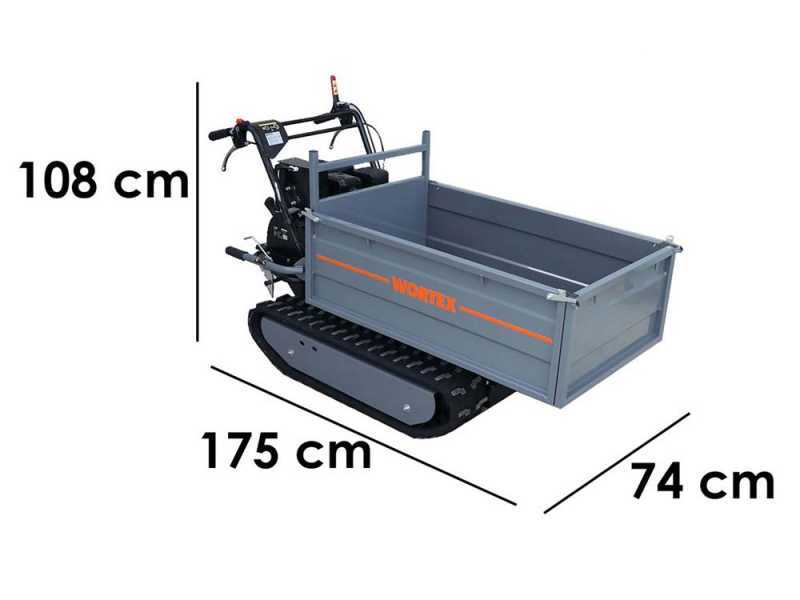

Product dimensions in cm (L x W x H):
175x74x108 cm
Net weight:
235 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
183x82x116 cm
Gross weight (packaging included) :
268 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 06/08/2024 - 08/08/2024
Free returns (up to 30 days after receipt) *
€ 2.911,18
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

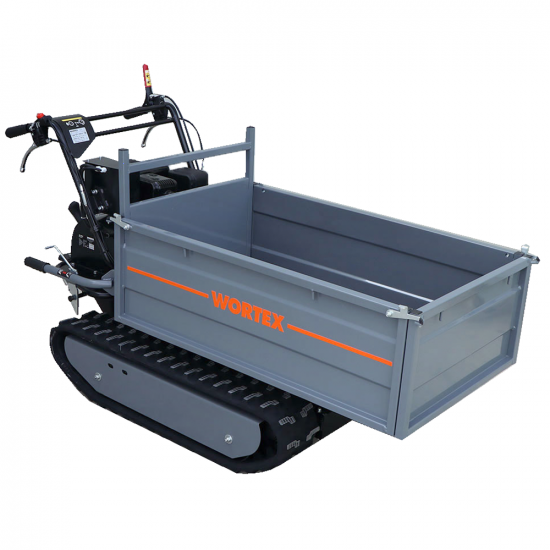

Wortex SFL 500-E Tracked Power Barrow

The Wortex SFL 500-E tracked power barrow is equipped with a powerful Euro 5 Loncin G252 engine with electric start and a displacement of 252 cc. It has a rated power output of 8 HP.

The high-resistance reinforced steel body allows loading of up to 500 Kg, and its side panels can be extended to further increase its load capacity. Thus, the possibility of manually tipping the body also facilitates unloading.

Thanks to its tracks and to the Loncin engine this model is able to carry loads also when moving the unit on slopes, thus being an indispensable tool for each type of transport.

The robust steel frame and the gearbox with three forward and one backward gears make this power barrow a versatile and high-performing machinery.



Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

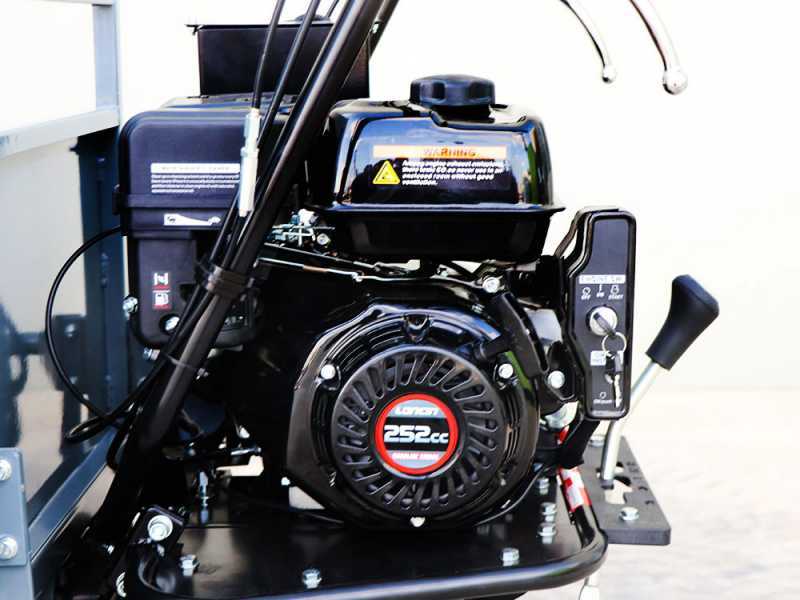

Euro 5 Loncin G252 Engine

The Euro 5 Loncin G252 engine is suitable for works requiring great power, and which is obtained thanks to the high displacement of 252 cc.

Features:

Engine type
Single-cylinder 4-stroke - OHV
Cylinder type:
Cast Iron
Cubic Capacity:
252 cm³
Fuel:
Petrol

Latest generation 4-stroke petrol engine with "OHV" overhead valve technology

The engine has a practical electric start.

ATTENTION The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 8 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 7 Hp
It corresponds to the real power expressed at the motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

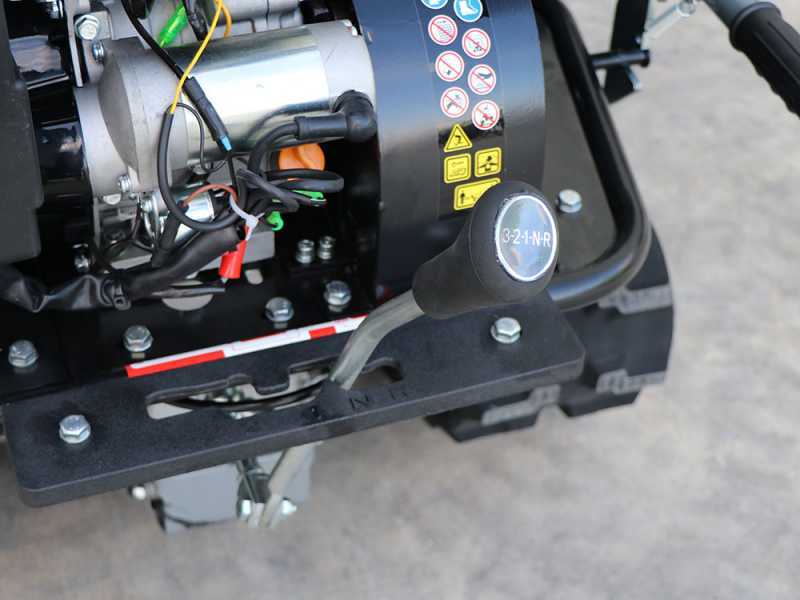

Gearbox, Parking Brakes and Transmission

Gearbox: large, reliable and accurate.

Speeds:
3 forward gears
1 reverse gear

Parking brake:
connected to the gearbox, for greater stability and safety.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.



The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

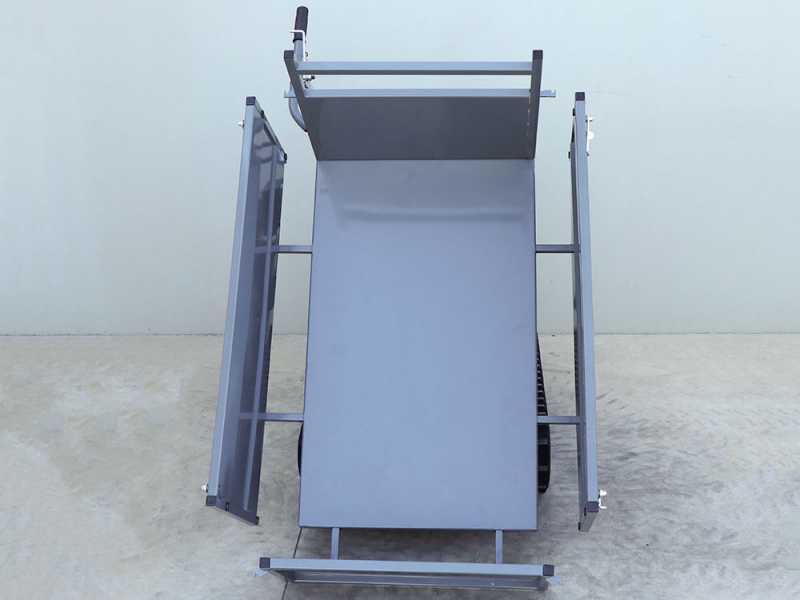

Extendable tipping body

Barrow made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate the operations of loading / unloading.

The loading capacity can be significantly increased due to the extensible side panels.
Thus, in addition to the standard wing nut screws placed under the body, the power barrow is provided with sturdy hinges, which tighten the side panels to one another.

An example of use is for carrying and transport wood.

Barrow dimensions 1040x630x325 mm

Extended barrow dimensions: 1170x890x325 mm

Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

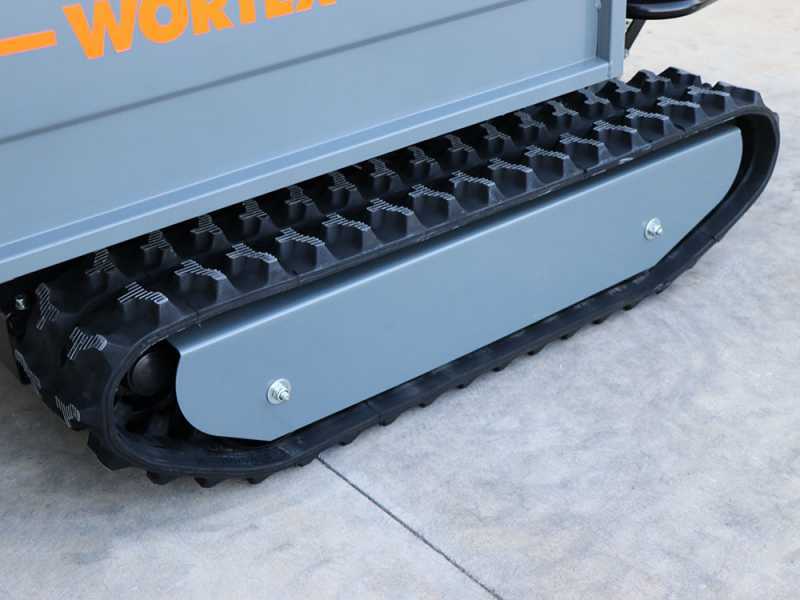

Tracks and body

Track structure: robust and over sized. Both the height and the length is greater than the average of the wheelbarrows on the market of the same size. The drive wheel is made of cast iron / steel. The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground. The rollers are self-cleaning.

Unlike other power barrows, this one is provided with 3 rollers and the protection on the track is made of a solid steel-reinforced frame.

Focus on the rear part of the track with "tank shaped” sharp upper corner that allows the shredder to easily climb steps or other obstacles.

Track Width: 180 mm

Total track length 106 cm

Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

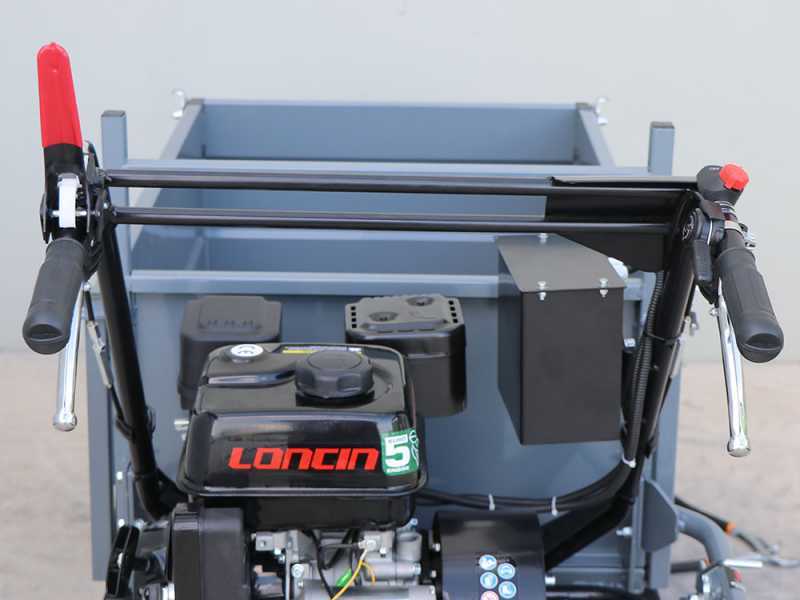

Controls

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for activating the motion, which also functions as a handbrake if released.

The two lower levers are for steering, left and right respectively.

The steering can be adjusted depending on the control lever and it allows moving smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.

Throttle lever

Power switch

Body release lever

Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Free items & Standard equipment

1° GIFT: spare parts, accessories and maintenance kit for B&S 190/223 cc OHV engine

Spare parts and maintenance kit for the following BRIGGS & STRATTON engines:

  • 875 Series
  • 850 Series
  • 825 Series
  • 1000 Series

WARNING: this set is not suitable for other brands or models on market. We do not provide different kits from the ones offered on our website.

The kit includes:

  • Professional spark plug for the engine.
  • Multi tool spark plug wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
  • Specific syringe for engine oil suction.
  • Waste oil collection bottle for easy waste oil disposal.
  • Funnel for oil draining and refilling.
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

2° GIFT: Safety Kit

SAFETY KIT

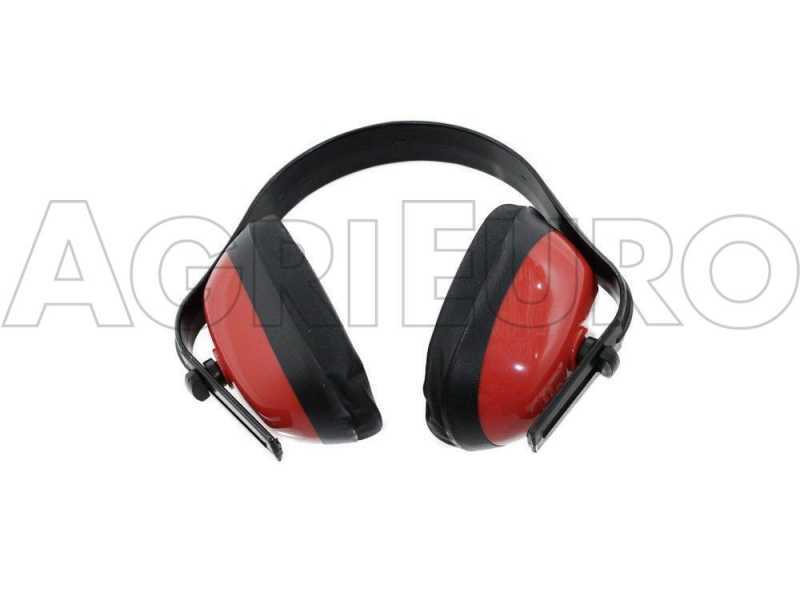

Protective earmuffs to work with maximum comfort
Ear protection must be performed correctly in every working condition. In this case, the earmuffs provided on standard kit are specifically designed to protect the operator from the noise coming from the mower.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

3° GIFT: two 1L oil bottles

FOR FREE: two sae 10W 40 1 L bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 Hp. Good cleansing and dispersion.

Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

4° GIFT: Blade sharpener

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver / drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

Free Items Included

The power barrow is provided in its original packaging.

Instructions manual and set of wrenches for adjusting and assembly

Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

1° GIFT: Engine spare parts and maintenance kit

Spare parts and maintenance tool kit for the BRIGGS & STRATTON engines.

  • 3115 Series
  • 3125 Series
  • 3135 Series

WARNING: This kit is not suitable for other brands or models on market. We do not provide different kits from the ones offered on our website.

The kit includes:

  • Professional spark plug for the engine.
  • Multi purpose spark plug wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
  • Specific syringe for oil suction.
  • Waste oil collection bottle for easy waste oil disposal.
  • Funnel oil draining and refilling.
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

2° GIFT: Protection kit: earphones, face mask, goggles and gloves

FREE ITEMS:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Dust mask suitable for mowing in particularly dusty environments.

Highly-resistant protective gloves for extremely comfortable and easy gardening jobs. Cotton gloves with rubber-coated waves for a major comfort of use.

Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start

3° GIFT: 1 L Oil bottles

2 x 1 L bottles of semi-synthetic oil 10W 40. formulated to the highest performance levels. Suitable for all modern petrol engines which require maximum performance from a lubricant.

Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Wortex SFL 500-E Tracked Power Barrow - 500 Kg Dumper - Electric start
Feedback & Reviews
Questions & Answers

General information

Legal Notice

  • Purchase Conditions
  • Payment Methods
  • Legal Warranty
  • Right of withdrawal
  • Privacy
  • Security
  • Cookies Policy
  • Cookie settings
  • Umbria 2014-2020 ERDF

AgriEuro special services

  • 5% Off from the Second Product
  • Double package
  • Free shipping
  • Service Centres
  • 30 Days Free Return
  • Assembly and Operating Tutorial Videos
  • After-sales Assistance
  • Spare parts
  • Premium Program Policy
  • AgriEuro Professional

My account

Language: English / EN

To change language, please click on the following abbreviations:

IT FR DE ES

Customer reviews

Newsletter

© Copyright 2007-2024 AgriEuro / All rights reserved
AgriEuro is a registered trademark of the company AGRIEURO S.R.L. / VAT reg. no. IT 01629170547
Technical Realization: Kaleido Srl
AgriEuro
All the advertised items on this website are subject to continuous technical updates by the manufacturing industries without prior notice (for improving managing procedures or production rationalisation).
For this, all data, descriptions and images on this portal are indicative as they may be subject to possible variations.
