Wortex SFH 500 Tracked Power Barrow - Extendable Barrow with 500 Kg load capacity

Questions & Answers (1)
ID: K603705

EAN: 8054213016305

MPN: WP2421190

Wortex SFH 500 Tracked Power Barrow - Extendable Barrow with 500 Kg load capacity
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Foam air filterFoam air filter
Foam air filterFoam air filter
Load capacity
500 Kg
Barrow body type
Extendable sides
Body tipping
Manual
Max. slope
20 %
Type
Tracked
Motor brand
Honda
Motor Model
GX200
Motor type
4-stroke
Cubic capacity
196 cm³
Nominal power
6.5 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Product Features
Model:
SFH 500
Type :
Tracked
Self-propelling:
Yes
Load capacity:
500 Kg
Max. slope:
20 %
Barrow body type:
Extendable sides
Extendable body:
Body tipping:
Manual
Box size:
1040x630x325 mm
Extended box size:
1170x890x325 mm
Effective inner height:
325 mm
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Honda
Motor Model:
GX200
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.1 L
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Transmission type:
Gears in oil bath
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Equipment
Side panels hand levers:
Yes
Motor safety brake:
Yes
Box:
Extendable
Body thickness:
2 mm
Assisted steering:
Yes
Track width:
180 mm
Track length on the ground:
1060 mm
Total rollers no.:
3
Recoil start system (with rope):
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Wooden pallet (safe shipping):
Yes
Maintenance tool kit:
Yes
Instructions manual:
Yes

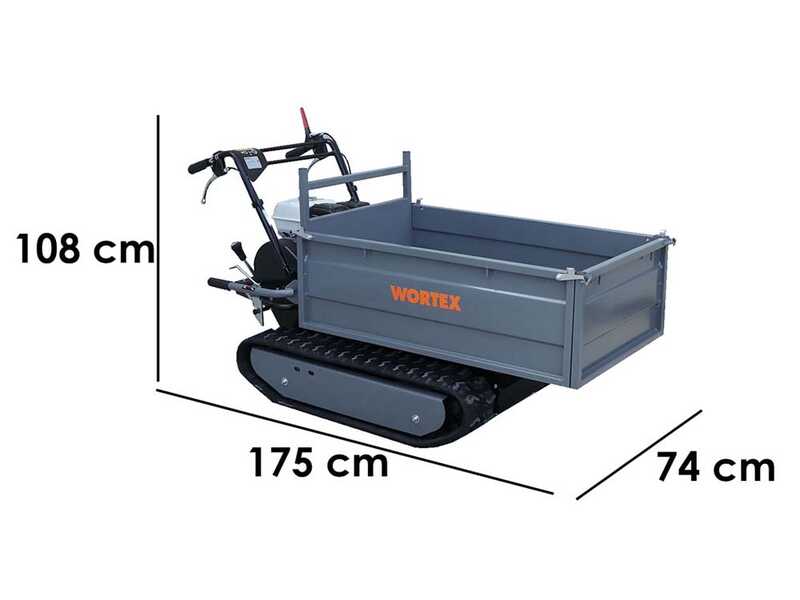

Dimensions and logistics
Product dimensions in cm (L x W x H):
175x74x108 cm
Net weight:
228 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
183x82x116 cm
Gross weight (packaging included) :
261 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 29/04/2024 - 02/05/2024
€ 3.146,47
VAT Included
You're viewing:
Customers also viewed:
Description

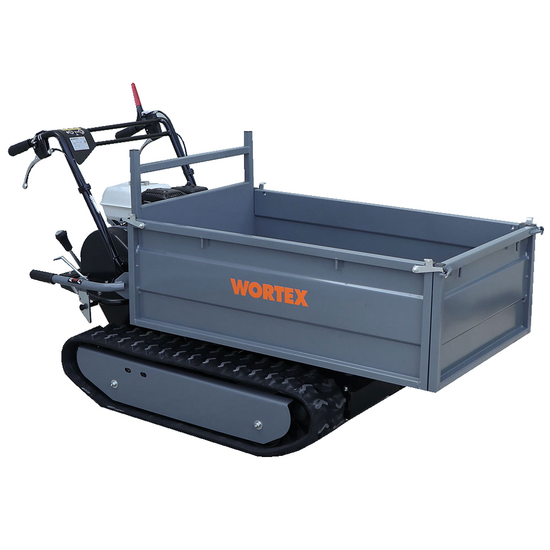

Wortex SFH 500 Tracked Power Barrow

The Wortex SFH 500 power barrow has a powerful Honda GX200 engine 196 cc, which is capable of delivering a rated power of 6.5 HP.

Thanks to the self-propelling on the tracks and to the petrol engine, this power barrow is able to carry loads of 500 Kg also on sloping grounds, being an essential machinery for each type of transport (wood, concrete, bricks, rubble, debris, etc.)

To extend the body, make sure to open the strong hinges at the top of the side panels and loosen the screws located underneath the body.

The sturdy steel frame and the gearbox with 3 forward and 1 backward gears make this power barrow a versatile and high-performing machinery.

Equipped with extendable body, which allows to significantly increase the load capacity. Finally, it can also be easily tipped to make unloading even easier. The body is tipped mechanically using a lever on the side of the body.

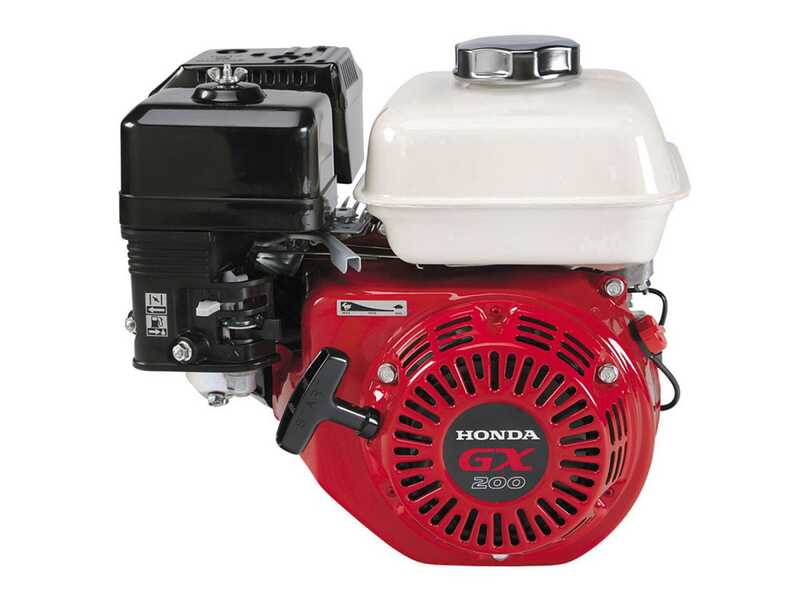

Honda GX 200 Engine

Honda GX 200
Powerful and professional, with the latest generation technology in OHV valve head.

Features:

Engine type
Single-cylinder 4-stroke - OHV
Cylinder type:
Aluminium
Cubic Capacity:
196 cm³
Compression ratio
8.5: 1
Max. rpm
3600 rpm
Torque value
12.4 Nm / 1.26.7 kgfm / 2500 rpm
Fuel tank capacity:
3.1 L

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It’s characterized by great durability and reliability

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 5.5 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

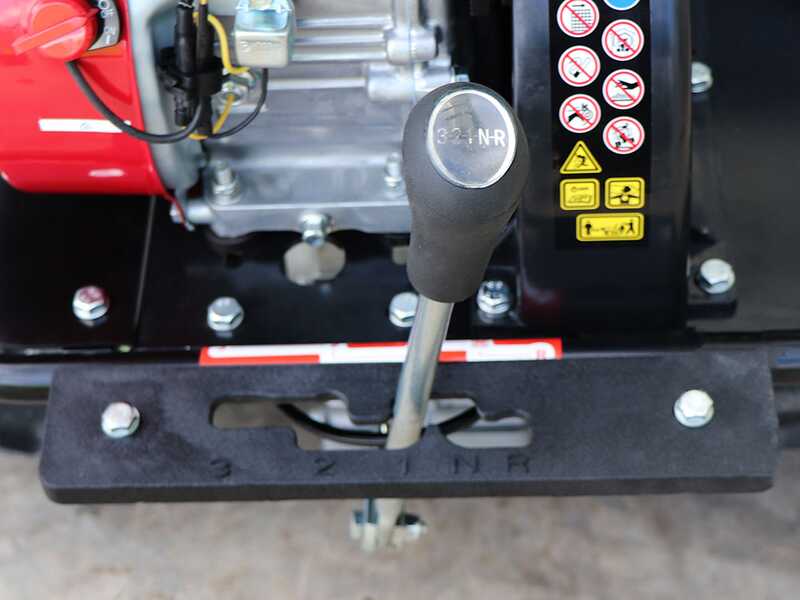

Gearbox, Parking Brakes and Transmission

Gearbox: large, reliable and accurate.

Speeds:
3 forward gears
1 reverse gear


Parking brake:
connected to the gearbox, for greater stability and safety.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).


Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.



The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

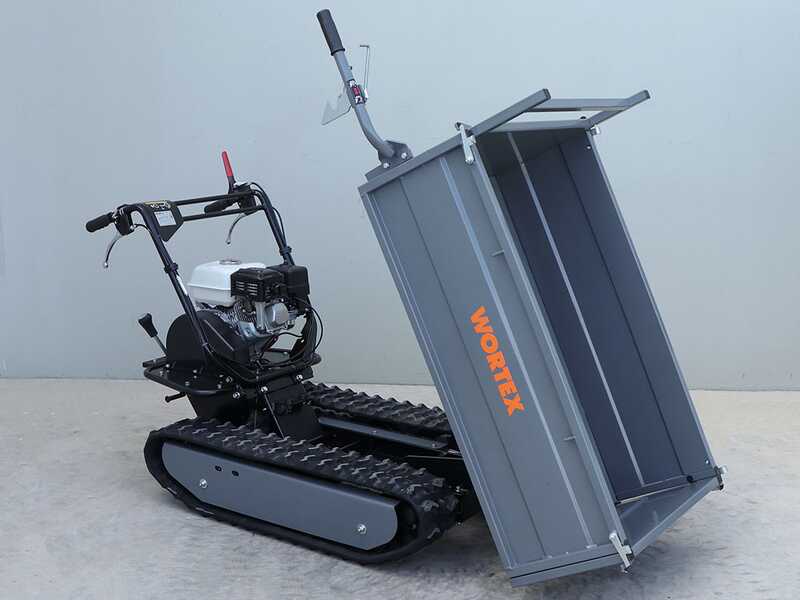

Extendable tipping body

Barrow made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate the operations of loading / unloading.

The loading capacity can be significantly increased thanks to the extensible side panels.
Thus, in addition to the standard wing nut screws placed under the body, the power barrow is provided with sturdy hinges, which tighten the side panels to one another.

An example of use is for carrying and transport wood.

Barrow dimensions 1040x630x325 mm

Extended barrow dimensions: 1170x890x325 mm

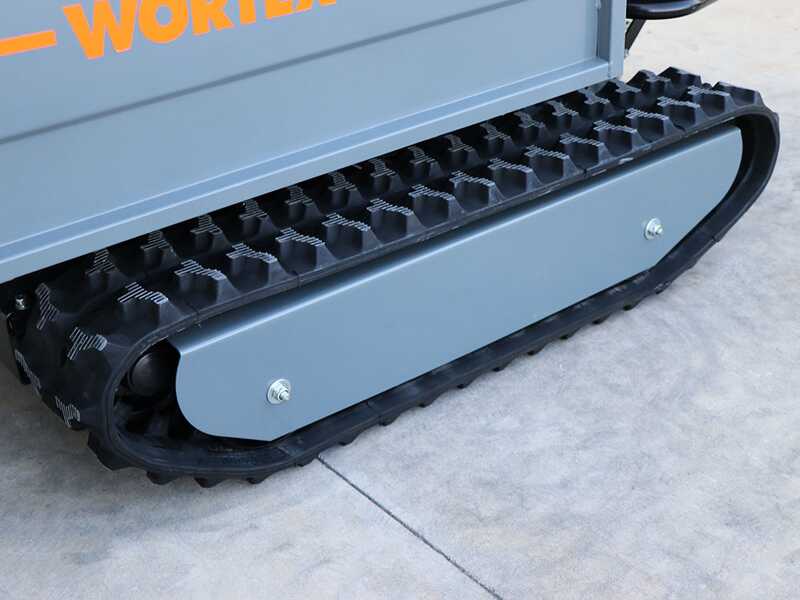

Tracks and body

Track structure: robust and over sized. Both the height and the length is greater than the average of the wheelbarrows on the market of the same size. The drive wheel is made of cast iron / steel. The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground. The rollers are self-cleaning.

Unlike other power barrows, this one is provided with 3 rollers and the protection on the track is made of a solid steel-reinforced frame.


Focus on the rear part of the track with "tank shaped” sharp upper corner that allows the shredder to easily climb steps or other obstacles.

Track Width: 180 mm

Total track length 106 cm

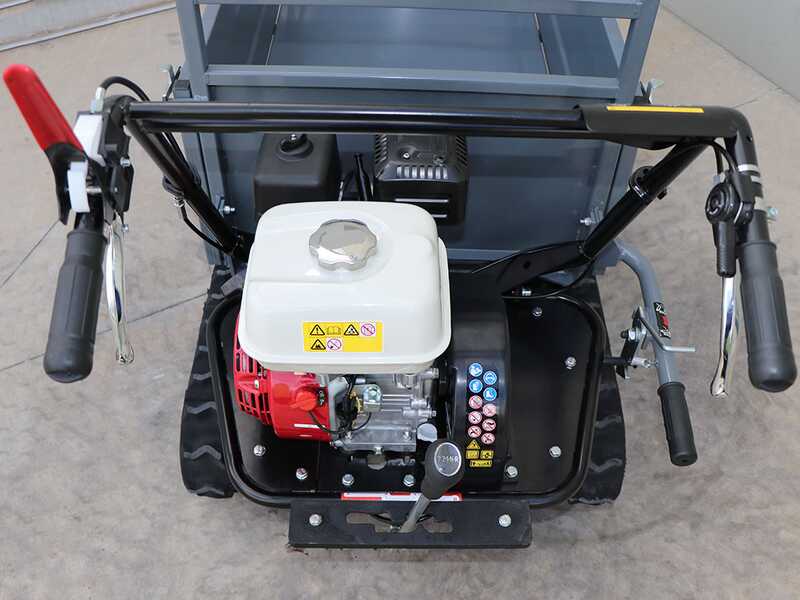

Controls

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for activating the motion, which also functions as a handbrake if released.

The two lower levers are for steering, left and right respectively.

The steering can be adjusted depending on the control lever and it allows moving smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.

Throttle lever

Power switch

Body release lever

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Extra features

The power barrow is shipped in its original packaging.

It comes complete with the instructions manual
