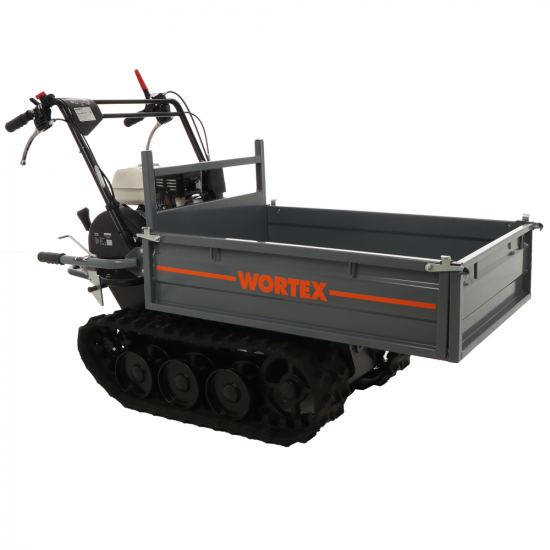

Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

Semi-Pro
Add a question
ID: K604504

EAN: 8054213013977

MPN: WP2421170

Wortex
Catalogue Wortex
8,1/10
After-sales assistance & Spare parts
67Pictures
1Videos
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Foam air filterFoam air filter
Foam air filterFoam air filter
Load capacity
300 Kg
Barrow body type
Extendable sides
Body tipping
Manual
Max. slope
20 %
Type
Tracked
Motor brand
Honda
Motor Model
GX200
Motor type
4-stroke
Cubic capacity
196 cm³
Nominal power
6.5 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Body dimensions
90x60x21 cm
Product Features
Model:
SFH 300
Type :
Tracked
Self-propelling:
Yes
Load capacity:
300 Kg
Max. slope:
20 %
Barrow body type:
Extendable sides
Extendable body:
✔
Body tipping:
Manual
Body dimensions:
90x60x21 cm
Extended box size:
100x84x21 cm
Effective inner height:
210 mm
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Honda
Motor Model:
GX200
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.1 L
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Transmission type:
Gears in oil bath
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Equipment
Side panels hand levers:
Yes
Motor safety brake:
Yes
Box:
Extendable
Body thickness:
2 mm
Assisted steering:
Yes
Track width:
180 mm
Track length on the ground:
940 mm
Total rollers no.:
3
Recoil start system (with rope):
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Wooden pallet (safe shipping):
Yes
Maintenance tool kit:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
160x64x112 cm
Net weight:
185 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
183x82x116 cm
Weight including packaging:
212 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 15/05/2025 - 19/05/2025
Free returns (up to 30 days after receipt) *
€ 2.523,19
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

Wortex SFH 300 Tracked Power Barrow

The Wortex SFH 300 tracked power barrow is capable of transporting loads of 300 kg even on slopes. This makes it renowned for carrying all types of material (wood, concrete, bricks, rubble, and many others).

The sturdy steel frame and the gearbox with 3 forward and one backward gears make this power barrow a versatile and high-performing machinery.

The power barrow has a powerful Honda GX200 engine 196 cc, which is capable of delivering a rated power of 6.5 HP.

To extend the body, make sure to open the strong hinges at the top of the side panels and loosen the screws located underneath the body.

Equipped with extendable body, which allows to significantly increase the load capacity. Finally, it can also be easily tipped to make unloading even easier. The body is tipped mechanically using a lever on the side of the body.



Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

Honda GX 200 Engine

Honda GX 200
Powerful and professional, with the latest generation technology in OHV valve head.

Features:

Engine type
Single-cylinder 4-stroke - OHV
Cylinder type:
Aluminium
Cubic Capacity:
196 cm³
Compression ratio
8.5: 1
Max. rpm
3600 rpm
Torque value
12.4 Nm / 1.26.7 kgfm / 2500 rpm
Fuel tank capacity:
3.1 L

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It’s characterized by great durability and reliability

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 5.5 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

Gearbox, Parking Brakes and Transmission

Gearbox: large, reliable and accurate.

Speeds:
3 forward gears
1 reverse gear

Parking brake:
connected to the gearbox, for greater stability and safety.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

Extendable tipping body

Barrow made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate the operations of loading / unloading.

The loading capacity can be significantly increased due to the extensible sides.
Thus, in addition to the standard wing nut screws placed under the body, the power barrow is provided with sturdy hinges, which tighten the side panels to one another.

An example of use is for carrying and transport wood.

Barrow dimensions 900x600x210 mm

Extended barrow dimensions: 1000x840x210 mm

Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

Tracks and body

Track structure: sturdy and over-sized. Both the height and the length is greater than the average of the wheelbarrows on the market of the same size. The drive wheel is made of cast iron / steel. The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground. The rollers are self-cleaning.

Unlike other power barrows, this one is provided with 3 rollers and the protection on the track is made of a solid steel-reinforced frame.

Focus on the rear part of the track with "tank shaped” sharp upper corner that allows the shredder to easily climb steps or other obstacles.

Track Width: 180 mm

Total track length 94 cm

Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

Controls

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for activating the motion, which also functions as a handbrake if released.

The two lower levers are for steering, left and right respectively.

The steering can be adjusted depending on the control lever and it allows moving smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.

Throttle lever

Power switch

Body release lever

Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFH 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

Extra features

The power barrow is shipped in its original packaging.

It comes complete with the instructions manual
