Udor Iota 20 hp1 - Electric Sprayer Pump - Pump with Single-Phase Motor

Add a question
ID: 111834

EAN: 8053435095495

MPN: 234700

Udor Iota 20 hp1 - Electric Sprayer Pump - Pump with Single-Phase Motor
Configuration
Pump only
Water pump type
Diaphragm
Number of diaphragms
2
Flow rate
19 L/min
Max. operating pressure
20 bar
Portable
Transport handle
Motor type
Electric
Nominal power
1 HP
Pressure regulator
Yes
Manufacturing country
Italy
Product Features
Model:
Udor Iota 20 hp1
Type:
A 2 mebrane
Configuration:
Pump only
Motor type:
Electric 230 V
Operating mode:
Electric 230 V
230 V Electric:
Configuration:
Pump only
Flow rate:
19 L/min
Max. operating pressure:
20 bar
Portable:
Transport handle
Manufacturing country:
Italy
Motor data
Motor type:
Electric
Nominal power:
1 HP
Manufacturing country:
Italy
Pump data
Pump brand:
Udor
Number of diaphragms:
2
Water pump type:
Diaphragm
Pressure regulator:
Yes
Manufacturing country:
Italy
Free gifts/extra features
Instructions manual:
Yes

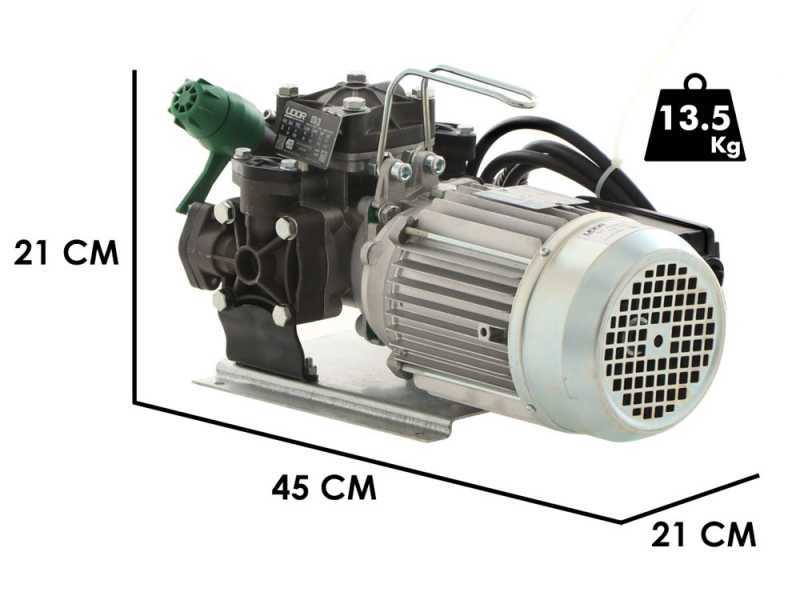

Dimensions and logistics
Product dimensions in cm (L x W x H):
45x21x21
Net weight:
13.5 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
55x22x22
Gross weight (packaging included) :
14 Kg
Assembly time:
Assembled
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 05/06/2024 - 07/06/2024
€ 644,76
VAT Included
You're viewing:
Customers also viewed:
Description

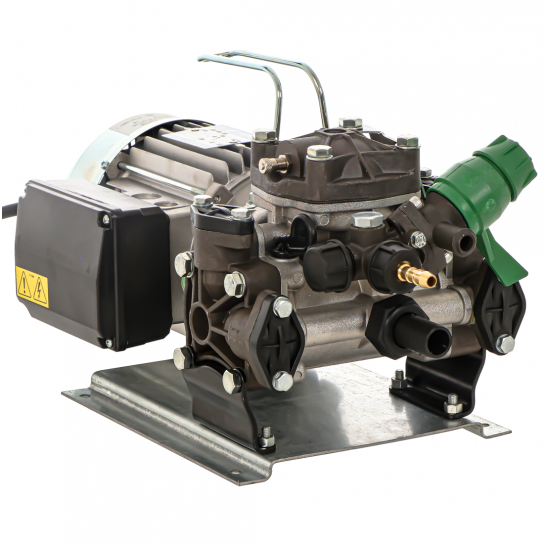

Udor Iota 20 hp1 - Electric Pump for Spraying

The Udor Iota 20 hp1 electric pump for spraying is suitable for weeding and spraying treatments, in small or medium crops, parks, gardens, vegetable gardens, greenhouses and for the distribution of detergents and colours in water solution.

It is certainly one of the most popular models, as it can be easily applied on trolleys, wheelbarrows and sprayers.

Flanged pump with an electric motor with speed reducer, complete with control unit (for pressure adjustment).

It is a high-performance, long-lasting HEAVY-DUTY electric motor pump for spraying, entirely Made in Italy by UDOR(except for the motor only).

General technical data:

Pump:

  • Flow rate: 19.0 L/m
  • Maximum pressure: 20 bar
  • RPM: 600
  • Max. power: 0.8 HP
  • Weight: 4 kg

Engine:

  • Power: 1HP
  • Voltage: 230/50Hz
  • Motor revs: 2800
  • Type: single-phase 4-pole

NOTE:

If products containing minerals such as kaolin, zeolite, basalt, etc. are used, washing should be carried out at the end of each treatment and at the end of each season to avoid long-term damage to the internal components of the pump. It is advisable to disassemble several parts of the pump, such as valves, heads and diaphragms, in order to clean out any agglomerated residues sedimented by the minerals.
These procedures will ensure a long life of the pump even if the above minerals are used.

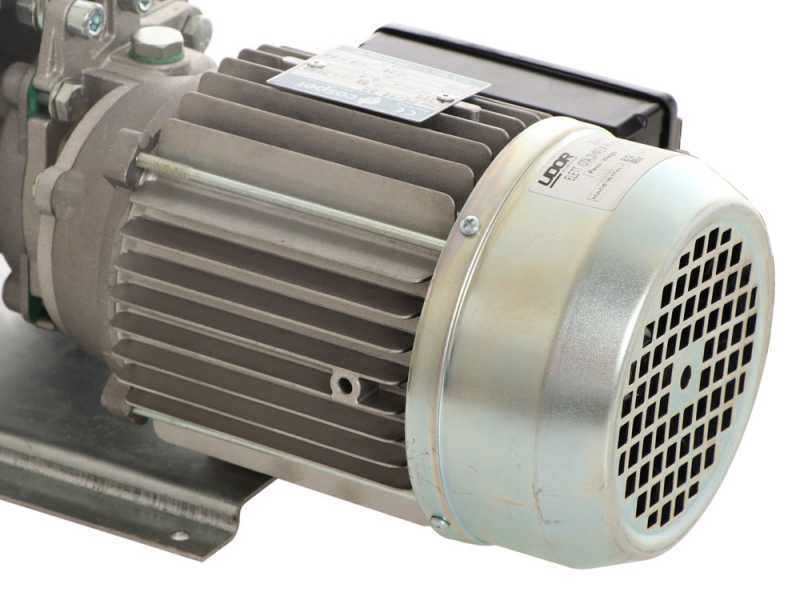

Electric motor

Single-phase electric motor features:

  • Brand: Cospet
  • Model: MC/80 D2
  • Power: 1HP
  • Voltage: 230/50Hz
  • Motor revs: 2800
  • Type: single-phase 4-pole

Main advantages of the electric motor:

  • No engine start-up procedure
  • No need for fuel (just plug in the power cable)
  • Lower running consumption costs (power consumption is much less expensive than fuel consumption)
  • No engine maintenance required unlike 2/4-stroke engines (oil check, spark plug, air filter cleaning, etc.)
  • More silent operation

For all these reasons, if you have the possibility of connecting the pump to the 220 V mains, we always recommend a motor pump with a single-phase electric motor over one with a 2/4-stroke engine: better quality/price ratio, more reliable, easier to use.

Focus on the heavy-duty electrical box

It is equipped with a large metal base that provides excellent stability for the pump with various bore holes for any type of application.

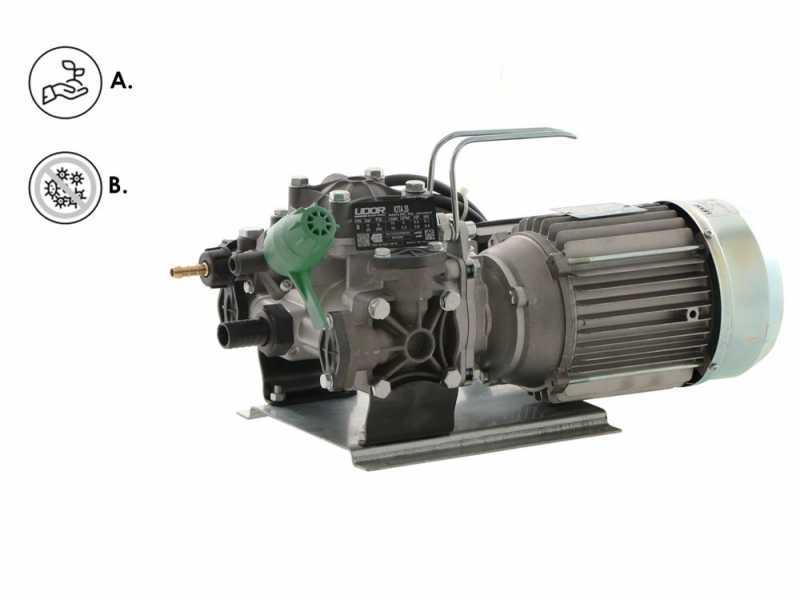

Technical Features

The IOTA 20, with a flow rate of 19 l/min, is a 2-diaphragm pump that is supplied with a single cylindrical shaft PTO and achieves a working pressure of 20 bar.

Semi-hydraulic diaphragm pump with anodised aluminium heads compatible with plant protection products, casing made of die-cast aluminium.

Technical features:

  • Flow rate: 19.0 L/m
  • Maximum pressure: 20 bar
  • RPM: 600
  • Max. power: 0.8 HP
  • Weight: 4 kg

Usage types:

A: Greenery care

B: Disinfection and chemical treatments

The pump can be used with fertilisers and herbicides; we discourage its use with products containing kaolin as it is highly corrosive.

Free items & Standard equipment

Free items included

Original packaging

Instructions manual

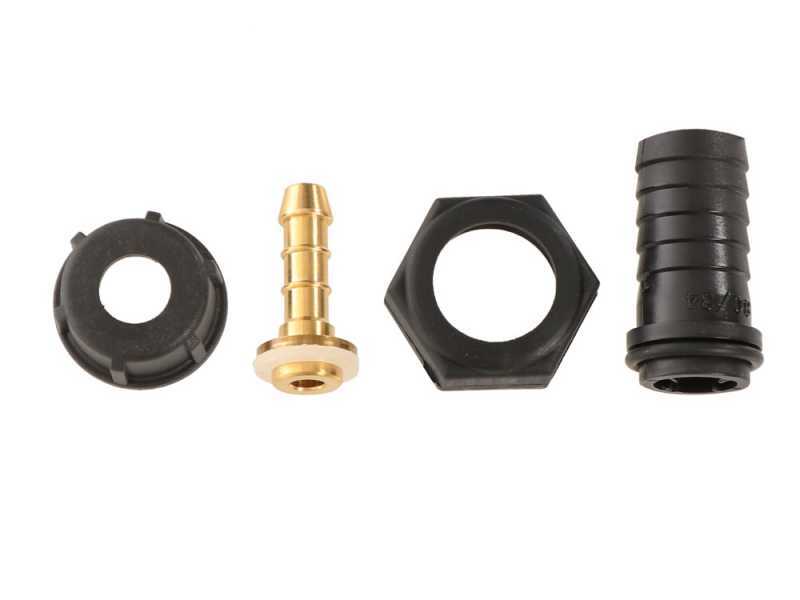

Fittings:
