Troy-Bilt TB 60T-R SELECT - Lawn tractor - with collection box - 196cc engine - Electric start

Questions & Answers (5)
ID: K607671

EAN: 4008423925166

MPN: 13AA26SC609

Troy-Bilt TB 60T-R SELECT - Lawn tractor - with collection box - 196cc engine - Electric start
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement spark plug kitReplacement spark plug kit
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Oil engine replacement kitOil engine replacement kit
Blade sharpenerBlade sharpener
Grass collector
Side discharge
Mulching cutting system
Optional
Motor brand
Producer-manufactured
Motor Model
Troy-Bilt 196cc
Cubic capacity
196 cm³
Nominal power
7 HP
Recommended operating area
1000 s.q. m.
Cutting width
60 cm
No. of blades
1
Collection basket capacity
150 l
Gear shifting system
Transmatic
Gears
6+6
Manufacturing country
USA
Product Features
Model:
TB 60T-R SELECT
Body:
Plastic
Grass collection system:
Standard equipment
Side discharge cutting system:
Optional
Mulching cutting system:
Optional
Cut with rear discharge:
Standard equipment
Cutting system:
3 in 1 - Collection + Rear discharge + Mulching (optional)
Collection bag capacity:
150 L
Collection basket capacity:
150 l
Recommended operating area:
1000 s.q. m.
Starting mode:
Electric
Manufacturing country:
USA
Motor data
Motor brand:
MTD
Motor Model:
Troy-Bilt 196cc
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
Single-cylinder
Nominal power:
7 HP
Rated power (HP):
4.4 HP
Fuel:
Petrol
Tank capacity:
4.9 L
Manufacturing country:
China
Transmission data
Gear shifting system:
Transmatic
Gearbox:
In oil bath
No. of forward speeds:
6
No. of reverse speeds:
6
Gears:
6+6
Operating mode:
Gear lever
Cutting data
Body material:
Enamelled steel
Cutting width:
60 cm
No. of blades:
1
Blade type:
Cutting blades + mulching
Blade engagement:
Lever-operated
Max. cutting height:
95 mm
Min. cutting height:
38 mm
No. of cutting positions:
5
Reverse cutting system:
No
Equipment
Collection bag:
Standard equipment
Grass discharge side deflector:
Optional
Rear grass discharge deflector:
Yes
Battery for electric start:
Rear wheels size:
130x50 mm
Front wheels size:
160 x 65 mm
Seat type:
Comfort
Seat adjustment:
Yes
Can holder:
Yes
Free gifts/extra features
Mulching kit:
Optional
Instructions manual:
Yes
Dimensions and logistics
Net weight:
140 Kg
Packaging:
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H):
176x120x85 cm
Gross weight (packaging included) :
160 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Out of stock
Free Shipping
€ 2.287,49
VAT Included
You're viewing:
Customers also viewed:
Description

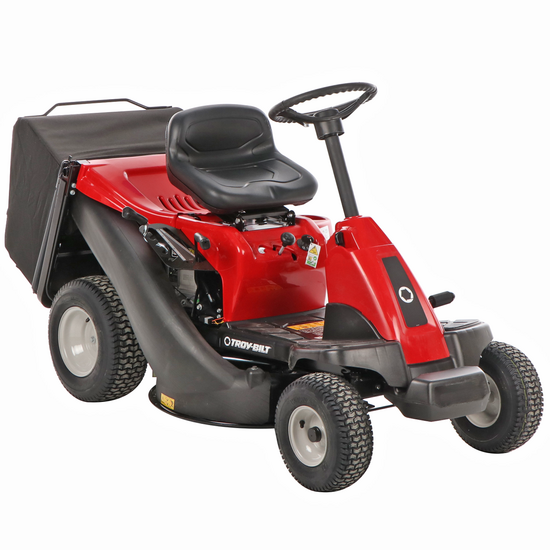

Lawn tractor Troy-Bilt TB 60T-R SELECT

The Troy-Bilt TB 60T-R SELECT lawn tractor is an excellent solution for quality grass cutting. This model is at the top of its category for those who want to combine power, cutting-edge technology and innovative design in the care of their greenery.

With three versatile cutting systems - a standard 150 litre grass catcher, mulching and side discharge as additional options that can be purchased separately -this lawn tractor offers flexibility and performance to suit all garden maintenance needs.

Its compact design not only makes it the most efficient and powerful mini-rider on the market, but also ensures superior manoeuvrability to tackle any corner of your garden with ease.

Extraordinary agility, due to precise steering and lightweight construction, allows easy navigation even in the tightest spaces, ensuring fast and effortless grass trimming.

The 6-speed transmatic transmission elevates driving to an unrivalled level of smoothness and control, with foot controls offering hands-free driving for superior safety and comfort.

With a recommended cutting capacity of 1000 m² per hour, this tractor not only demonstrates exceptional efficiency but also power to tackle the most demanding jobs with ease.

Comfort while driving is ensured by an excellent turning radius, which allows easy movement around plants and obstacles, further enhancing the cutting experience.

The ergonomic cutting height adjustment lever, adjustable to five different positions, offers maximum customisation to suit all cutting preferences.

The 60 cm single-blade deck, combined with compact dimensions and intuitive controls, promises an unrivalled green maintenance experience, making each cutting session more efficient and effective.

Equipped with a 196 cc MTD Troy-Bilt engine, the Troy-Bilt TB 60T-R SELECT stands out not only for its high level of performance but also for its ease of maintenance, making it the perfect choice for those looking to optimise their garden care with a reliable, powerful and safe tool.

3 Cutting systems

1- MULCHING (optional): this system allows cutting grass without catching it inside the collector and crushing the clippings into a fine powder before dropping them on the lawn.

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn.

This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week.

2- SIDE DISCHARGE (on standard equipment)

For cutting grass without collecting it into the grass collector (suitable for maximising cutting performance in the shortest time; with this system, it is possible to cut grass even slightly higher than normal)

3- GRASS COLLECTION SYSTEM (on standard equipment)

The grass collector assembly is very easy and requires only a few minutes.

It is not necessary to remove the grass collector to operate with the side discharge or mulching cutting system. Just remove the hose that connect the cutting deck to the rear grass collector and leave it attached even while not in use. An operation that requires only a few minutes.

Grass collector: 150 L.

MTD Troy-Bilt 196cc engine

The MTD Troy-Bilt 196cc is a high-performing engine, suitable for demanding operations that require high reliability and long durability over time.


Features:

Engine type:
4-Stroke, single cylinder
Cylinder type:
Aluminium
Cubic capacity
196 cm³
Fuel:
Petrol
Max. rpm:
3000 rpm
Starting:
electric

Nominal Power: 7 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.4HP (at a speed of 3000 rpm)
Corresponds to the real power expressed at the crankshaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

Transmatic gearbox and transmission

The Troy-Bilt TB 60T-R SELECT rider has a selector switch that allows you to set between:

  • forward motion
  • Neutral
  • Reverse speed

Focus on the adjustment speed lever with 6 positions (6 gears):

Depending on how it is set up, the first gear switch, it features 6 forward speeds and 6 reverse speeds.

Once selected one of the 6 gears, you’ll get the possibility to adjust the speed (reducing it) by simply adjusting the pressure on the braking pedal (decelerating in the brake circuit).

Releasing the brake pedal, the riding-on mower will automatically return to the gear that has been previously selected.

Focus on the gear transmatic transmission

Focus on the belt transmission system that transfers motion from the MTD engine to both the blade and the machine.

Cutting deck

Cutting equipment features of the Troy-Bilt TB 60T-R SELECT

Sturdy single-blade cutting deck: 60 cm real cutting width.

The machine is equipped with a universal blade suitable both for side discharge and mulching cutting system.

Adjustable cutting height in 5 different positions from 38 mm to 95 mm by means of the proper lever.

The blade is operated by means of the proper blade engagement lever.

Controls and adjustments

Easy and user-friendly controls.

Once started engine, it is possible to easily select the gear, the forward speed under the steering wheel, operate the machine brake and adjust the blade height and rotation, all directly from the Operator's seat.

Ignition lock with key: electric starting

Blade engagement lever

Braking pedal

Cutting height adjustment lever in 5 different positions from 35 to 95 mm.

Parking brake and gears engagement lever.

Forward, reverse and neutral gear speed selection lever.

Additional features

Other features of the Minirider TB 60T-R SELECT lawn tractor :

  • Canister housing
  • Large-sized tyres: they ensure higher care of the lawn and great adherence to the ground and traction on a riding-on mower.
  • Excellent turning radius: the best of its category. It allows very easy manoeuvres even in tight spaces.
  • Large-sized comfortable Operator's seat that lies on large springs which act as shock absorber while working on slopes on the ground.
  • Ergonomic steering wheel
Free items & Standard equipment

1° GIFT: spare parts and maintenance kit for petrol engines

Spare parts and accessory kit for the maintenance of petrol engines.

WARNING: this set is not suitable for other brands or models on market. We do not provide different kits from the ones offered on our website.

The kit includes:

  • Professional spark plug for the engine.
  • Multi tool spark plug wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
  • Specific syringe for oil suction.
  • Waste oil collection bottle for easy waste oil disposal.
  • Funnel for oil draining and refilling.

2° GIFT: protection kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.

Ear protection must be performed correctly in every working condition. In this case, the earmuffs provided on standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.

Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

AgriEuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: engine oil

FOR FREE: two sae 15W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 Hp. Good cleansing and dispersion.

4° GIFT: sharpener for lawn mower blades

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver / drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Standard equipment

The riding-on mower is shipped in its original packaging.

The instructions manual is included in the packaging.

Warning:
The engine is provided without oil. Read the instructions manual before using the machine.
