Tre Spade TC-22 INOX - Electric Meat Mincer - 1100W - N.22

Add a question
ID: 111121

EAN: 8024779001367

MPN: F02200

8,0/10
After-sales assistance & Spare parts
Tre Spade TC-22 INOX - Electric Meat Mincer - 1100W - N.22
Motor type
Induction
Rated power
1.5 Hp
Certifications
CE professional
Attachment dimensions
No.22
Accessory material
Stainless steel
Engine cover
Engine cover
Hourly output
280 Kg/h
Transmission type
Gears
Funnel material
Stainless steel
Weight
22.5 Kg
Manufacturing country
Italy
Product Features
Model:
TC-22 INOX
Machine body material:
Stainless steel
Certifications:
CE professional
Power output:
1100 W
Hourly output:
280 Kg/h
Die plate material:
Stainless steel
Engine cover:
Engine cover
Manufacturing country:
Italy
Motor data
Motor type:
Induction motor
Motor type:
Induction
Rated power:
1.5 Hp
Power supply:
220 V electric
Manufacturing country:
Italy
Transmission data
Transmission type:
Gears
Gear unit type :
With gears
Gear material:
High-strength steel
Transmission protective cover:
Die-cast aluminium
Cutting data
Accessory material:
Stainless steel
Attachment dimensions:
No.22
No.22 Accessory:
Funnel material:
Stainless steel
Meat grinder die plate dimensions:
N. 22
Blade material:
Stainless steel
Equipment
Anti-vibrating system:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
24x52x40.5 cm
Net weight:
22.5 Kg
Packaging:
Original packaging
Gross weight (packaging included) :
25 Kg
Assembly time:
5 minutes
Arriving on 07/04/25
Free Shipping
Estimated delivery: 11/04/2025 - 17/04/2025
€ 1.060,26
Vat included
You're viewing:
Customers also viewed:
Description

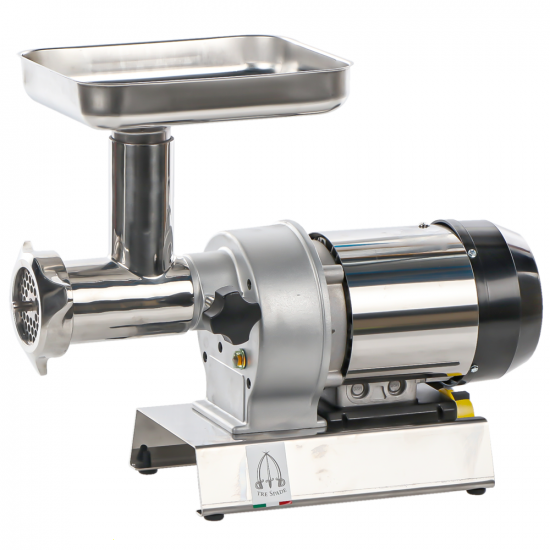

Tre Spade TC-22 INOX - Electric Meat Mincer - 1100W - N.22

The Tre Spade TC-22 Inox meat mincer is mainly made of stainless steel, guaranteeing robustness and durability for components such as the body, propeller, ring nut, hopper and motor housing.

Thanks to the stainless steel, the device not only offers a long service life, but is also easy to clean.

It features a plate and a knife, both made of stainless steel, with a self-sharpening mechanism. Stainless steel is also used in the base to ensure optimal stability.

A distinctive feature of the mincer is the three-position switch that allows the machine to be operated in reverse.

The machine is powered by a single-phase asynchronous induction motor, designed for uninterrupted use, with 220V voltage and 50Hz frequency, offering 1100W equivalent to 1.5 HP.

During operation, the propeller can reach 120 rpm, yielding approximately 280 kg/h.

It features oil-bath steel gears and non-skid rubber feet for added stability.

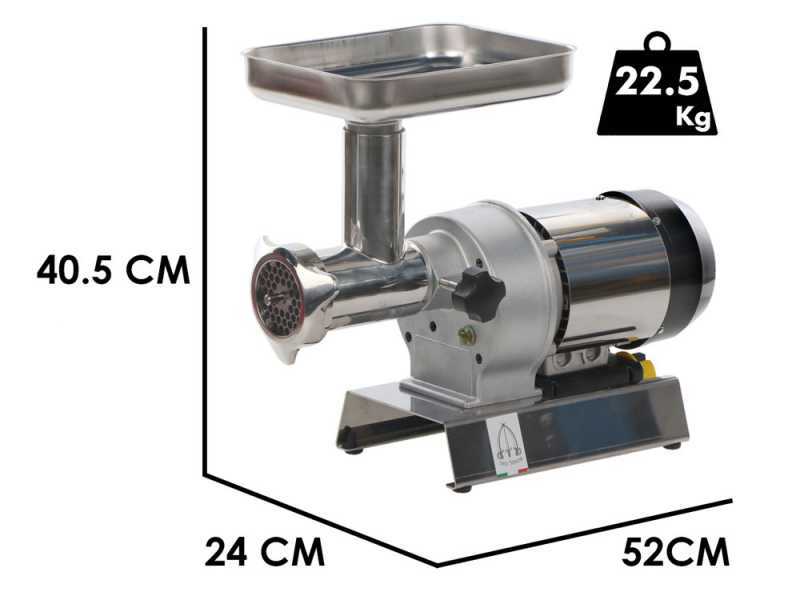

Its easy disassembly facilitates cleaning and maintenance. Weighing 22.5 kg and measuring 24X52X40.5 cm, the mincer combines strength and compactness.

There may be differences in position, colour or shape of the components depending on supply. However, these differences in no way affect the performance or quality of the product.

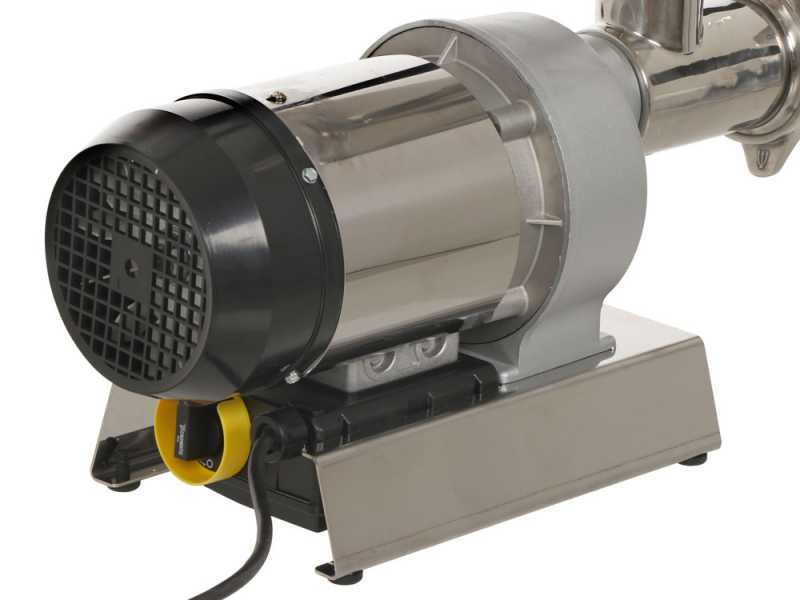

Motor and Transmission - Machine Body

This machine is equipped with a 1100W, 220 V, continuous duty, electric induction motor.

The asynchronous induction motor is one of the most popular electric motors, operating on the principle of electromagnetic induction.

It is called "asynchronous" because the speed of the rotor is not synchronous with that of the stationary magnetic field. These motors are known for their simple design and reliability.

Main Features:

  • Stainless steel body, propeller, ring nut, hopper and motor housing
  • Stainless steel base
  • 220V / 50Hz single-phase asynchronous induction motor approved for uninterrupted use
  • Quick and handy disassembly for easy and quick cleaning
  • Output power: 1100 W (1.5 HP)
  • Propeller revolution: 120 rpm
  • Weight: 22.5 Kg
  • Footprint: 24X52X40.5 cm
  • Non-skid rubber feet
  • Oil-bath steel gears

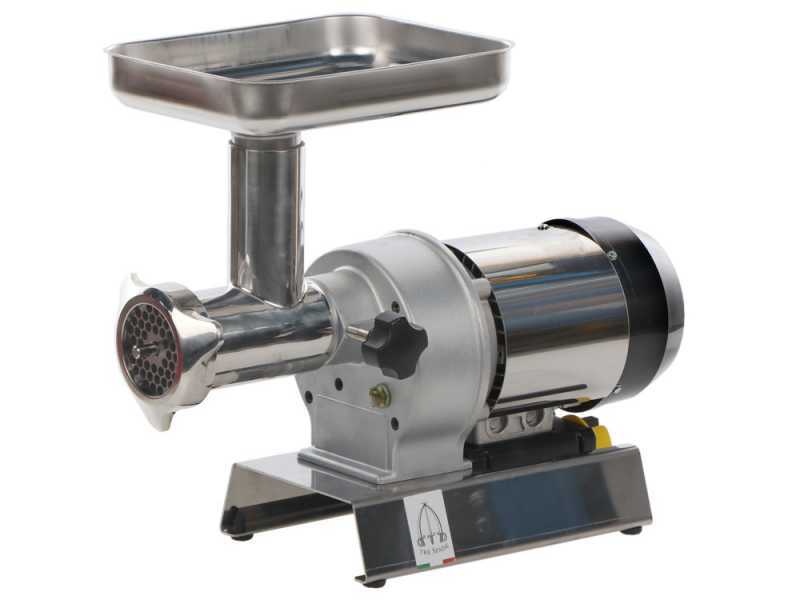

Meat Mincer

The Tre Spade TC-22 INOX meat mincer features a food-grade stainless steel body, propeller and ring nut, while elements such as the pestle are made of food-grade plastic.

The supplied 8 mm hole die is made of hardened steel, as is the self-sharpening knife.

Large stainless steel funnel.

Machine operation is extremely simple and intuitive.

Thanks to the numerous die plates (sold separately) users can grind the meat with different grains.

The meat mincer can be disassembled for an easy cleaning of all its components.

Free items & Standard equipment

Free Items and Standard Equipment

The machine is shipped in its original packaging along with the instructions manual
