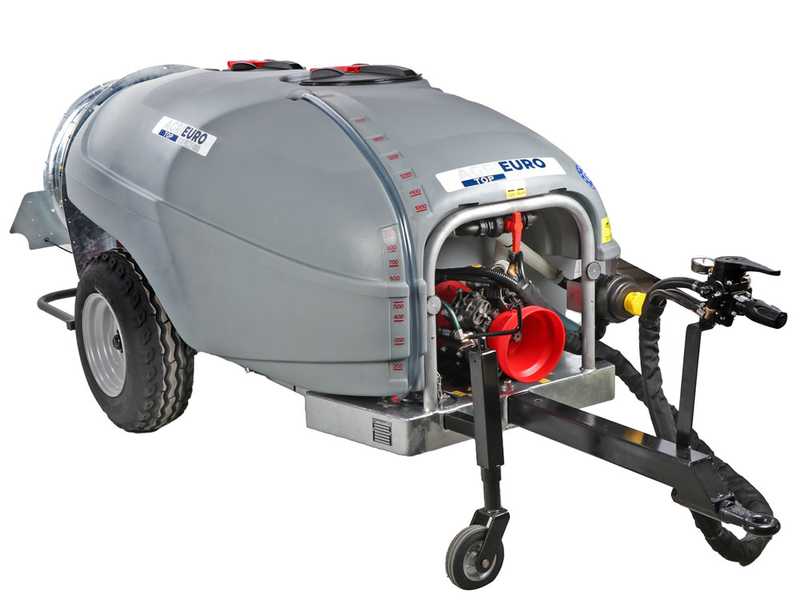

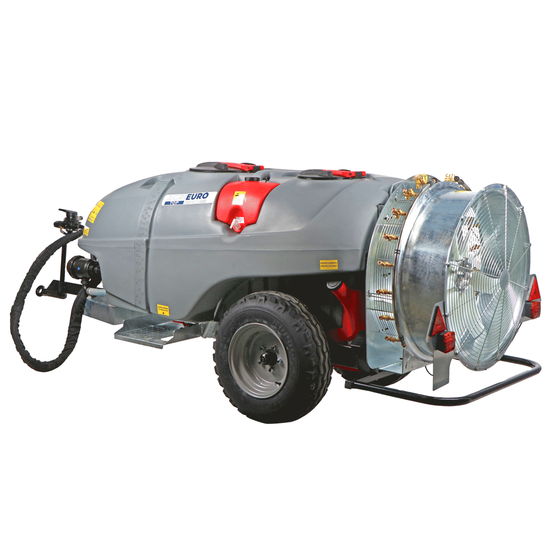

Trailed mist blower Gray T Car 1500/90 with tractor attachment for spraying - Capacity 1500L - Pump AR1203

The Gray T Car 1500/90 Agrieuro Top Line towed atomizer is designed for spraying arboreal crops and vineyards. Thanks to the 1500 litre main tank, it ensures a high operating range, reducing the number of refills. The hot-dip galvanised steel frame guarantees corrosion resistance and long life. The adjustable wheel axle in height and width allows the machine to be adapted to different ground conditions.

The Annovi Reverberi AR 1064 pump is equipped with 3 membranes, with a flow rate of 115.8 L/min and a maximum pressure of 50 bar, ensuring a powerful and constant delivery of the liquid. The single-lever manual control unit allows precise pressure adjustment, while the gearbox with oil-bath gears offers two speeds plus neutral, to optimise performance according to operational needs.

The flow-guided conveyor optimises product distribution, while the hot-dip galvanised steel fan unit with a diameter of 900 mm ensures powerful rear suction. The stainless steel hose rack accommodates 16 double, adjustable brass hose racks, equipped with a drip stop and ceramic plate, ensuring uniform coverage of cultures.

Main features:

• 1500 L tank with integrated hand and system washing
• Annovi Reverberi pump AR 1064 with 4 membranes, 115.8 L/min, 50 bar
• 900 mm fan unit, rear suction
• 16 double brass holders with anti-drip system
• Hot-dip galvanised steel frame, adjustable axle
• Overdrive with two speeds + neutral
• Hydraulic stirrer and suction filter with non-return valve

WARNING: The machine is licensed to travel on urban and extra-urban roads with an unloaded tanker (ONLY IN ITALY)

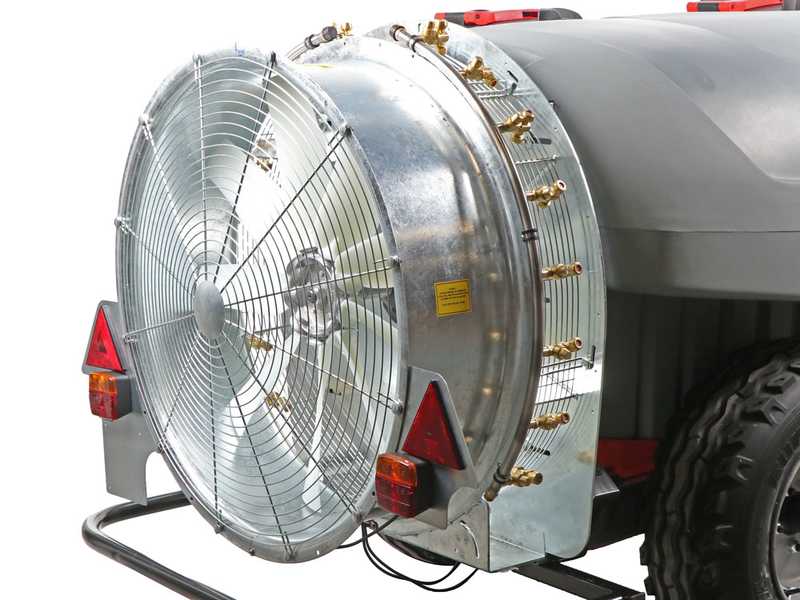

Swedish steel fan unit with hot-dip galvanisation treatment, equipped with oil-bath gearbox.

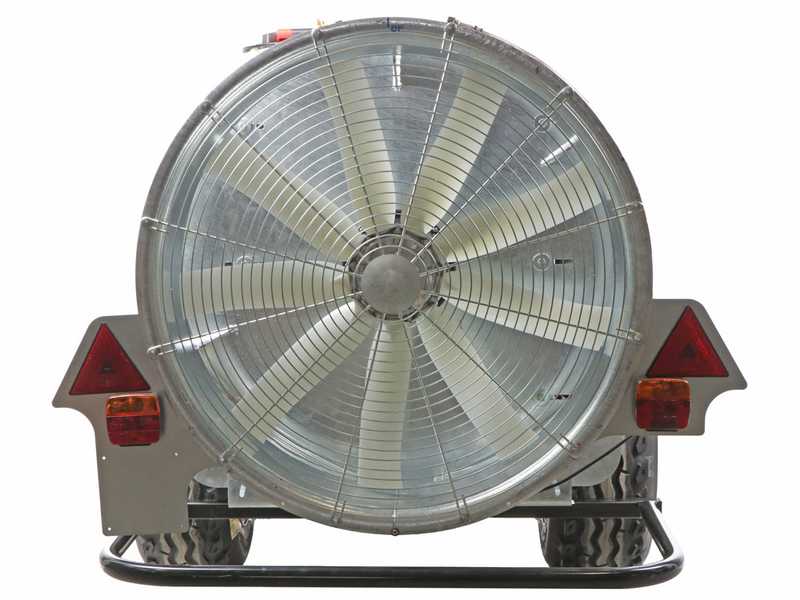

900 mm diameter rear suction axial fan (9 blades).

The fan is the essential element that determines the power of the sprayer, hence it determines the ability to push the atomised product in width and height. The nylon fans guarantee excellent weather resistance.

Thanks to the fan's features, the product can be used in the following fields:

• Citrus groves
• Orchards
• Vineyards
• Greenhouse crops
• Olive grove
• Tall trees
• Berries, blueberries, avocados
• Banana groves

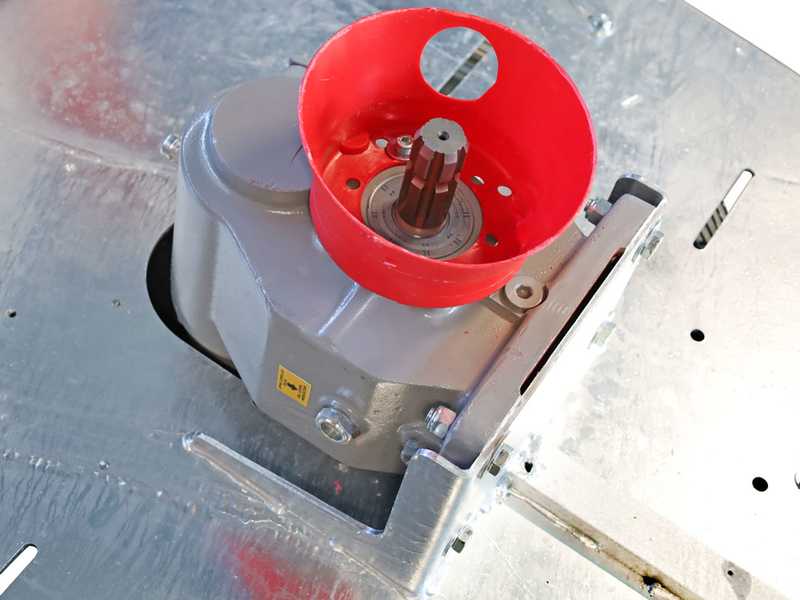

The sprayer's transmission is an oil-bath gearbox for maximum reliability over time.

The gearbox is manufactured in Italy by CMV of Lonigo. (Box made of cast iron)

Made in Italy guarantees excellent construction quality and materials for this component, as well as easy availability of spare parts if needed.

Focus on the fan drive engagement lever with speed 1° and 2° + neutral position.

Fan cardan mount.

Stainless steel spray rods divided into two sectors, a left one with 8 jets and a right one with the other 8 jets.

Double brass spray nozzles with anti-drop and quick-closing system.

Ceramic nozzles 1.0 / 1.2

Provided with three steps that coincide with the positions:

• Nozzle with larger hole (higher liquid delivery)
• Central position = closed jet
• Nozzle with smaller hole (less liquid delivery)

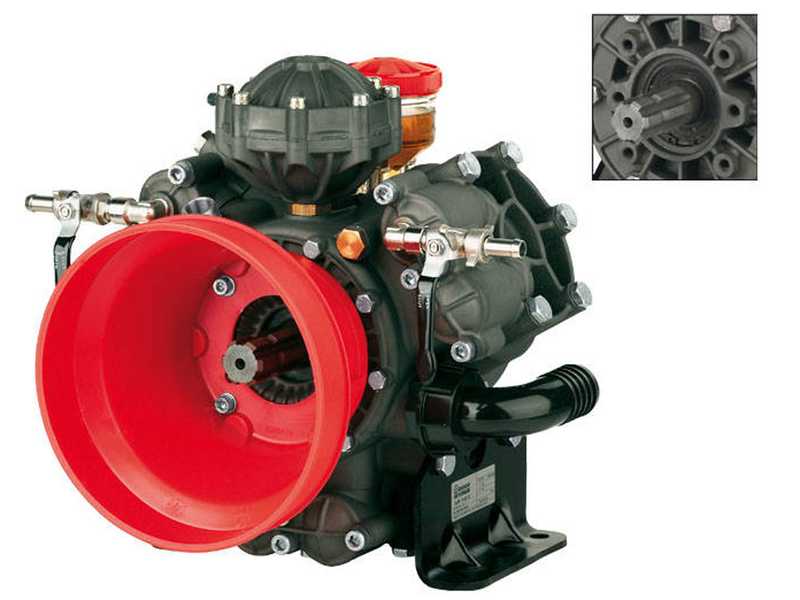

Pump with three semi-hydraulic membranes, ideal for professional use in agriculture, particularly on spraying machines for plant protection treatments in orchards or vineyards, operating at high pressure.

The parts in contact with fluids are made of anodized aluminium and AISI 303/304 stainless steel, ensuring durability and strength. The diaphragms are NBR with NBR rubber seals and the crankcase is mechanically cast in an oil bath, with a clear plastic reservoir for visual checking of the oil level.

The pump is equipped with a hydro-pneumatic damper that ensures smoother operation and reduces pulsation in the delivery circuit. A sensor can be added for remote control and an oil tank remote mounting kit.

Includes an oil drain plug and segment pistons for improved efficiency of the oil cushion system, protecting the diaphragm. The new membrane locking system prevents tearing even under intense stress.

Valves with a spherical sector profile decrease resistance to the passage of liquids, improving volumetric efficiency. Complete with overpressure valve with automatic reset and protection for the cardan shaft. All screws are treated with galvanic zinc plating to resist corrosion. Available with flanges to suit hydraulic motors, hydraulic pumps and gearboxes.

Performance

• N. membrane / pistons: 4
• Flow Rate: 115.8 L/m
• Pressure: 50.0 bar
• Power: 13,6 CV
• RPM: 550
• Weight: 31.2 Kg

Homo kinetic cardan protection.

Pump with double direct output, one of which is dedicated to the internal mixer and another used for other applications

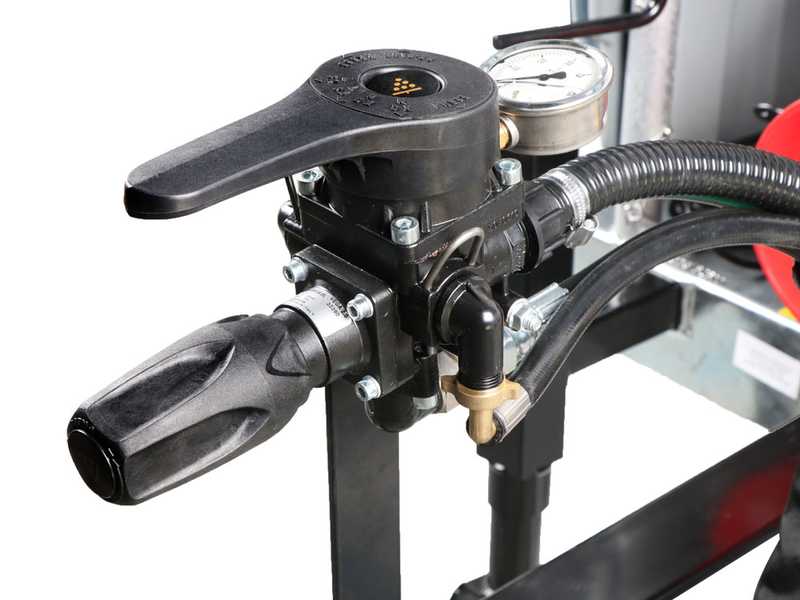

Three-way pressure adjustment unit.

Pressure adjustment knob.

Pressure gauge.

The two side taps supply respectively the right-hand sector of the fan and the left-hand sector.

Control lever for opening or closing pressure.

This means that the two sectors can also be switched on separately, i.e. only the nozzles on the right-hand side or only on the left-hand side (e.g. when you are on the edge of your plot).

Remote control unit equipped with very long cables, which allows the control unit to be brought right up to the tractor.

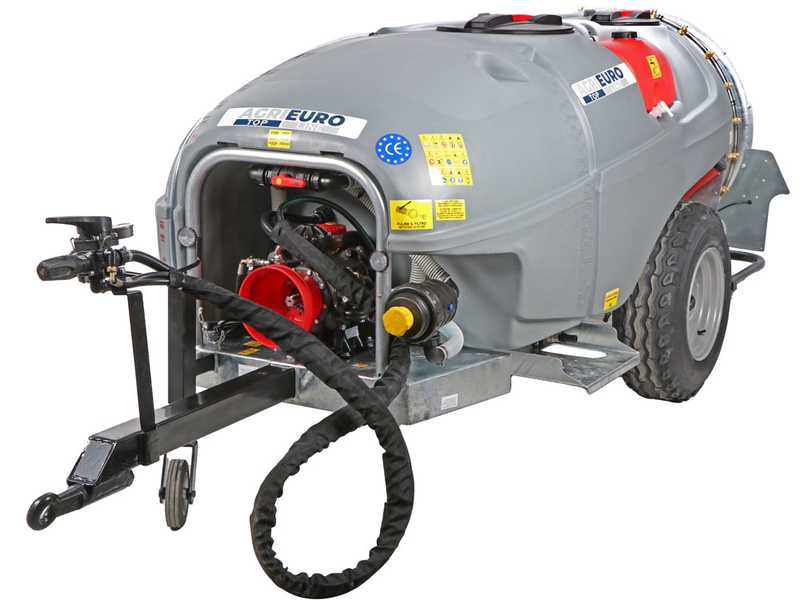

Frame reinforced with Swedish steel with hot-dip galvanisation treatment, which makes it very resistant rust attack over time.

Rear bumper to absorb damage in a collision.

Tow bar with up to 3-stage attachment.

Adjustable axle width for greater machine stability on more uneven terrain.

Focus on the headlights: left and right.

Front lights detail

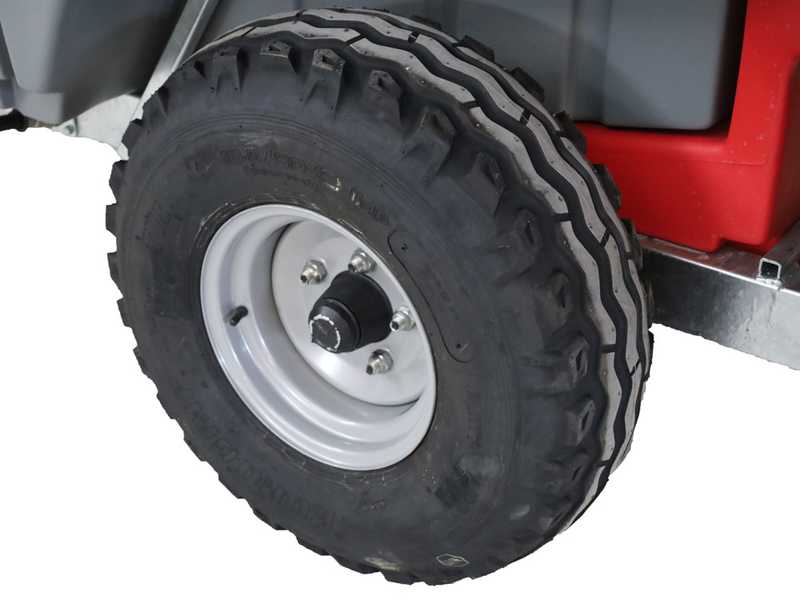

The wheels of the trailed sprayer play a key role in the operation and transport of the equipment.

The wheels mounted on this sprayer ensure maximum grip on the ground in order to cope with rough and uneven terrain typical of agricultural areas.

Tyre model: 10/75 r.15.3

Focus on the wheel stopper.

Wheel holder detail

Support wheel providing stability to the machine (adjustable with the appropriate lever when coupling to the tractor).

Certified full-emptying polyethylene cistern, capacity lt. 1500.

Additional tank for circuit cleaning.

Focus on the lever for total emptying of the bottom tank.

Multi-volume hydraulic mixer, to constantly blend the solution inside the tank, equipped with a high-pressure nozzle that sprays into the centre of the tank.

Equipped with a self-filling system (the hose for self-filling the barrel must be purchased additionally).

Focus on the inlet water filter.

Platform to facilitate the operator's access to the tank.

Machine in accordance with CE standards
