Tornado EMILIA 400/75 - Tractor-mounted weed-killing unit - 400 l tank

Add a question
ID: 3472

EAN: 9993089177057

MPN: EM400/75

Tornado EMILIA 400/75 - Tractor-mounted weed-killing unit - 400 l tank
Tank capacity
400 l
Pressure regulator
Yes
Pump brand
Comet
Flow rate
68 L/min
Max. operating pressure
15 bar
Tool boom
In steel
Circuit washing tank
Yes
Hand washing tank
Yes
Manufacturing country
Italy
Product Features
Model:
EM400/75
Type:
For weeding
Operating mode:
tractor mounted
Frame type:
Hot-dip galvanised steel
Flow rate:
68 L/min
Max. operating pressure:
15 bar
Tank capacity:
400 l
Tank capacity:
400 L
Manufacturing country:
Italy
Pump data
Pump brand:
Comet
Pump brand:
Comet
Model:
BP75
Pump type:
three membranes
Flow rate:
68 lt/min
Operating pressure:
15 bar
Pressure regulator:
Yes
No. of cylinder heads:
2
Manufacturing country:
Italy
Equipment
Equipment:
Optional accessories
Tool boom:
In steel
Internal hydraulic shaker:
Yes
Distributor:
Standard
Circuit washing tank:
Yes
Hand washing tank:
Yes
Removable cartridge filter:
Yes
Free gifts/extra features
High-pressure hose for spray gun:
5 mt
Kit for bracket assembly:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
1200x850x1150 mm
Net weight:
115 Kg
Packaging:
Thermoplastic packaging
Gross weight (packaging included) :
115 Kg
Assembly time:
5 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 03/06/2024 - 05/06/2024
Suggested price:
€ 1.897,23
€ 1.798,26
VAT Included
You're viewing:
Customers also viewed:
Description

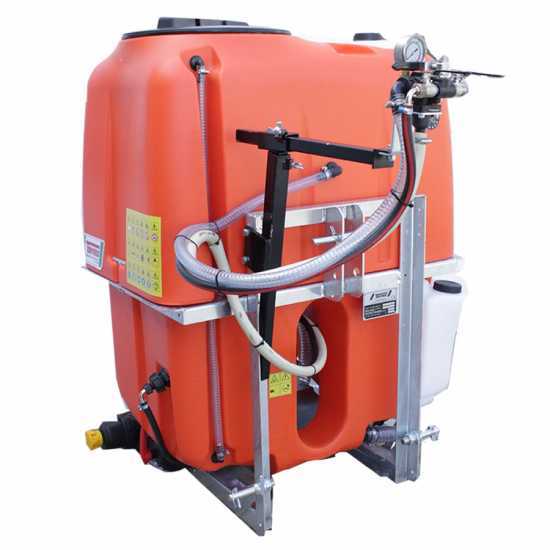

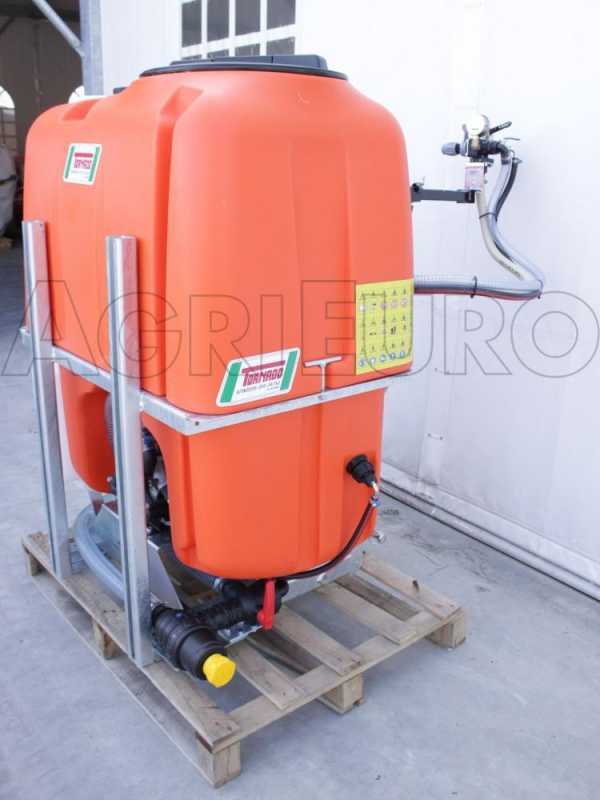

TORNADO Mounted Weed Sprayer - Emilia EM400/75

Mounted weed sprayer for medium and large crops.

Equipped with a modern low pressure BP 75 COMET pump specific for weeding treatments.

Polyethylene full-emptying tank, with a capacity of 400

HEAVY PROFILE hot galvanised steel frame

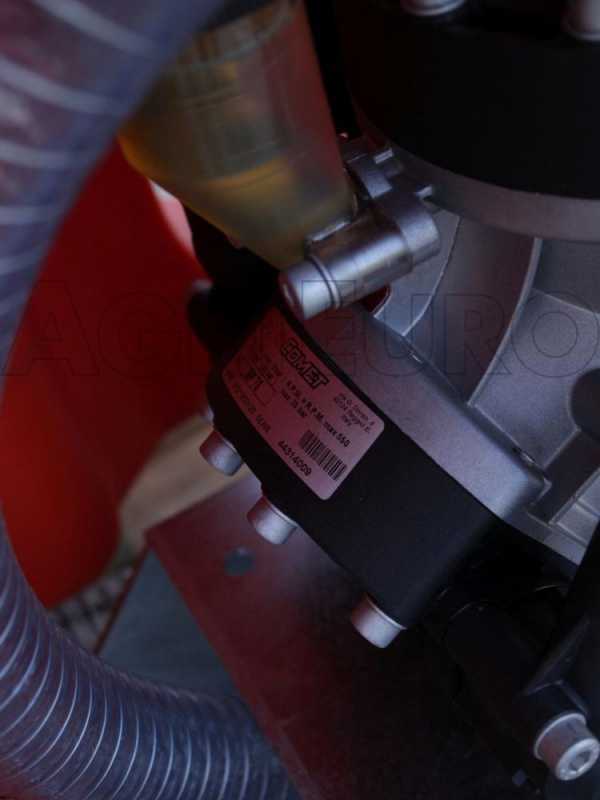

Comet BP 75 Pump

For weeding treatments and liquid fertilization with solutions.

The parts directly touching the liquid are made of plastic and plastic-coated aluminium, resistant to chemicals used in agriculture.

3-membrane Desmopan® configuration

Plastic heads and manifolds (Nylon)

Flow rate: 68.0 l/min
Pressure: 15.0 bar

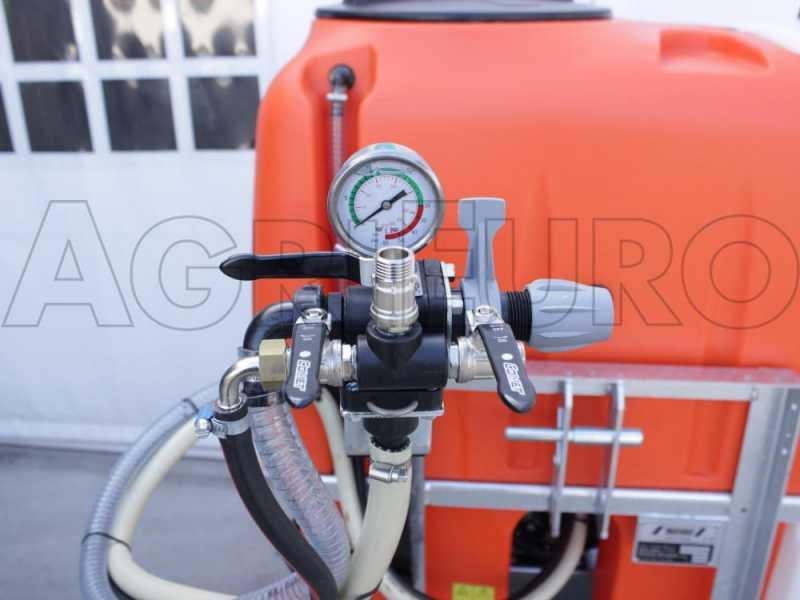

Pressure Regulation Unit

Original Comet production, standard 3-way GCP series.

The left valve is already connected to a black hose which feeds the internal hydraulic agitator system.

Usually, a normal weeding bar with manual opening requires two hoses, one for the right sector and one for the left sector.

Equipped with special telescope arm with double adjustment, both horizontally and vertically.

It allows you to bring the unit closer to the tractor cabin, so you can operate the various controls directly from the driver's seat by simply turning around, without getting off the tractor.

Upward additional outlet which allows you to use a manual lever lance.

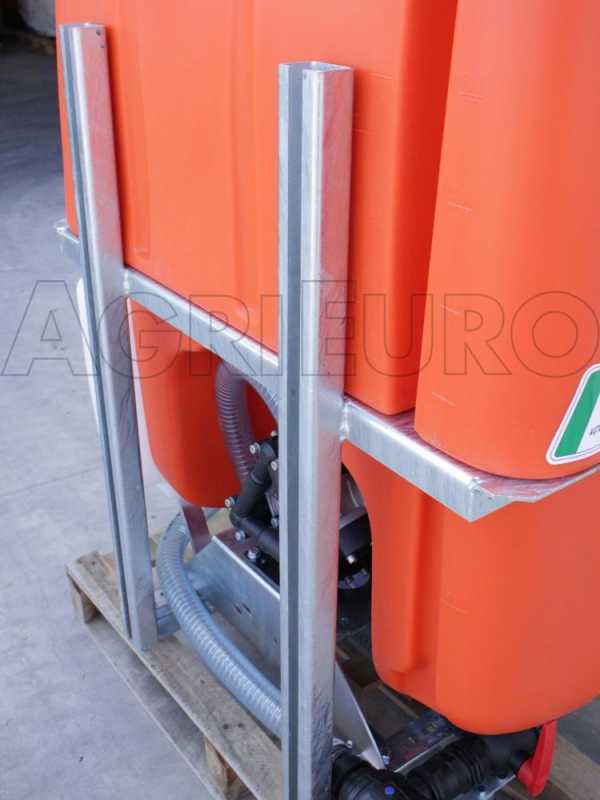

Galvanised Steel Frame

HEAVY PROFILE hot galvanised steel frame + three-point tractor linkage complete with pins.

This weeding tank is equipped with two special vertical bars specifically designed for the application of any spraying device on the market, also allowing height adjustment in the desired position.

General Features

Polyethylene full-emptying tank, capacity (L) 400.

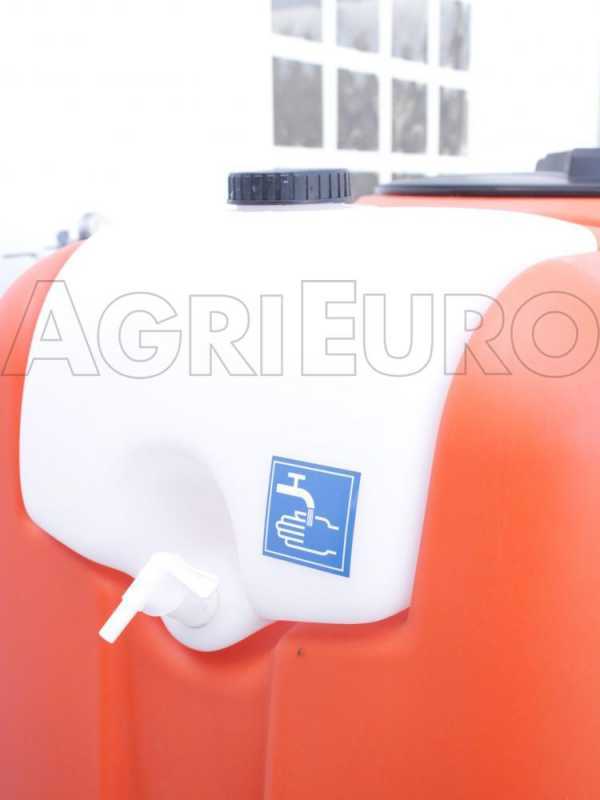

Additional tank for hand washing

Circuit-washing tank (to wash the inside of the tank, hoses and all the equipment at the end of the treatment, before storage). To activate it, simply open the tap in the cartridge filter.

Focus on the external level with graduated scale.

Hydraulic agitator, to constantly mix the solution within the tank. It has a high-pressure jet in the centre of the tank.

External suction filter equipped with self-filling system (the hose to fill the tank must be purchased separately, you can find it in the related accessories section).

Internal filter to clean the liquid from any possible residue or dirt during the tank filling phase.

Free items & Standard equipment

Free Items Included

Large metal filter

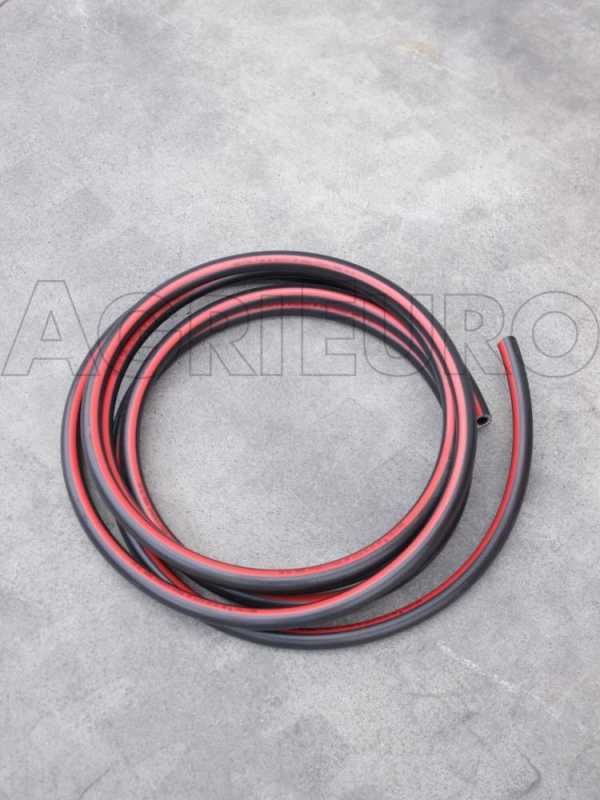

5 m rubber hose, largely sufficient to connect any additional accessory (hose reel, bars, etc.). It must connect the outlets of the pressure regulation unit and the tools; it can be divided into several parts according to the number of tools you need to connect.

Accessories: black fitting to be applied on the lower external filter to activate the self-filling function + various fittings for the pressure regulation unit + valve for the hand washing tank.
