Top Line DM 50 - Tractor mounted potato digger - Oscillating sieve

Add a question
ID: 112849

EAN: 8033424493945

MPN: DM 50

Top Line DM 50 - Tractor mounted potato digger - Oscillating sieve
Discharge mode
Rear discharge
Sturdiness/Series
Light
Weight
140 Kg
Tractor power
15 to 35 HP
Working width
50 cm
Manufacturing country
Italy
Product Features
Model:
DM 50
Tractor power:
15 to 35 HP
Sturdiness/Series:
Light
Fixed 3-point hitch:
Yes
Min. power:
12 Hp
Max. power:
30 HP
Discharge mode:
Rear discharge
Manufacturing country:
Italy
Cutting data
Working width:
50 cm
Equipment
Three-point-hitch:
1° category
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

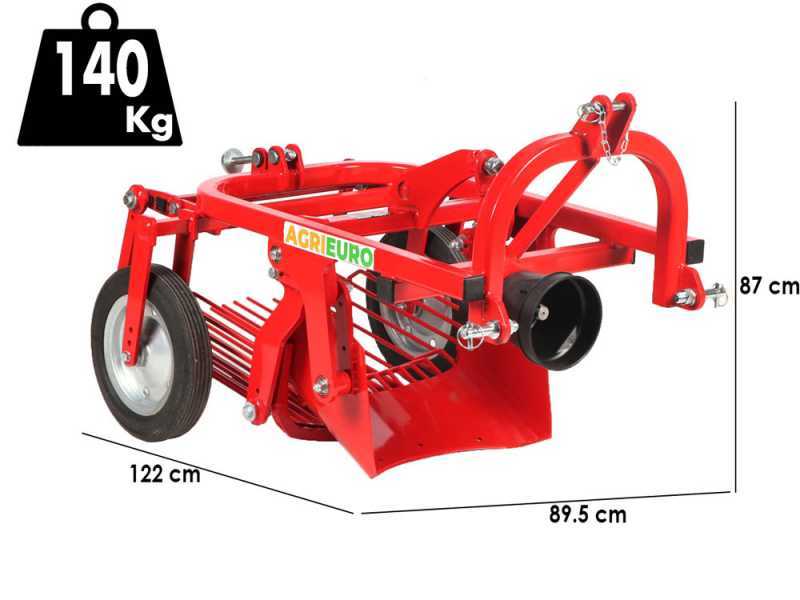

Product dimensions in cm (L x W x H):
122x89.5x87 cm
Net weight:
140 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
123x90x88 cm
Gross weight (packaging included) :
150 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
10 - 12 days from purchase
Free Shipping
€ 1.459,60
VAT Included
You're viewing:
Customers also viewed:
Description

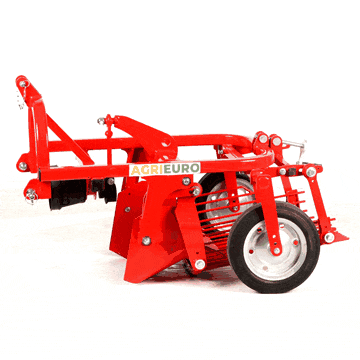

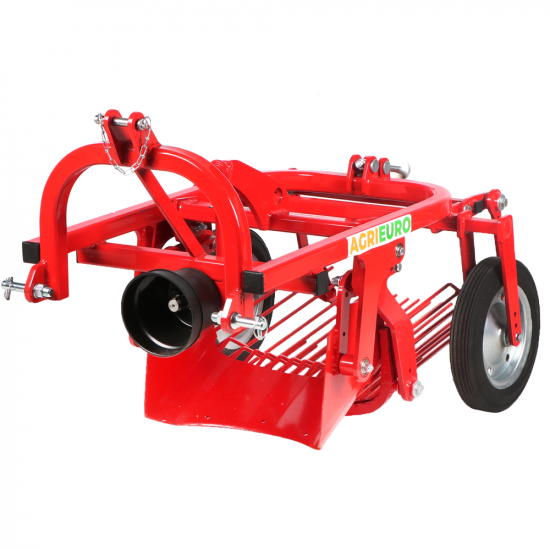

Potato digger for tractor Top Line DM 50

The new DM 50 potato harvester from the Agrieuro Top Line series with rear discharge system is designed to be integrated on tractors equipped with a three-point suspension system in the 1° category.

This machinery is characterised by a vibrating ploughshare, whose main task is to lift the soil and potatoes.

The digging depth of the ploughshare is adjustable and is determined through the use of support wheels located at the rear of the machine. This feature allows precise adaptation to different soil conditions and specific harvesting needs.

In addition, the sieving intensity can be modulated by adjusting the inclination of the hopper, thus allowing effective separation of the potatoes from the soil.

The machine's vibrating components are operated by a crank mechanism, which is driven by the tractor’s PTO shaft. This system ensures a constant and reliable transmission of movement, which is indispensable for the proper functioning of the entire device.

The compact dimensions of the DM 50 make it particularly suitable for use in small plots of land, both in flat and hilly areas, offering flexibility and versatility of use.

A tractor power of between 12 and 30 HP is required for optimal operation of this machine, making it accessible even to owners of small and medium-sized tractors.

Technical specifications

Potato digger technical features:

  • Total width: 90 cm
  • Operating width: 50 cm
  • Required tractor power: from 15 to 35 HP
  • Weight: 140 Kg
  • Adjustable working height;

Sieves and transmission

PTO shaft drive with protection.

Connecting rod for sieve vibration

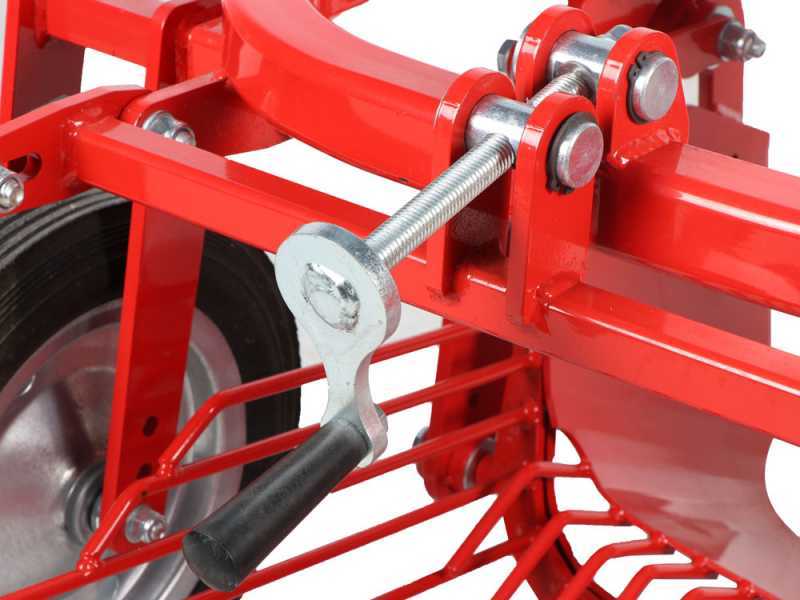

Ploughshare depth adjustment by hand crank.

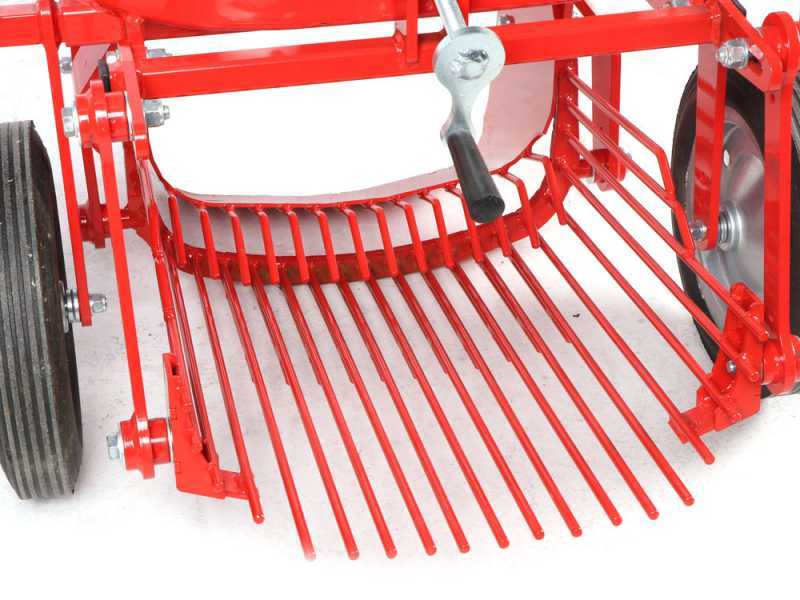

Vibrating sieves with elastic oscillating movement.

Rear discharge

Wheels for adjustable working depth.

Category I 3-point hitch.

Free items & Standard equipment

Equipment

The product is delivered in its original cage with Cardan shaft included.
