Top Line DM 100 - Potato digger with side discharge for tractor - Oscillating sieve

Add a question
ID: 112847

EAN: 8033424493952

MPN: DM 100

Top Line DM 100 - Potato digger with side discharge for tractor - Oscillating sieve
Discharge mode
Side discharge
Sturdiness/Series
Medium
Weight
294 Kg
Tractor power
30 to 60 HP
Working width
60 cm
Manufacturing country
Italy
Product Features
Model:
DM 100
Tractor power:
30 to 60 HP
Sturdiness/Series:
Medium
Fixed 3-point hitch:
Yes
Min. power:
30 Hp
Max. power:
60 HP
Discharge mode:
Side discharge
Manufacturing country:
Italy
Cutting data
Working width:
60 cm
Equipment
Three-point-hitch:
1° category
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

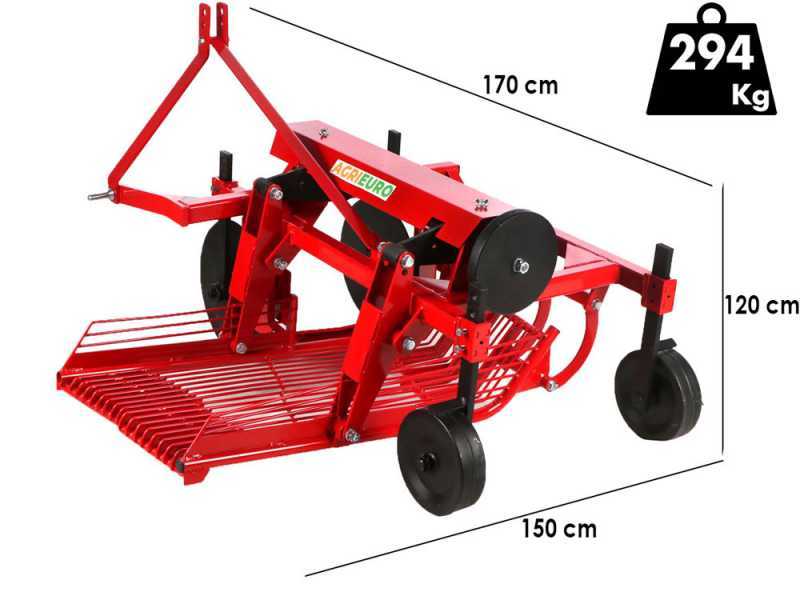

Product dimensions in cm (L x W x H):
170x150x120 cm
Net weight:
294 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
170x80x150
Gross weight (packaging included) :
314 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
5 minutes
Out of stock
Free Shipping
€ 2.481,73
VAT Included
You're viewing:
Customers also viewed:
Description

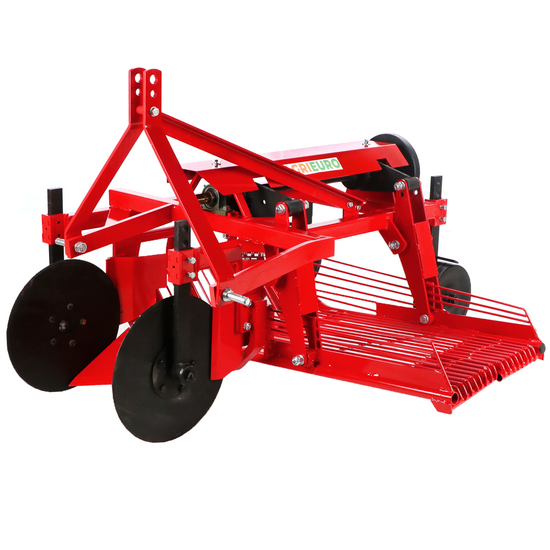

Potato digger with side discharge Top Line DM 100

The Agrieuro Top Line DM 100 potato digger with side discharge is a good and efficient solution for extracting potatoes, beets, carrots and other root crops.

This implement is ideal for use in small plantations, on soils of medium lightness and without the presence of stones or plant residues.

The machine is equipped with a Category 1 three-point hitch, which ensures a stable and secure connection to the tractor.

The flywheel, made of durable steel, helps optimise power transmission, while the three interchangeable ploughshares offer versatility and adaptability to different ground conditions.

The machine is also equipped with oscillating sieves, which facilitate the separation of soil from crops during the harvesting process.

Steel discs for adjusting the working depth make it possible to customise the operation according to specific crop and soil requirements, improving harvesting efficiency.

During operation, two disc coulters dissect the plants, while a double cutting component cuts into the soil ridge at the base, transferring the material to the oscillating sieves.

These, moving in opposite directions, remove the soil and carefully arrange the vegetables in neat rows along the machine This configuration ensures constant performance and significantly facilitates vegetable harvesting, minimising the risk of product damage.

Technical features

Potato digger technical features:

  • Total width: 155 cm
  • Operating width: 56 cm
  • Weight: 245 Kg
  • Power requirement: from 30 to 50 HP
  • Replaceable ploughshare.
  • Adjustable working height

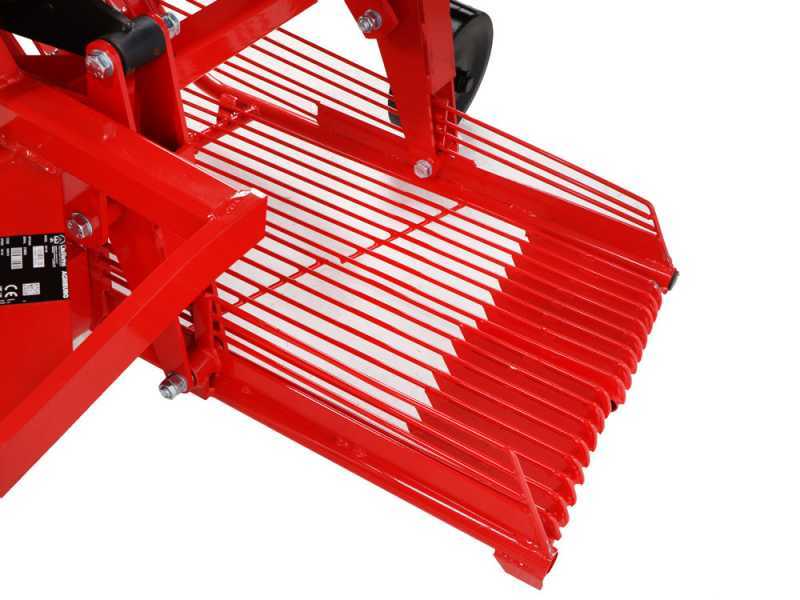

Sieves and transmission

PTO shaft drive with protection.

Ploughshare depth adjustment depending on wheel adjustment and the two front discs.

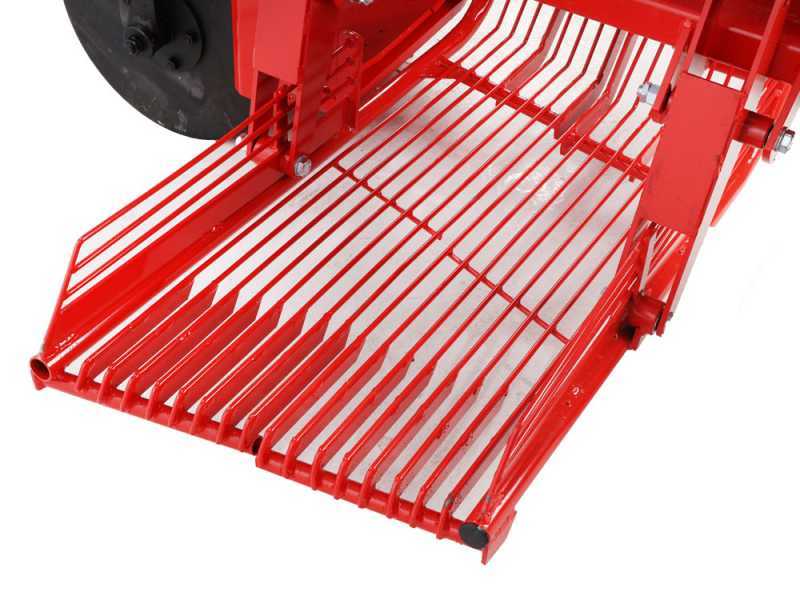

Vibrating sieves with elastic oscillating movement.

Detail of the wheels with adjustability

Category 1ª three-point hitch.

Free items & Standard equipment

Standard equipment

The potato digger is shipped on a pallet with instruction booklet and Cardan shaft
