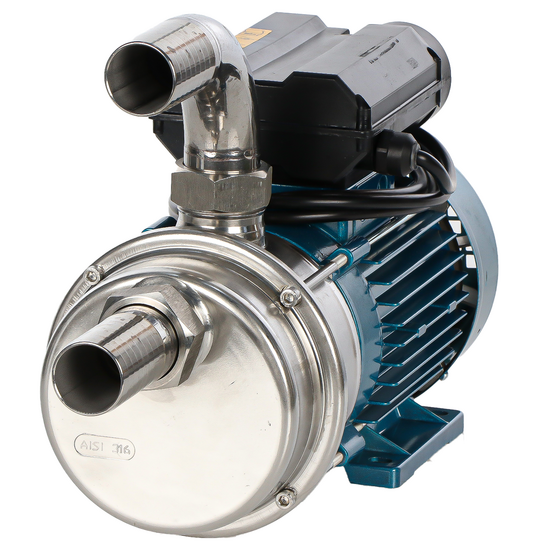

Tellarini ALT 40 - Stainless steel electric oil transfer pump - Straight + curved stainless steel connector - Three-phase - 400V - Choose your connectors!

Add a question
ID: K609424

EAN: N/A

MPN: N/A

Tellarini ALT 40 - Stainless steel electric oil transfer pump - Straight + curved stainless steel connector - Three-phase - 400V - Choose your connectors!
Available versions
Technical data
Use for wine
yes
Use For Oil
yes
Use For beer
yes
Use for water
yes
Use For diesel
yes
yes
Flow rate
138 L/min
Engine speed
1400 RPM
Motor type
Electric three-phase
Nominal power
1.2 HP
Pump material
Stainless steel
Fittings diameter
40 mm
Maximum draught
6 m
Max. head lift
16 m
Manufacturing country
Italy
Product Features
Model
ALT 40
Use for wine
yes
Use For Oil
yes
Use For beer
yes
Use for water
yes
Use For diesel
yes
yes
Type
autoadescante
Operating mode
Electric 400V
Rotation
Double direction
Flow rate
138 L/min
Manufacturing country
Italy
Motor data
Motor type
Electric three-phase
Nominal power
1.2 HP
Motor speed
1400 RPM
Protection rating
IPX4
Manufacturing country
Italy
Pump data
Pump material
Stainless steel
Engine speed
1400 RPM
Fittings diameter
40 mm
Flow rate
138 L/min
Max. head lift
16 m
Maximum draught
6 m
Manufacturing country
Italy
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics

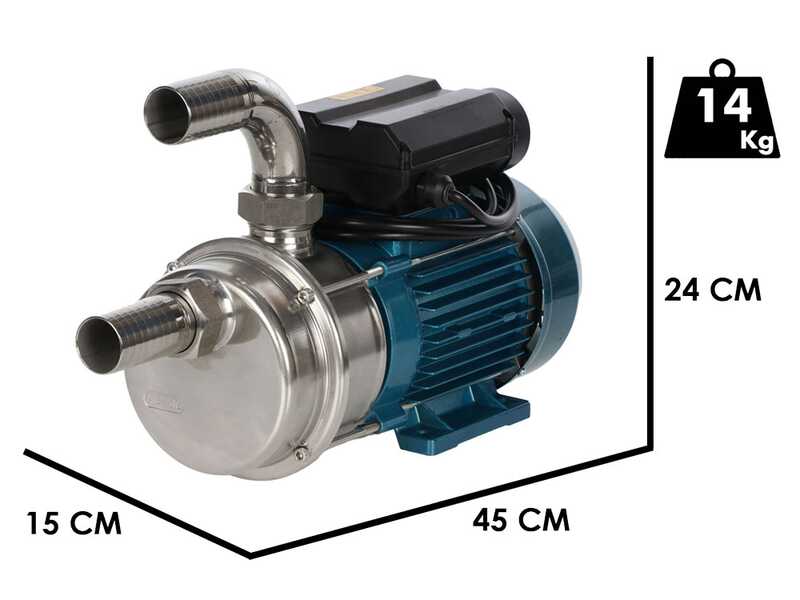

Product dimensions in cm (L x W x H)
45x15x24 cm
Net weight
14 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
48x34x26
Weight including packaging
15 Kg
Arriving on 19/11/25
Free Shipping
Estimated delivery: 27/11/2025 - 01/12/2025
€ 691,98
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

General Features

The ALT Series offers an ideal solution for suction and transfer of liquids, thanks to its excellent self-priming capacity and the ability to operate even when the suction flow is discontinuous.

Made entirely of AISI 316 stainless steel, these pumps are extremely resistant to corrosion and suitable for food-grade contact, making them the perfect choice for applications that require high standards of hygiene and safety. The oversized three-phase asynchronous motors guarantee reliable performance even under intense working conditions, while the long-lasting rotary switches ensure smooth operation over time.

Before each use, it is essential to assess the compatibility of the pump and select the seals best suited to the specific application requirements.

Thanks to their characteristics, the ALT Series pumps are used in numerous sectors:

  • Wine-making: ideal for transferring wine and must, preserving product quality.
  • Food industry: suitable for processing oil, vinegar, brine, fruit juices, beer wort and milk, ensuring maximum safety and hygiene.
  • Chemical industry: high performance in the transfer of aggressive liquids, thanks to the resistance offered by AISI 316 stainless steel.
  • Brewing process: ideal for transferring must, beer and for washing operations, preserving the integrity of the product.
  • Professional use: suitable for heavy-duty and continuous use, including installation on industrial systems.
  • Industrial sector: perfect for production lines, machines and plants, where reliability and durability are essential.

In each of these areas, the ALT Series stands out for its robustness, reliability and ability to maintain high performance even in difficult operating conditions.

Technical Specifications and Details

This pump offers a maximum flow rate of 138 litres per minute and a maximum head of 16 metres, making it ideal for a wide range of liquid transfer applications. The shaft seal is guaranteed by a mechanical seal, which ensures reliability and long life. With a maximum suction height of 6 metres, the pump can also be installed in conditions with significant height differences.

The 1"1/2 threaded ports allow for easy connection to pipes. This pump is designed to handle liquids with a maximum density of 1.1 g/cm³, provided they are free of hard suspended particles, such as sand. The maximum operating temperature is 90°C, but special seals can be requested to allow operation up to 130°C.

A notable feature is the possibility of reversing the pumping flow, offering greater flexibility in installation and use. The pump is designed to operate with the impeller locked on the shaft and can operate for short periods with the pipes closed, ensuring safety in case of emergency.

During installation, the pump must be filled with liquid initially; subsequently, this operation will no longer be necessary, simplifying maintenance and daily use of the pump.

Material

  • Pump body: AISI 316
  • Shaft: AISI 316

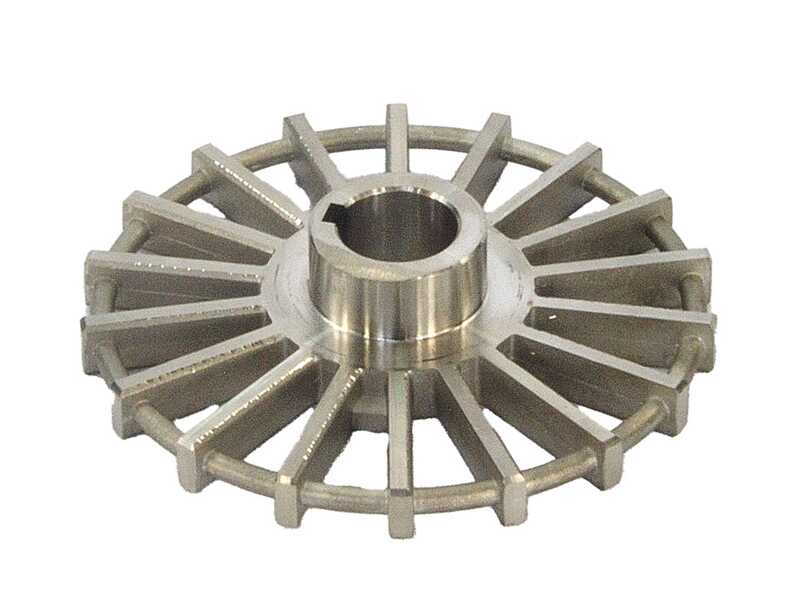

  • Impeller: AISI 316
  • Seals: NBR
  • Mechanical seal: Ceramic/Graphite/NBR

MOTOR

  • Powered by a single-phase 400V 50Hz asynchronous motor
  • Equipped with MEC 71 motor at 1,400 rpm, 1.2 HP/1.5 kW
  • Protective rating IP X4
  • Insulation class F
  • Power connection via cable with 2m Schuko plug
  • Start-up and reversal of pumping flow via switch inverter
  • Maximum flow rate: 138 L/min
  • Maximum head: 16 m
  • Shaft seal: mechanical seal
  • Maximum priming height: 6 m
  • Threaded ports: 1"1/2

Types of suitable liquids

Transfer pumps are designed to make it quick and easy to move different liquids from one container to another. They are practical tools that can be used at home, in the cellar or in agriculture, saving time and effort in everyday tasks.

This model is suitable for transferring food and corrosive liquids, even in professional environments and for installation on production lines and systems:

  • Wine, must
  • Oil, vinegar, brine, fruit juices, milk
  • Beer wort, beer and washing solutions
  • Olive oil and seed oils
  • Industrial and professional uses
  • Aggressive liquids
Free items & Standard equipment

Free items included

The product will be shipped in its original packaging, including:

Instruction manual

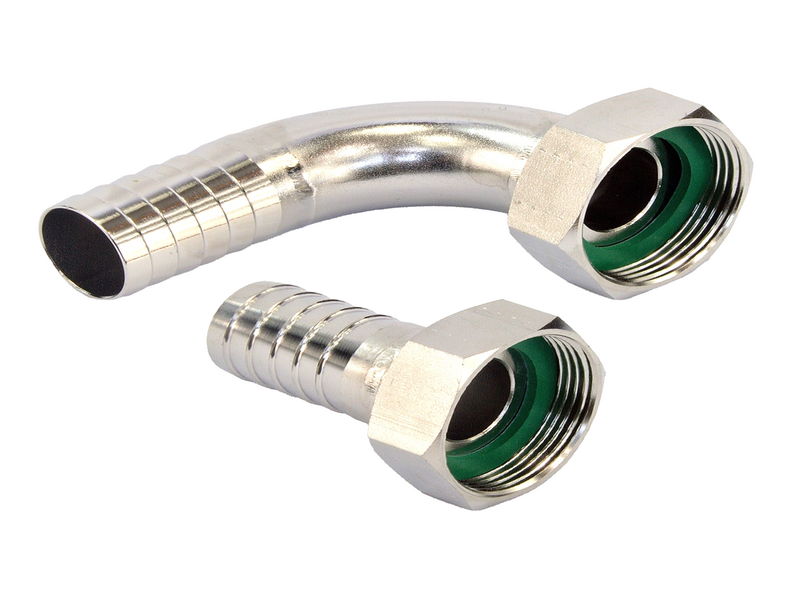

2 stainless steel connectors
