Tellarini ALT 30L - Electric Stainless Steel Oil Transfer Pump - STAINLESS STEEL Straight + Curved Fittings

Add a question
ID: K609402

EAN: N/A

MPN: N/A

Tellarini ALT 30L - Electric Stainless Steel Oil Transfer Pump - STAINLESS STEEL Straight + Curved Fittings
Operating mode
Electric 230 V
Flow rate
92 L/min
Motor type
Induction
Nominal power
1.2 HP
Pump material
Stainless steel
Max. head lift
10 m
Max. suction height
6 m
Manufacturing country
Italy
Product Features
Model:
ALM 30L
Type:
Self-priming
Body material:
Anti-oxidant Alloy
Operating mode:
Electric - 220 V
Operating mode:
Electric 230 V
Rotation:
Double direction
Flow rate:
92 L/min
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
1.2 HP
Motor speed:
1400 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump material:
Stainless steel
Flow rate:
92 L/min
Max. head lift:
10 m
Max. suction height:
6 m
Manufacturing country:
Italy
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

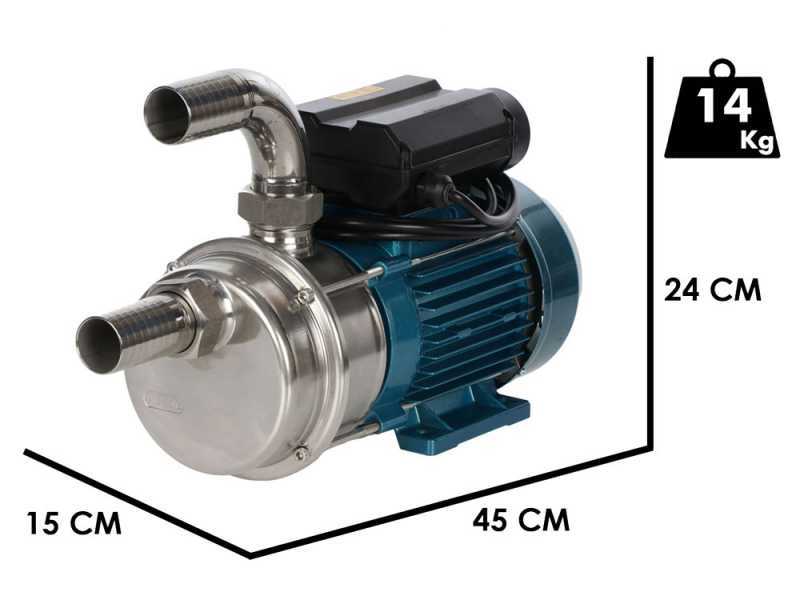

Product dimensions in cm (L x W x H):
45x15x24 cm
Net weight:
14 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
48x34x26
Weight including packaging:
15 Kg
Out of stock
Free Shipping
€ 629,03
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

General Features

The ALM Series offers an ideal solution for liquid suction and transfer, thanks to its excellent self-priming capacity and the possibility to operate even when the suction flow is discontinuous

Made entirely of AISI 316 stainless steel, these pumps are extremely corrosion-resistant and suitable for food contact, making them the perfect choice for applications requiring high standards of hygiene and safety. Oversized single-phase asynchronous motors ensure reliable performance even under intense working conditions, while long-lasting rotary switches ensure smooth operation over time.

Before each use, it is essential to assess the compatibility of the pump and select the most suitable seals for the specific application requirements.

Thanks to their features, ALM Series pumps are used in many industries:

  • Oenology: excellent for wine and grape must transfer, preserving product quality.
  • Food industry: suitable for the processing of oil, vinegar, brine, fruit juices, wort and milk, guaranteeing maximum safety and hygiene.
  • Chemical industry: good performance in transferring aggressive liquids, thanks to the durability provided by AISI 316 stainless steel.
  • Brewing process: ideal for transferring wort, beer as well as for washing operations, preserving the integrity of the product.
  • Oil industry: specifically for handling olive and vegetable oil, ensuring a gentle and contamination-free transfer.
  • Professional use: suitable for heavy and continuous use, including deployment on industrial installations.

For each of these applications, the ALM Series stands out for its robustness, reliability and ability to maintain high performance even under demanding operating conditions.

Technical Specifications and Details

This pump offers a maximum flow rate of 92 litres per minute and a maximum head of 10 meters, making it ideal for multiple liquid transfer applications. The shaft seal is guaranteed by a mechanical seal, which ensures reliability and long service life. With a maximum priming height of 6 metres, the pump can also be installed in situations with considerable height differences.

The 1''1/2 threaded spouts allow easy connection to pipes. This pump is designed to handle liquids with a maximum density of 1.1 g/cm3, as long as they do not contain any hard particles in suspension, such as sand. The maximum operating temperature is 90°C, but special seals can be required to allow operation up to 130°C.

It is important to remember that this pump is not suitable for aggressive liquids that could damage the building materials or seals, as specified in the technical specifications. Furthermore, it is not suitable for the transfer of petrol, solvents or for use in environments with explosion and fire hazards.

A remarkable feature is the possibility of reversing the pumping flow, offering greater flexibility in installation and use. The pump is designed to operate with the impeller locked to the shaft and can operate for short periods with the pipes closed, ensuring safety in case of emergency.

During installation, it is necessary to initially fill the pump with liquid; afterwards, this operation will no longer be necessary, simplifying maintenance and daily use of the pump.

Material

  • Pump body: AISI 316
  • Shaft: AISI 316

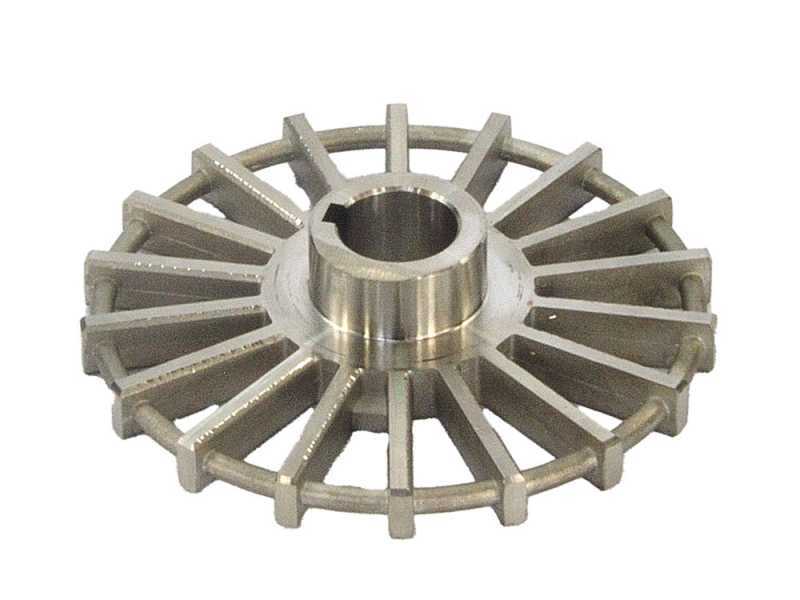

  • Impeller: AISI 316
  • Seals: NBR
  • Mechanical seal: Ceramic/Graphite/NBR

ENGINE

  • Powered by a 230V 50Hz single phase asynchronous motor
  • Equipped with 1.2 HP/0.9 KW MEC 71 motor at 1,400 rpm
  • Protection class IP X4
  • Insulation class F
  • Power connection via cable with 2m Schuko plug
  • Switching on and reversing pumping flow via switch inverter
  • Maximum flow rate: 92 L/ min
  • Maximum head: 10 m
  • Shaft seal: mechanical seal
  • Maximum priming height: 6 m
  • Threaded spouts: 1" 1/2
Free items & Standard equipment

Standard Equipment

The product is shipped in its original packaging, together with:

Instruction manual

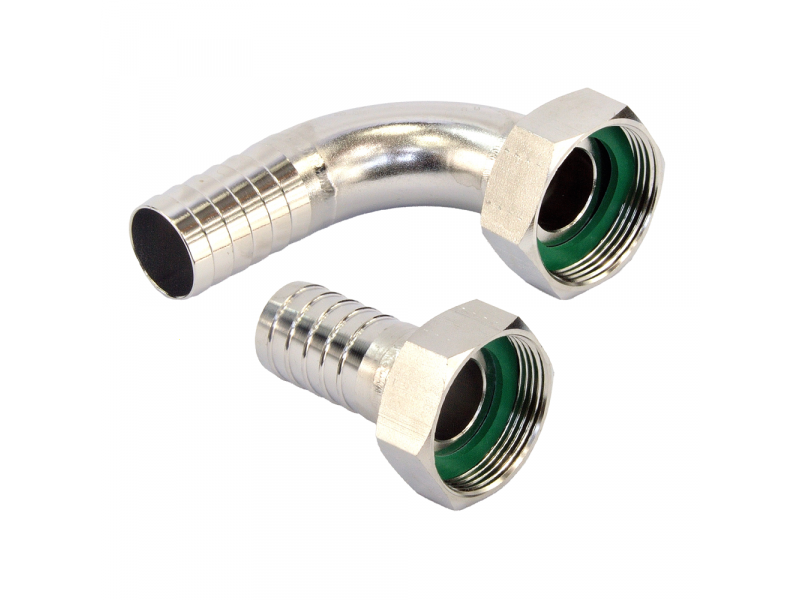

2x STAINLESS STEEL fittings
