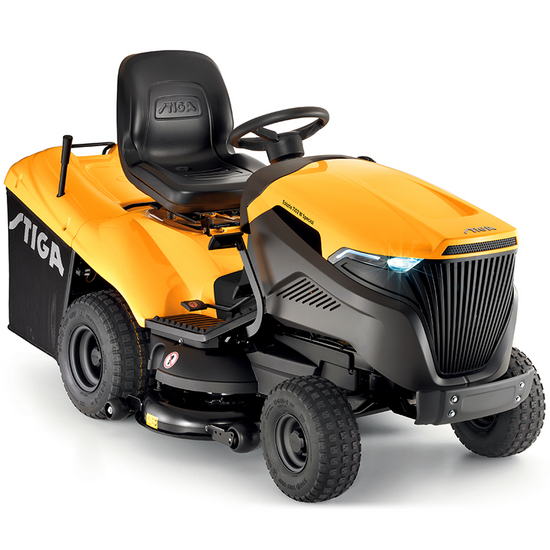

Stiga Estate 7102 W Special - Lawn tractor - Honda GXV 630 engine

The Stiga Estate 7102 W Special petrol lawn tractor is a powerful and reliable machine designed to guarantee excellent cutting results on large areas of grass.

Equipped with a 688 cc Honda GXV 630 twin-cylinder engine, it delivers high performance with powerful torque, reduced vibration and optimised fuel consumption. The robust construction with cast-iron front axle and reinforced 102 cm double-bladed cutting deck increases its durability and efficiency.

Thanks to the pedal-operated hydrostatic transmission, driving is smooth and intuitive, without jerks or interruptions. The 300-litre collection system allows you to work for a long time without frequent emptying, while the mulching kit allows you to distribute the shredded material directly on the lawn as natural fertiliser.

The digital dashboard with 6 LED indicators offers clear and immediate control over the machine's status, improving safety and operational management.

The Stiga Estate 7102 W Special lawn tractor is suitable for those who need a precise and even cut on large grounds. The wide cutting width and height adjustment allow it to be adapted to different needs, guaranteeing a lawn that is always well cared for. The included tow hitch expands the possibilities of use, making it versatile for gardening and maintenance.

Main features:

• Honda GXV 630 engine: 688 cc twin-cylinder engine with low fuel consumption and low vibration.
• Hydrostatic transmission: Smooth speed adjustment via foot pedal for precise control.
• Collection and mulching system: 300L bag for long working intervals, with mulching option.
• Digital dashboard with LEDs: 6 gauges to monitor machine status in real time.
• Robust construction: Cast iron front axle and 102 cm reinforced cutting deck.

Combining power, comfort and reliability, the Stiga Estate 7102 W Special tractor is an ideal choice for those looking for an efficient and long-lasting lawn care product.

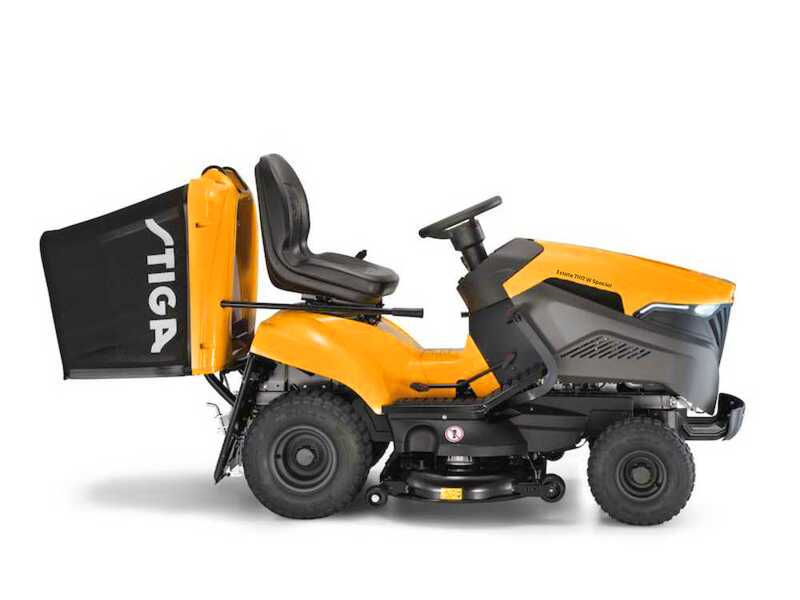

1- GRASS COLLECTION SYSTEM (on standard equipment):

Brand new capacious grass collection basket, with a capacity of no less than 300 L , among the largest in its class.

Easy grass collector emptying system: is done through a very effective system, by levering the pull-out handle. Thus, it will be possible to empty the grass collector at any time while working, without any effort.

The bag can be disassembled in an instant: simply lift it upwards to remove it from its 'bridge' housing where it is housed

2- MULCHING (on standard equipment):

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week. Converting the machine from a cutting system to the other one is very easy.

Conversion: remove the collection bag and insert the mulching plug in the centre tunnel.

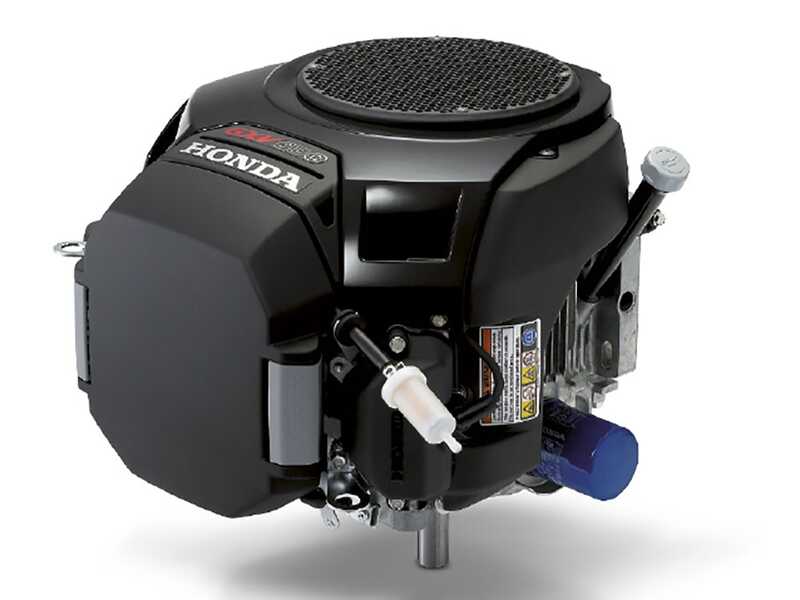

This Stiga lawn tractor is fitted with the Honda GXV 630 Twin-cylinder engine, a 688 cc displacement engine that develops a rated power of 16,23 Hp at 2500 rpm.

The Honda GXV 630 engine is powerful, reliable and generates low noise and emissions.

It has a tank of no less than 8 litres!

Features:

Nominal Power: 21 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 16,23 Hp (at 2500 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

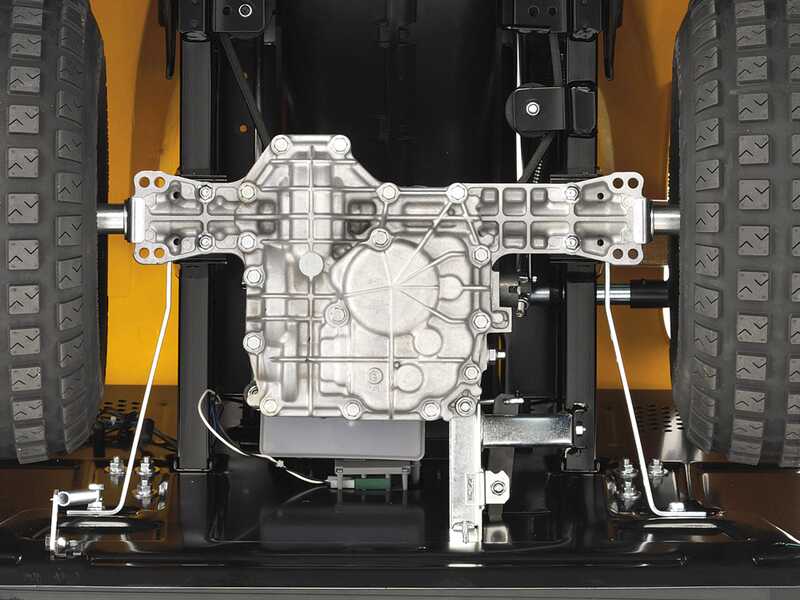

Thanks to the new hydrostatic 2-pedal gearbox, driving the tractor will be easy and intuitive. Everything can be controlled simply with your right foot resting on the pedal.

The operation is very simple: all you have to do to move forward us push the pedal with your toe. The riding-on mower will move forward according to the pressure on the pedal. Simply push the other end of the pedal with your heel for moving in reverse.

As soon as the pedal is released, the machine stops and allows safe operation.

Sturdy gears make the gearbox difficult to break. The hydrostatic transmission is, by its nature, much more modern and functional (although more expensive) compared to traditional manual gearbox. The latter model, whenever it is necessary to adjust the speed, obliges the Operator to stop, change gear (because in all the riding-on mowers with a manual or mechanical gearbox the gear change takes place when the machine is stationary), leaving the clutch and then restart at the desired speed. In case of frequent speed variations (e.g. in gardens with trees, vases or other types of obstacles) the standard gear transmission wouldn’t be practical at all. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping, in absolute convenience, in a totally automatic way, simply by varying the pressure on the accelerator pedal.

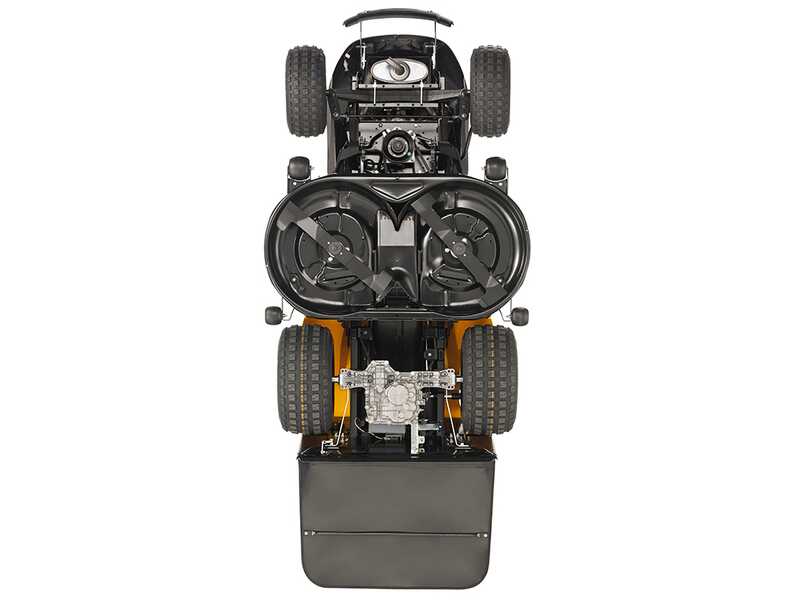

Stiga Estate lawn tractor mounts a 2-blade deck.

The machine comes with the blades already mounted.

A 102cm cutting deck width

It works by cutting in reverse.

The cutting deck is tilting: it adapts easily to the undulations of the ground (as long as they are not overly sharp).

The electromagnetic blade engagement is operated via the yellow button on the right side of the steering wheel. This system avoids the manual engagement by means of the standard lever which many models of riding-on mowers are equipped with and works thanks to an electromagnetic clutch that allows easy and quick engagement of the blades.

The height of the cutting deck is adjusted by means of a lever.

Seven cutting positions are available and can be varied from a maximum of 90 mm to a minimum of 30 mm.

Detail of the cutting deck with the mulching cutting system engaged.

The cutting deck is equipped with 4 anti-scalp wheels and of double washing connection.

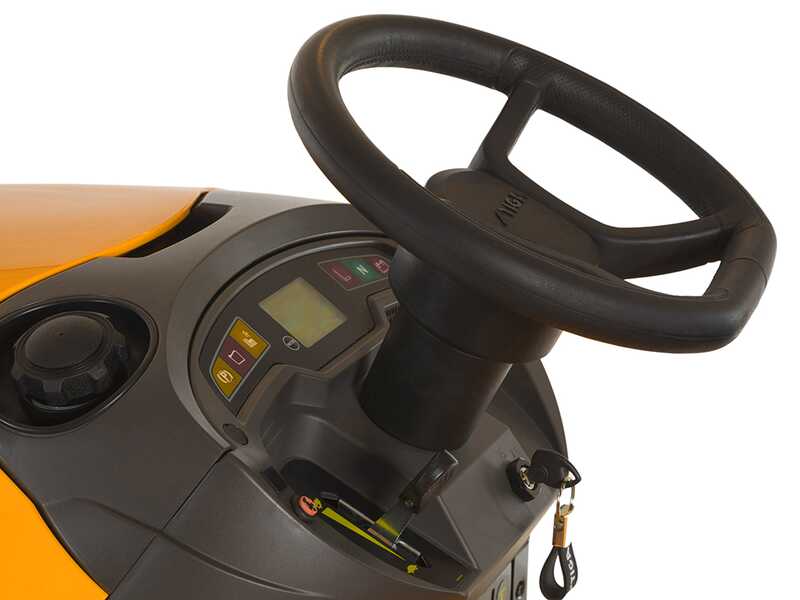

The controls and adjustments of the Stiga Estate lawn tractor are easy and intuitive. This model is provided with many controls

• Speed controller
• Braking pedal
• Electromagnetic blade engagement by means of the yellow button on the right side of the steering wheel.

• Cutting height adjustment lever

• pedal-operated hydrostatic gearbox

• control lamps indicating the operating status of the machine and alerting in the event of faults

Other features of the Stiga Estate lawn tractor:

• Engine bonnet can be opened for cleaning and maintenance
• Stiga comfort plus adjustable seat for maximum comfort in use
• Stiga Premium ergonomic steering wheel with soft grip
• Sturdy front bull bar: it prevents from frontal impacts and protects the machine.
• Huge rear wheels of size 18 x 8.5-8
• Front wheels: wheel dimensions are 15 x 6.00-6
• ensures excellent balance, stability and driving comfort even on uneven terrain.
• Detail of LED headlights
• Detail of the battery hidden under the seat
